• Skimmers, operating principle, main types

  • Tara2761

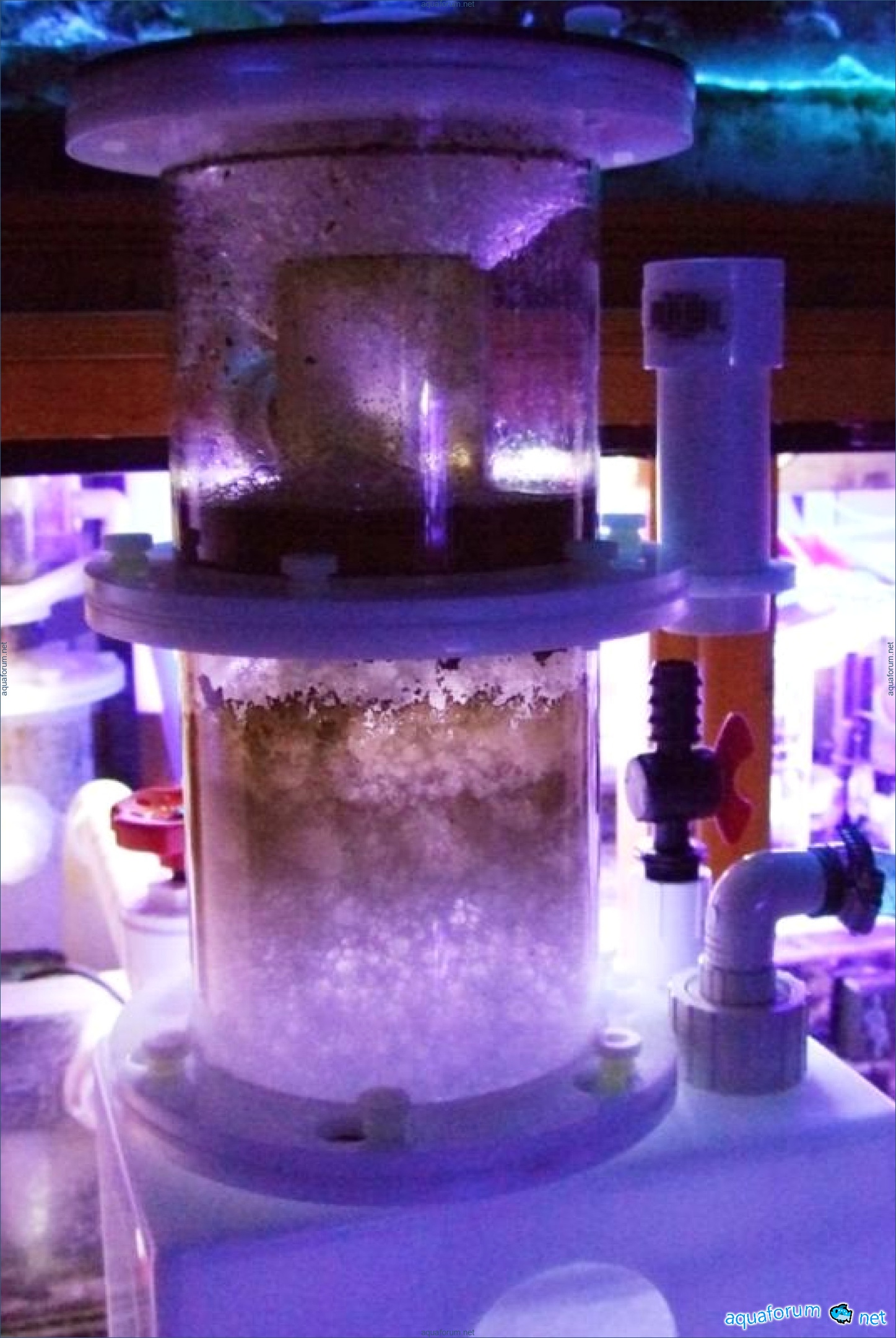

I will try to clarify what a skimmer is and how it works. Currently, there are three types of skimmers based on the foam generation method: 1. Turbo skimmers (also known as Venturi...) 2. Injector skimmers (also known as Downdraft...) 3. Floaters (operating from a compressor). In the first type, air is supplied to the pump inlet, hits the impeller, is broken into small bubbles, and enters the skimmer. In the second type, air is drawn in by an injector located at the pump outlet. In the third case, it's simple - a compressor and a diffuser. Each type has its own advantages and disadvantages, depending on personal preference. I prefer injector skimmers, although they are not practical for small aquarium volumes (less than 200 liters). Each type has many design variations. I will show models that, in my opinion, have the most successful design solutions. Photos of the turbo skimmer... Work photos will be available next week.

Gary6376

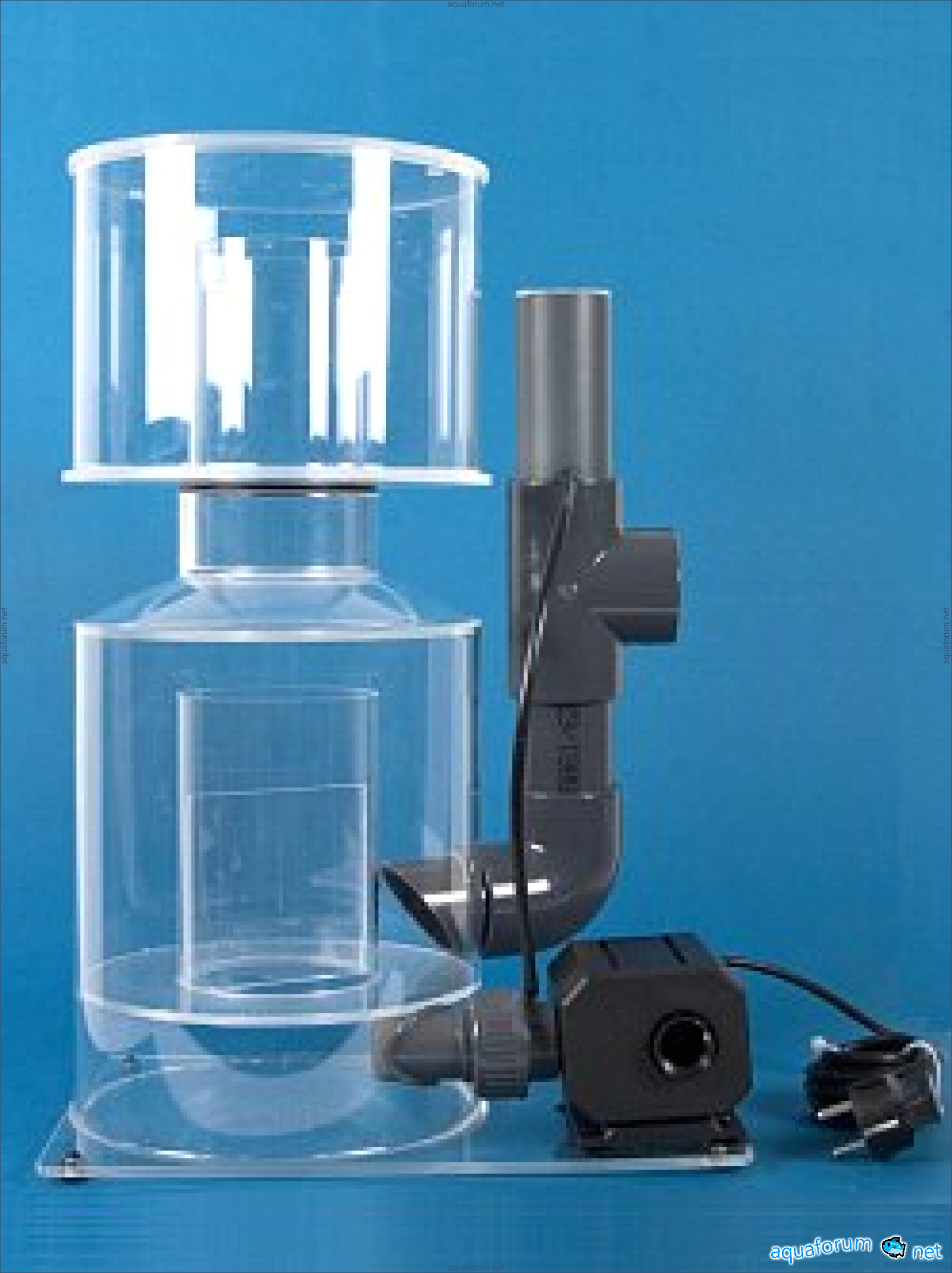

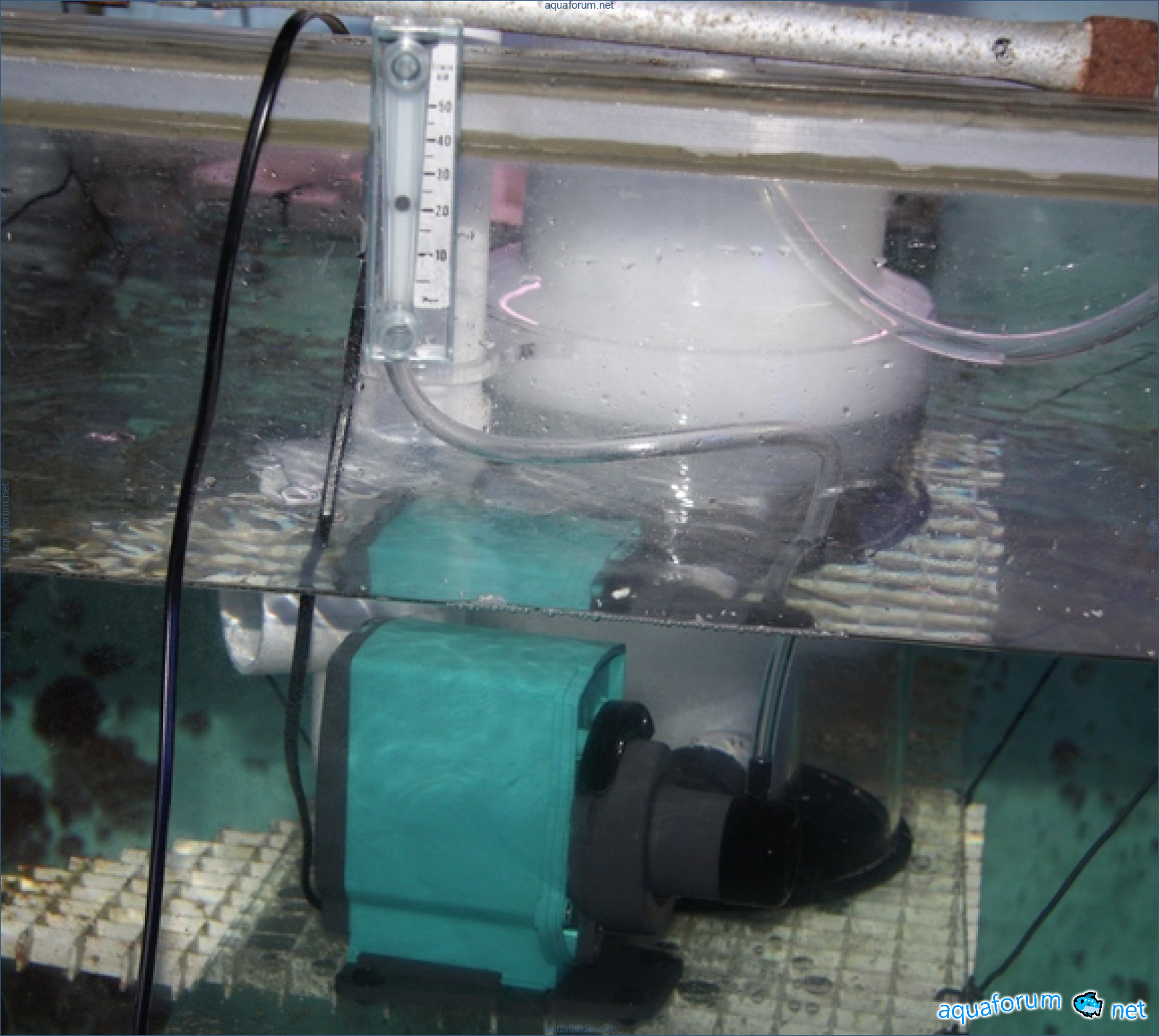

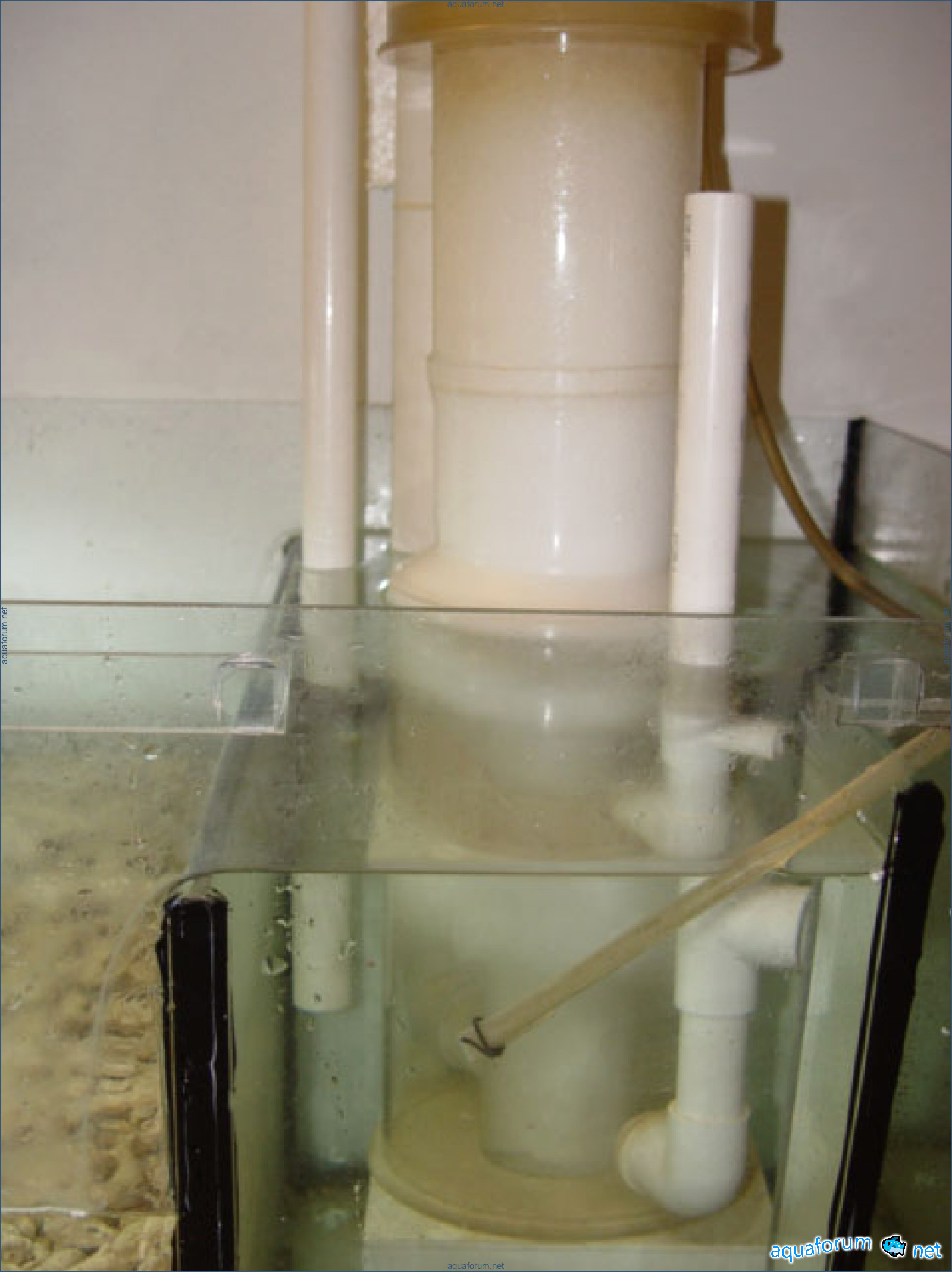

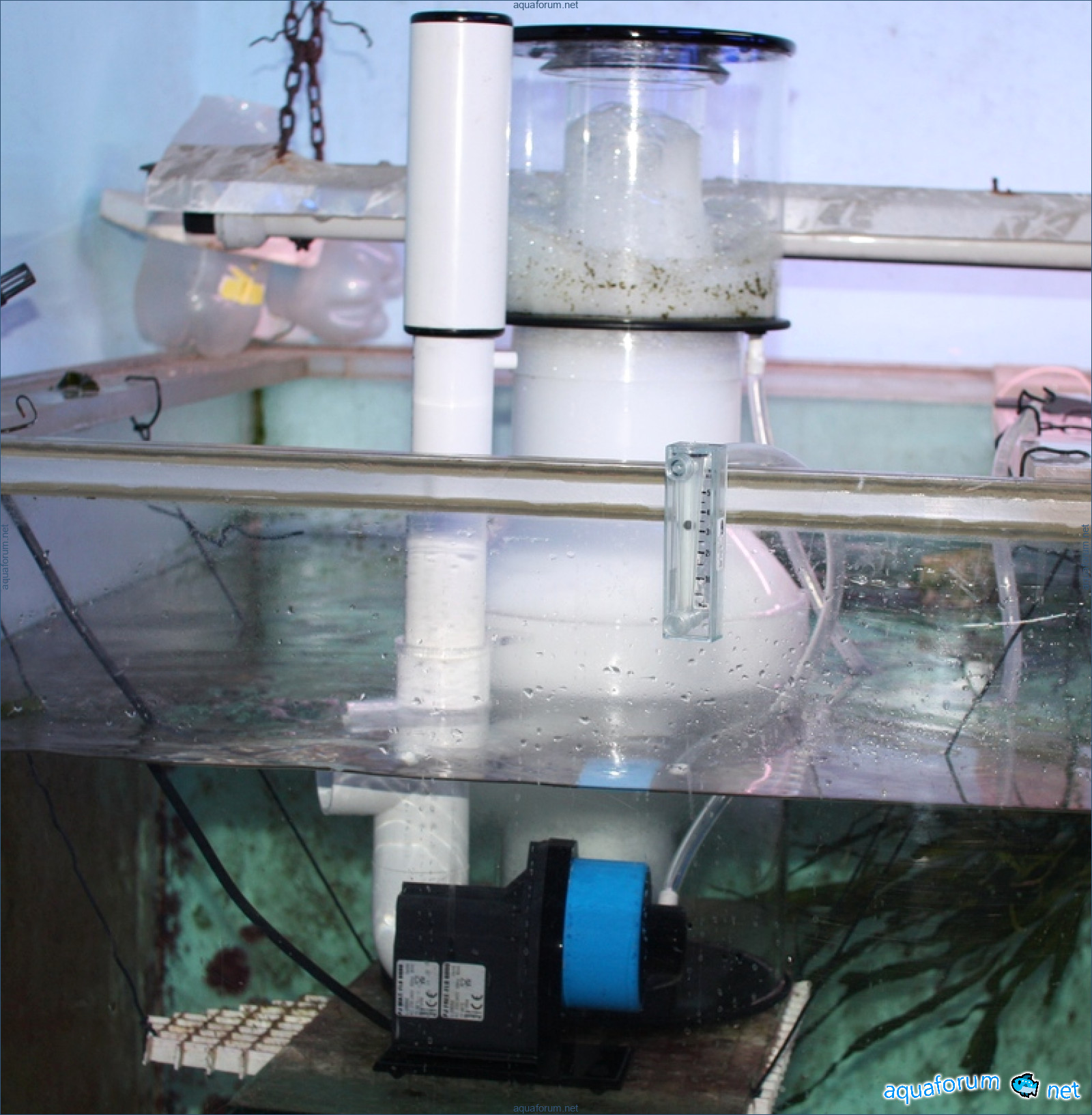

Injector Aquarium 230L

Chelsea567

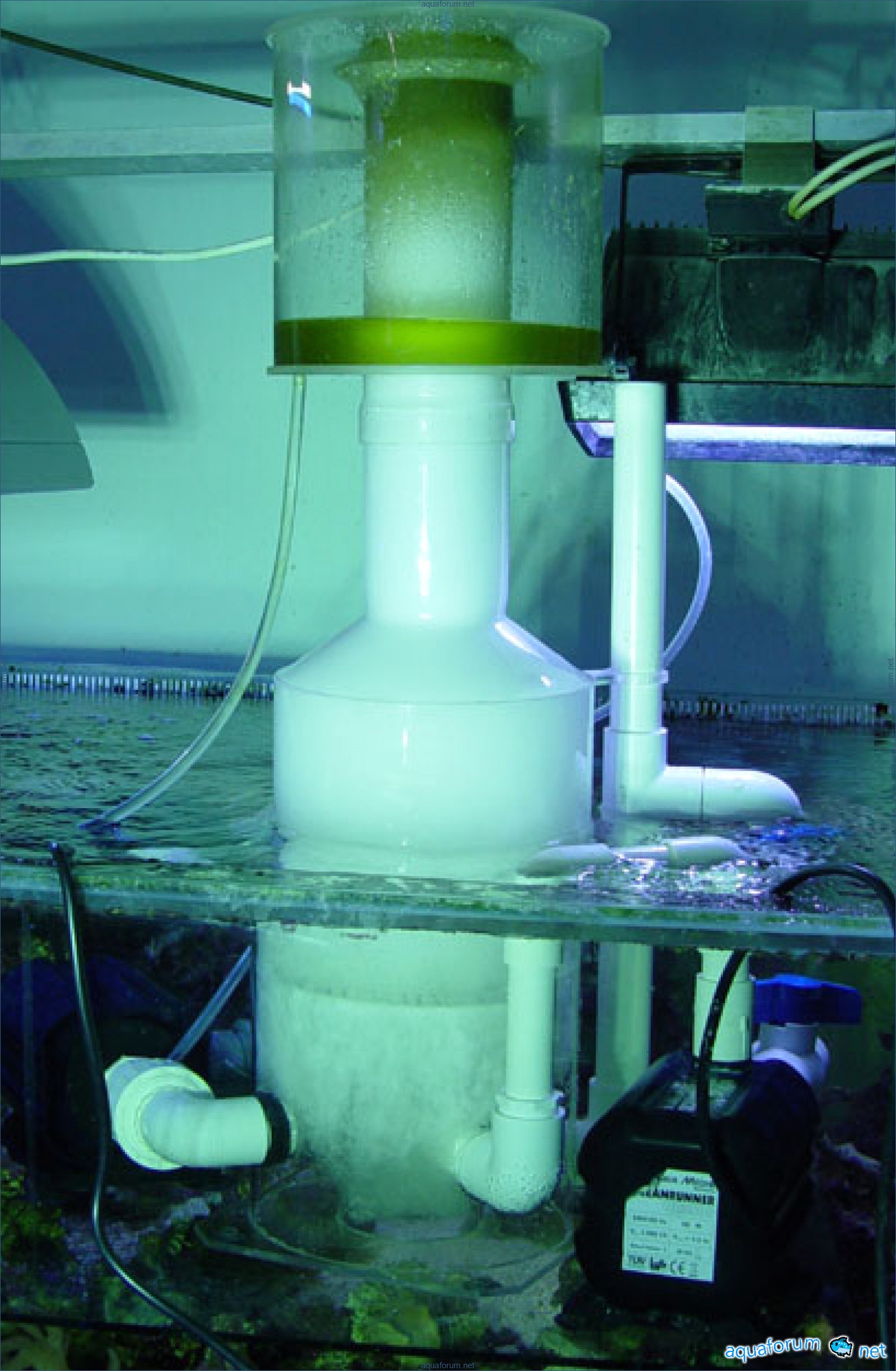

Injector 630L

Raven7170

Injector 1600L I won't talk about the flotators... (nothing good comes to mind)

Gene1948

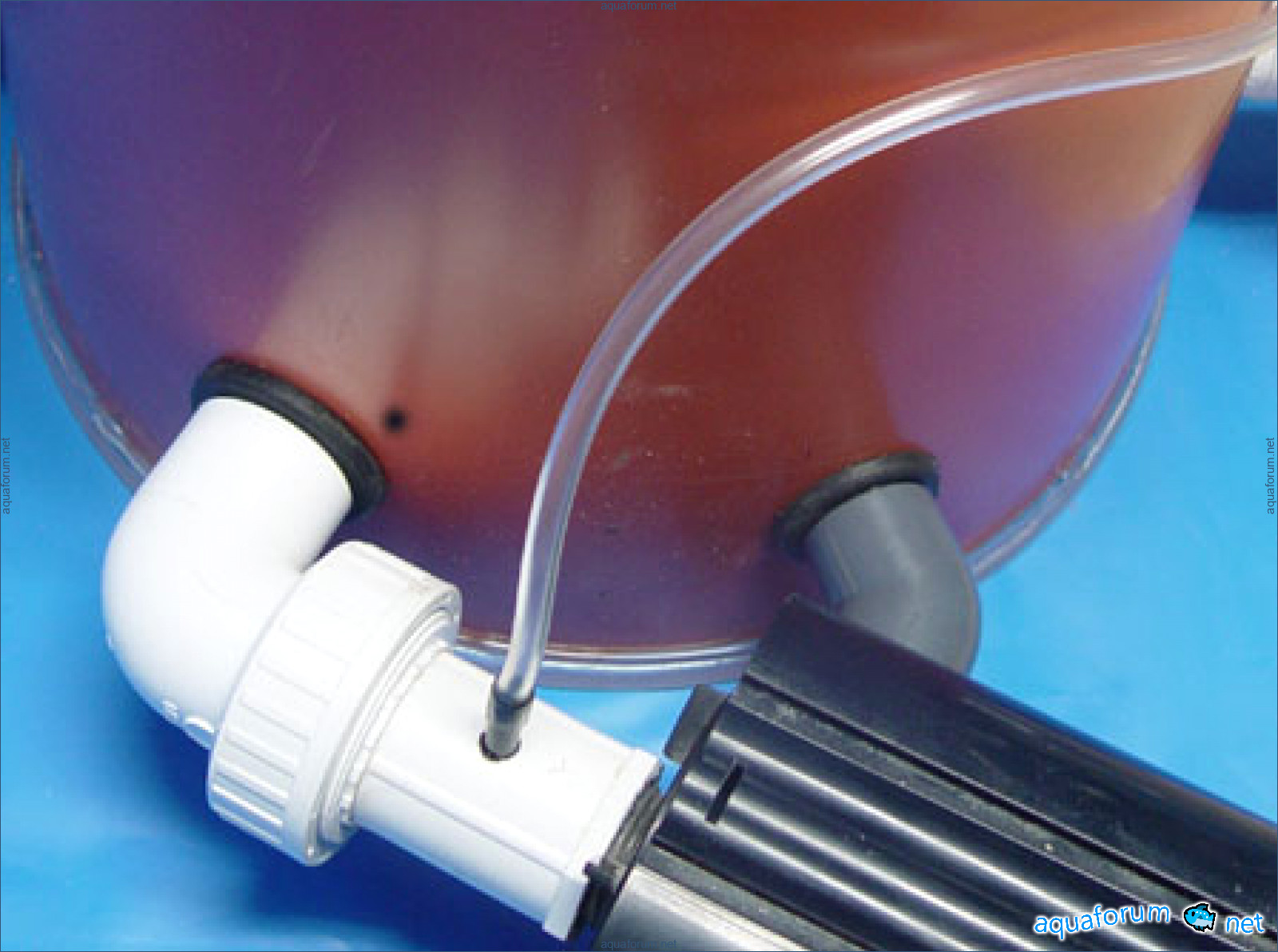

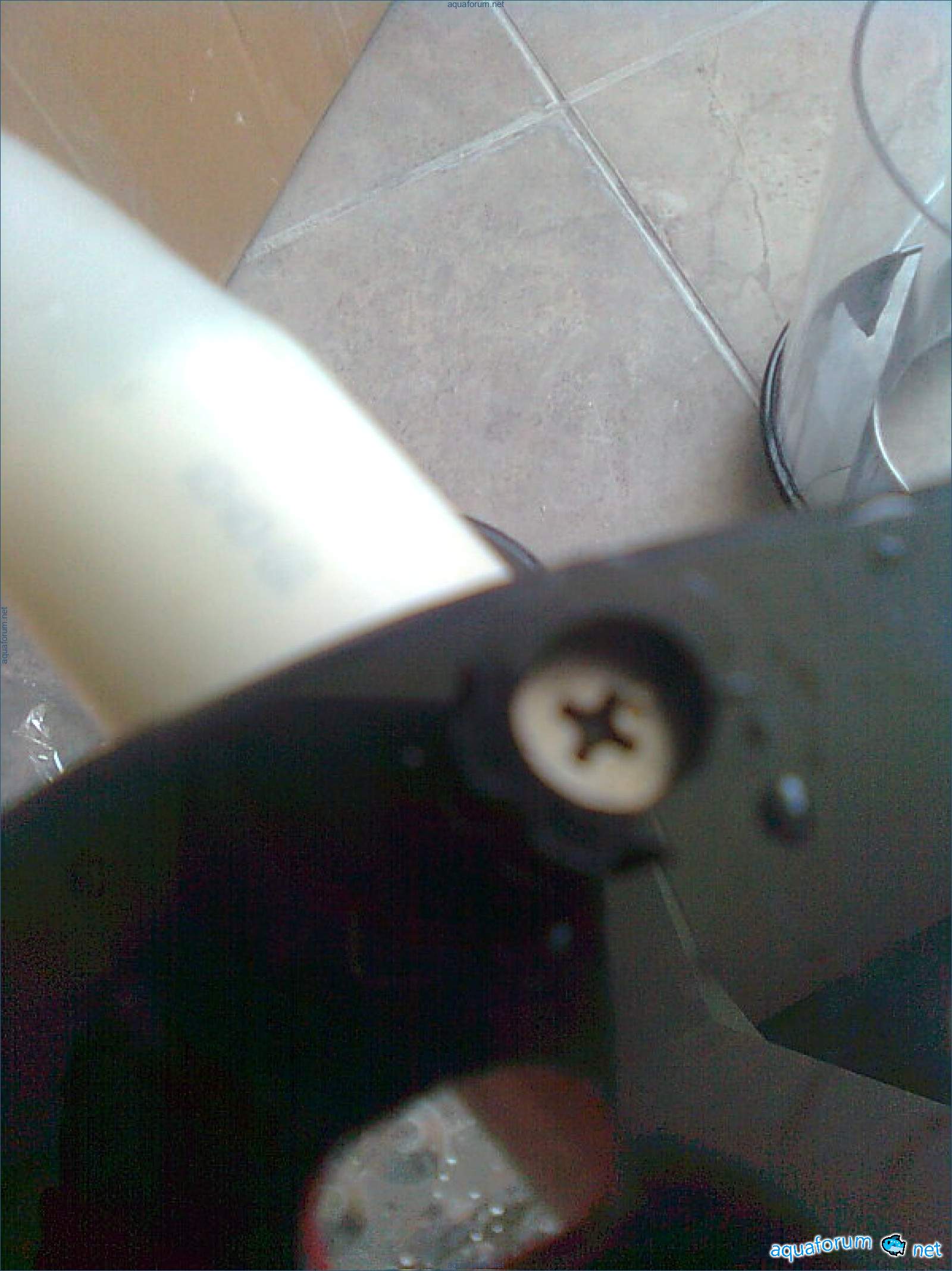

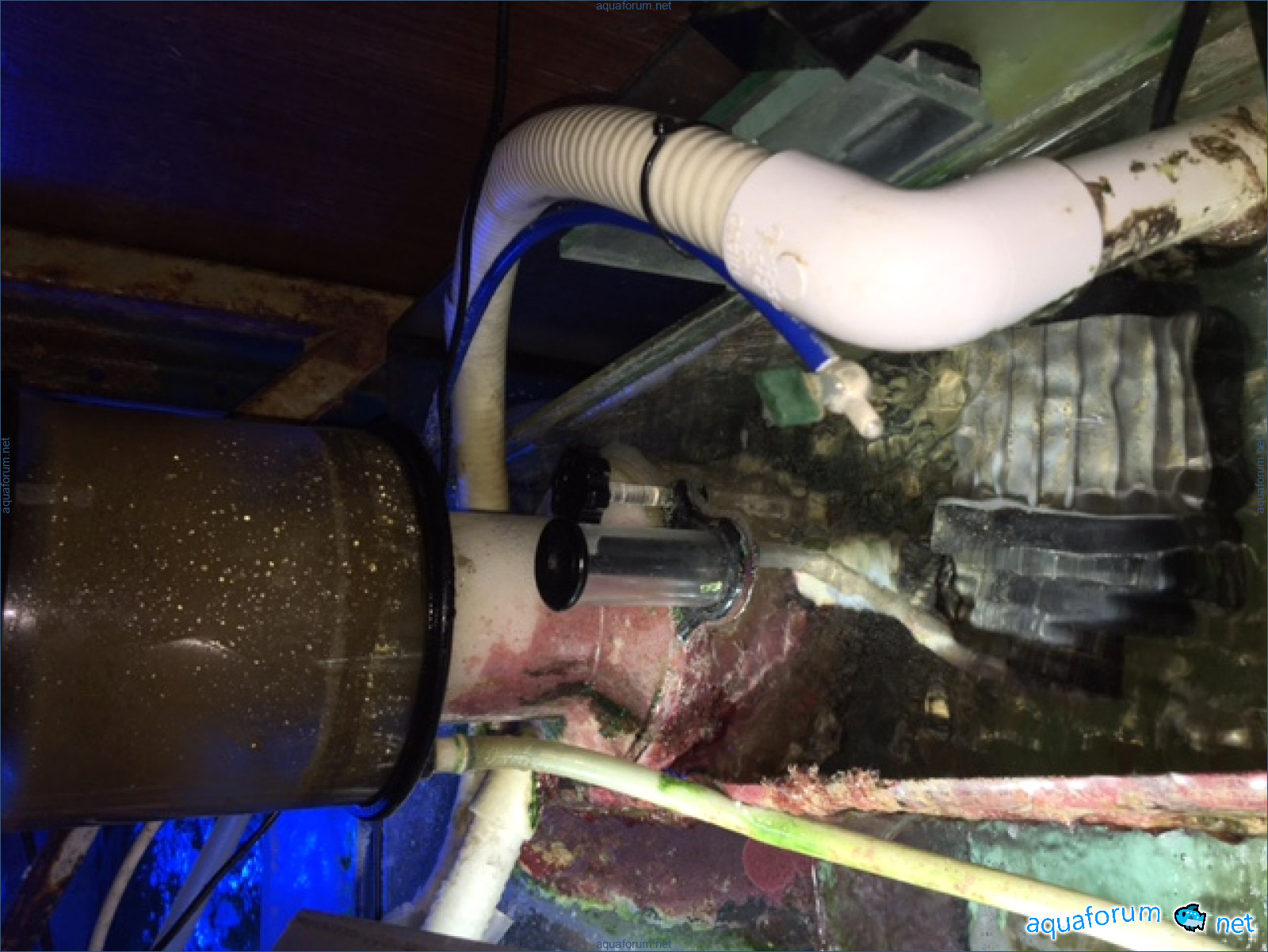

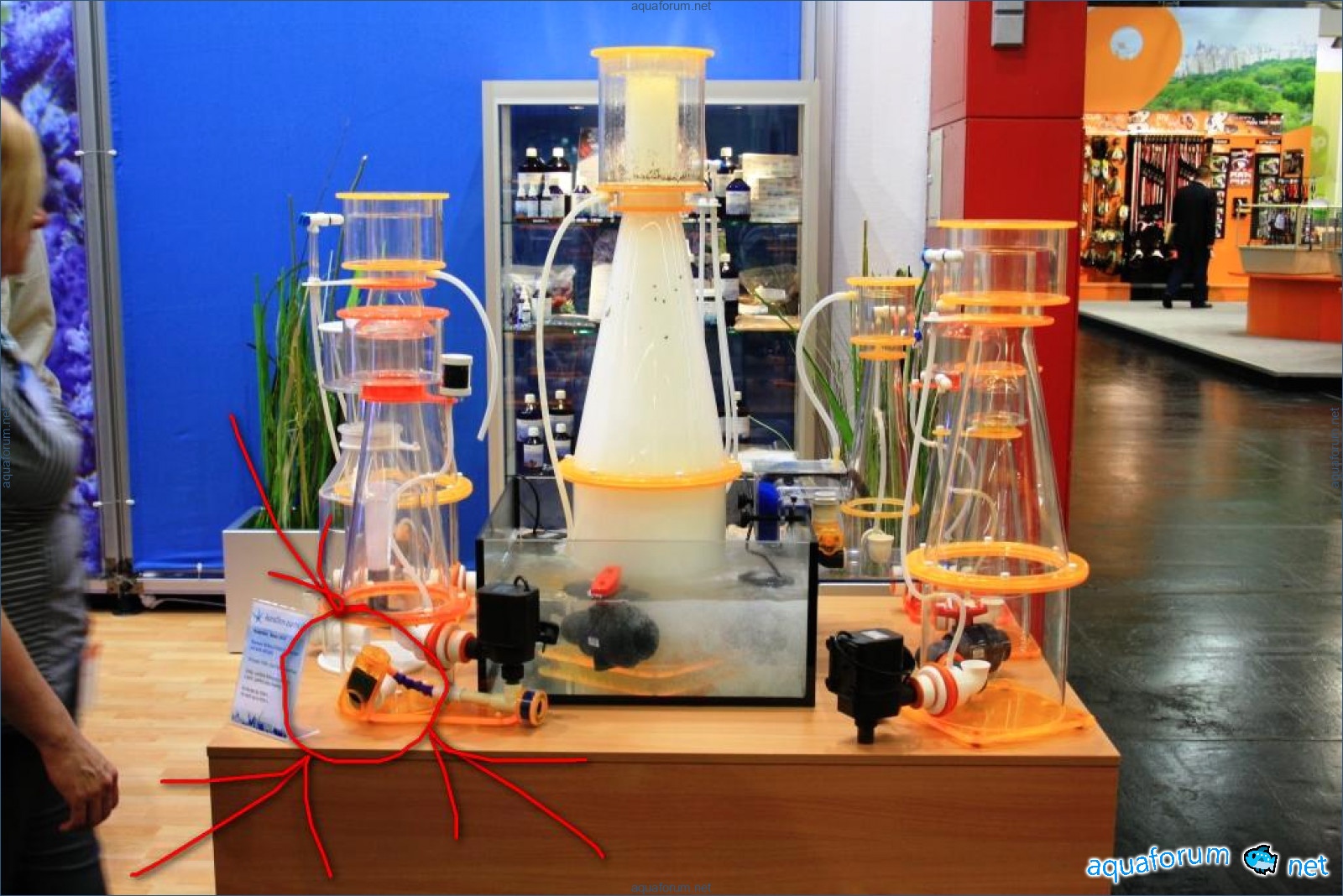

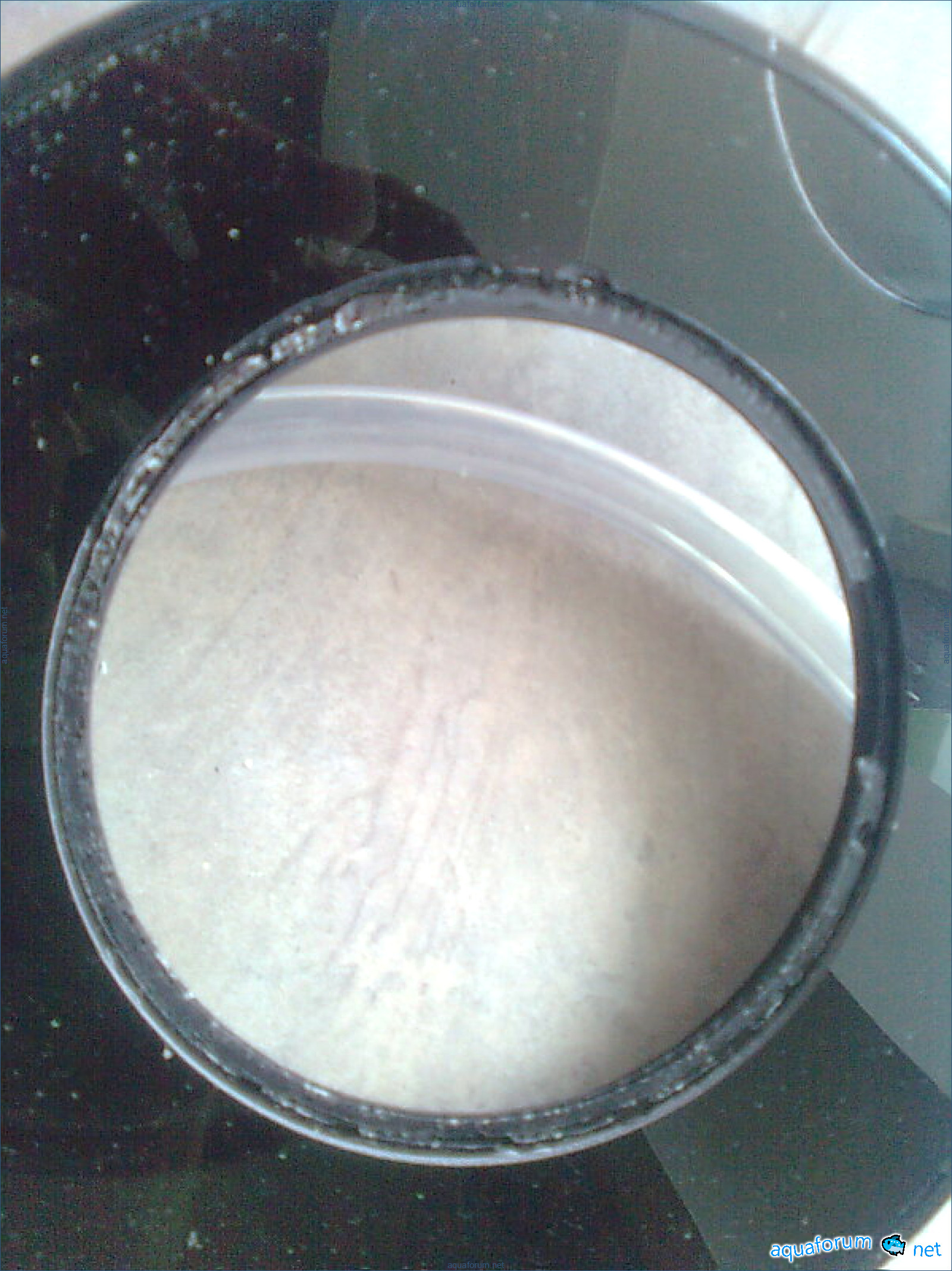

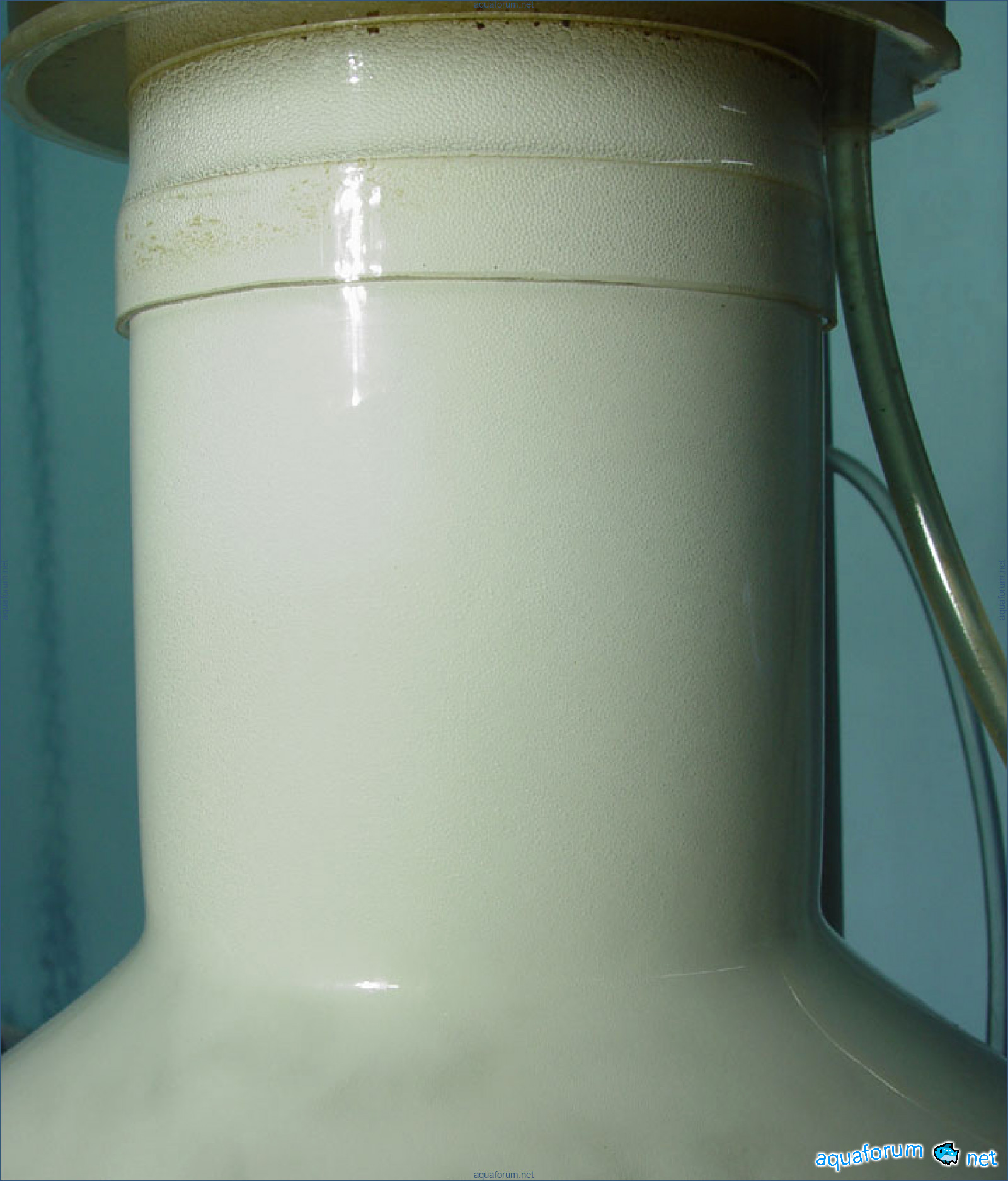

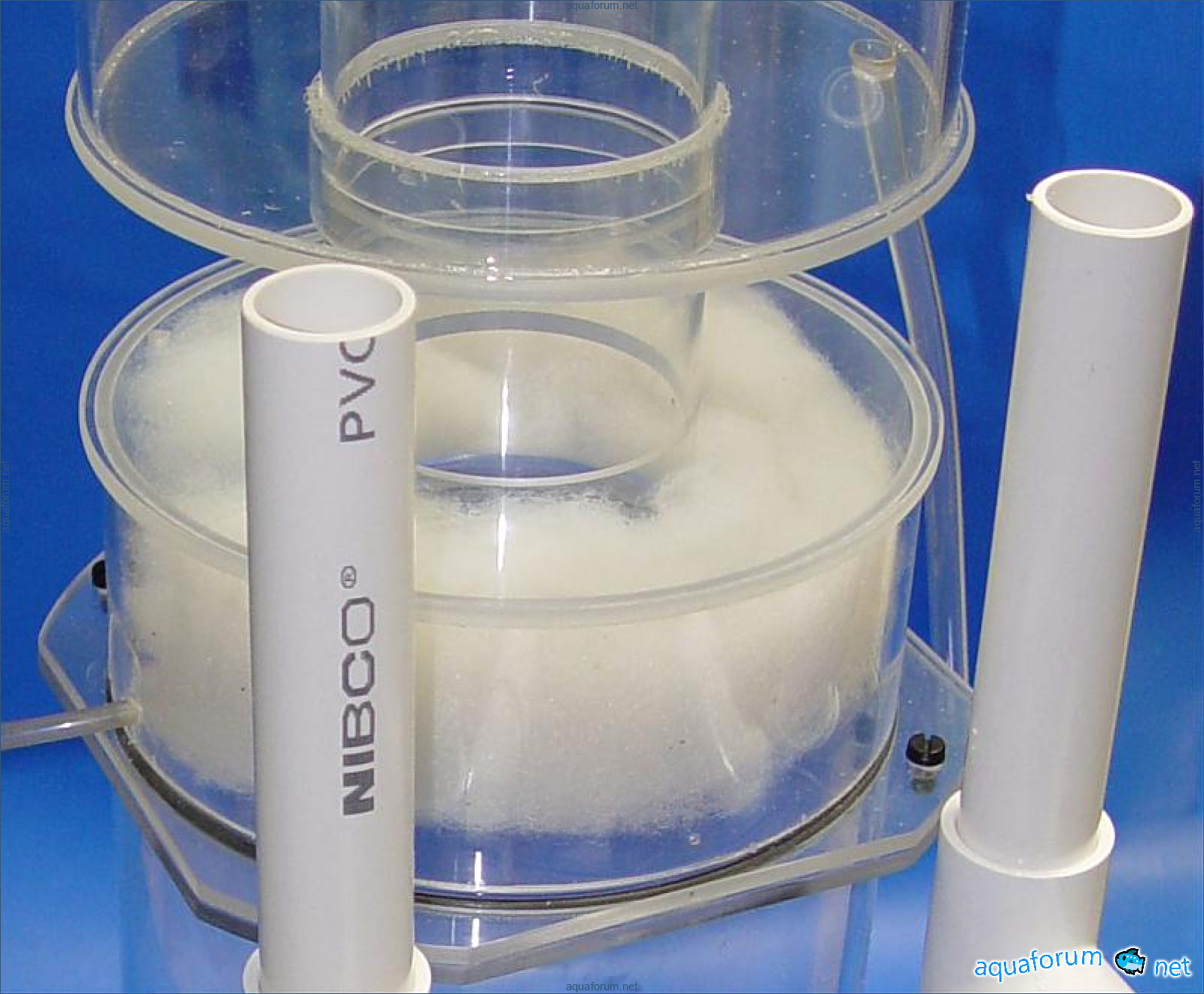

In this photo, I see a rather controversial method of attaching the PVC pipe to the acrylic through a cantilever connection using a PVC rod. Is it reliable? Maybe it would be better to use rubber instead. Overall, the design works, even without a cone when transitioning from a larger diameter to a smaller one, but with a sufficiently powerful foam pump, it should work well. Also, I would drill larger holes in the mesh.

Kimberly3727

Informative ... However, this has already been described and discussed, for example, here, and the description is much more complete; here it is just an advertisement for the products, and nothing more ... P.S. You can spare me the insults in private messages, as it happened on the Russian forum; I will delete messages without reading them ...

Sharon

You know better Everything I know, you taught me. I checked right away, just didn't want to rush. We'll count the chickens a bit later. I knew what place the product would take even before its creation. I'm not saying anything yet; I don't want to be unfounded. However, the ice has been broken... The links to the topics you mention are hardly usable; they have been edited too much.

Bryan1851

they

Robin

You are already being unsubstantiated, do not mislead people, provide quotes if you have them. I am currently using the welding method and design that I proposed, and I am not doing what you suggested and do not intend to. I deleted my messages (I have not renounced my ideas) in this thread due to tactless remarks and inadequate actions of the moderators. There are still people who read everything... I would prefer not to have a confrontation here, but it is necessary. Still, I hope we can discuss the topic. My design options are just a drop in the ocean of all possibilities. Share yours, and we will discuss.

Emily

Here is about "welding" of plastics. At the top are the first two articles.

Kellie

Since I am using the Leister Triac S, these tools were included with the equipment, but I gladly refreshed my welding rules, especially since a big job is coming up soon.

Anthony

I have read this. The meaning they put into the word SUFFICIENT can be understood after you try to do it. I can definitely guarantee that in the construction I used, the strength of this weld is sufficient. This "weld" can be used, but you need to know the limits.

Steven757

What are the versions regarding why they inserted a PVC insert between two acrylic parts, placed two seams instead of one, and didn't just weld acrylic with PVC using an electrode? There could be several options: 1. For aesthetics 2. They simply have a lot of PVC 3. They get a good kickback for using PVC 4. Acrylic with acrylic is unreliable 5. They are just incompetent and don't know that we have people who can do this effortlessly.

Heather

2, 3, 5 - just not serious 1 - very likely. 4 - I don't know, but maybe the connection will be fragile? 6. Perhaps for reinforcing the structure? Is there a material stress at the connection point?

Patrick4439

It's unlikely to be about beauty. For example, I prefer the connection on H&S. They probably had a reason to increase the cost. Apparently, they calculated that welding without an insert is not possible. From the photo, it's not very clear whether the parts are welded edge to edge or if the upper part of a smaller diameter fits into the lower one... And why are you gluing instead of welding?????

Scott9892

It's the same eggs, just viewed from the side. You can present your product ON THIS FORUM, in this thread as one of the design options, and we can discuss it here. Or are you too weak...

Crystal4879

It’s better to glue it together and then weld it; it’s more reliable and looks better.

Nicole7268

It's enough to do just one thing, but do it well. And it turns out both beautiful and reliable.

Lindsay

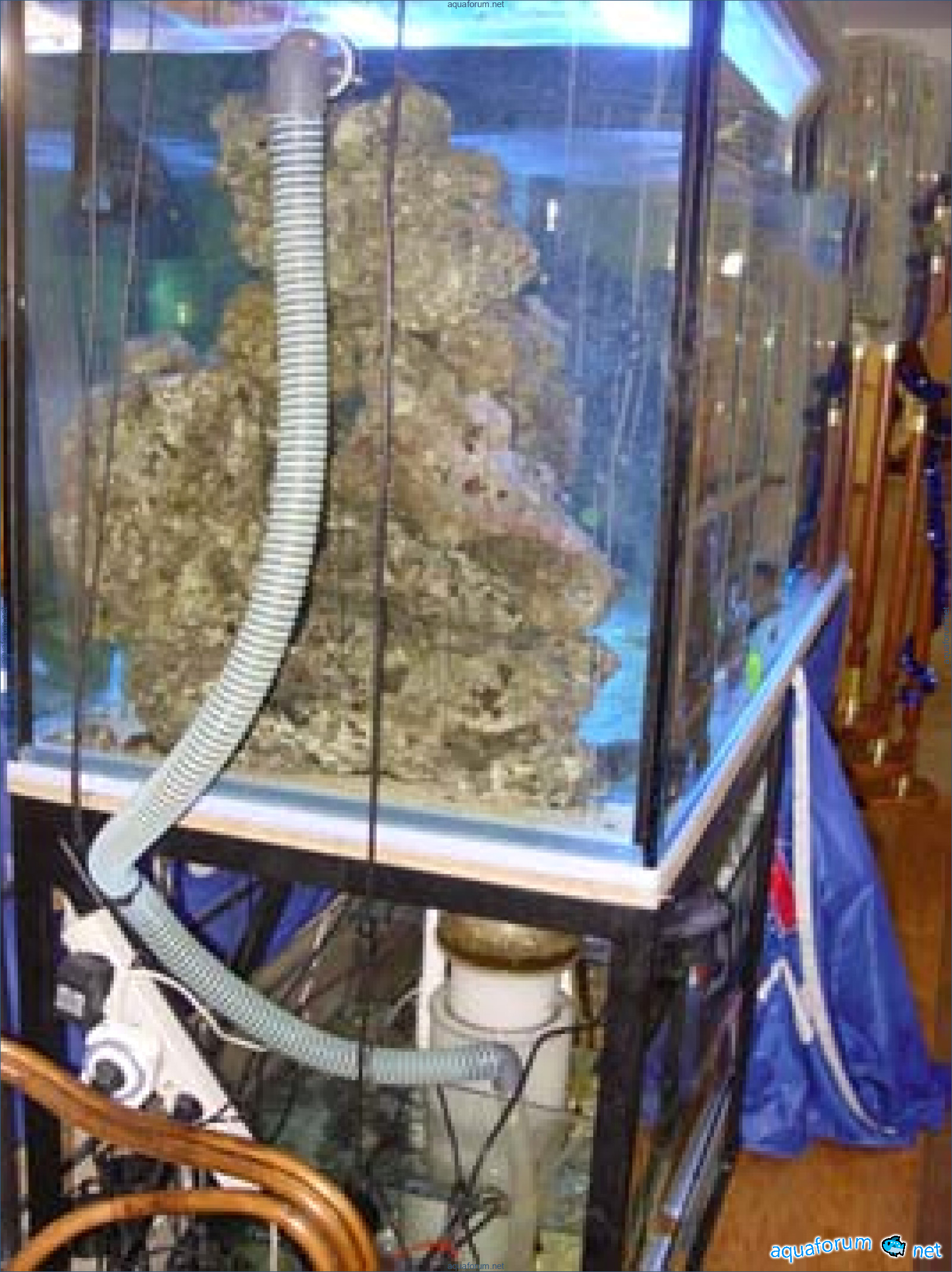

Finally, the drinking has come to an end, and we can see what we have. I was given the opportunity to take some photos, and I immediately took advantage of it. As a result, it was discovered that the product is being used for its intended purpose and works without deviations. With the settings chosen by the owner, the skimmer produces 1 liter of foam. It currently has the standard AM whisk, but I think it will be replaced soon.

Jeffrey2277

I don't like these hanging hoses. They seem wrong, unprofessional.

Zoe7451

This is not for me. The author had their own reasons for doing it this way...

Phillip9722

What was the reason you deleted your message number 15 in the thread (as a moderator, without a trace)? I think you would delete it here too, but there is no such option.

Jesse

To avoid exposing you as a clone under the nickname 777a, but you just can't help it. There has indeed been a lot of off-topic discussion here, and it could have been highlighted separately in the relevant thread, but I have no intention of retracting my words, so read them at your leisure. I deleted my message not as a moderator, but as a user, since it is my message, and as a moderator, I could have removed the clone 777a, but let it be; after all, the picture is not bad.

Jessica9188

A miracle happened, a friend saved a friend Now I am in debt

Debra6575

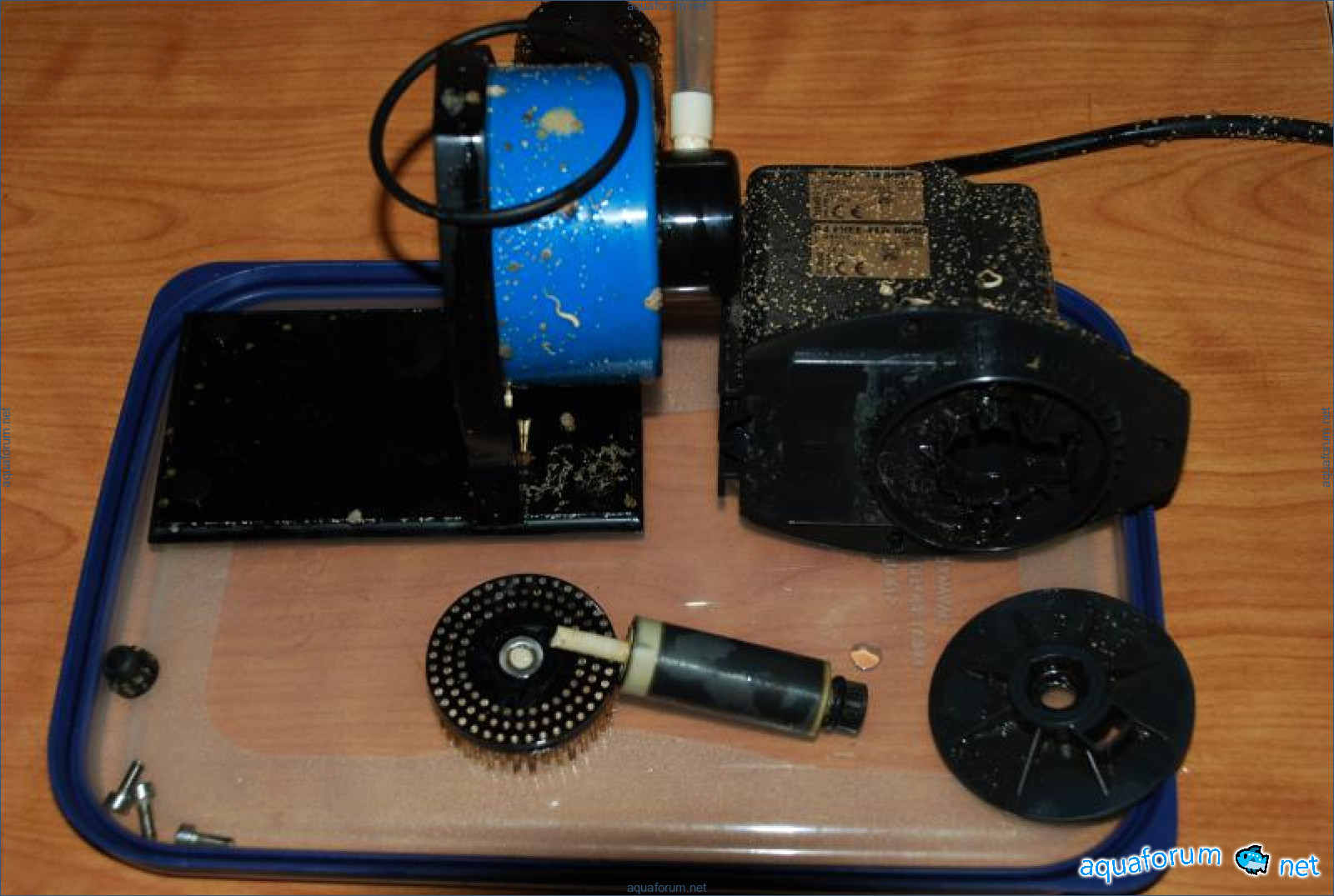

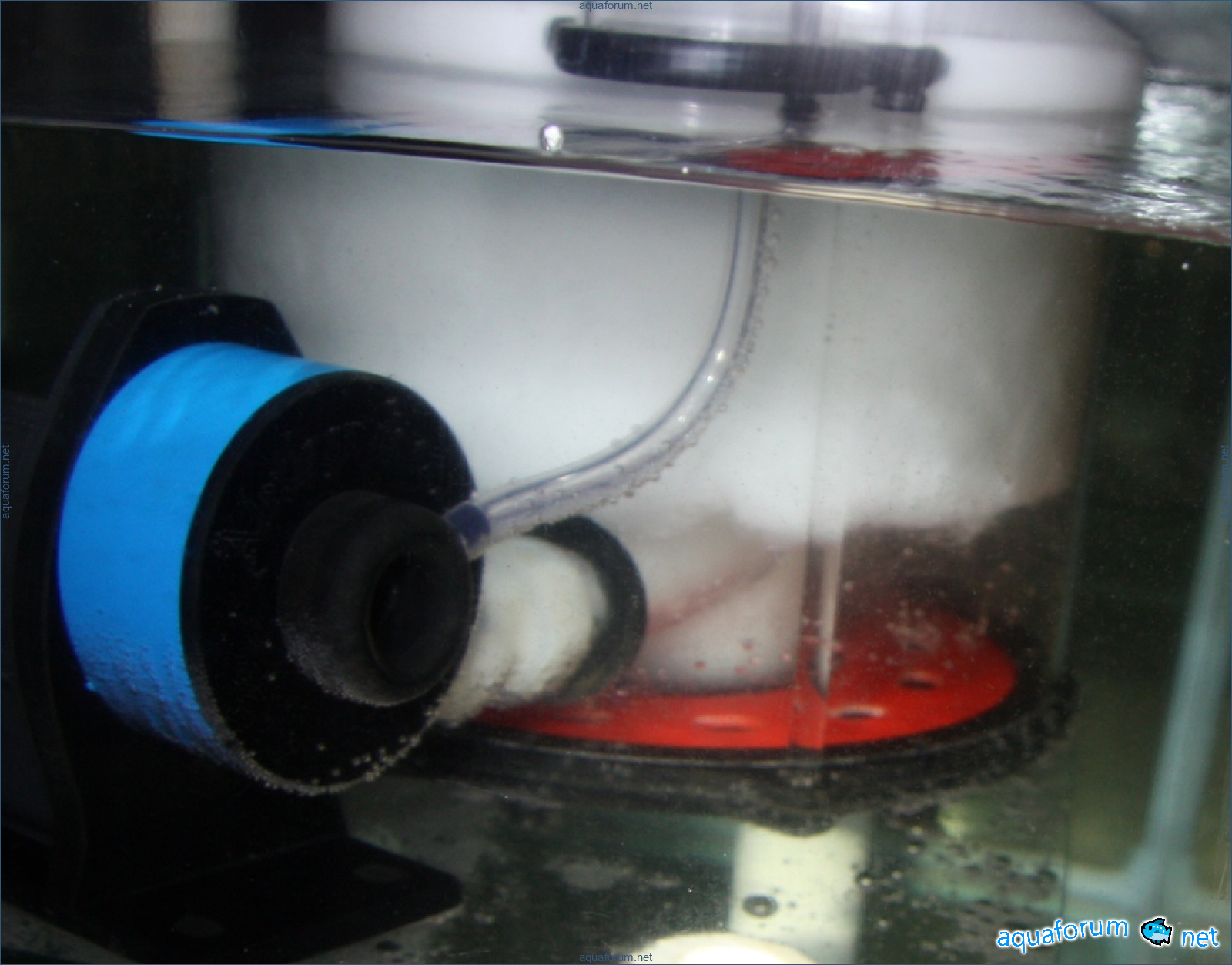

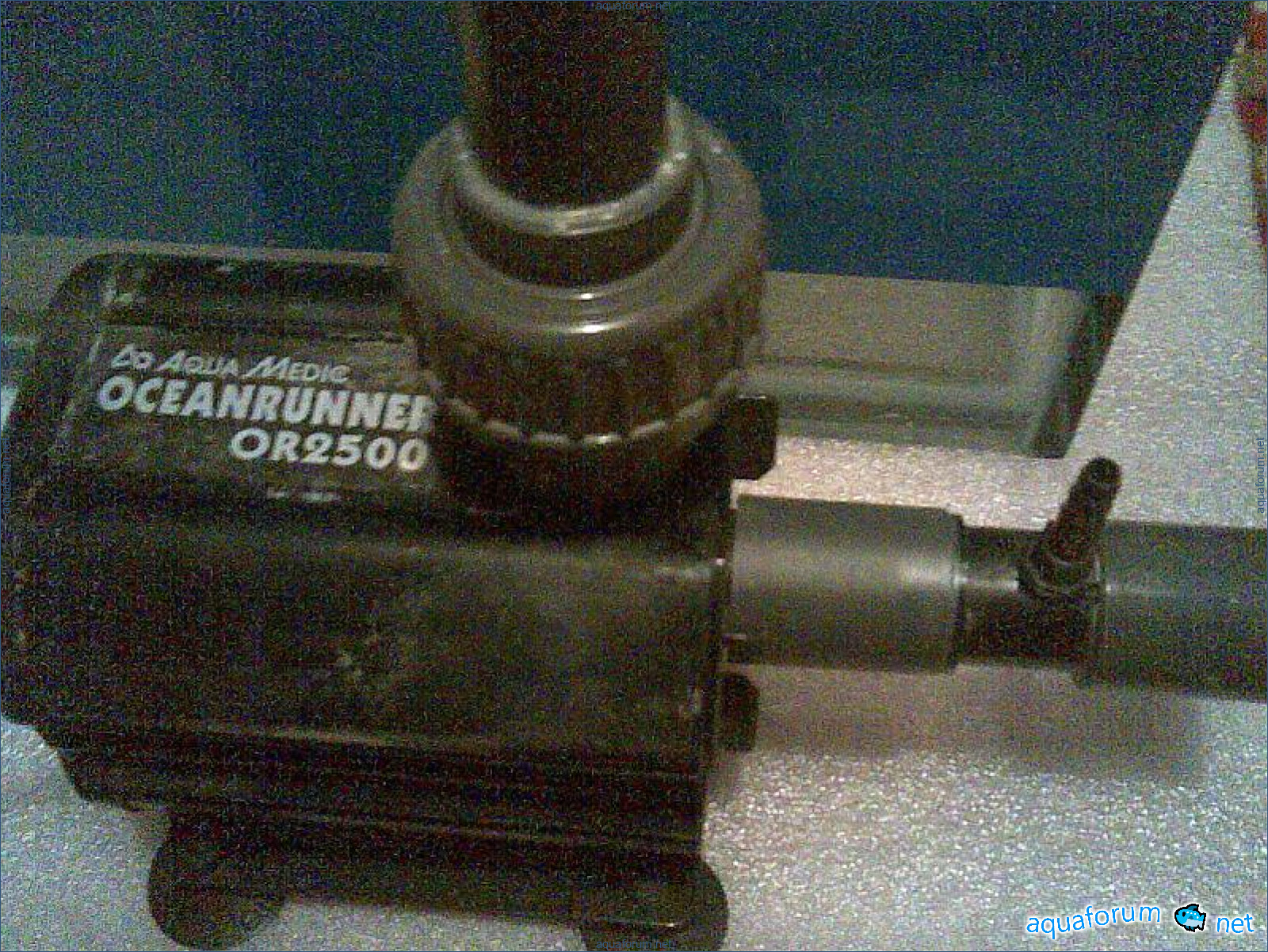

The disc on the impeller is already installed. When Enka arrives, I will install it. After many attempts, I settled on this type of mounting...

Reginald5073

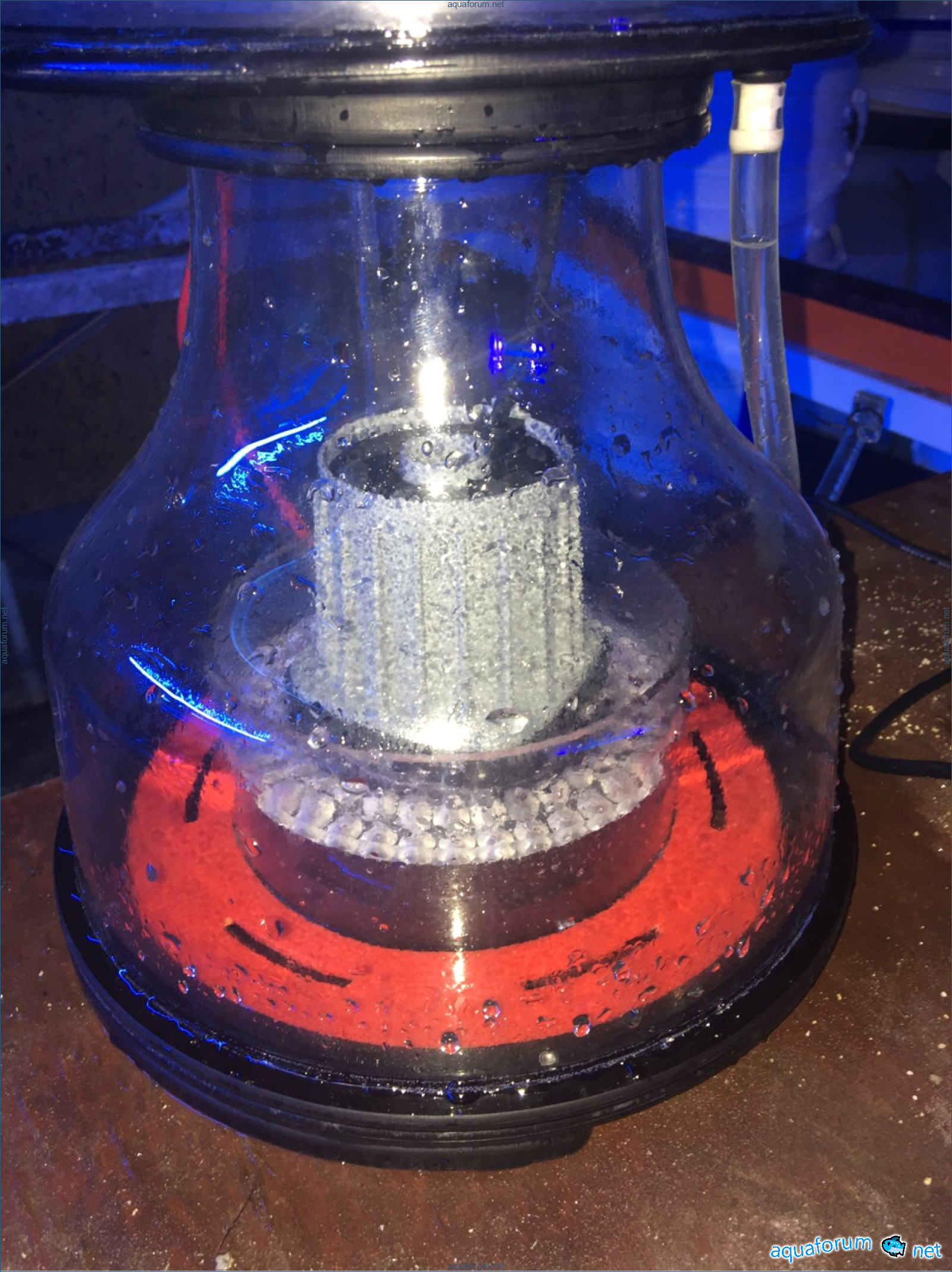

Arrived..., set up... Result - Air suction is 1.5-1.7 times greater than with the AM broom. How the foam volume will change will be seen a little later.

Brandy

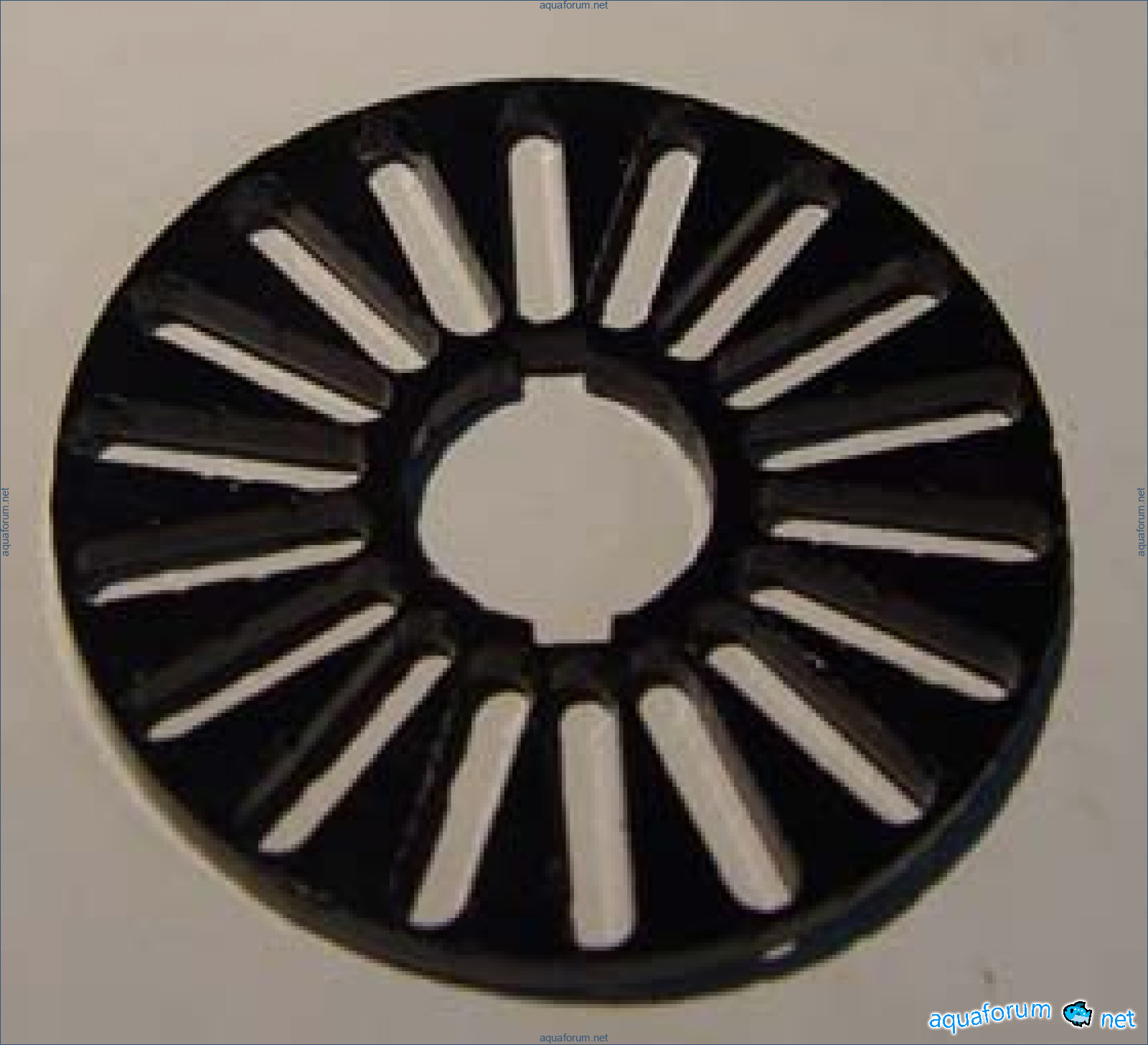

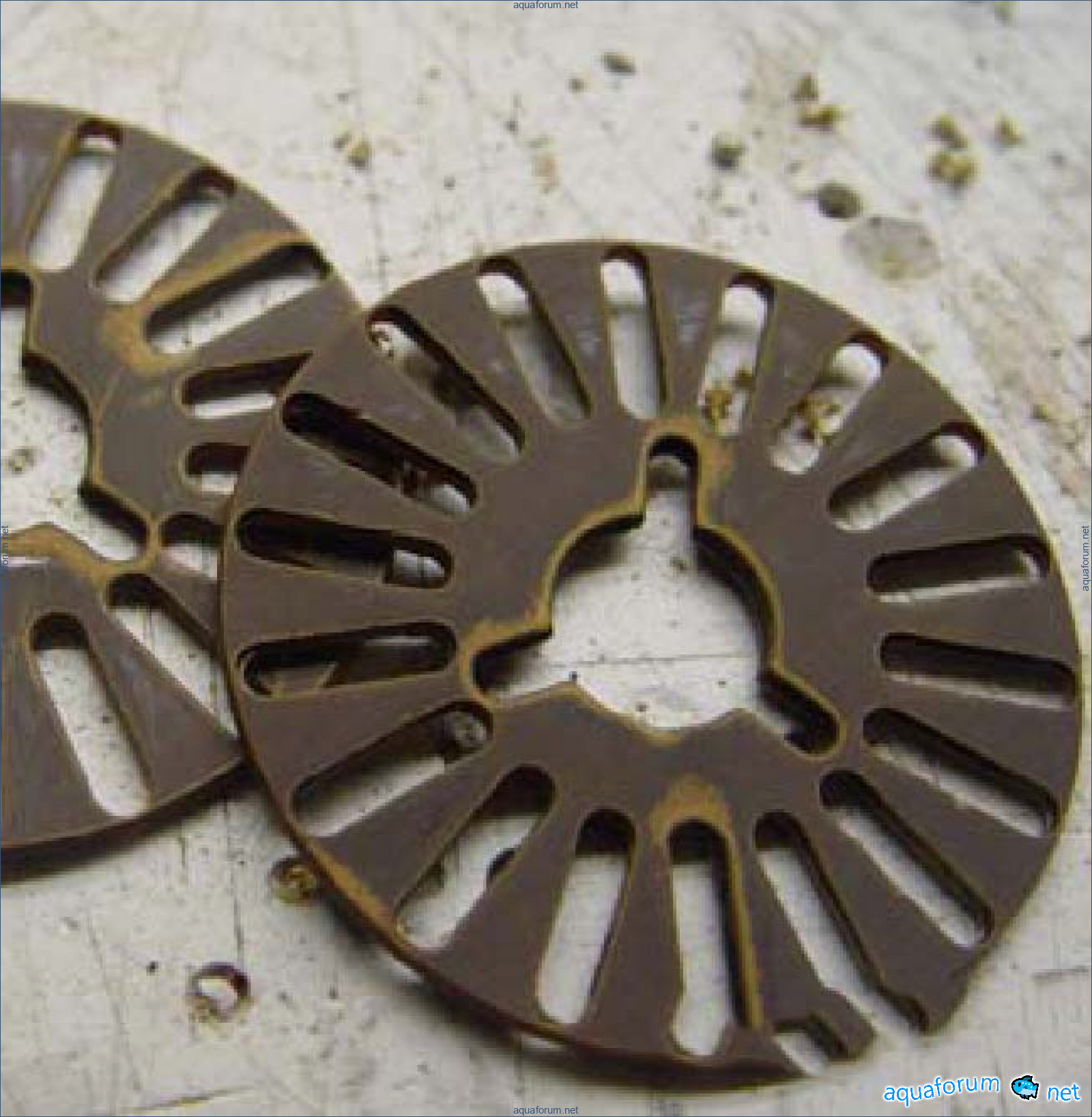

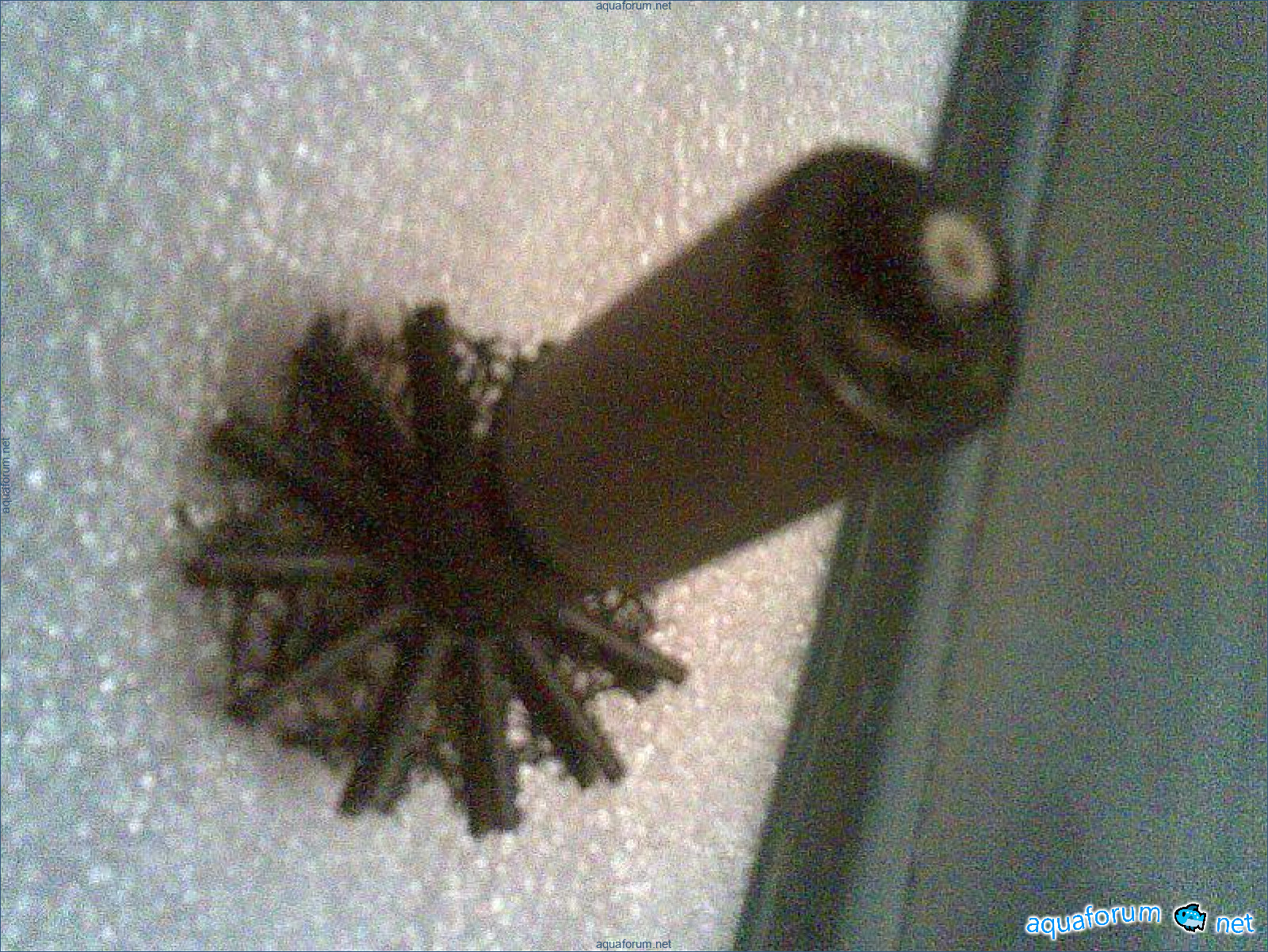

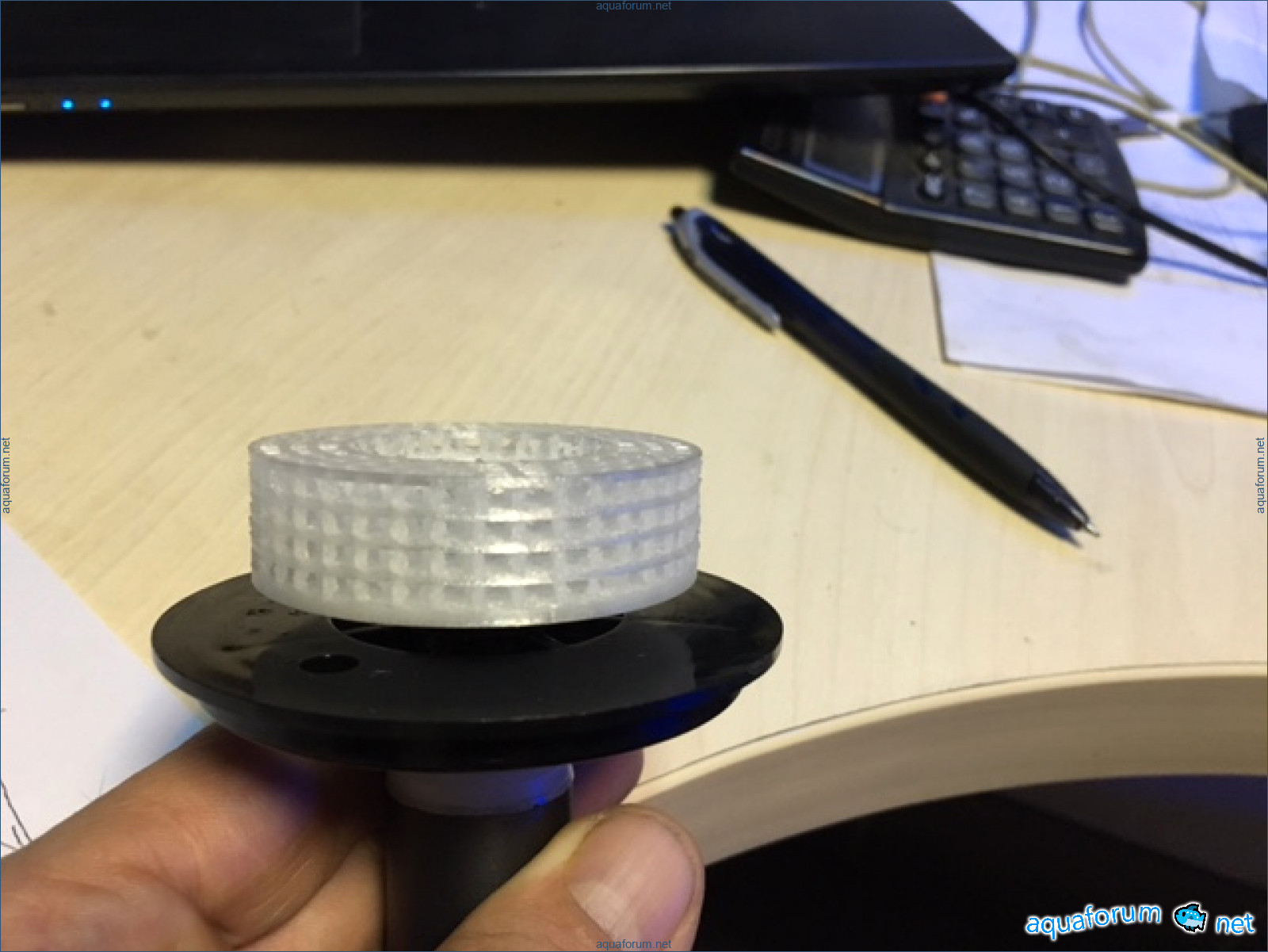

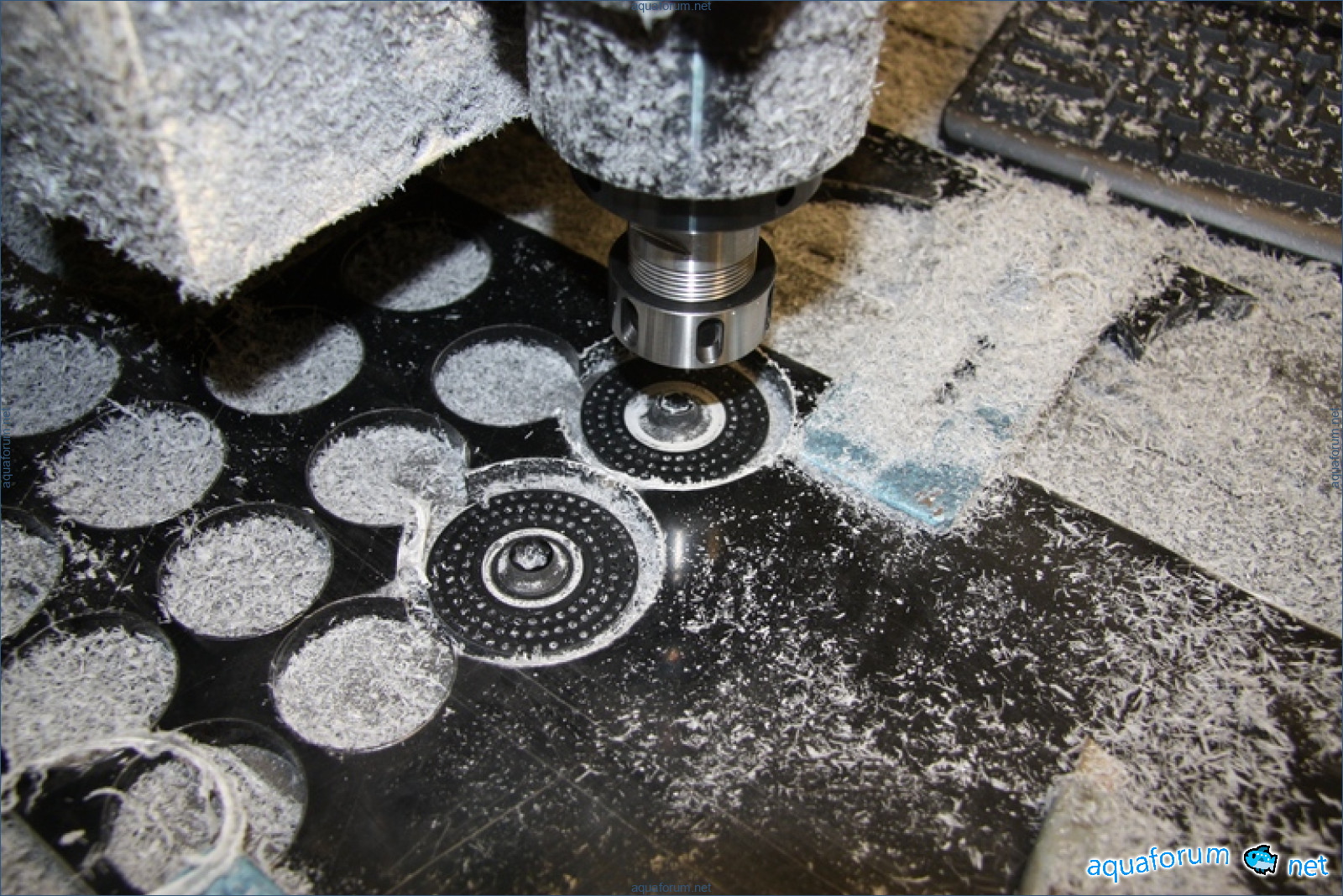

Disk for the impeller Or 3500 - the latest version...

Loretta5483

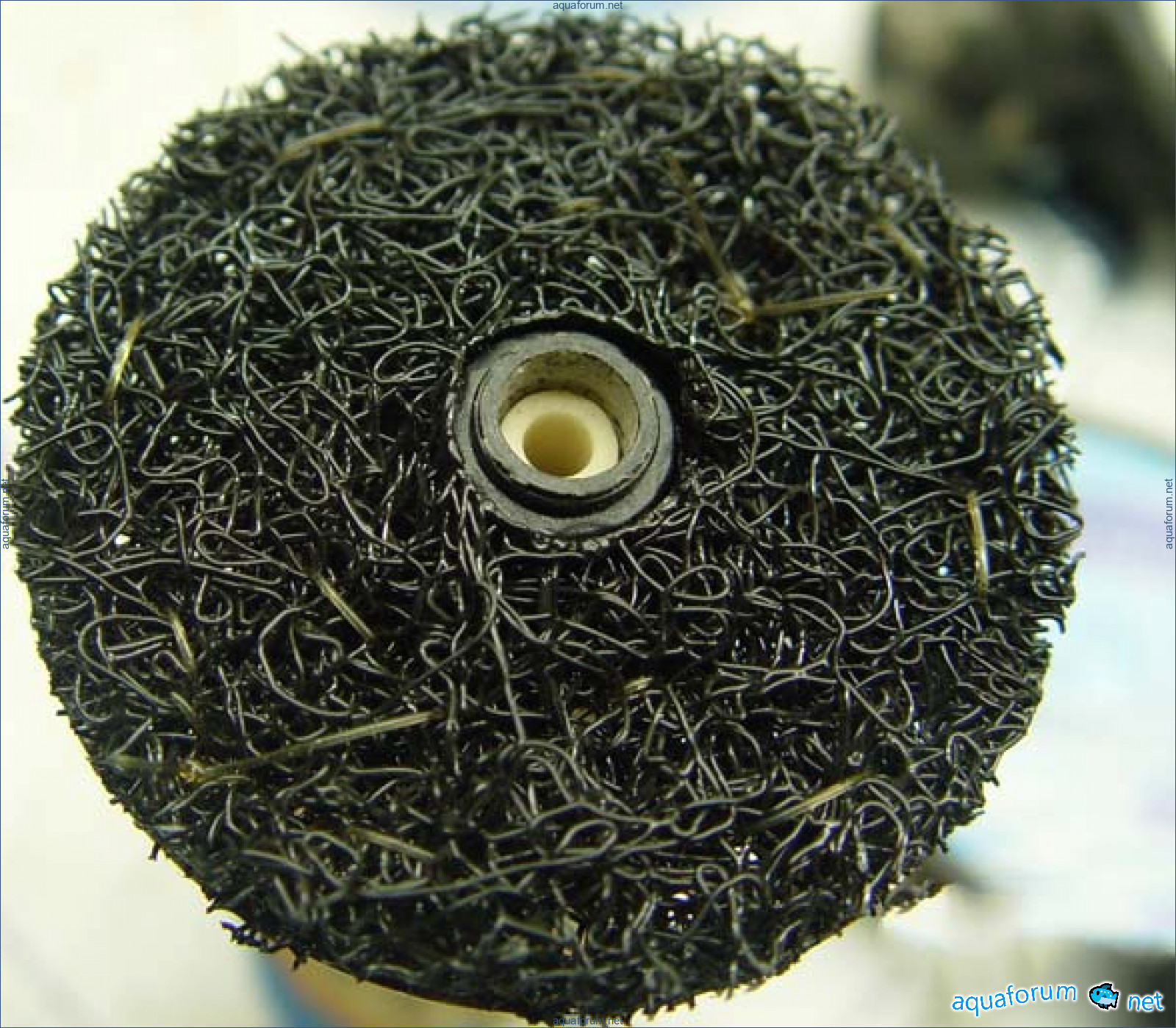

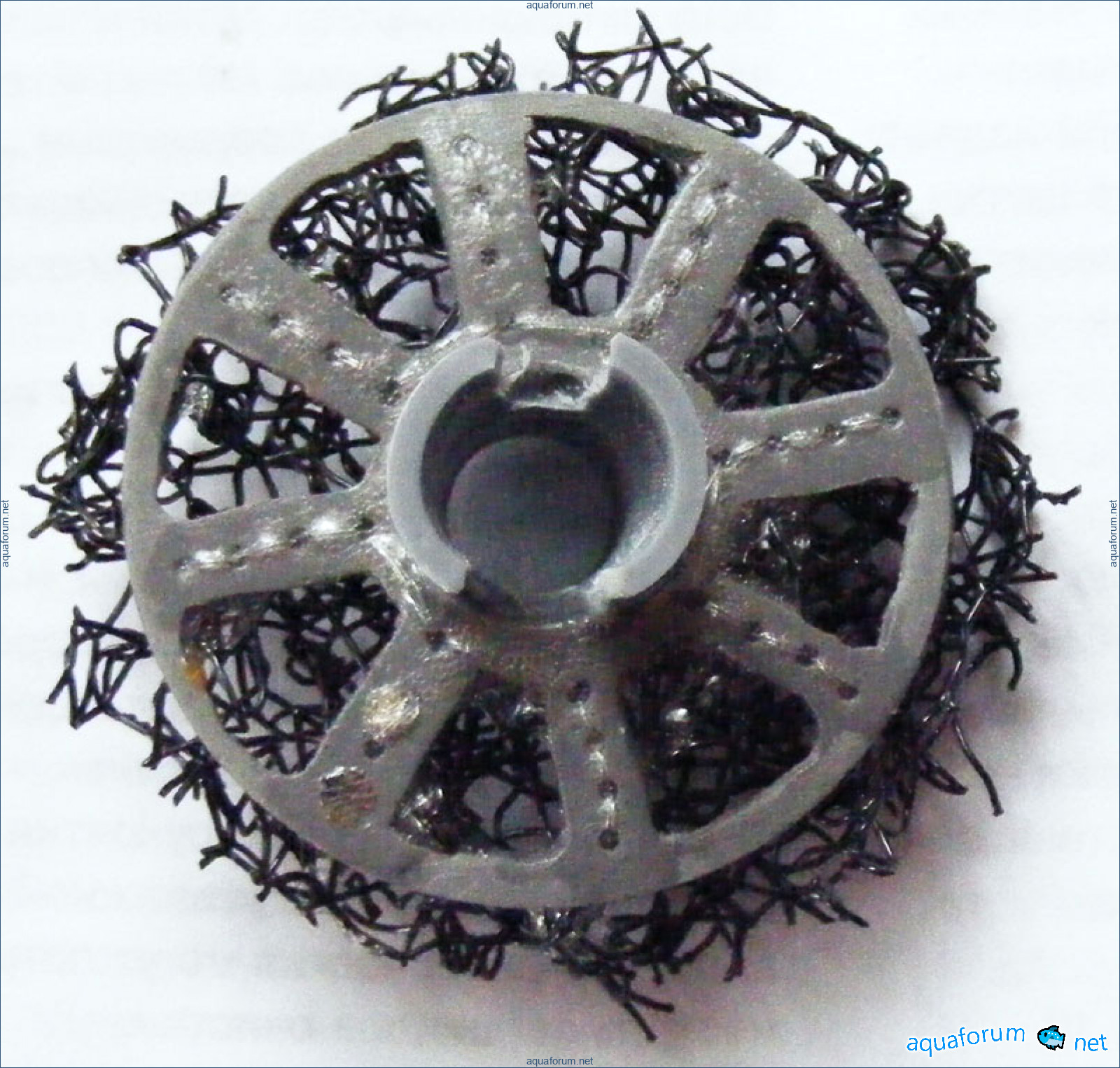

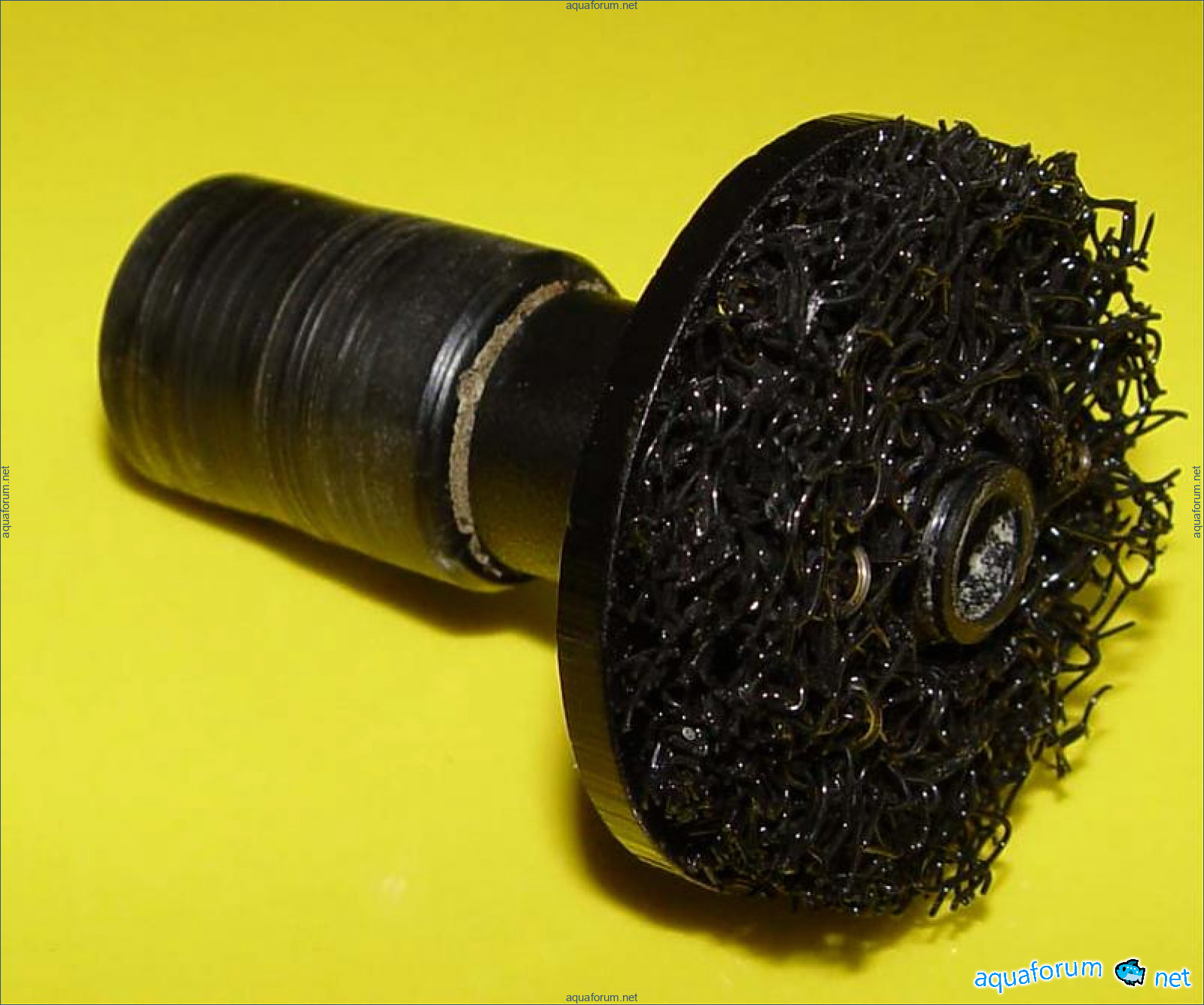

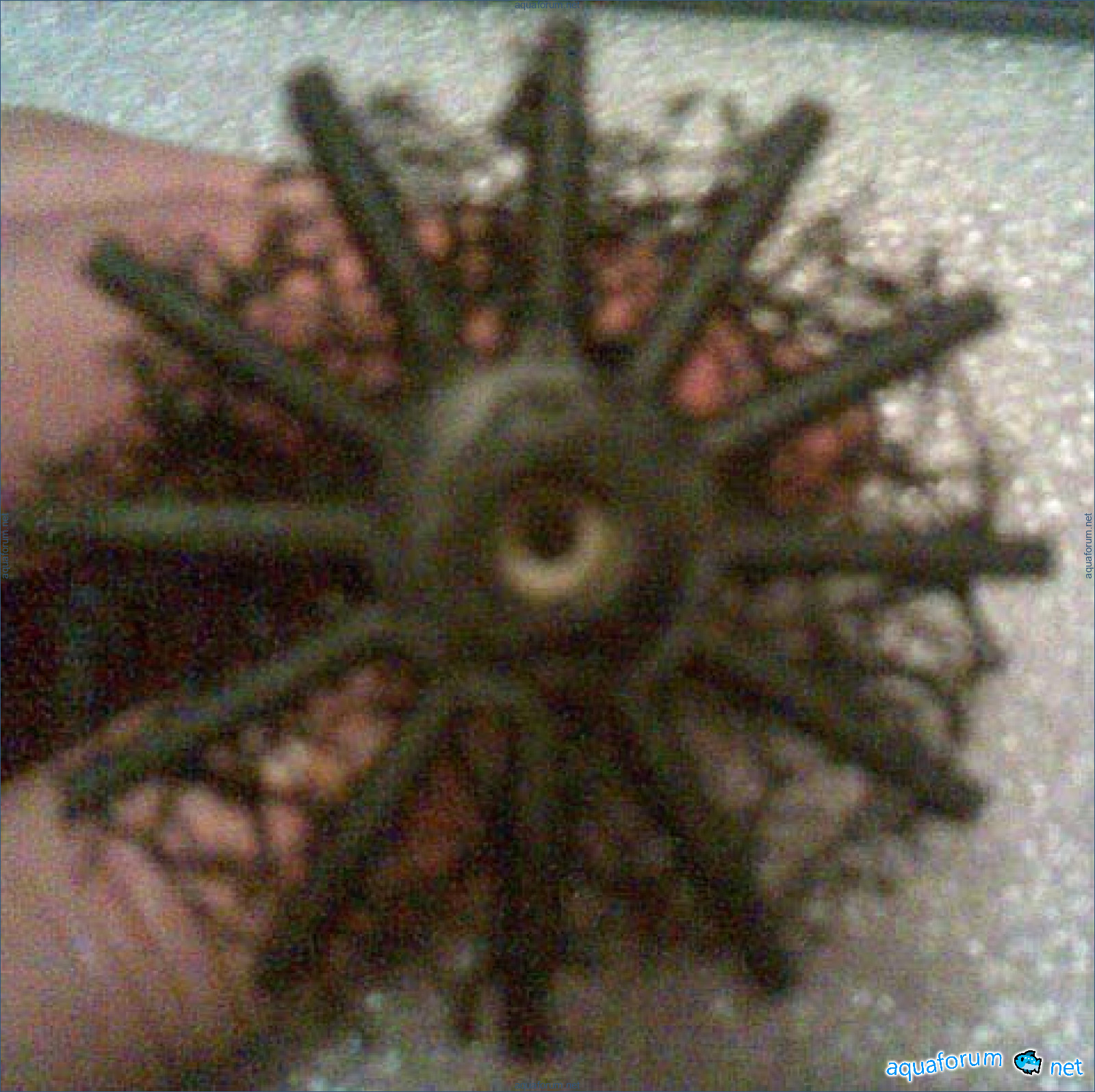

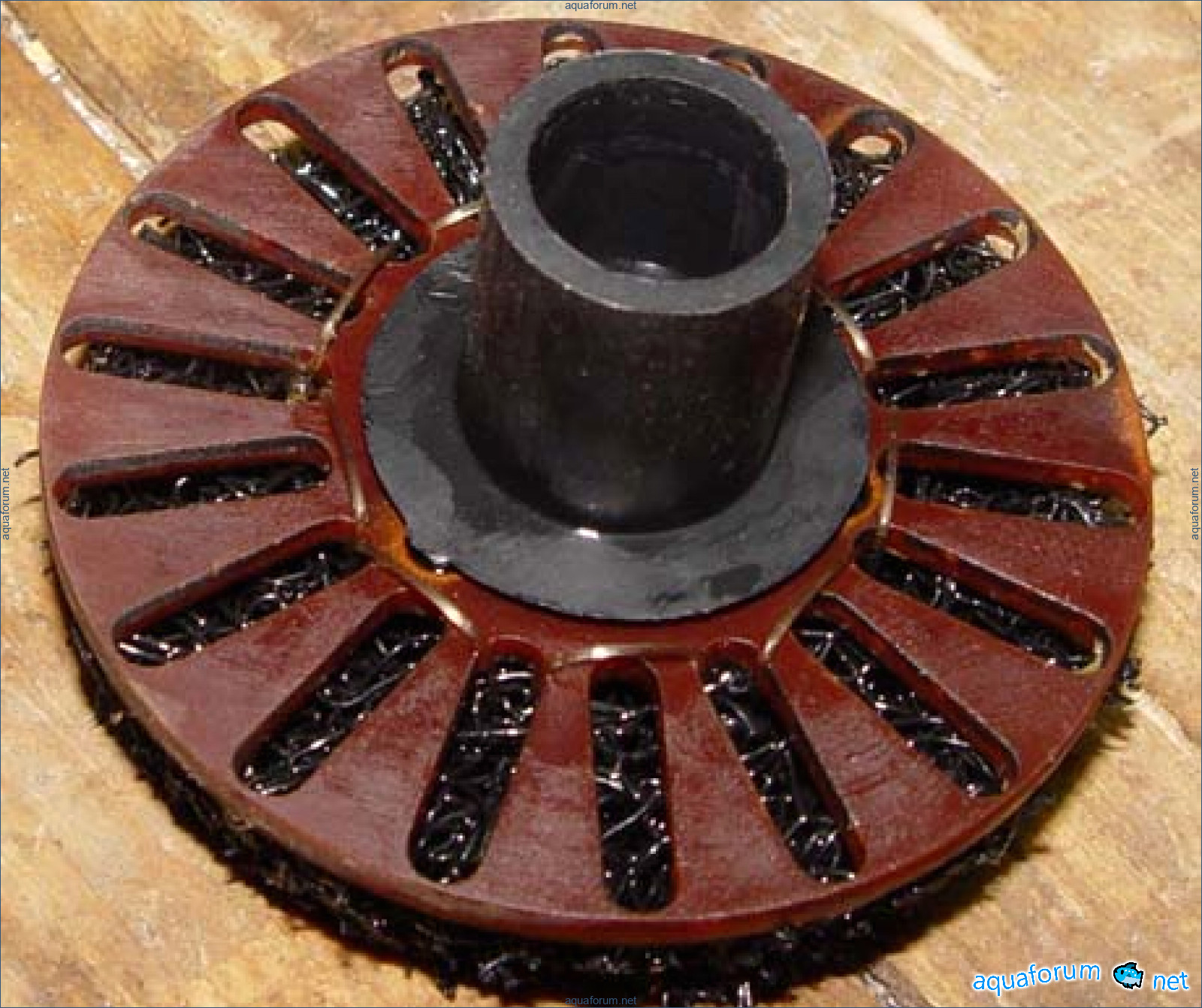

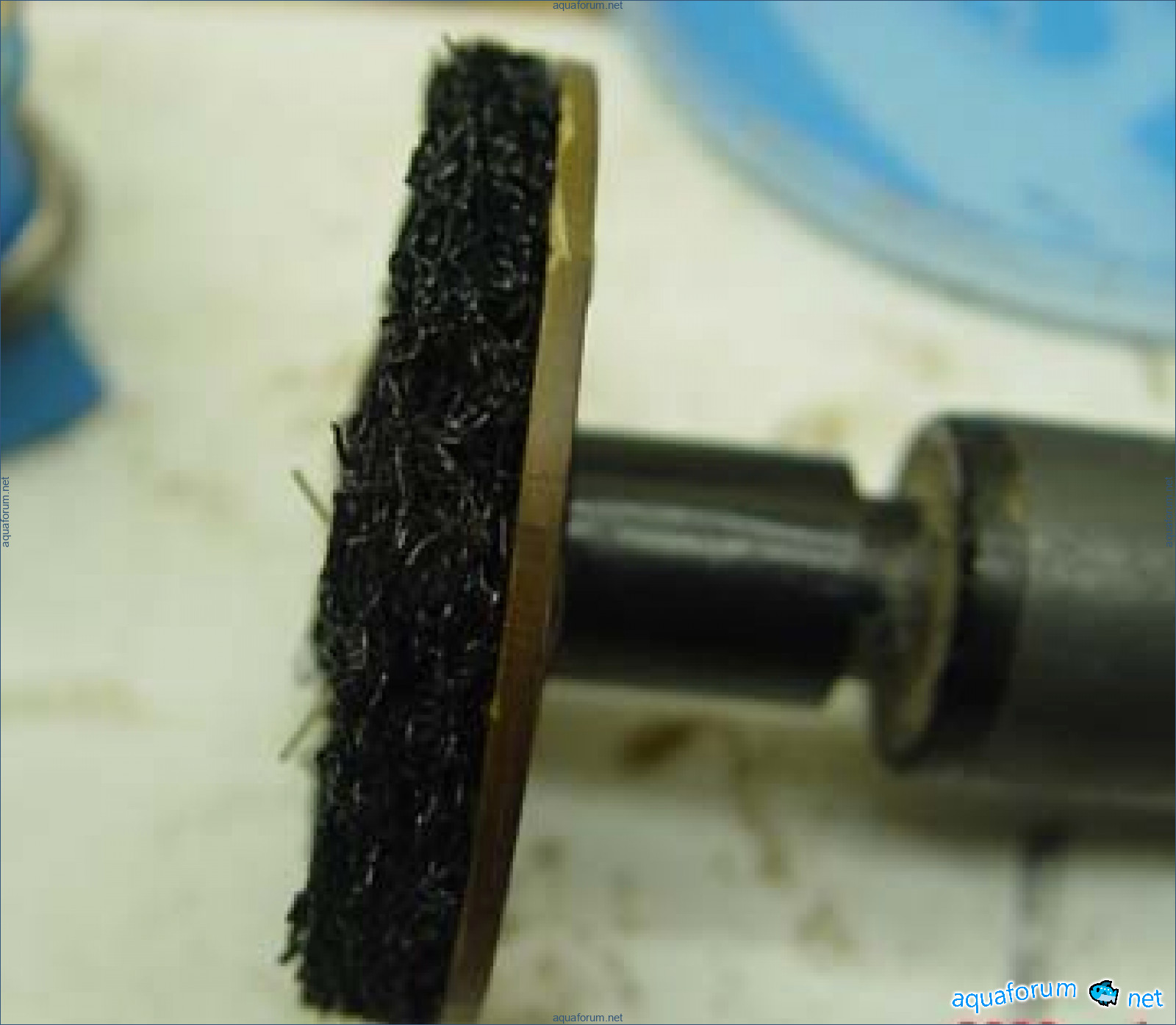

Disk for the pump impeller Ph2500.... (Last two photos)

Jesse3979

Hi) What material is on the disc? Is it attached with fishing line?

Michelle13

Encomat. With a fishing line. Come in, I'll show you.

Catherine6534

Am Ph2500 old and new.. Air intake ratio 50:85

Eric8832

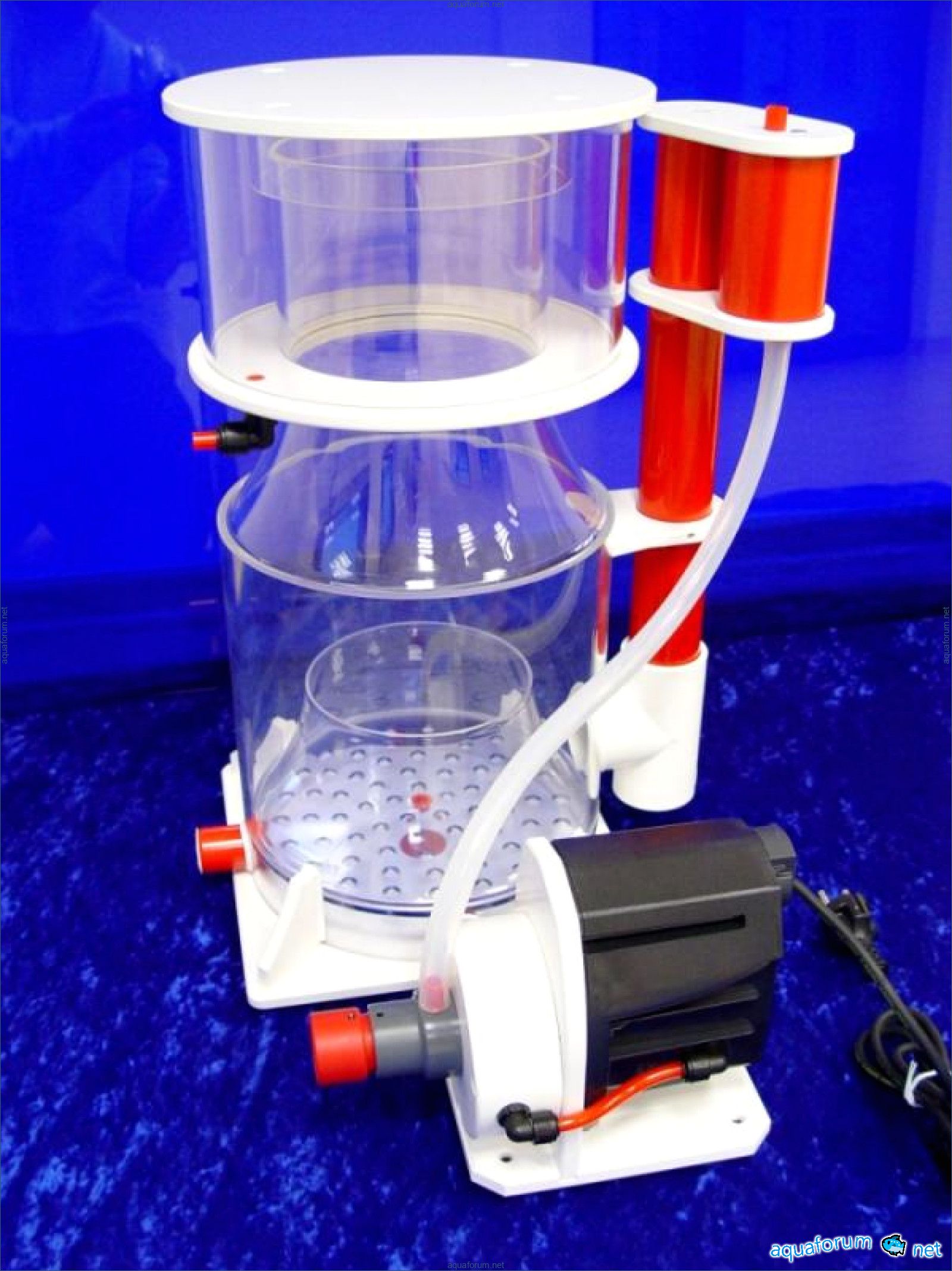

Aquamedic has created a masterpiece, the Turboflotor Blue 3000. For some reason, instead of the stated OR3500, it has OR2500...???? It has this kind of impeller on it... I will try to measure how much it produces.

Patricia1746

Encomat or geomat. Here is the link: The same material is used by the Bubble master on the pumps.

Jacqueline5976

Enka® Nylon is a patented material with a thread thickness of 0.5 mm, and Geomat looks similar to it. To assess its suitability, it needs to be held in hand. For the production of a fluffy wheel, the PF4A grade is used, sometimes in combination with PF5.

Susan9583

Geomats - three-dimensional mats (3D) are interesting, three-tiered... they can be placed somewhere.

Daniel

What if we try to make triangular cutouts?

Barbara8192

Yes, that's how it should be. Especially for the OR3500 and similar models, unnecessary mass should be minimized as much as possible. Tomorrow (already today) such an option will be ready, I'll show you...

Gary6376

Such an option

Kevin3579

Hi Sash! Can you share the Encomat?

Susan9583

They have already installed it, and there is a good result.

William5838

Also triangular cutouts The old impeller is simply removed.

Brianna

Works better than your previous fan??

Robert1845

Yes, it's complicated manual work, almost macramé.

Chelsea

Definitely!!!

Ryan

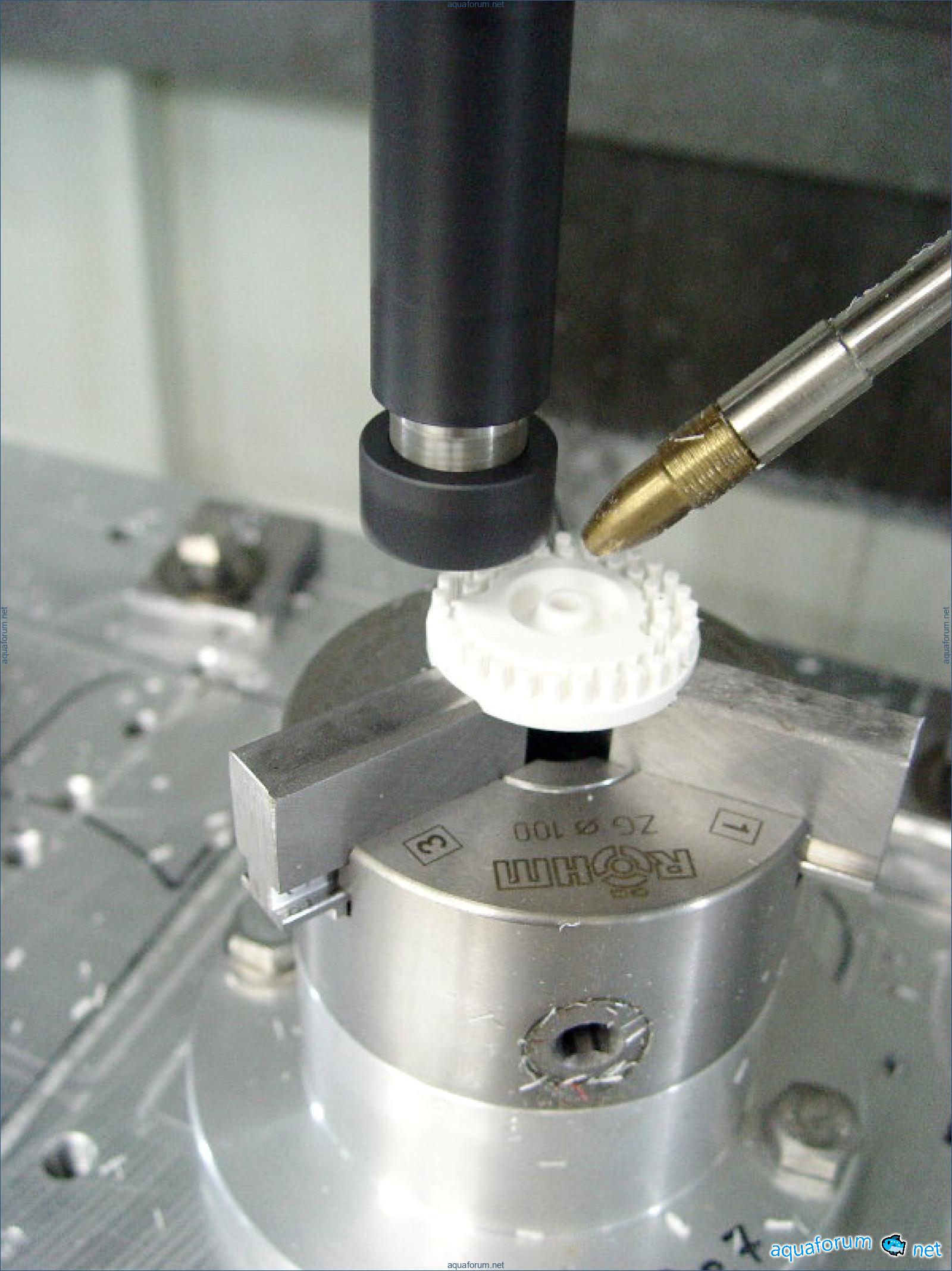

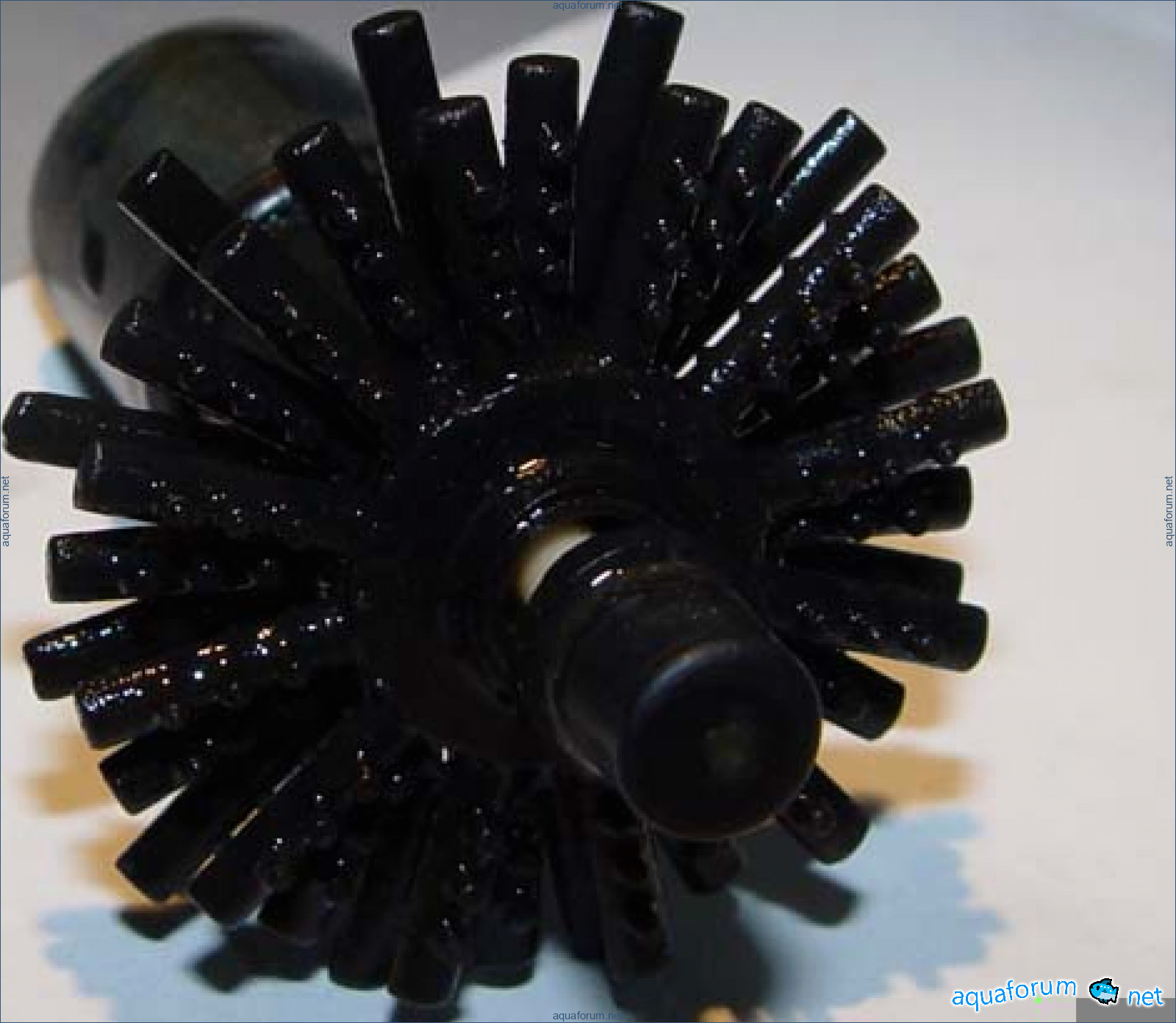

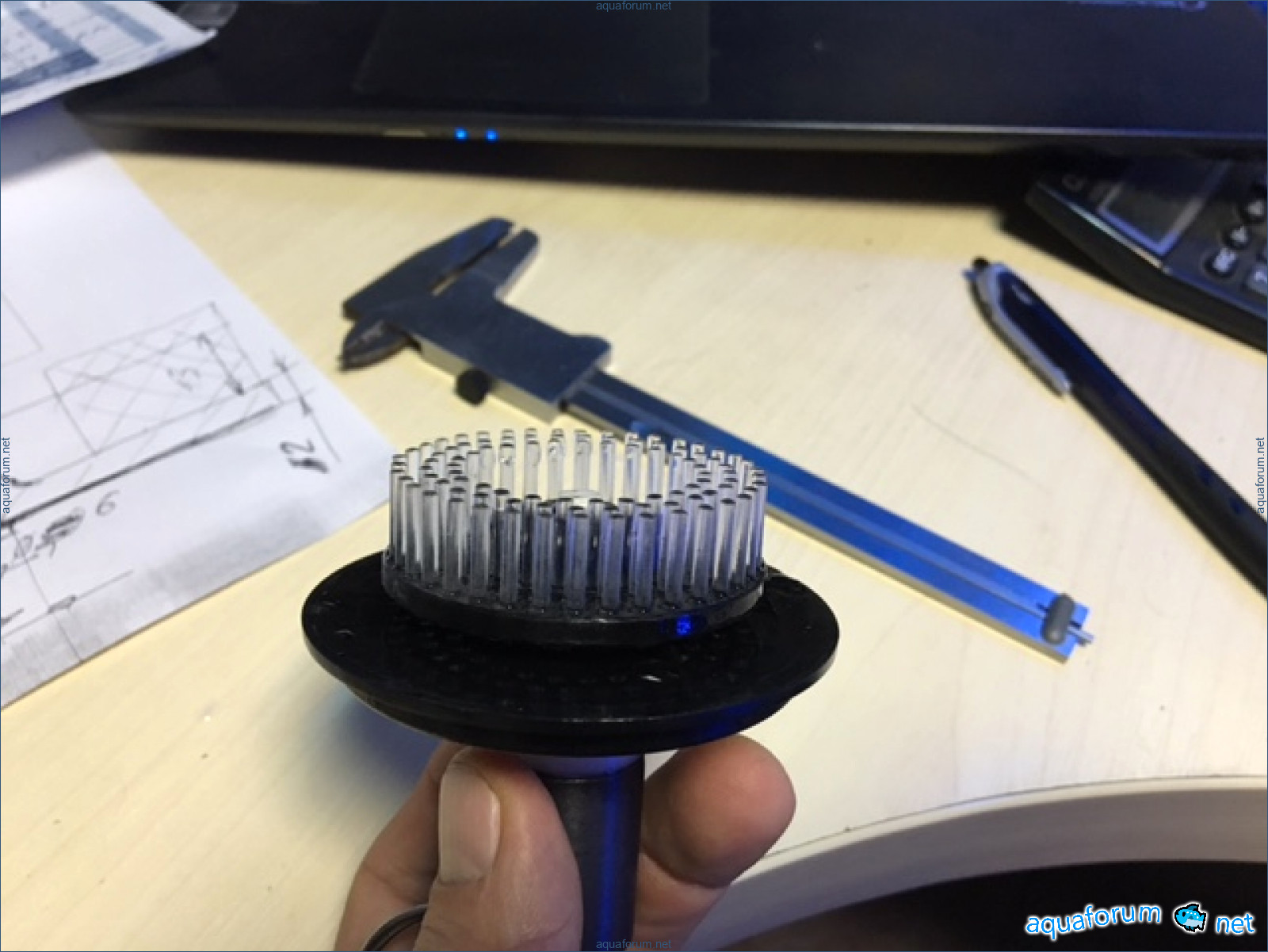

No, the bead embroidery was done when making the needle wheel. Here, I just sewed the material with fishing line.

Jessica6754

And what if into these little holes and needles?

Laura4892

It's better to add one or two layers.

James4342

But all these gadgets are good only for aquariums of 500-600 liters. Beyond that, it's better to decide differently. I took a reliable device and conducted testing. At the last reading of 40 liters/min (2400 liters/hour), the device went off the scale... Meanwhile, the skimmer produces 6 liters of foam. With a hairy wheel and all the bells and whistles, I managed to get 2 liters of foam and 700-800 liters/hour of air intake.

Rachel

What do you think about this...

Stephen5841

Super!!!

Melissa3200

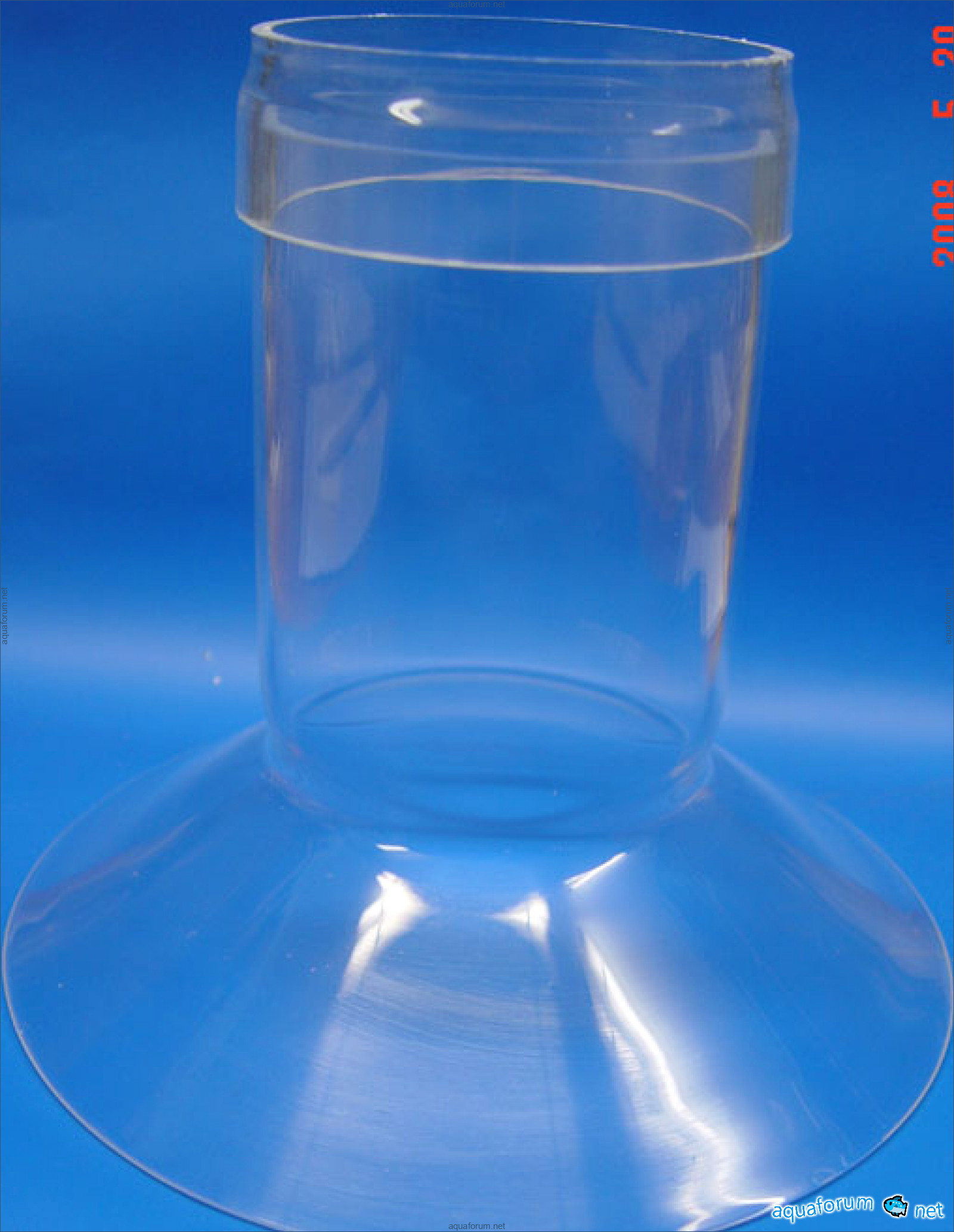

I didn't expect such a result myself. A 90mm pipe transitions to a diameter of 200mm, and it looks aesthetically pleasing. One can assume that it will be 150mm-300mm...

Wendy2244

Yes, aesthetics are important; as I understand, this is a method of hot forming.

Melissa

That's right, hot, very hot and white, completely white... If seriously, I wasn't asking what it's called. Here's what came out in pieces and in the interior... Approximately there will be 3 liters of foam, air intake 30-35 l/min. As a result of testing, we obtained 3 liters of foam, and the air had to be pressed to 1000 liters.

John3432

Another option... Tested on Atman MR7500 Air flow 2500-3000 l/h Water flow 2000-2200 l/h Foam volume 6 l

Alyssa1438

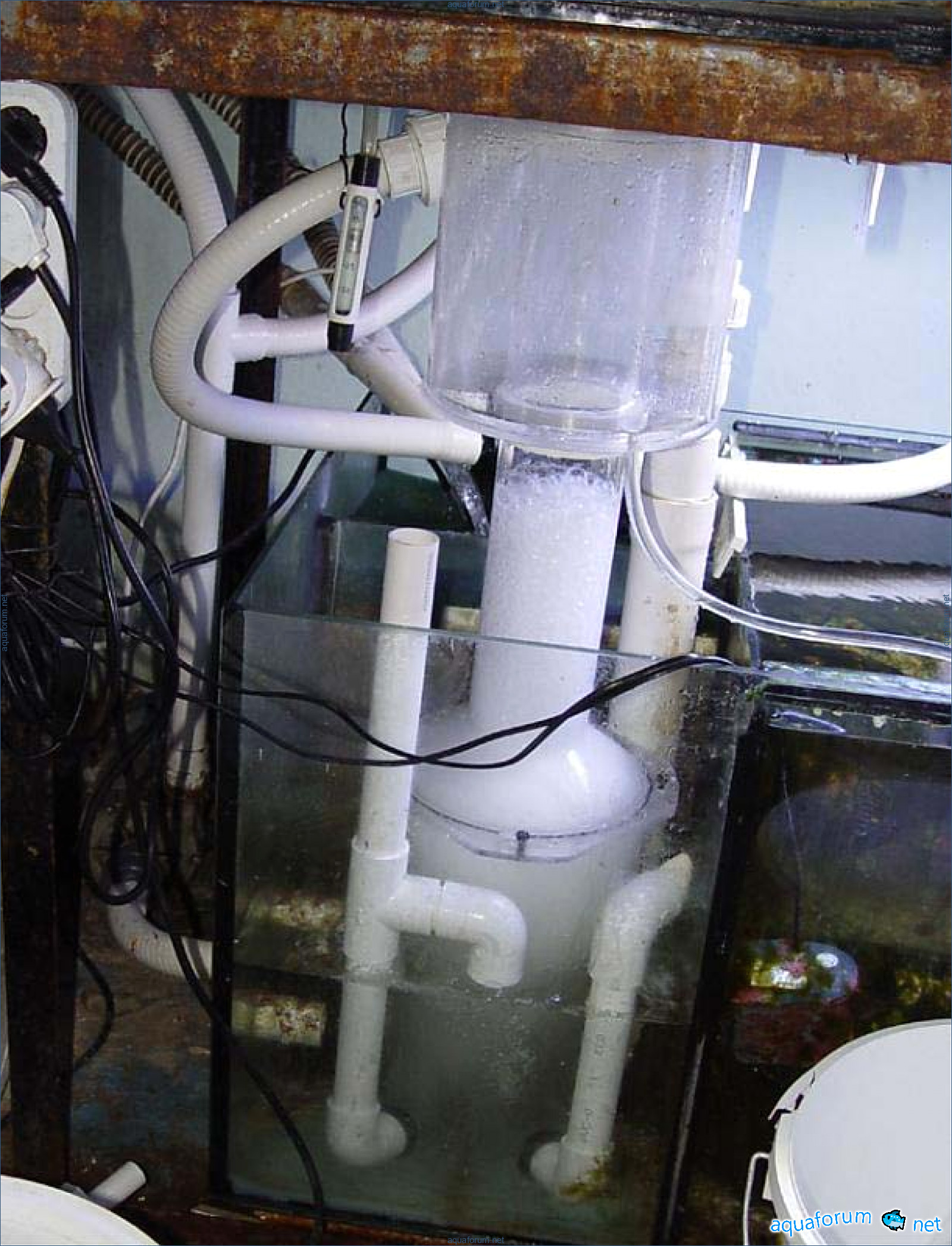

Another model... 70 cm height, pump AM 3500 The owner likes to smoke indoors, so a compartment for air filtration was made, which will be filled with charcoal and synthetic padding. To reduce turbulence, a platform with radial holes was created. Their width is 2 mm and height is 6 mm, so the bubbles will pass through a sort of tunnel that will direct them in one direction and dampen all others. The pump is connected to the body with rubber couplings, which prevents the spread of vibration. The impeller is like this. Three hours after startup... Two liters of foam.

Joshua

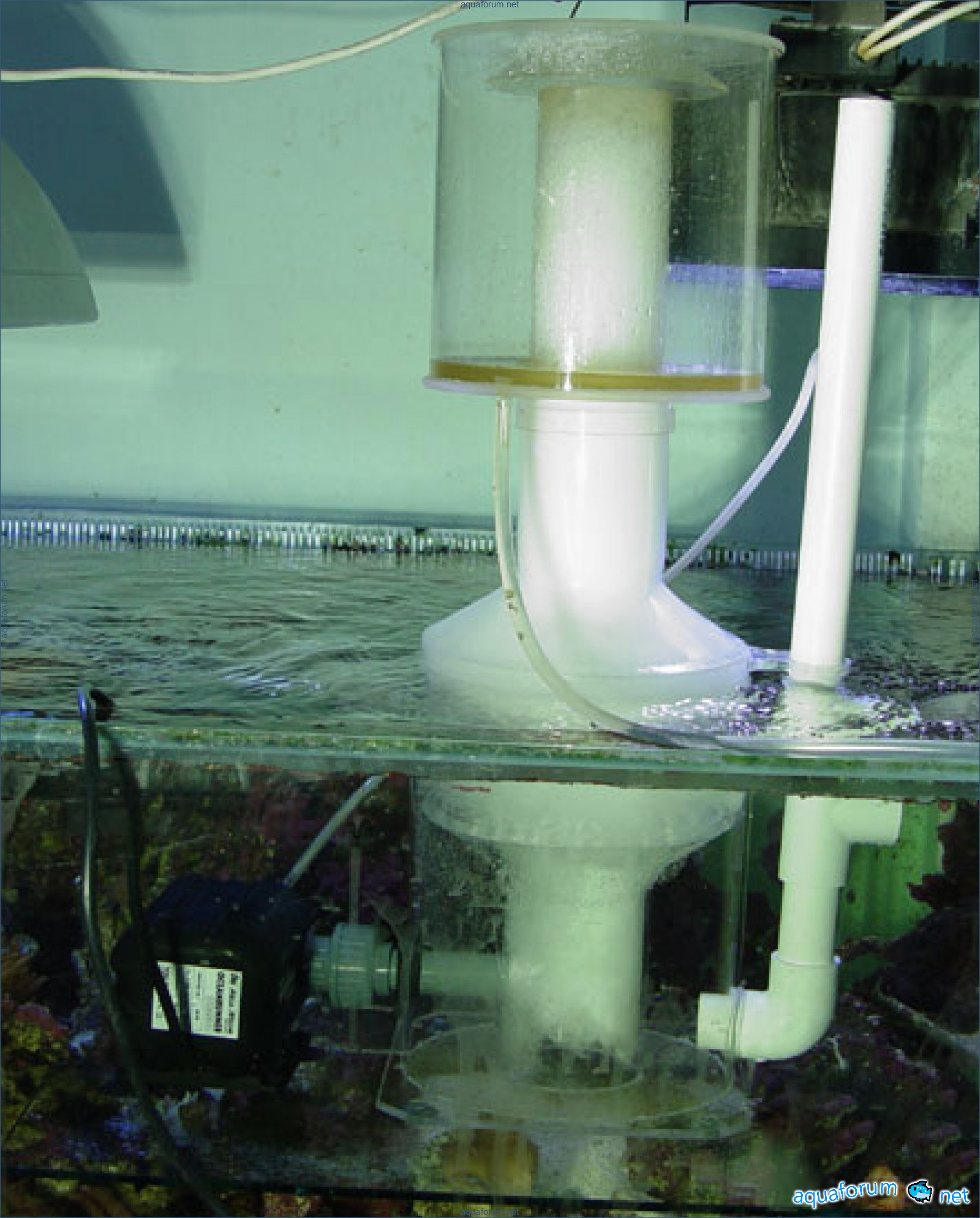

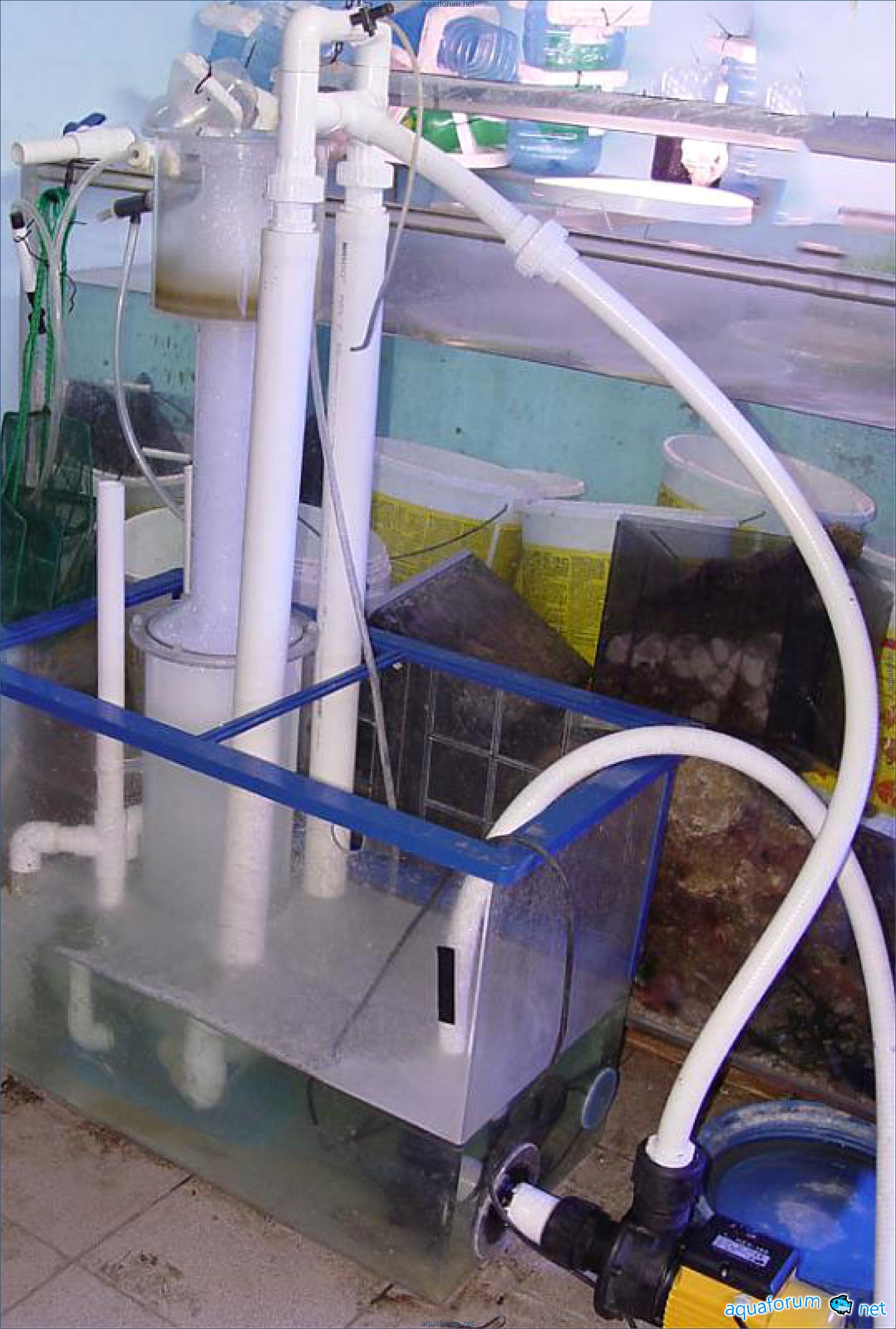

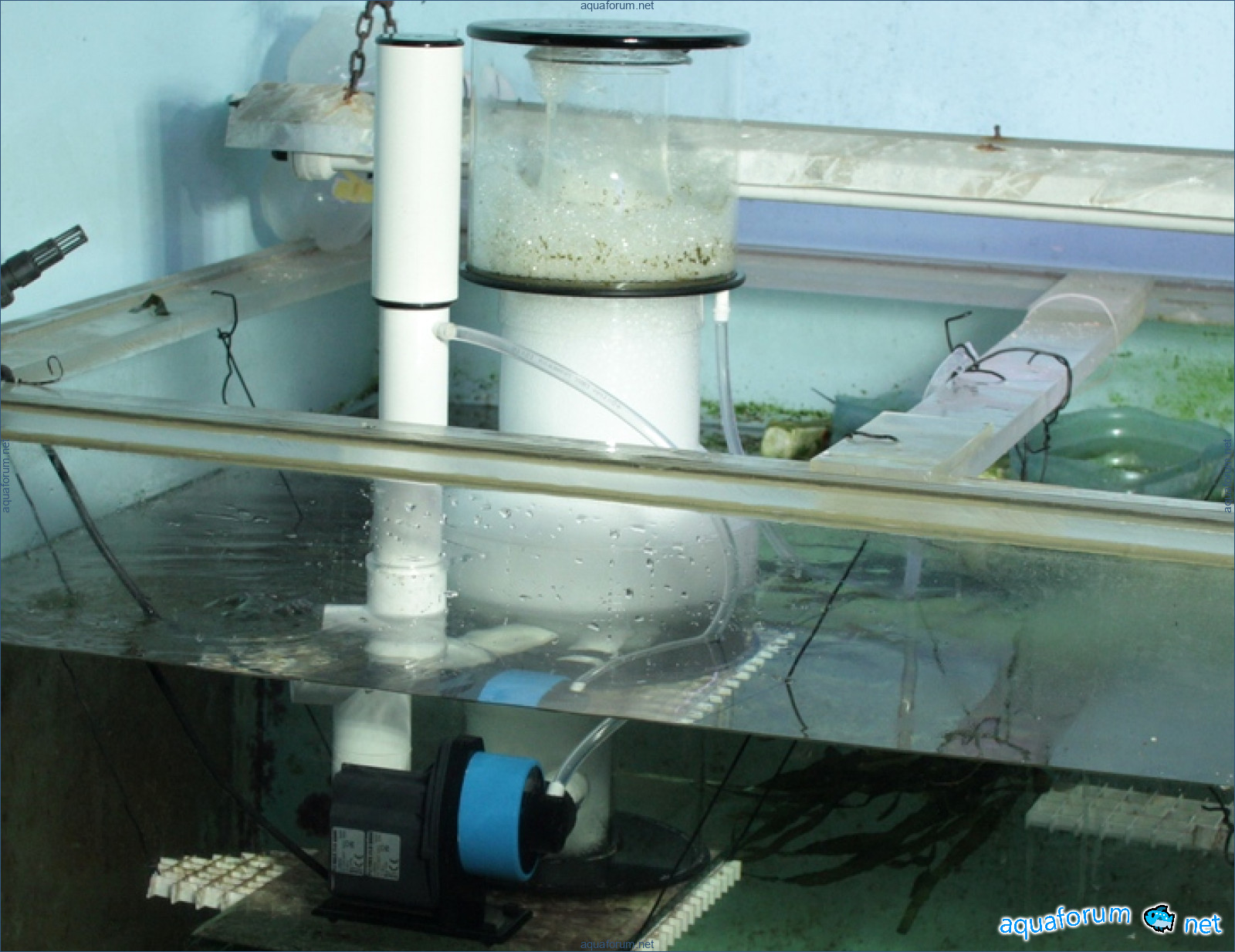

This is a skimmer for freshwater systems, large and heavily loaded. I haven't seen its analogs, but I know they exist. It is difficult to extract foam in freshwater, but it is possible. In addition to removing organic matter, when ozone is supplied, it can function as a sterilizer. It has been tested under laboratory conditions, and the results are good.

Helen

What is the name of the pump you used here? The yellow one, what is it called?

Jessica6754

The motor from San-San.

Mark

Thank you. Please advise: 1) How accurate are the specifications compared to those stated in the technical passport? 2) How reliable is this pump? 3) How noisy is it compared to other pumps?

Nicole2404

1 Not checked 2 The quality is not bad, time will tell 3 Not for the bedroom

Justin9867

Can a skimmer work without a pump and compressor, and with what result? The first attempt to find this out was here. This skimmer option uses only the energy of the drain (from the first floor to the basement). There is only one pump in the system for circulation. Result: 6.5 liters of foam air intake of over 2500 l/h The option of placing the filter in the basement is very convenient and is often used in private homes. Therefore, this direction is very promising.

Allison

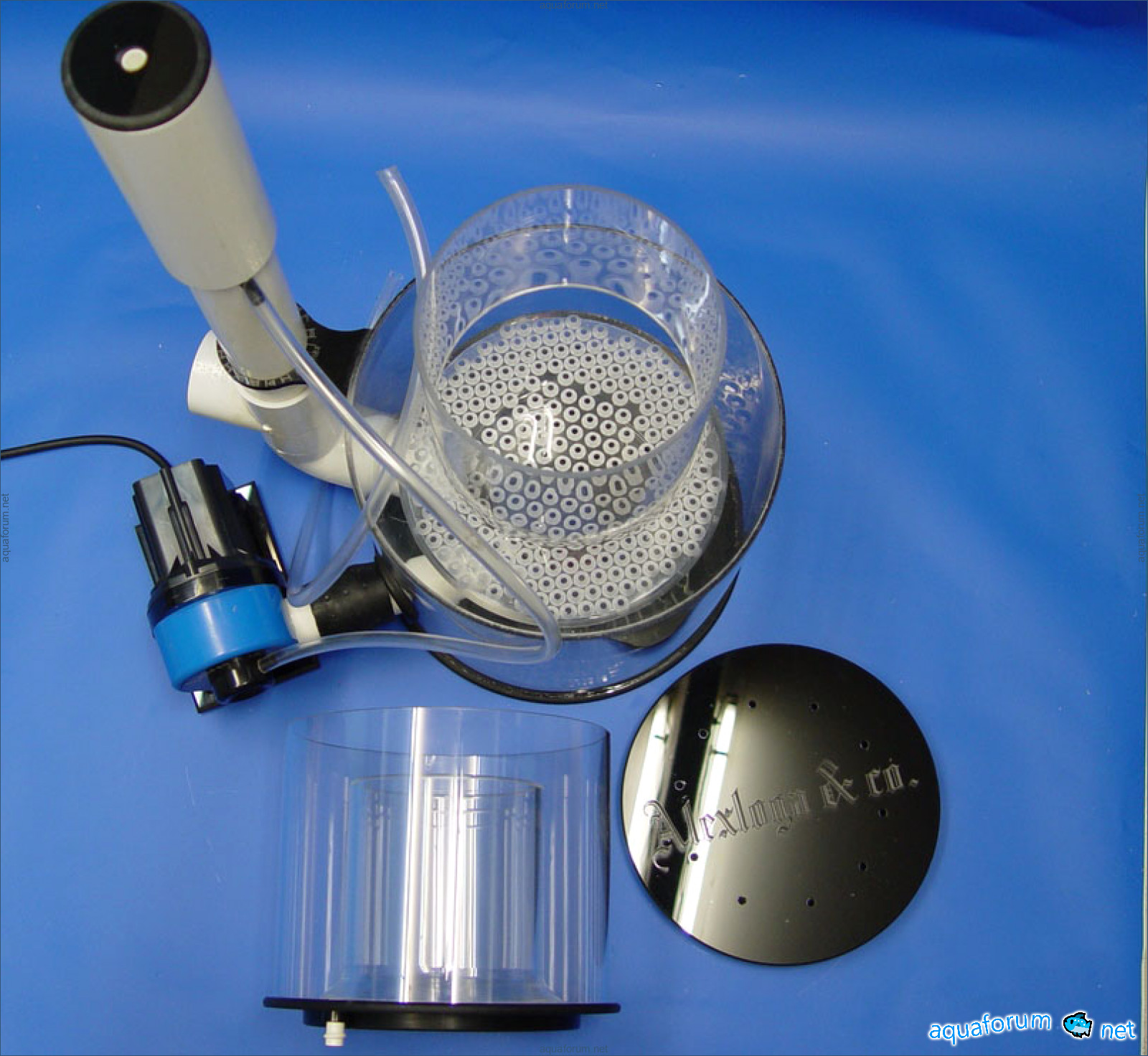

We made this variant... Height 70 cm A couple of ideas, in my opinion, are successful and will be used in the future - 1 cup lid 2 combining the tap with the air intake silencer The design of the reactor chamber is not bad, but it seems to me too complicated; another, simpler, and better design came to mind, and we will make it soon...

David2398

Congratulations on another masterpiece; the ideas are truly successful and, most importantly, already tested and proven over time. The idea with the lid probably came from here, as I haven't encountered such a solution anywhere else. BorisKramer suggested it to me, and the option with the silencer is an even more proven choice. Therefore, it can be confidently stated that the design of the foam maker is executed extremely well.

Chris

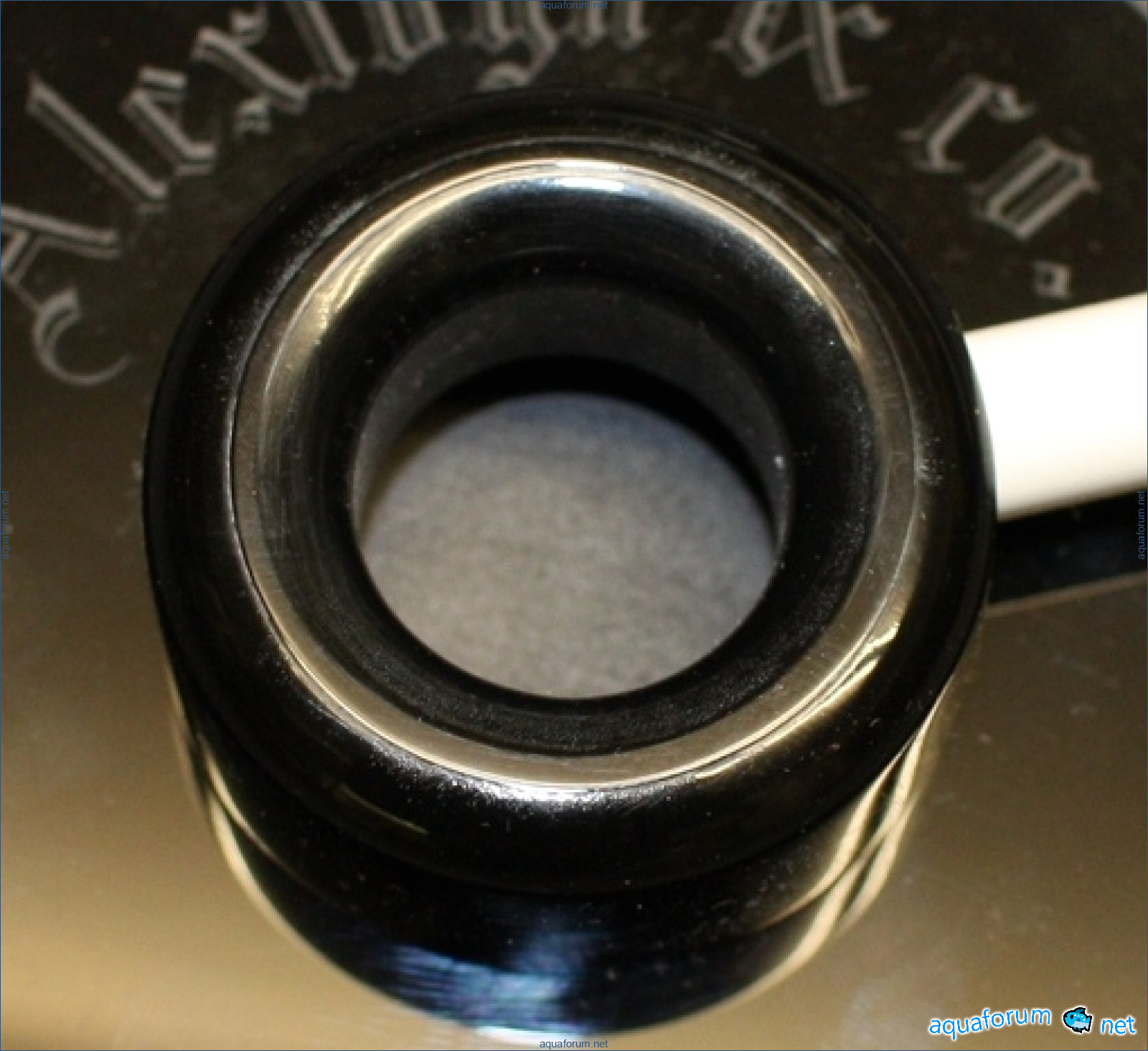

Is there a cone in the lid? What's its effect? A muffler in the pipe? Liked it. An interesting model from Royal-Exclusiv has come out. I really liked the principle - simple and tasteful.

Rita

The idea came from the lid of AM Shoti, and I think you got it from there too. Previously, there was no way to implement it with low costs. I really don't understand why it's needed in a cup that is tightly sealed and has no ventilation holes; this baffle is needed to redirect the foam away from those holes, otherwise the foam blocks them and starts to lift the lid. In your cup, neither of these is possible. 2 Fedor A funnel creates less resistance for the foam than a cylinder. Moreover, this part is from a pipe of smaller diameter, so it's easier to work with and costs less.

Diana8604

The effect is that the foam experiences less resistance when exiting the pipe than when it encounters a rectangular baffle, which has been confirmed in practice. However, this can also be disregarded, and a lid can be used without anything else, which has been implemented in some designs, although this has not affected the price at all. In the new model from Royal-Exclusiv, the principle of drainage organization is borrowed from the Bubble Master, which has made it (the foam separator) more compact, and overall this model resembles the BM but in a more luxurious version.

Kimberly2102

I saw. I only liked half of it - the reactor chamber across the entire diameter. The fact that they then compress the foam flow is nonsense; the speed increases, and I think they were forced to do it this way, given the design, it's the only option. As I mentioned, there's another idea - to flip the lower cone. I think we'll finish tomorrow, and I'll show you...

Helen

The speed does increase, but not significantly. In return, the flow of water loses its chaotic nature and rises more evenly. Around the upper, narrow end of the cone, the water moves in a ring-like manner. It resembles the movement of smoke rings, something similar to that. There is no point in turning the cone upside down with the wide end facing up; I tried it and didn't like it, as it creates too many vortices.

Diana3118

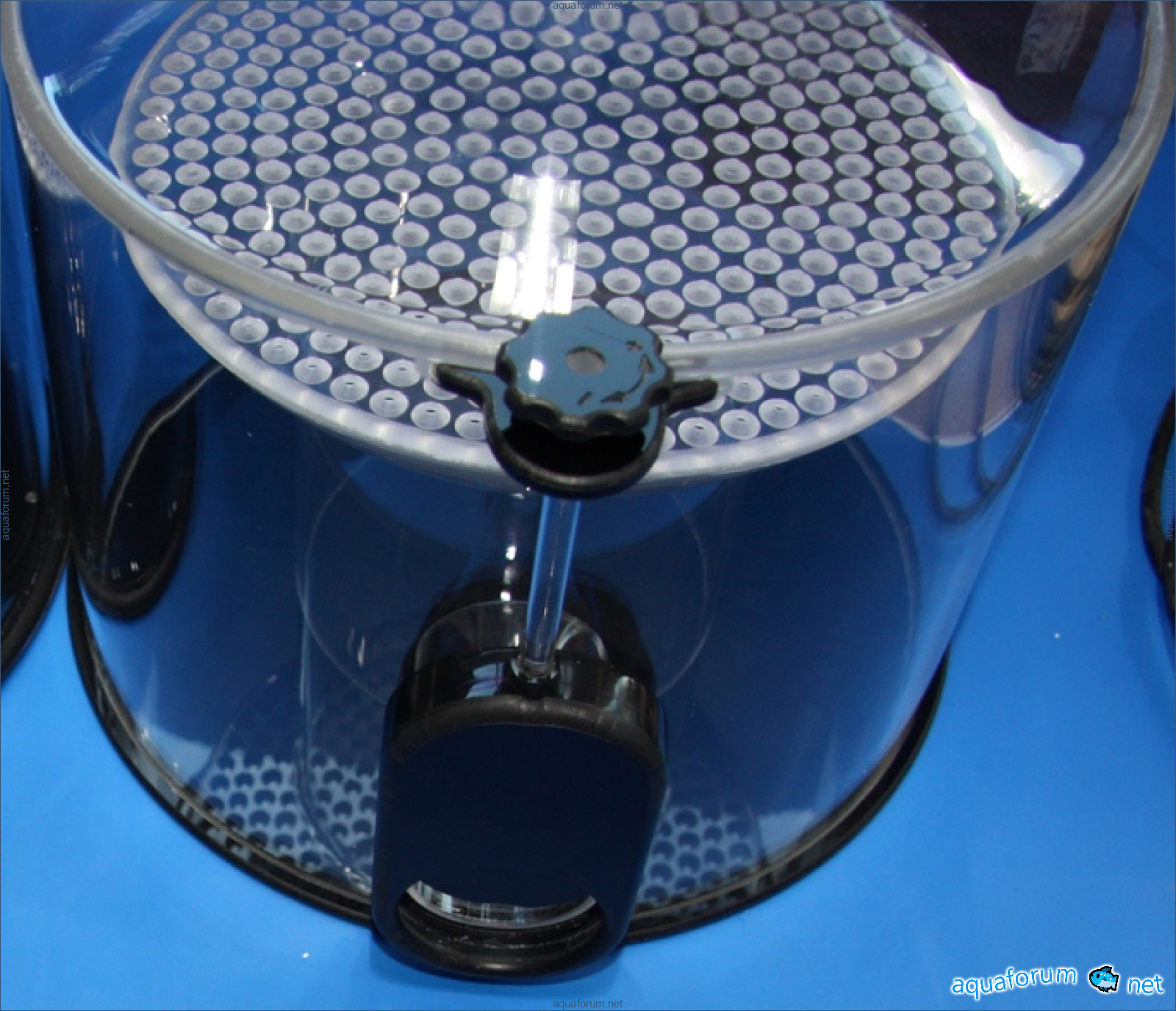

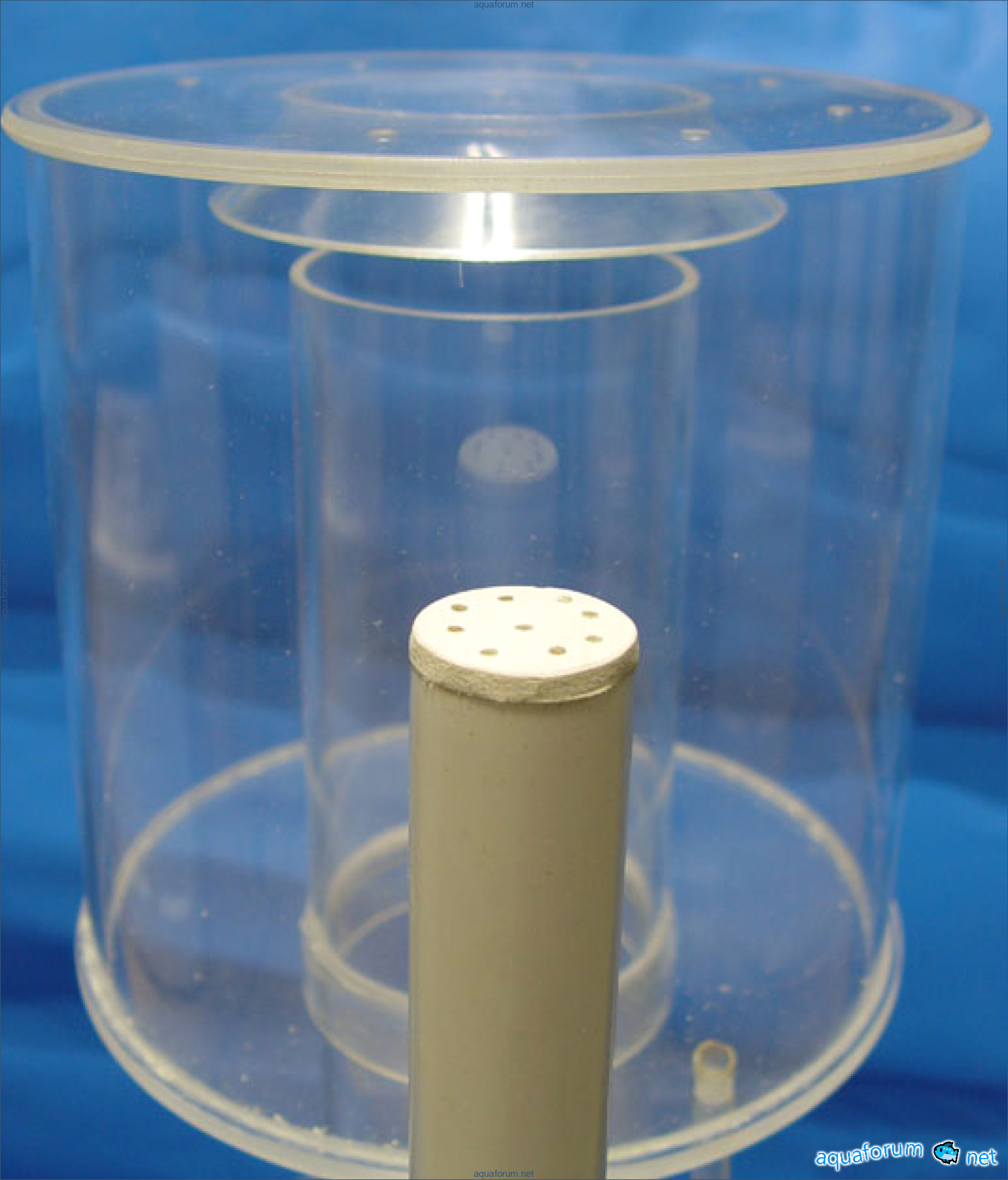

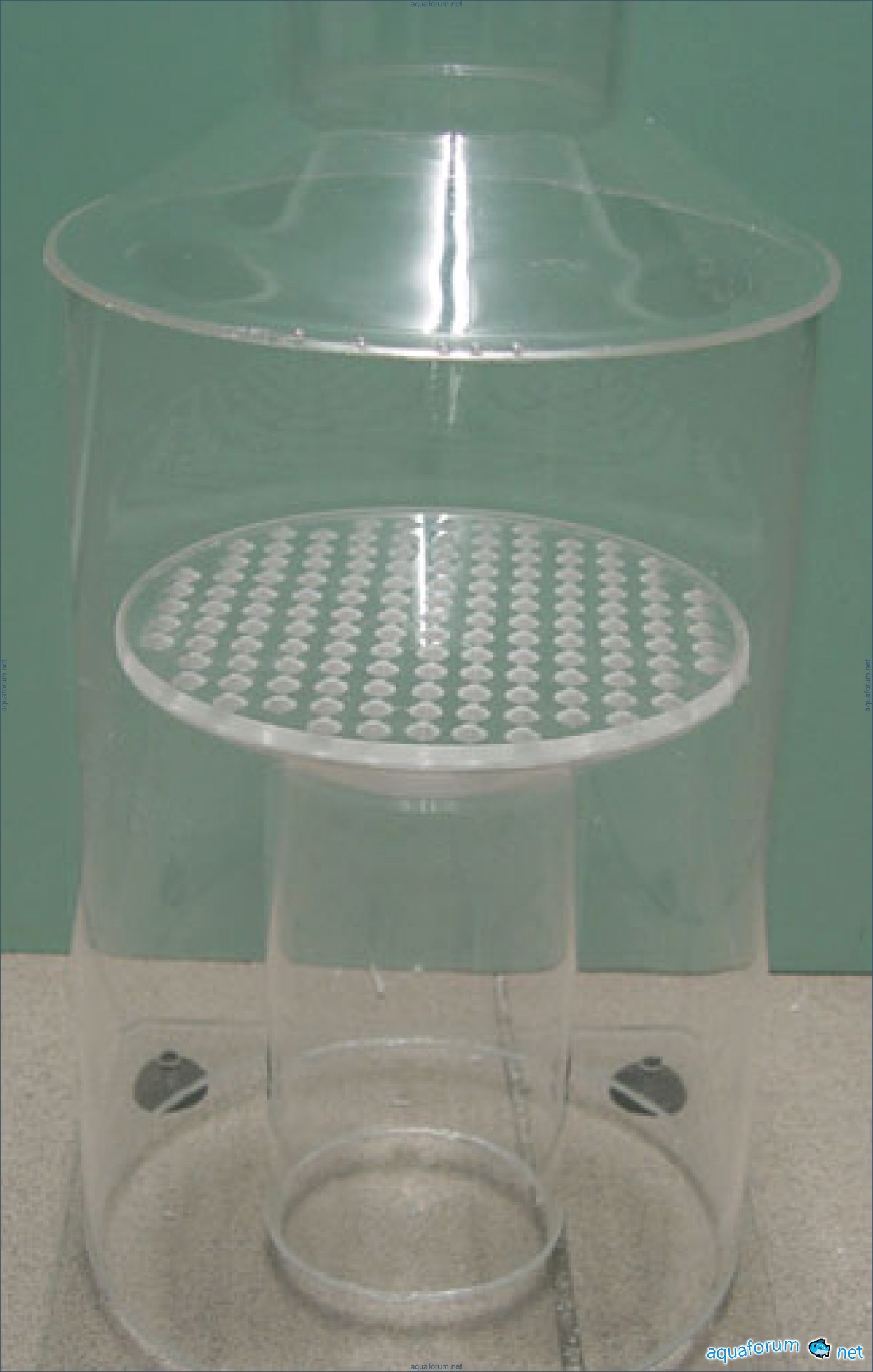

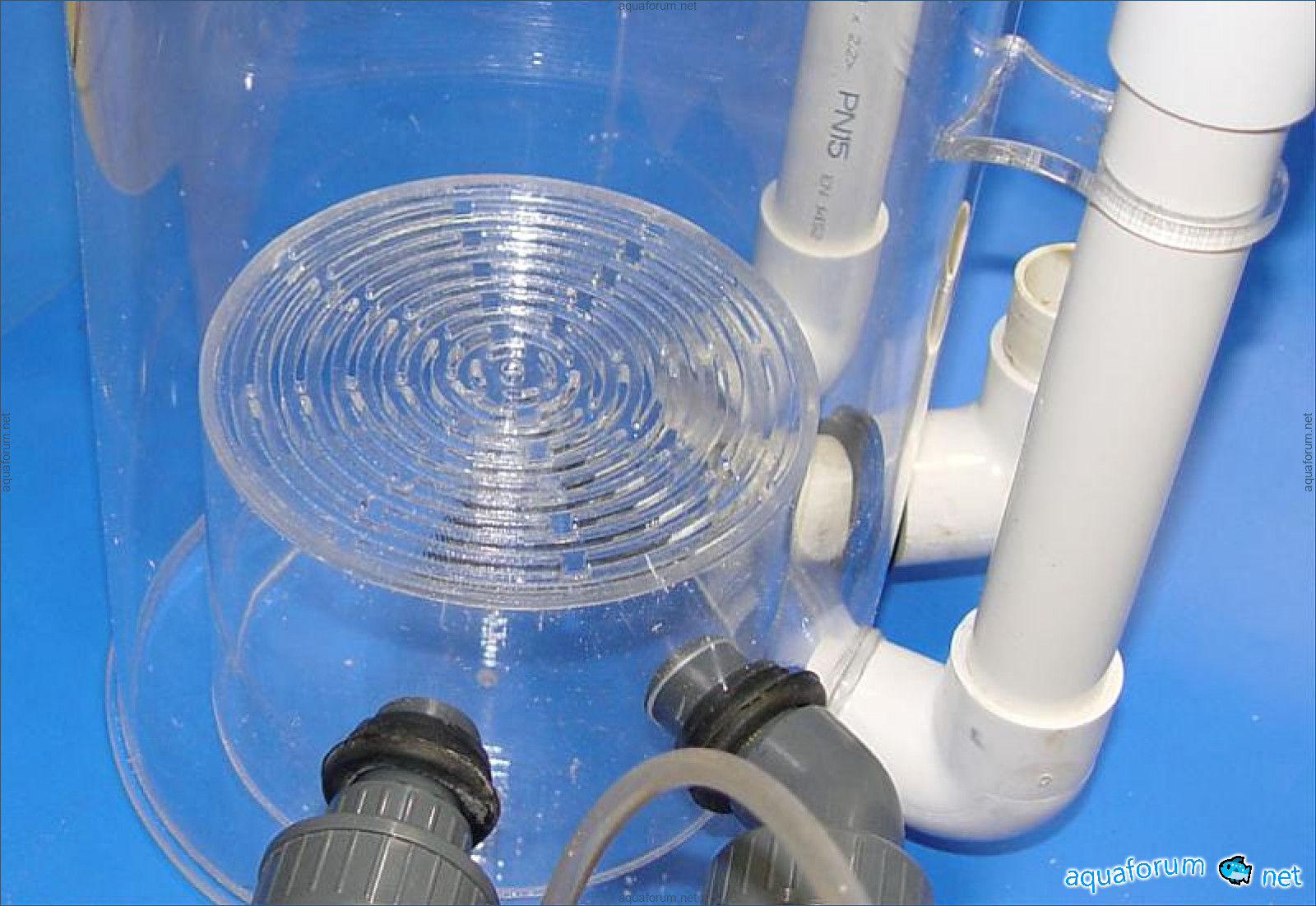

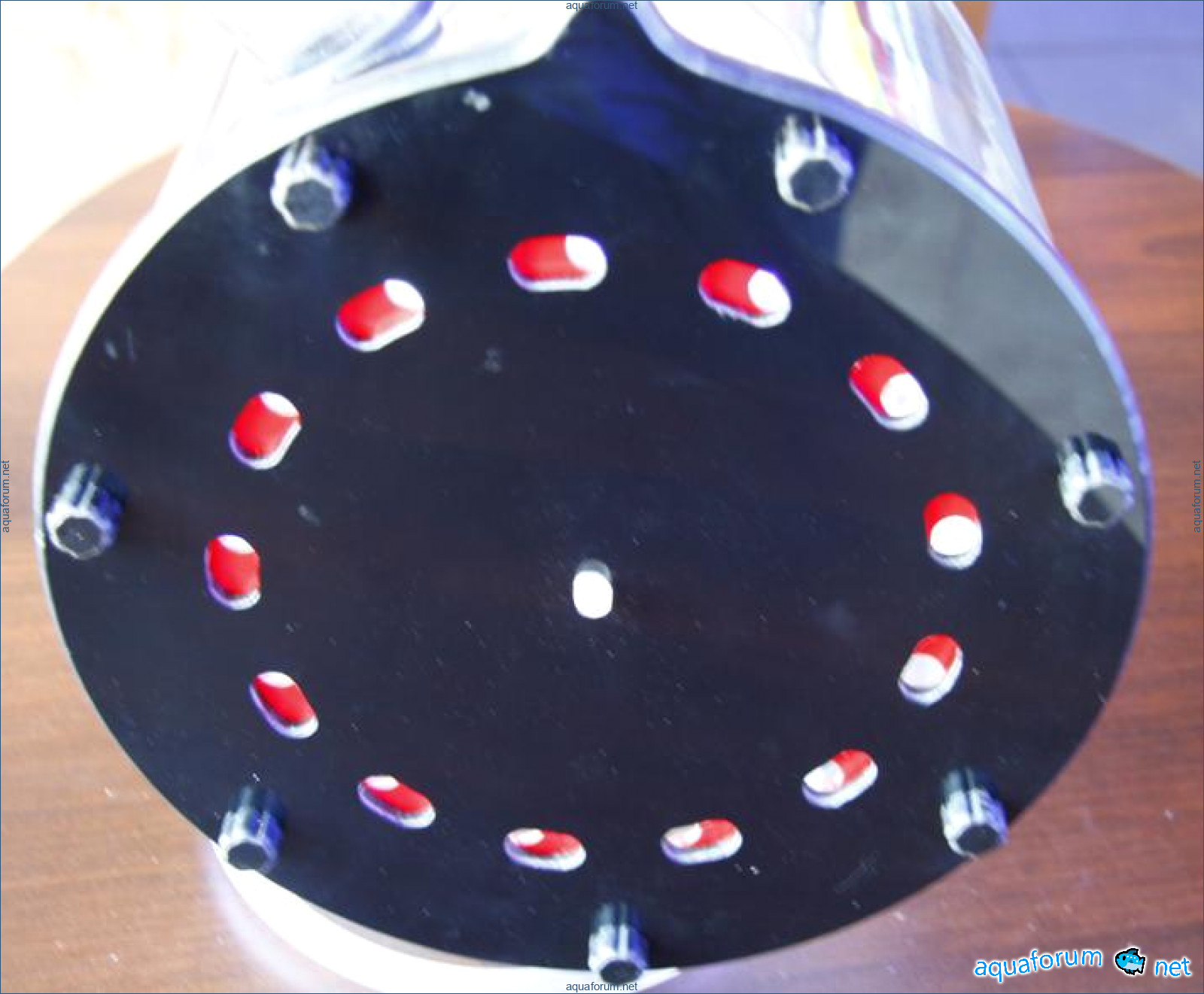

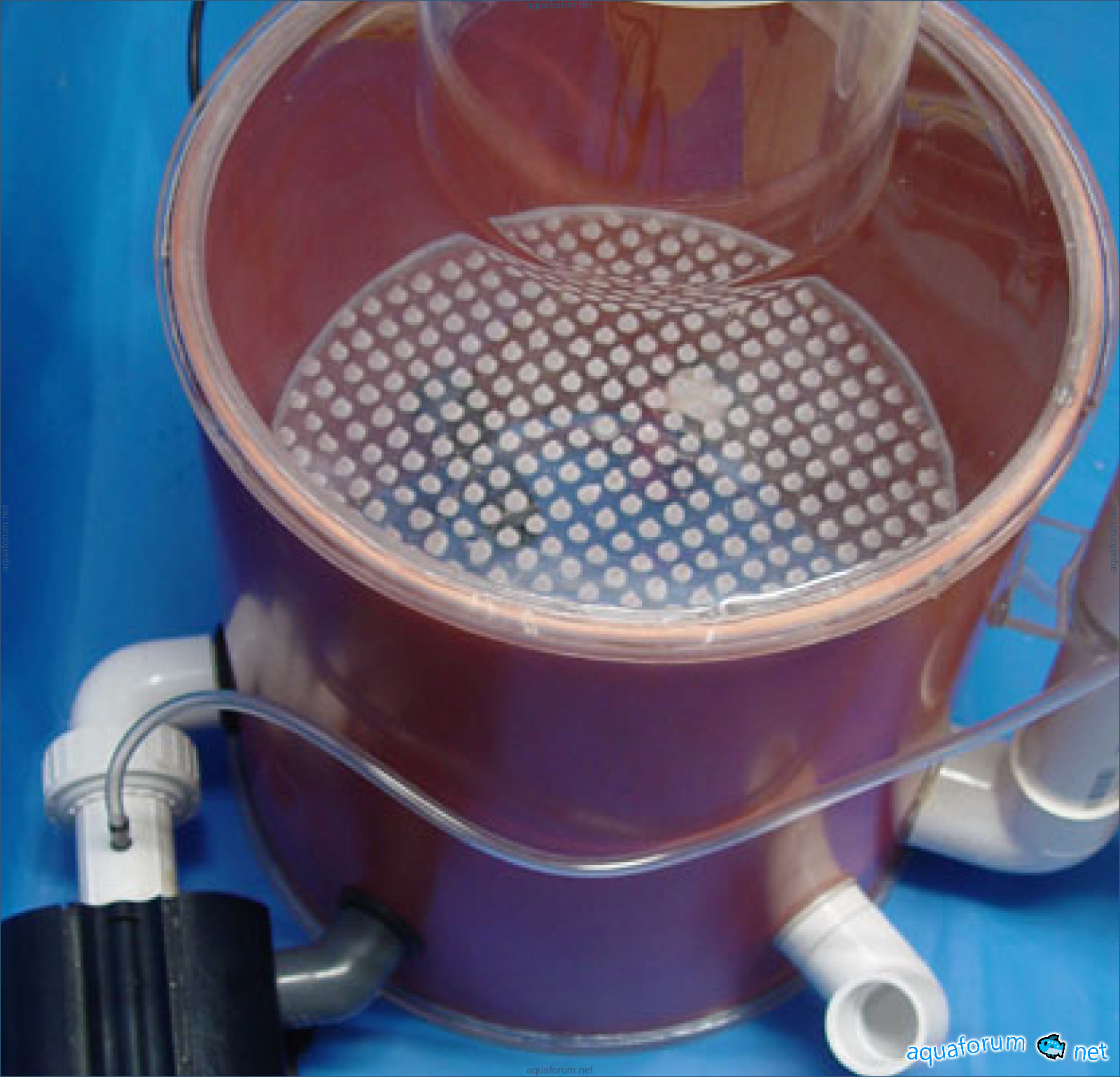

Where did you have the disc with holes?

Jeffery7866

At the bottom, like on BubbleKing.

Sara4035

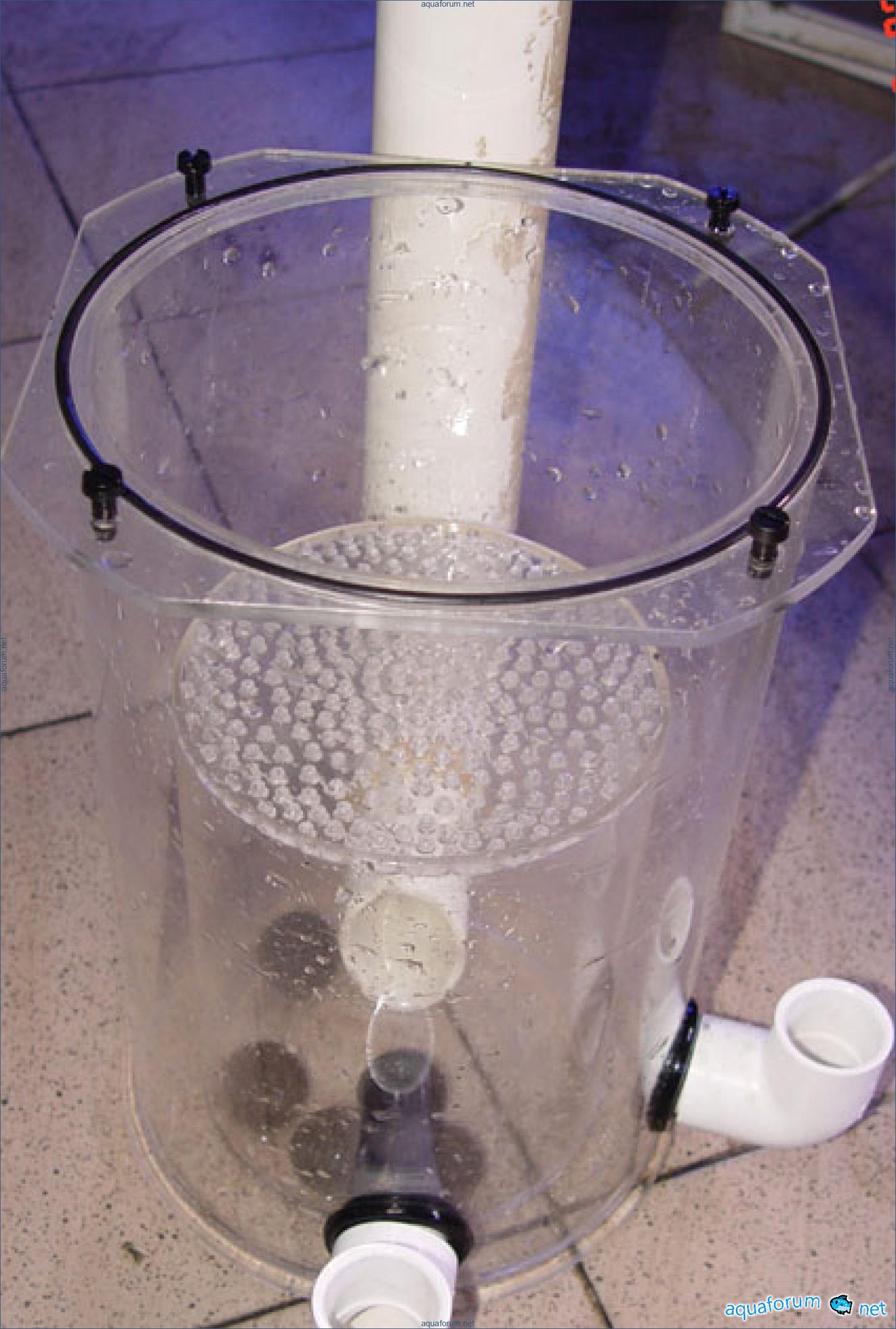

Of course, there will be vortices. I am going to place a disk at the top of the cone, its diameter will be 170mm, which will dampen the vortices and evenly distribute the air across the entire section of the skimmer (200mm).

Susan1358

The tests will show, but something tells me that a miracle won't happen and the outcome will be a crumpled, squishy bubble. I would like to see the results of the tests.

Robert800

It's just a nightmare, I want to give up and run away. Still, there is hope that I will manage to get through. I have no doubts that the product will work and quite well. I think we will finish it tomorrow; the general outlines are already taking shape... it somewhat resembles a watering can. The connection of the foam collector with the body brings particular joy. Thanks to a small cone (in two parts), we achieve tightness and ease of removal.

Jessica6754

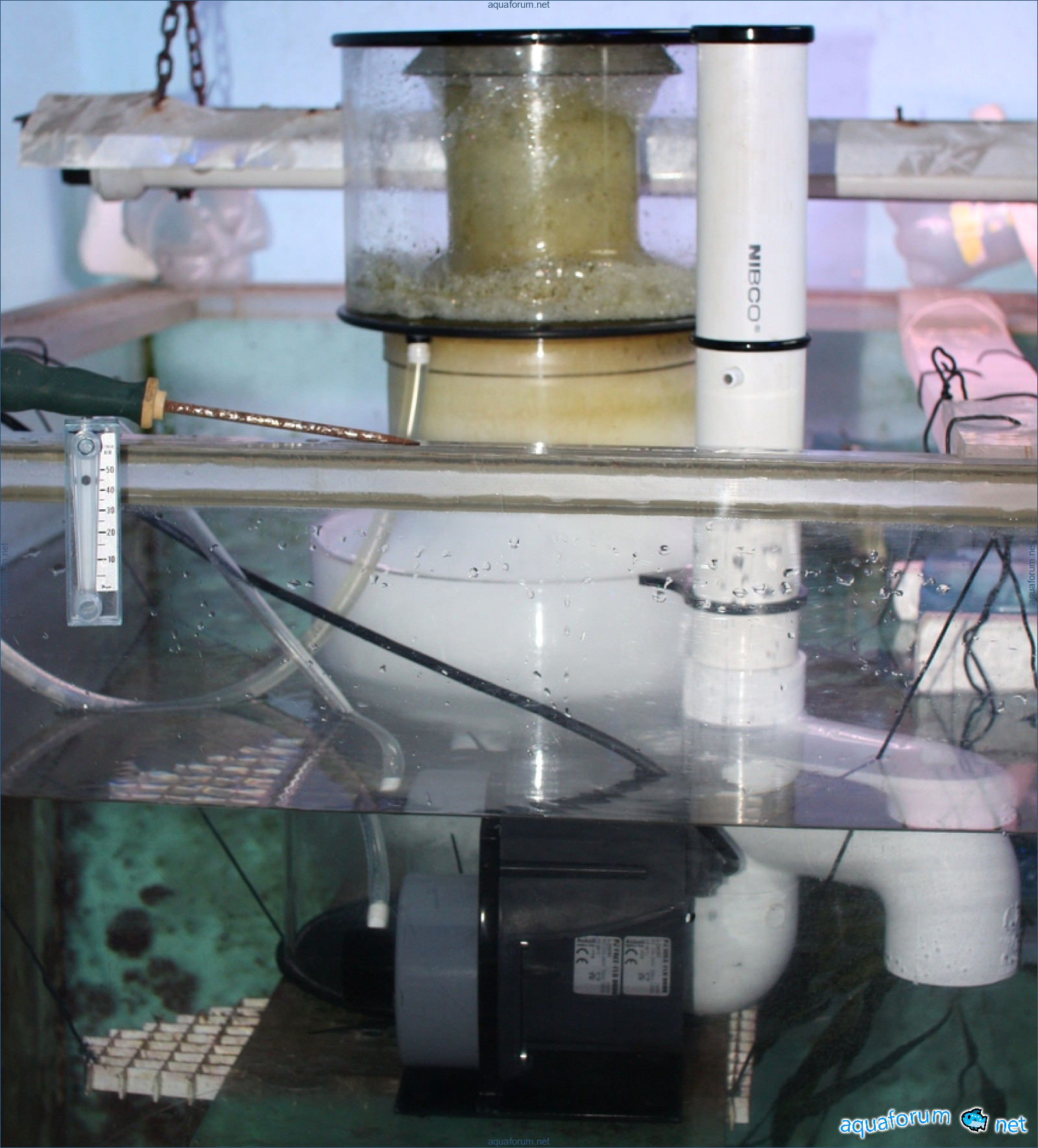

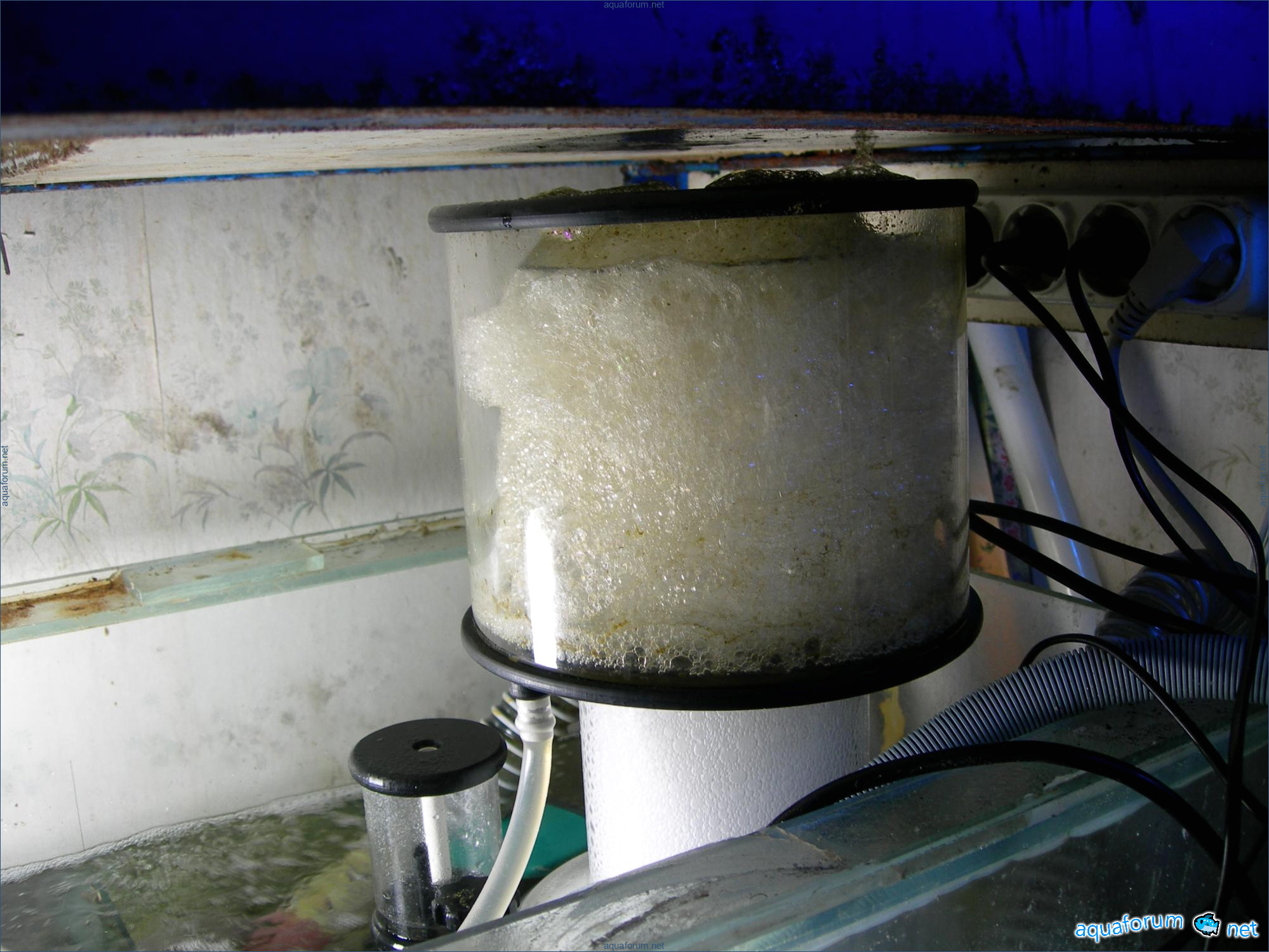

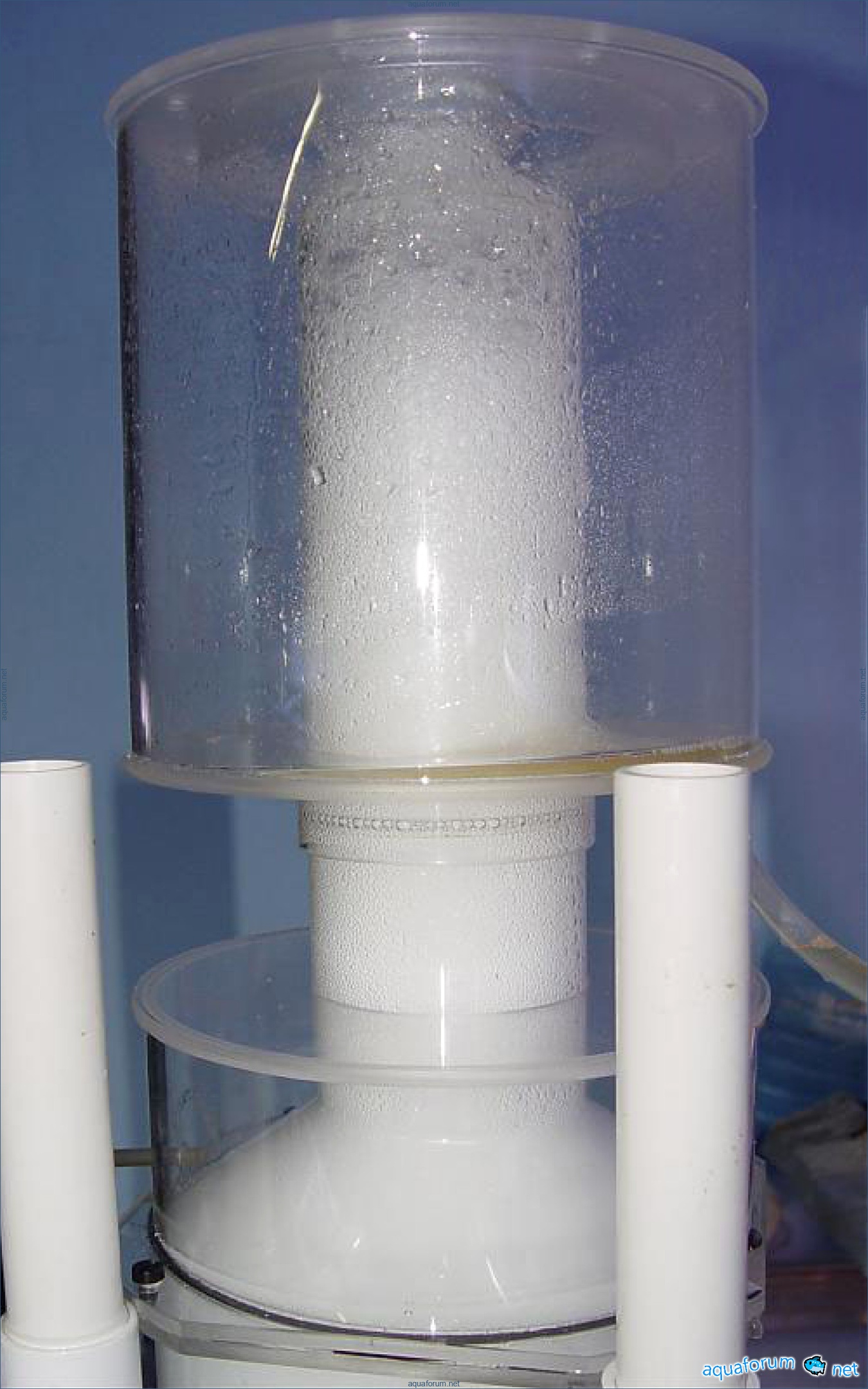

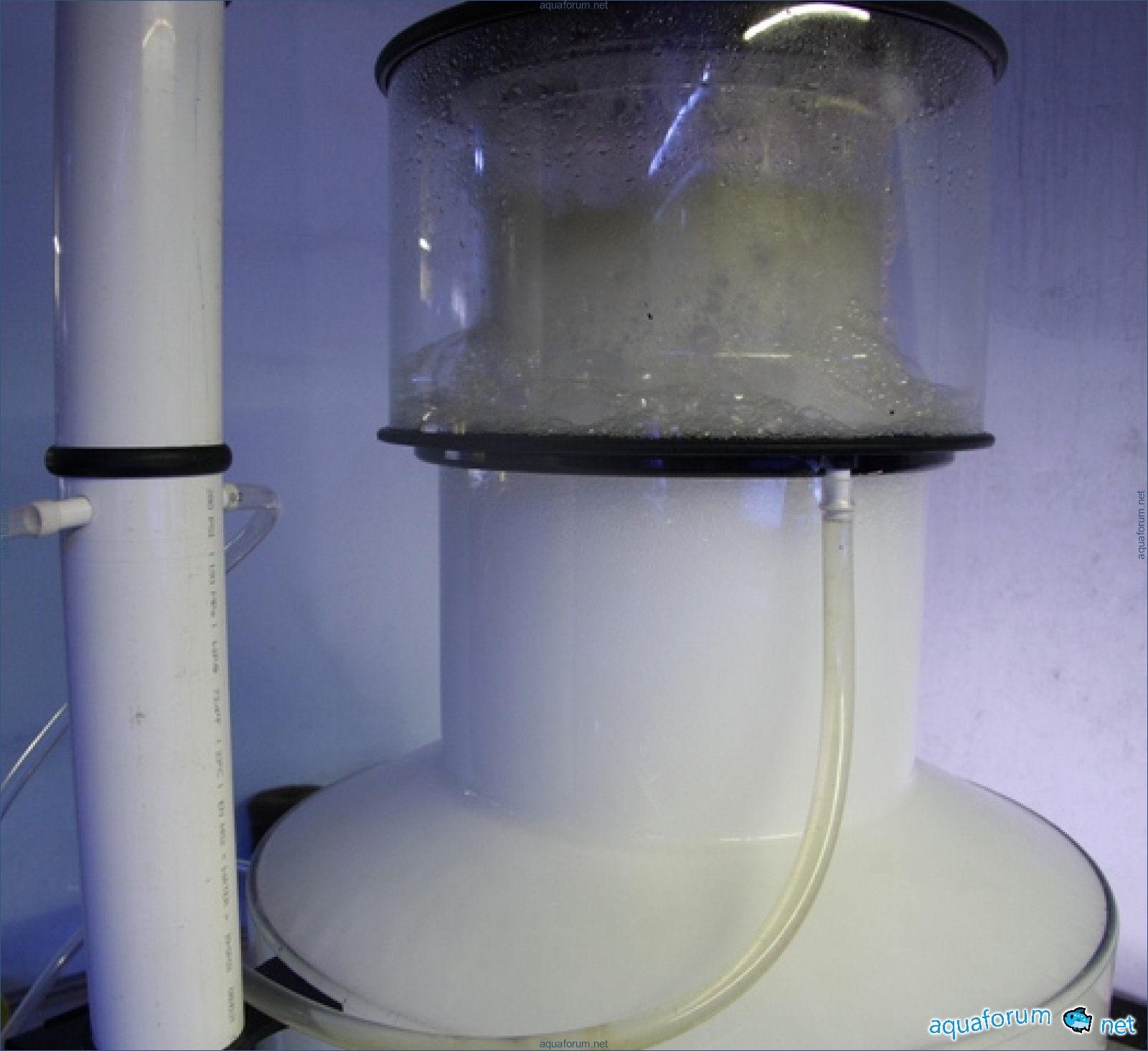

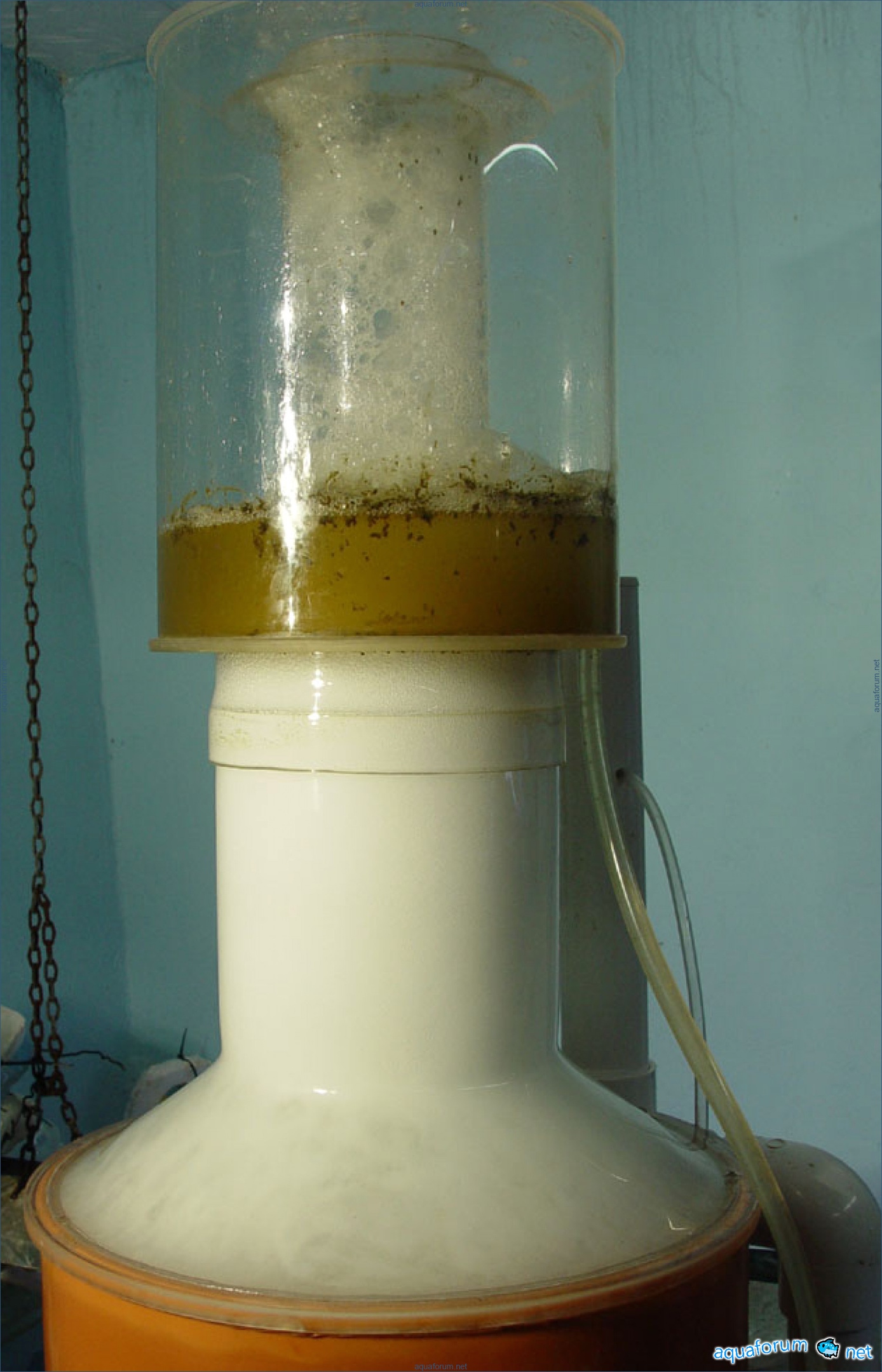

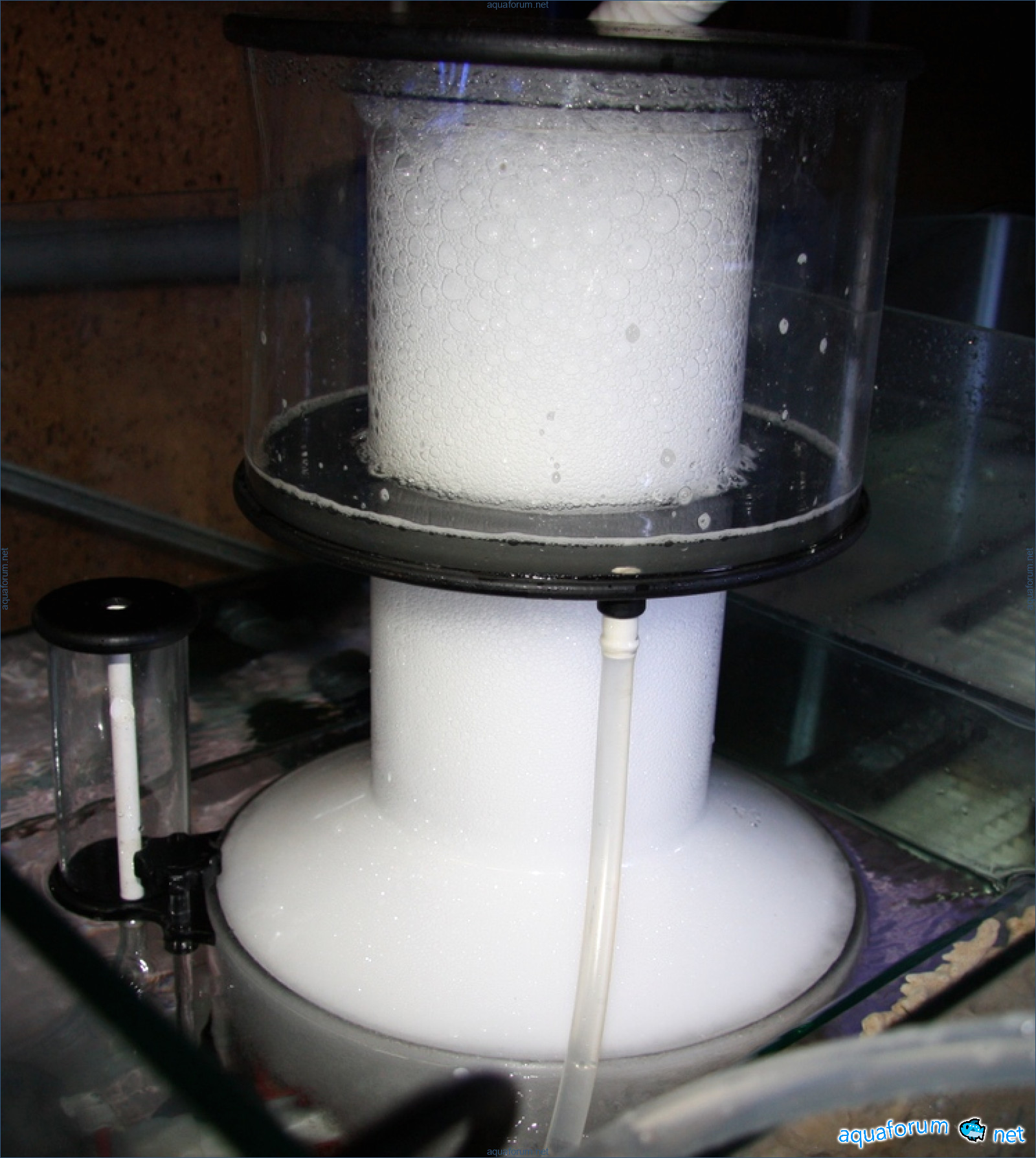

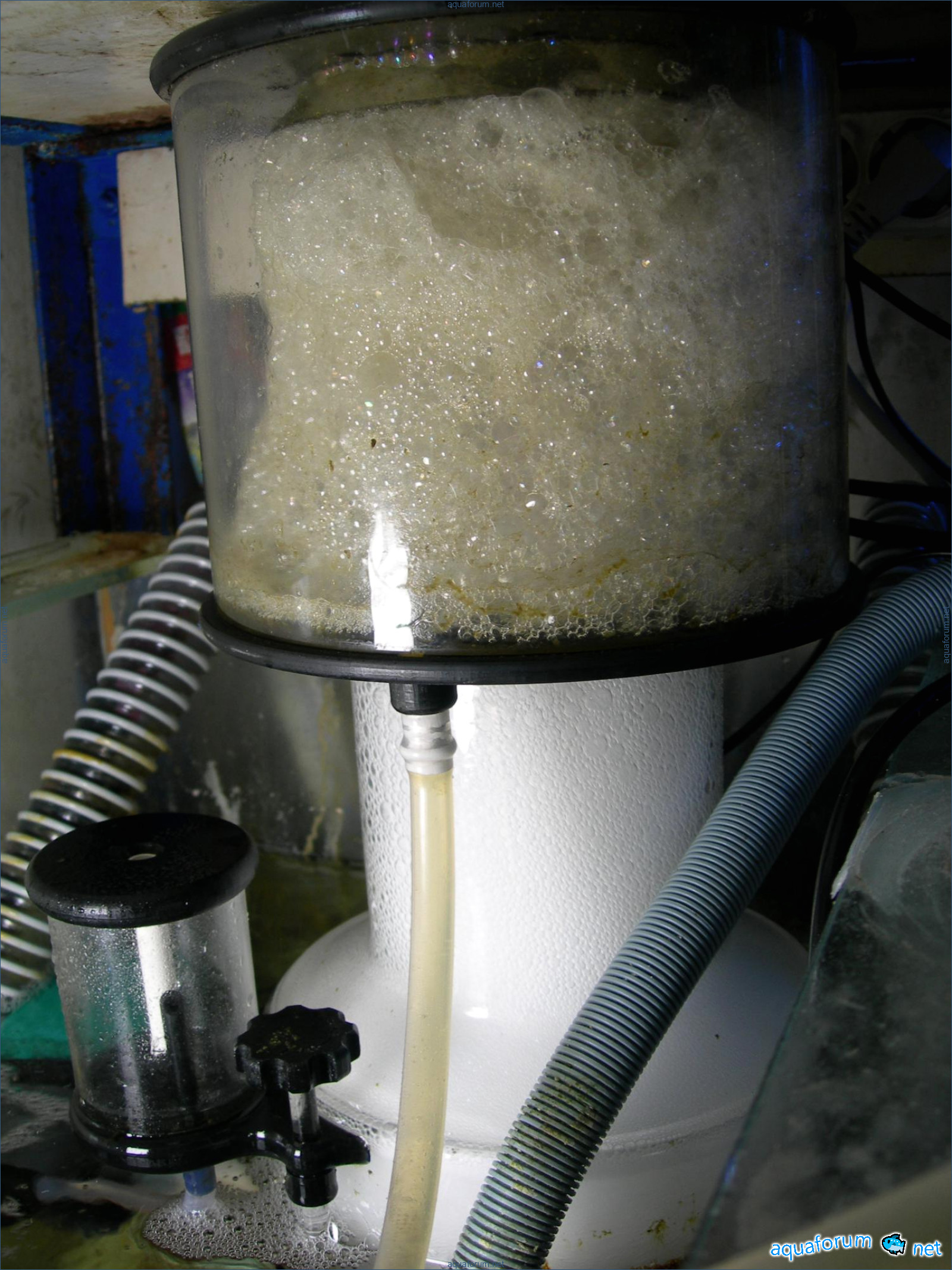

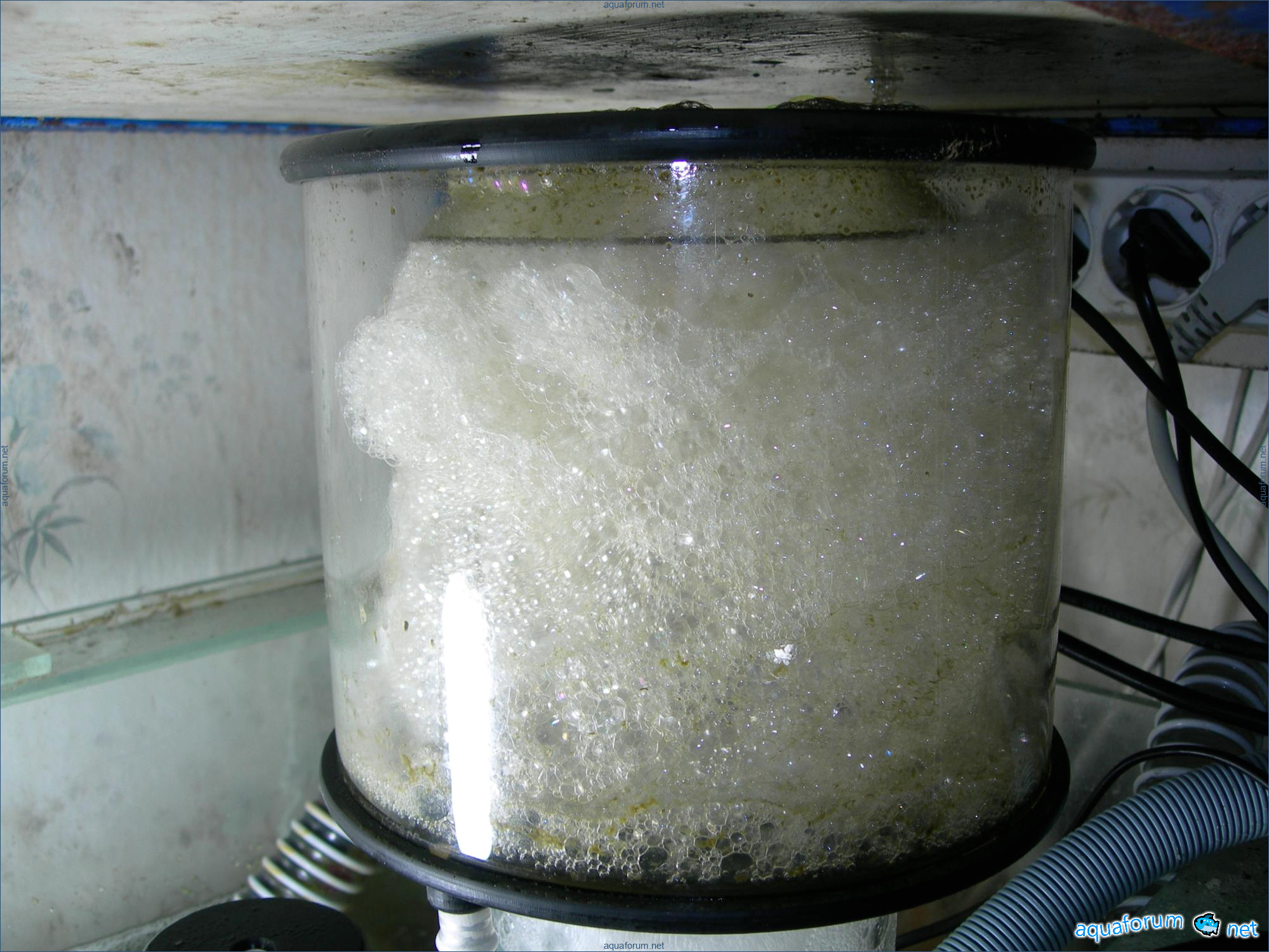

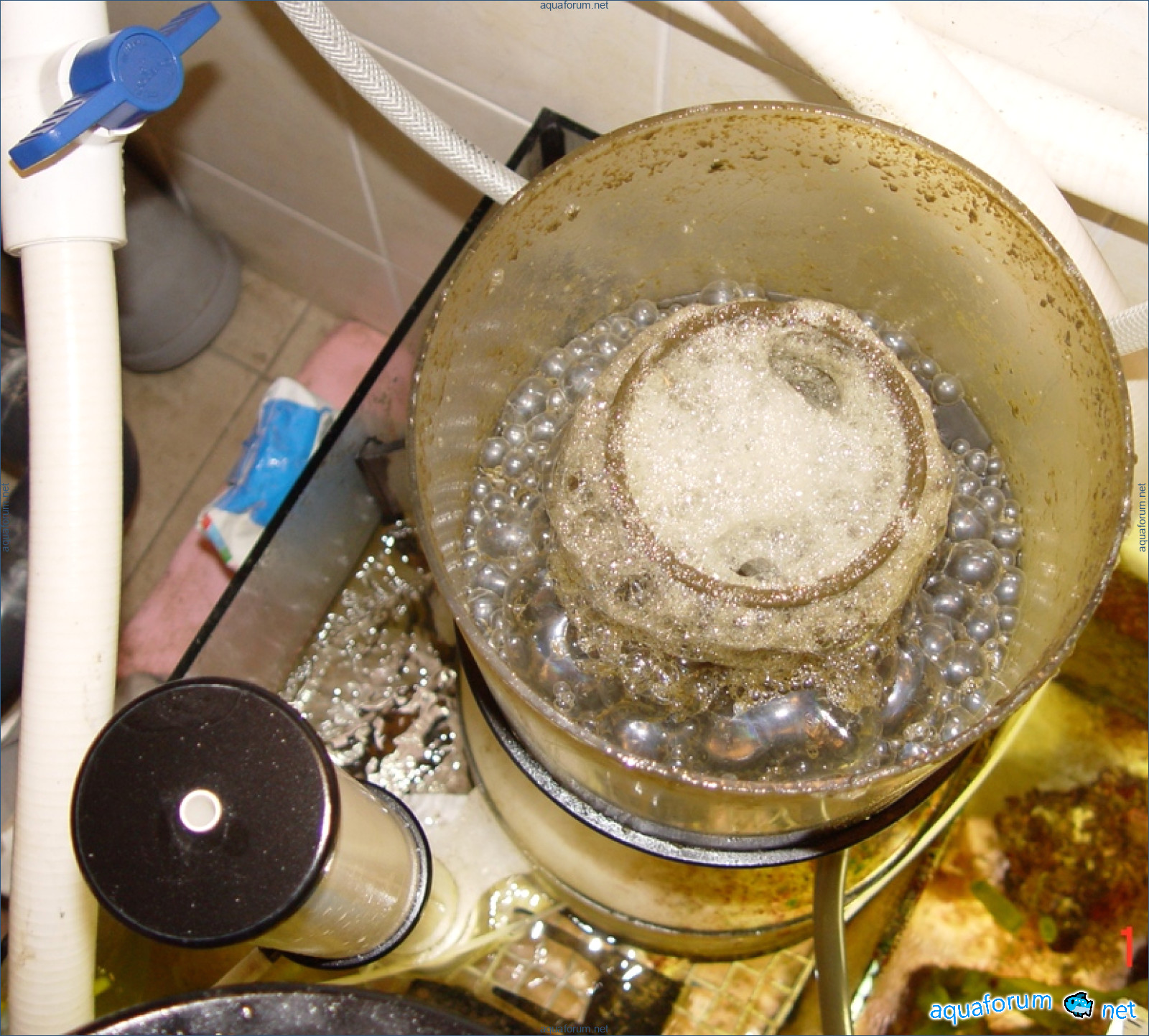

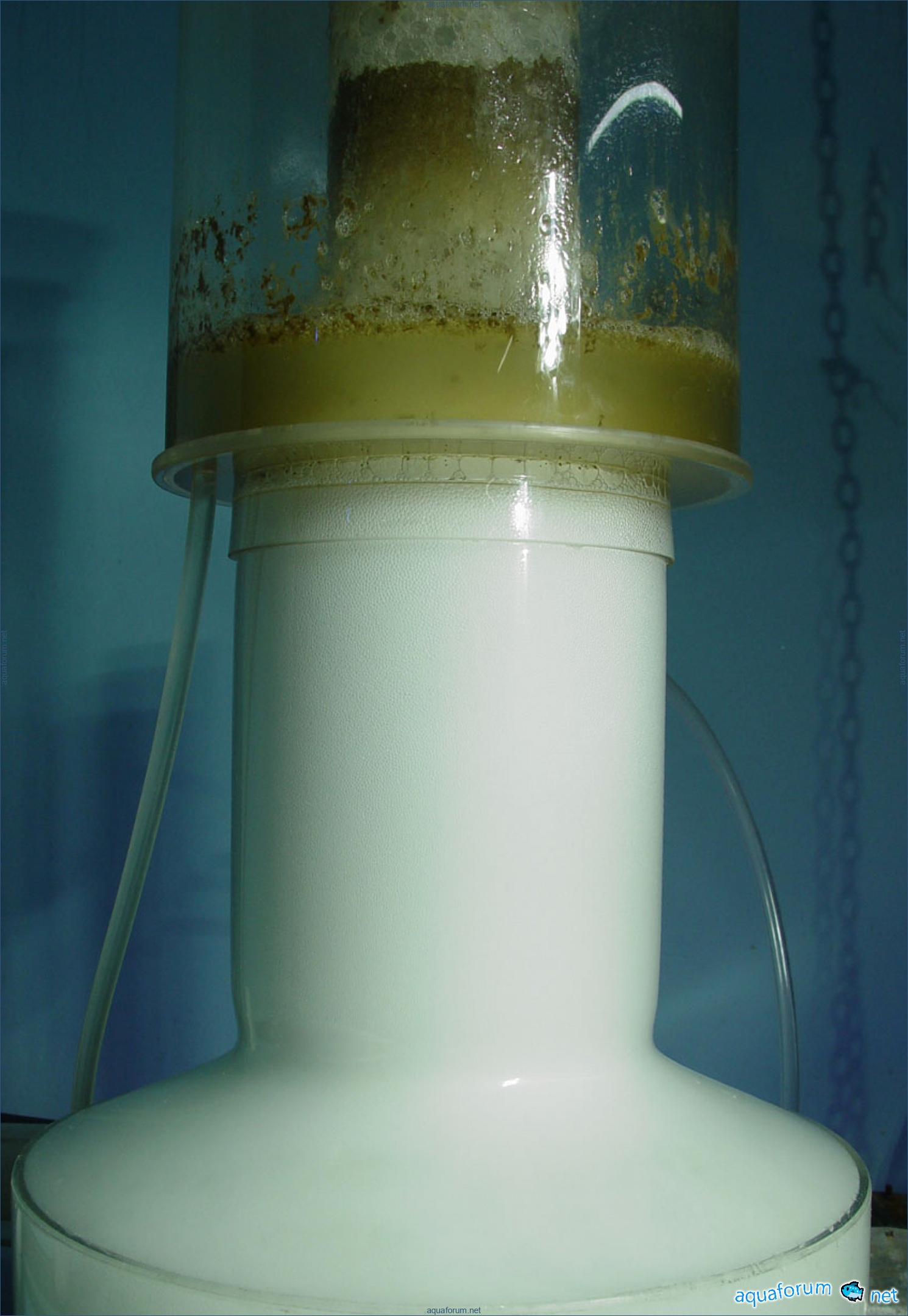

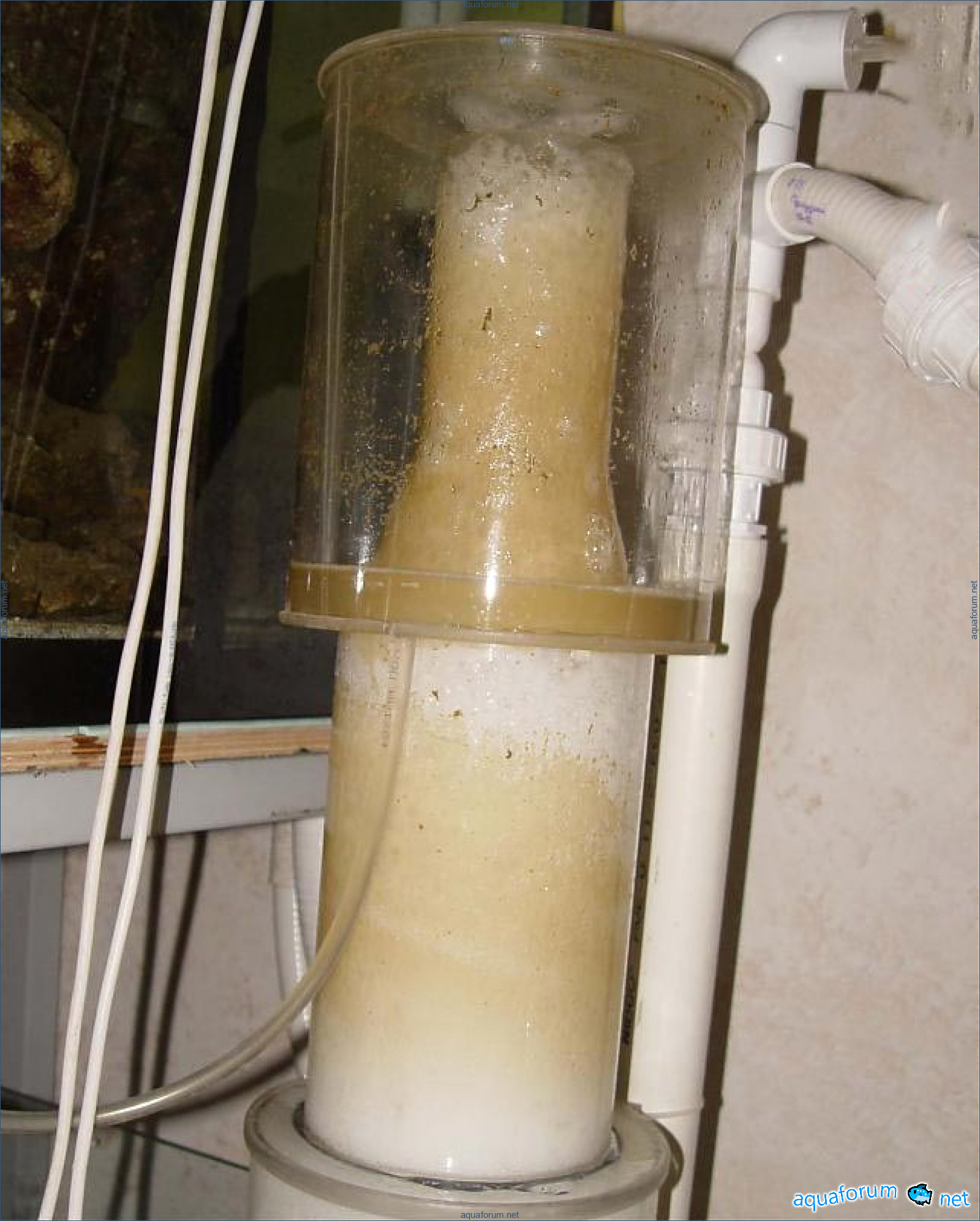

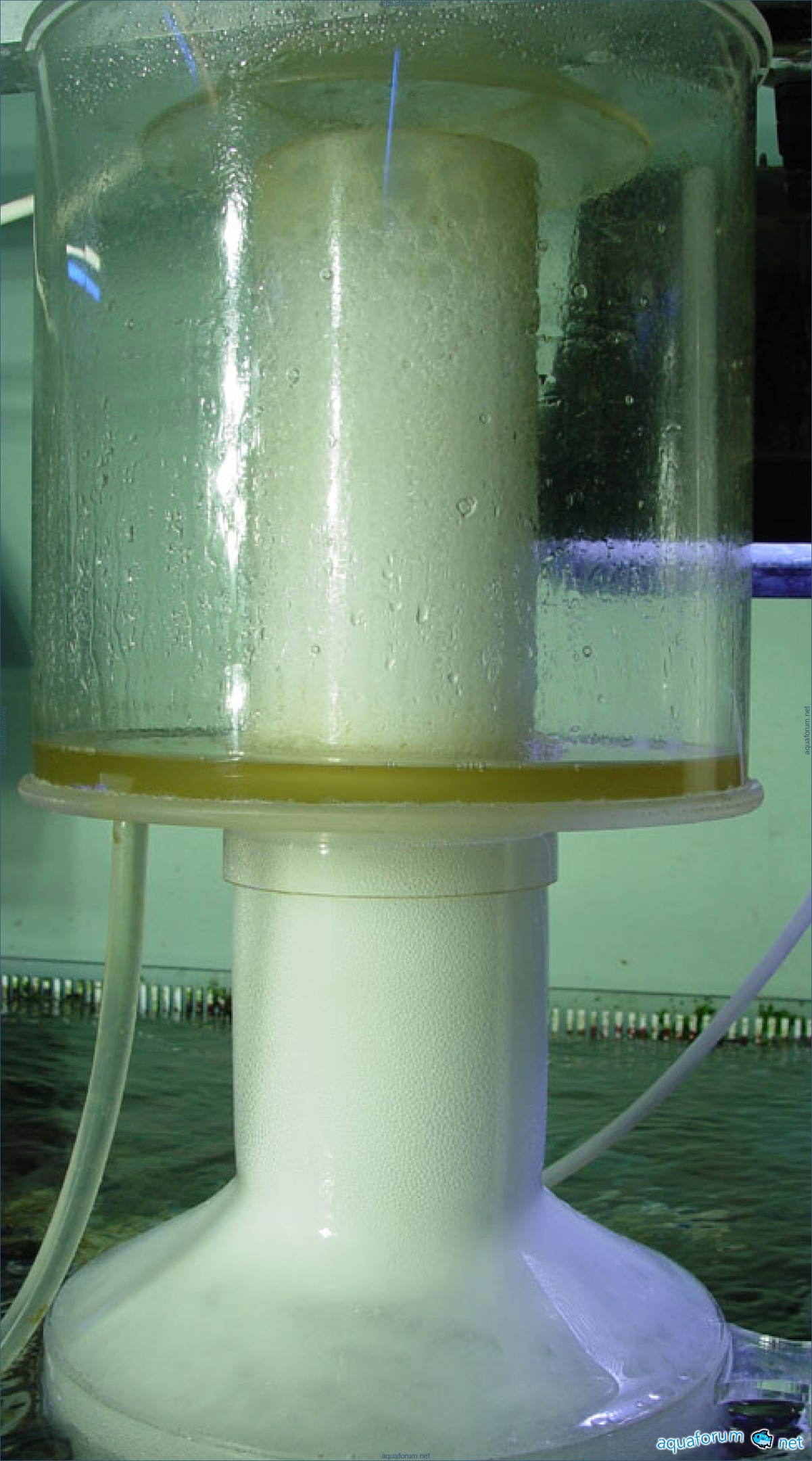

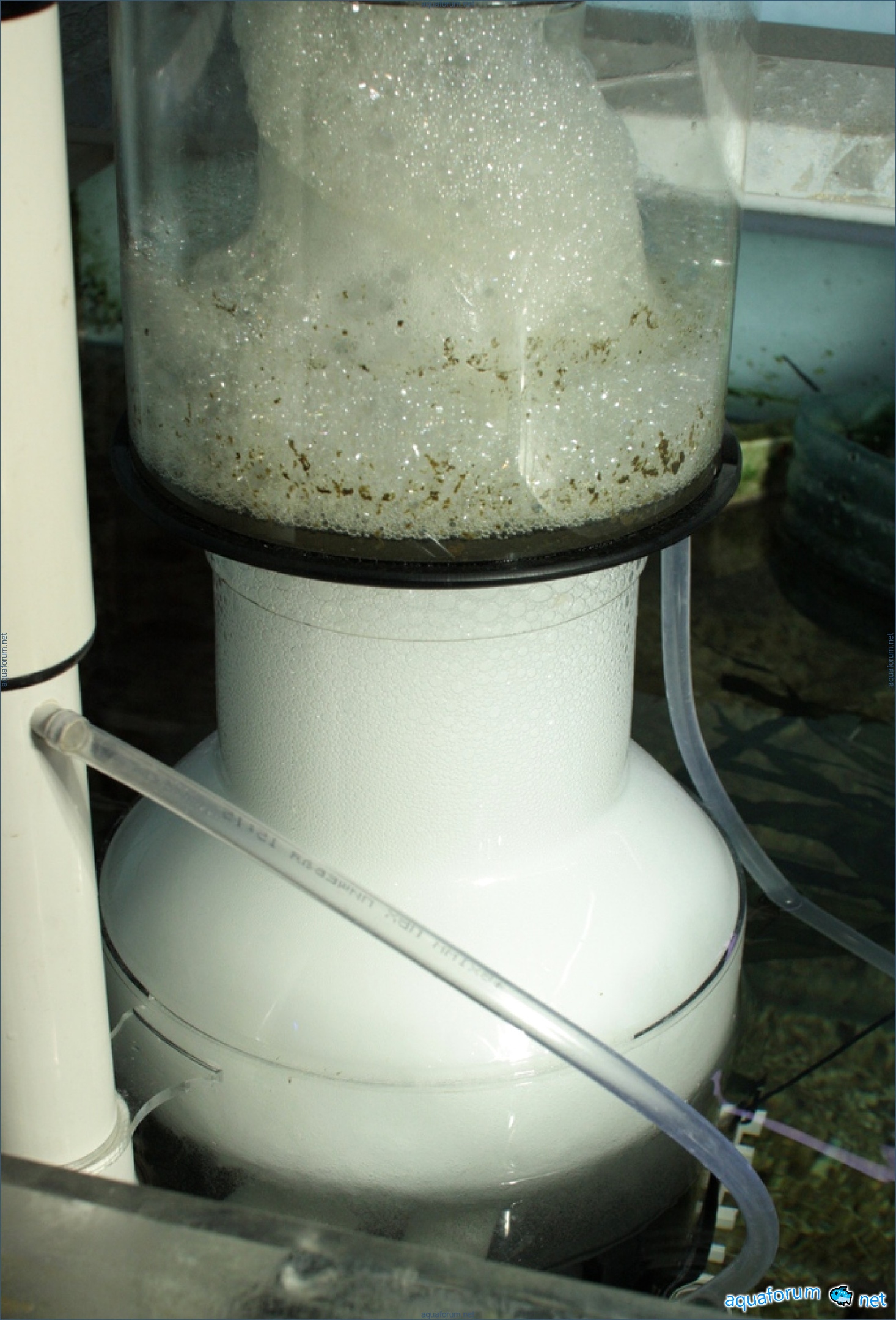

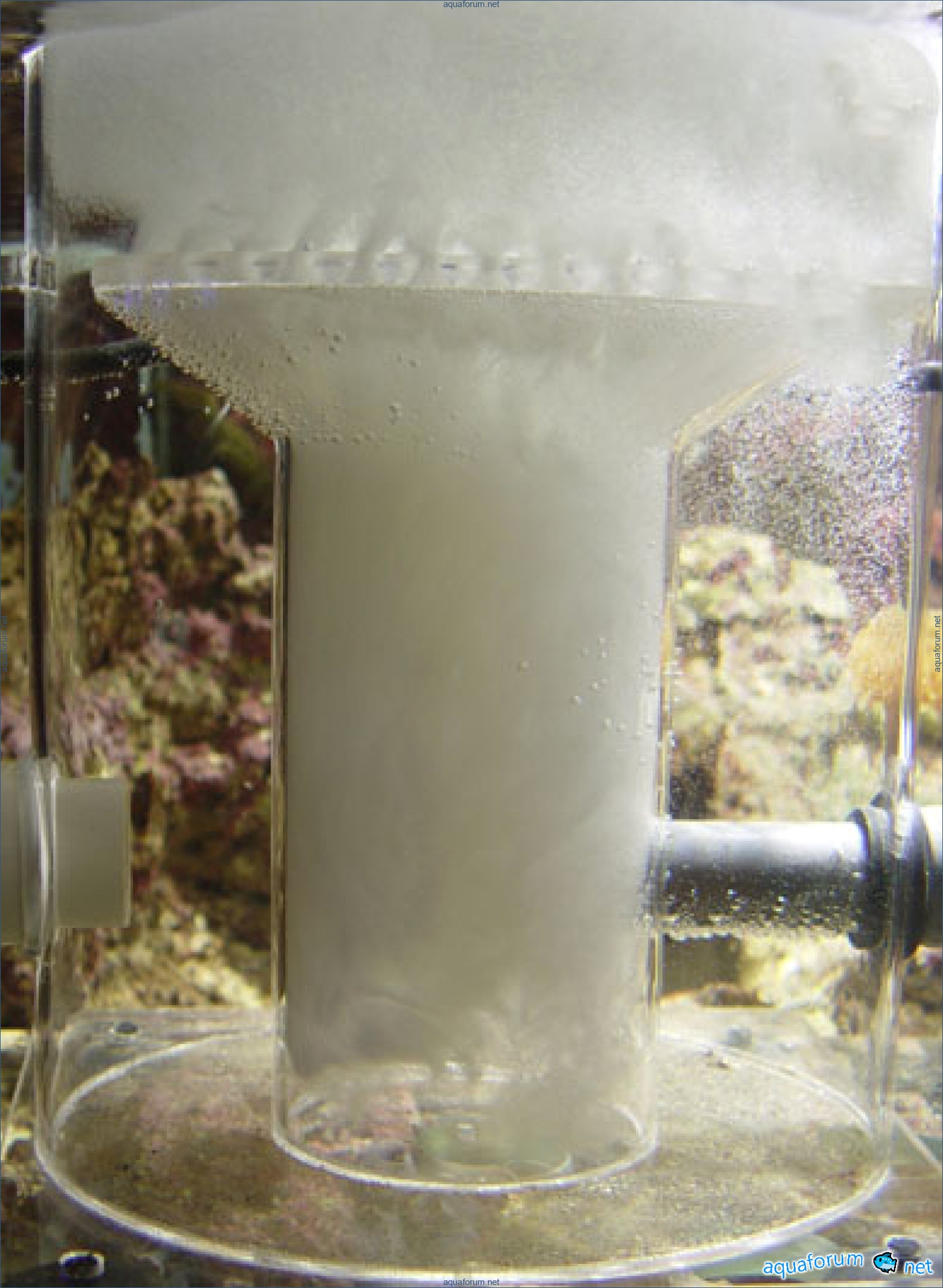

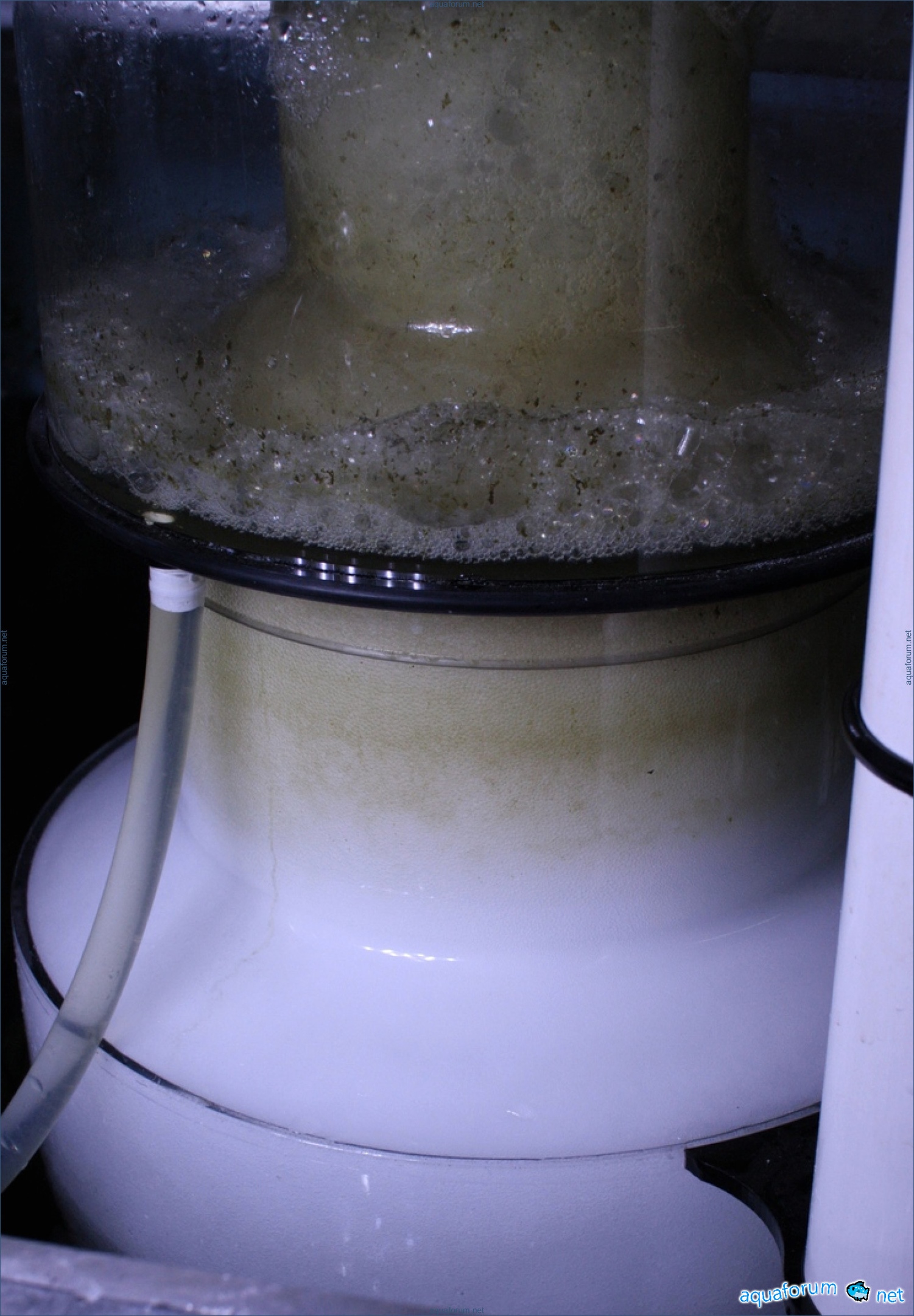

The first half hour of work Even better than I thought

Wendy

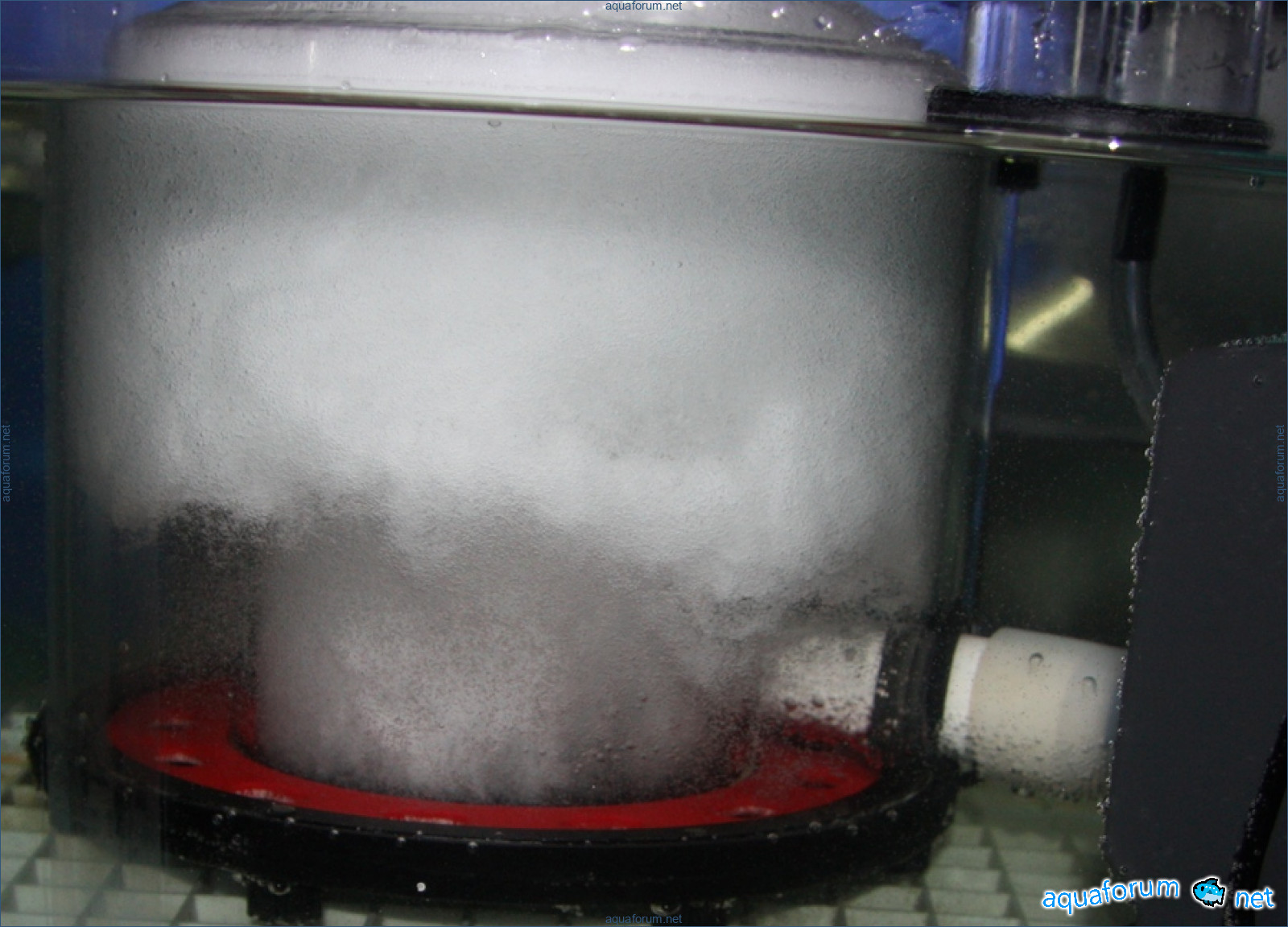

It looks very good in the work. What about the vortices? "Better than we thought" in what?

Judy

The expected result has mostly been achieved. A pleasant surprise was that the bubbles do not reach the outlet at all, and the distance from the nearest point to the outlet is very large, providing a buffer. Even if the skimmer is placed next to the circulation pump, no bubbles will enter the aquarium. Although this is not the main point, it is nice. In Royal-Exclusiv, if you look closely at the photos, the bubbles drop to the level of the outlet, meaning they will exit. Unfortunately, I cannot measure the turbulence; I can only say by eye that it is crazy up to the disc, and after that, it can be considered nonexistent.

Angel628

It looks very decent. Simple and tasteful. There are no unnecessary frills, everything is concise. I would like to nitpick, but there’s nothing to criticize.

Joseph8842

A good foam bumper in the lid is definitely not unnecessary. Sometimes, without it, the lid can blow off.

Melissa3200

If there is extra money, we can add some extra features.

Jerry

class !!! how much is the weight for the people?

Adrienne

There is one used, in good condition, recently passed inspection - not expensive. Such foam usually appears on startup; in peacetime, the weight is lying idle - I can rent it out.

Jacob4800

And all these gadgets are good only for aquariums of 500-600 liters. Beyond that, it's better to decide differently. I took a reliable device and conducted testing. At the last reading of 40 liters/min (2400 liters/hour), the device went off the scale... Meanwhile, the skimmer produces 6 liters of foam. With the hairy wheel and all the bells and whistles, I managed to get 2 liters of foam and 700-800 liters/hour of air intake. Miniatures.

Allison

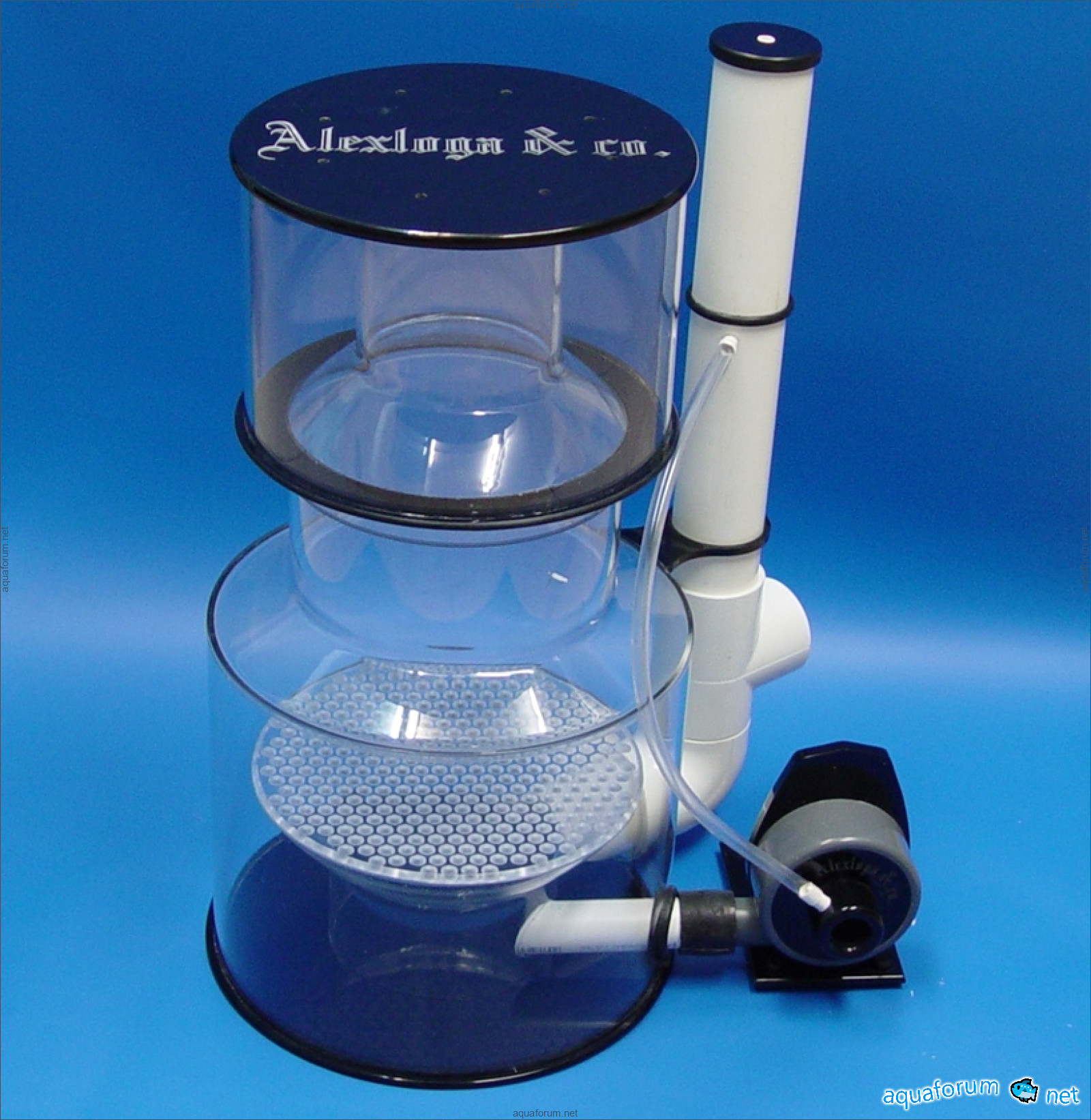

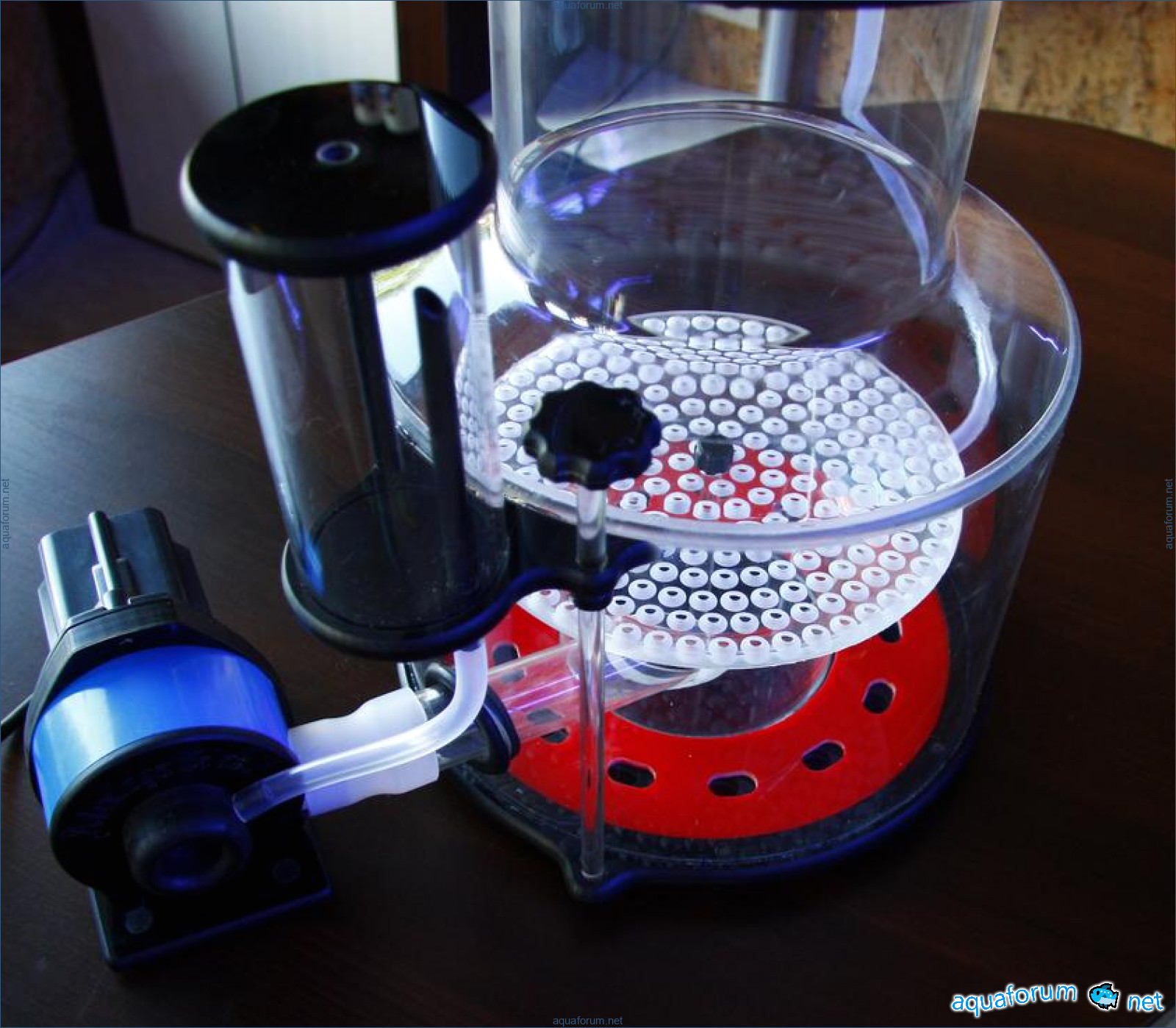

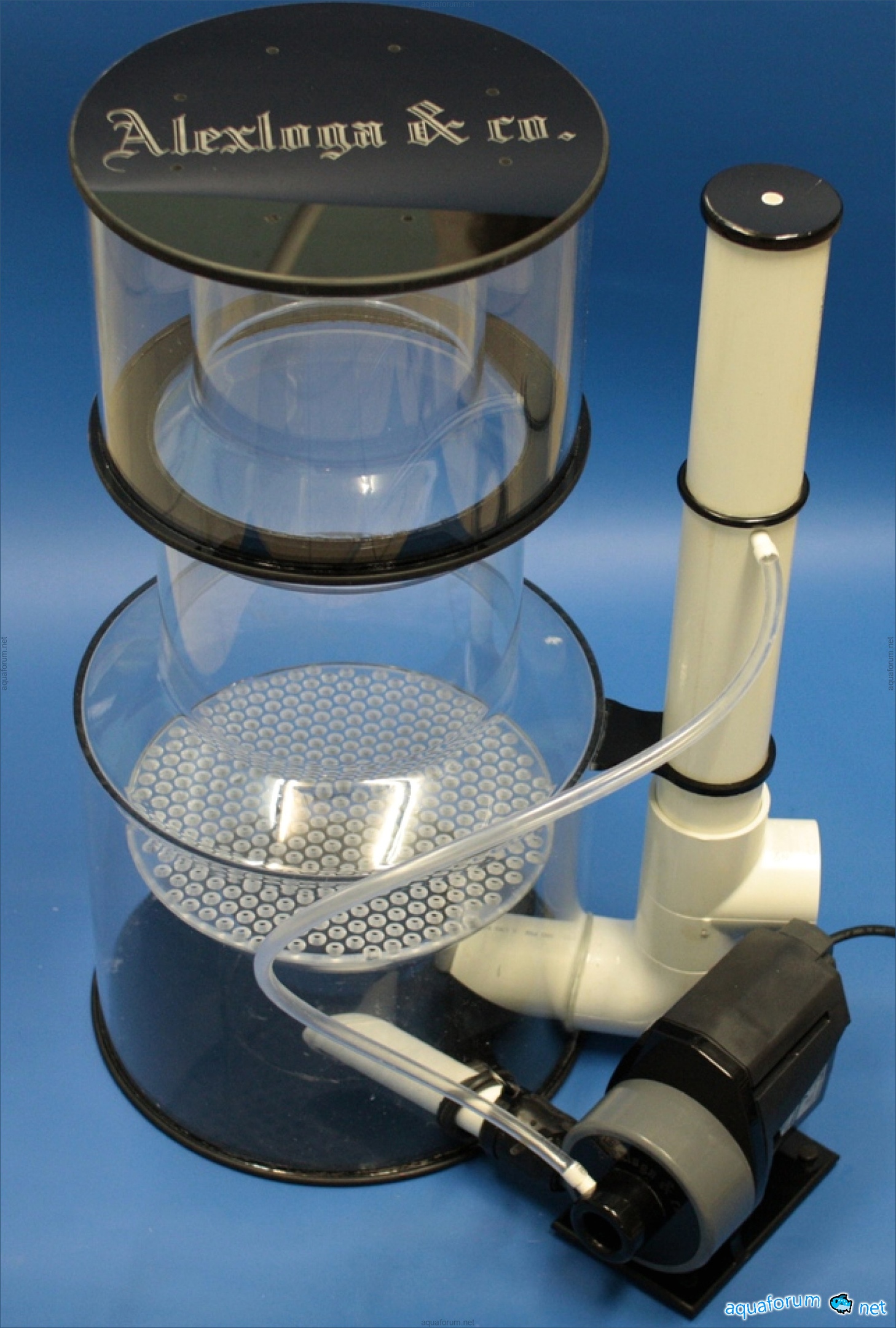

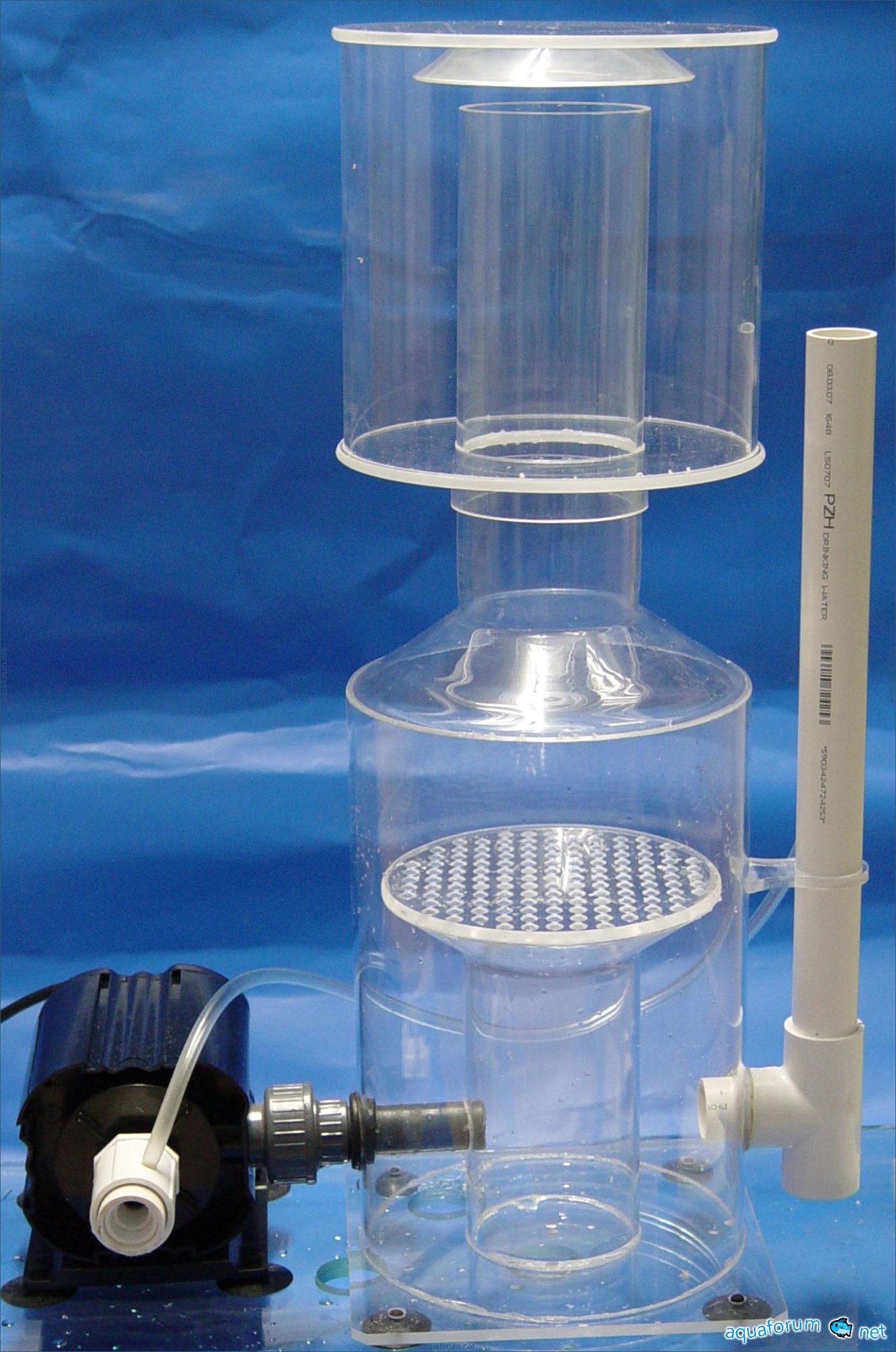

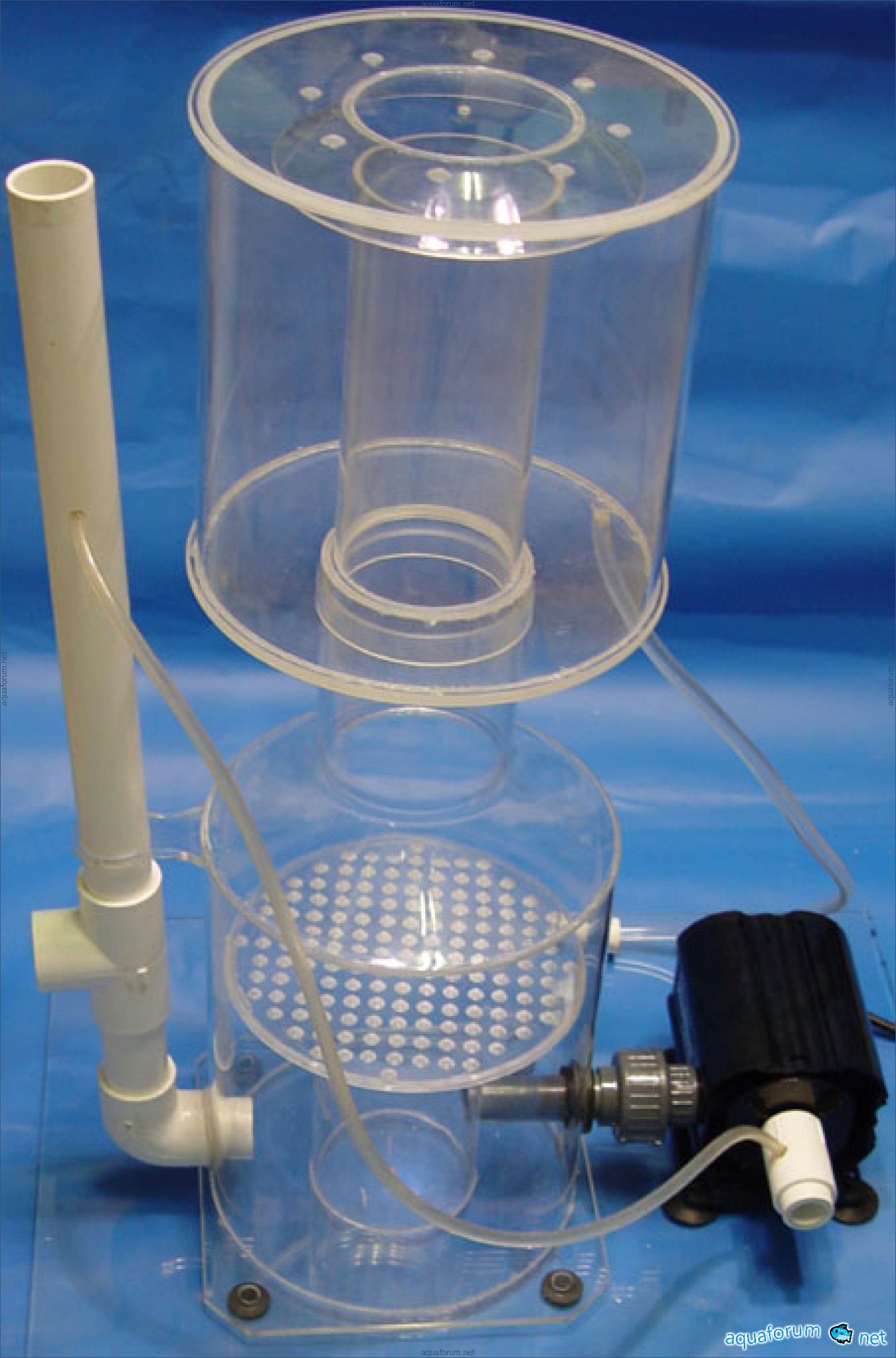

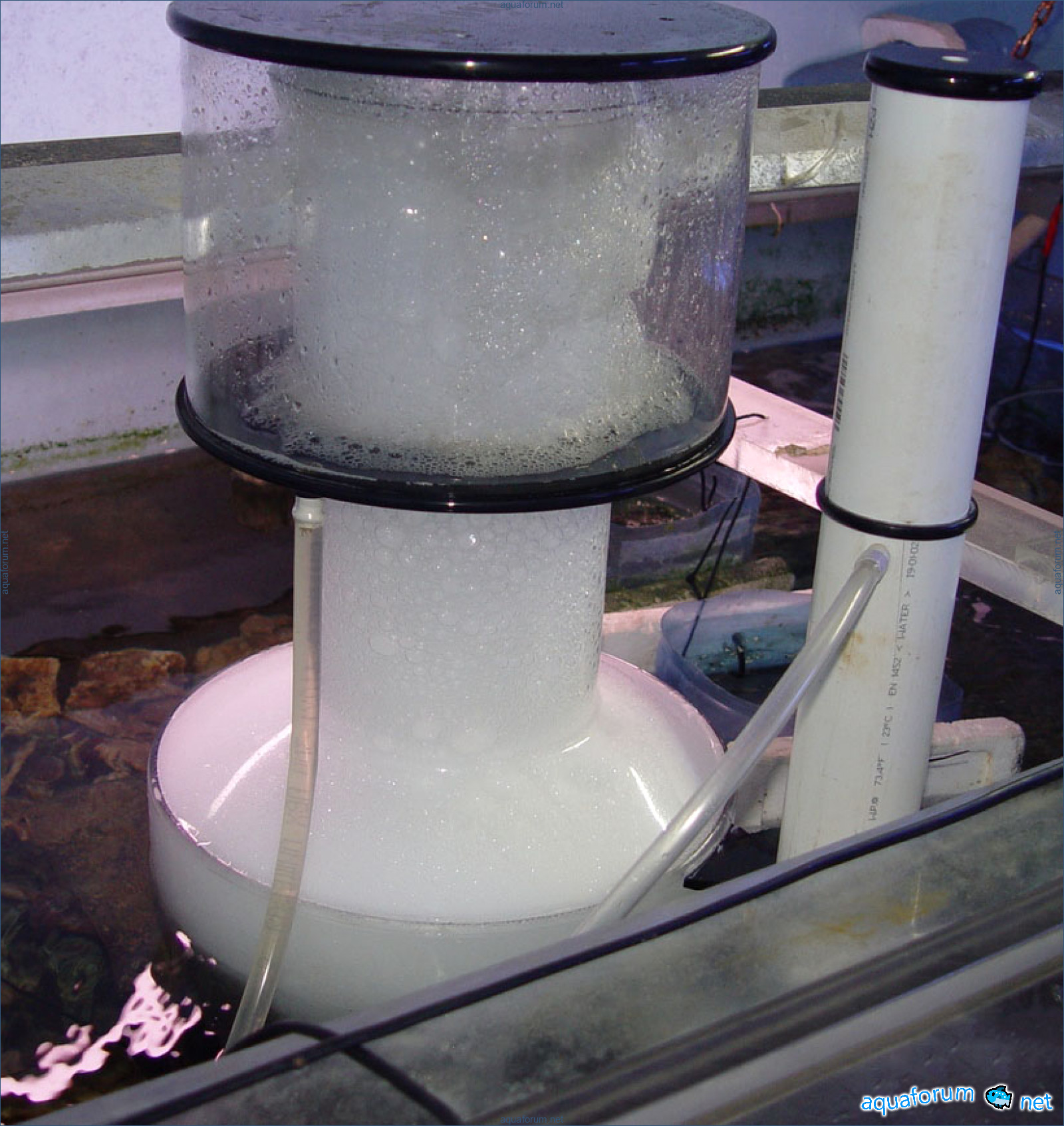

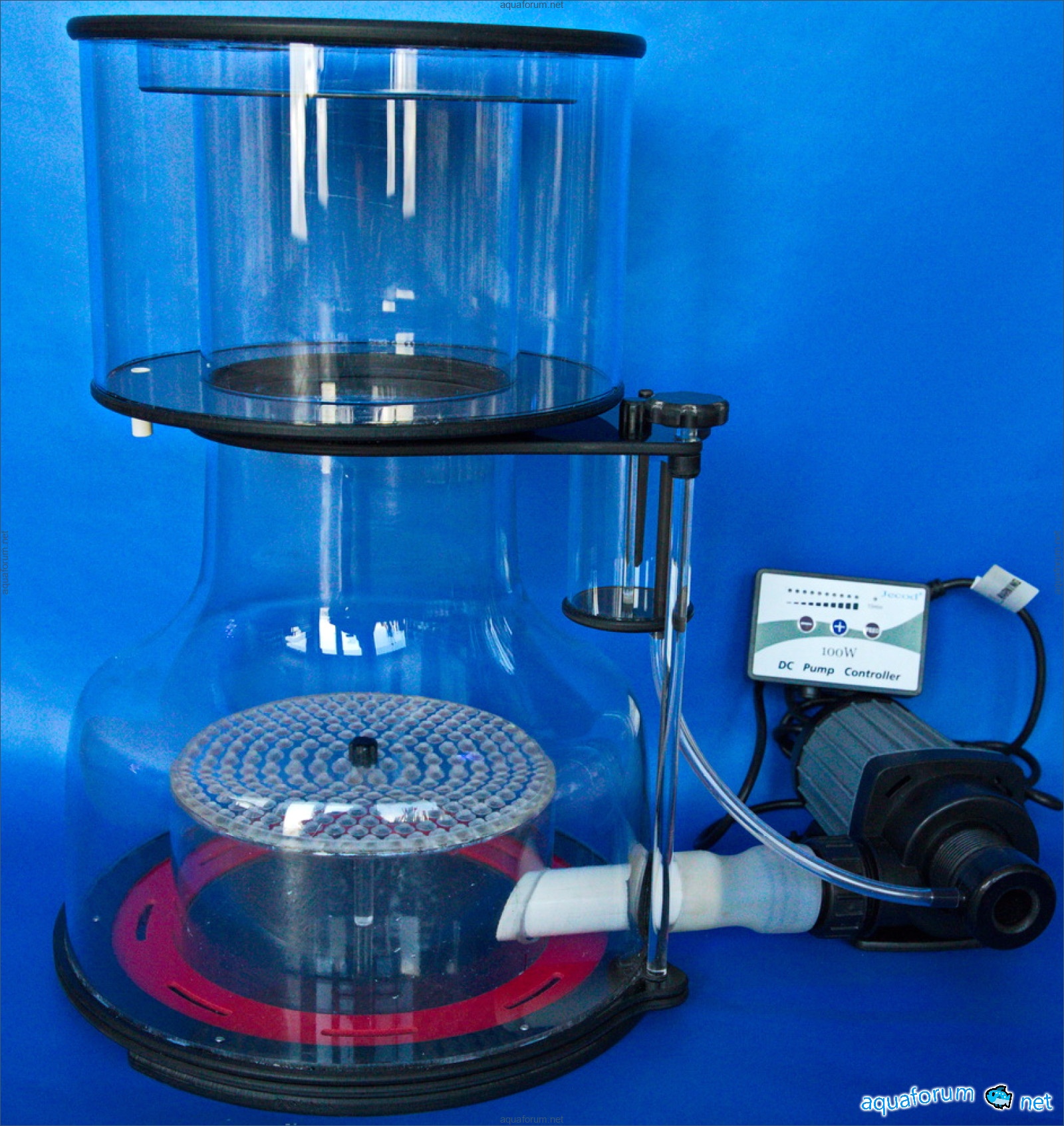

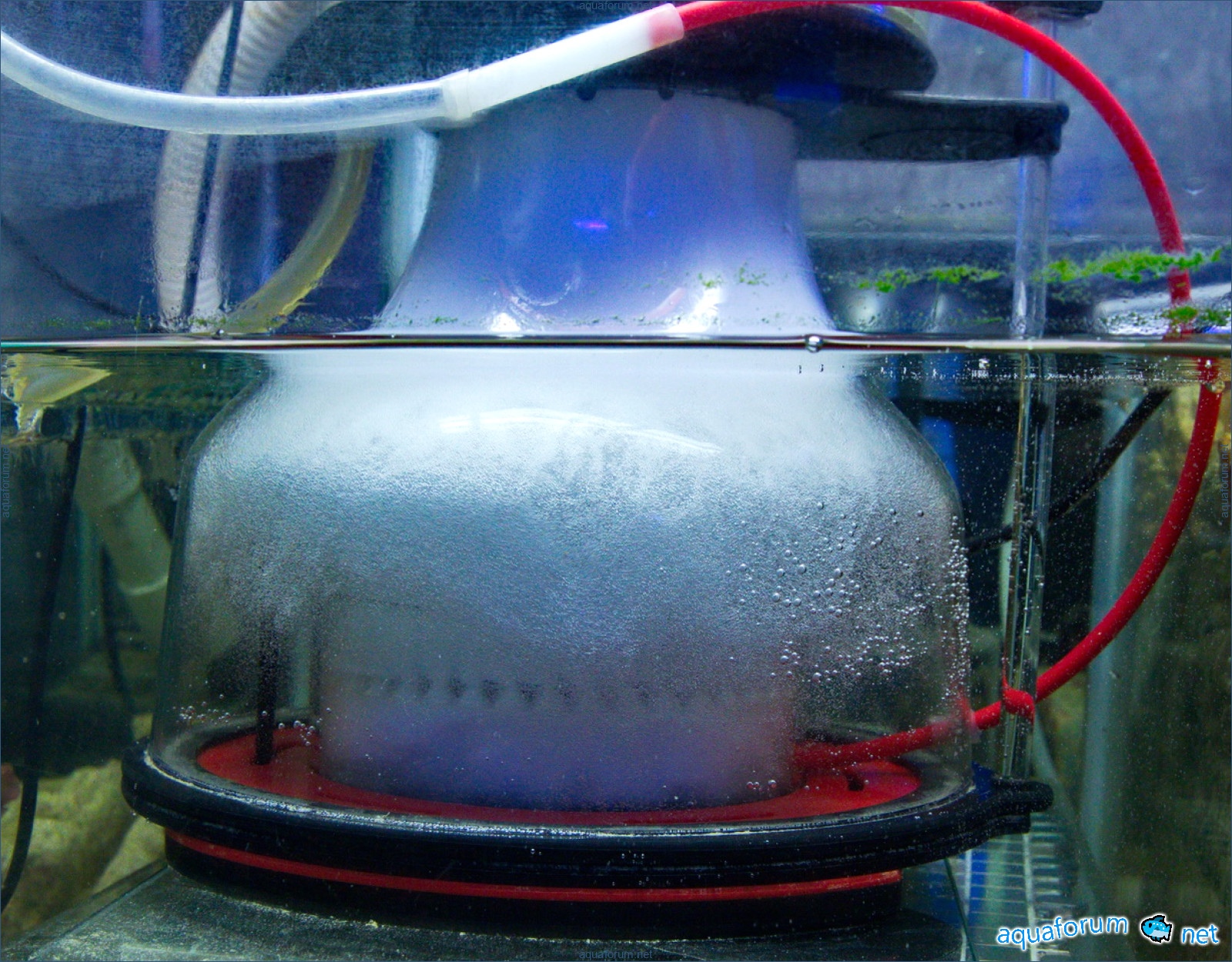

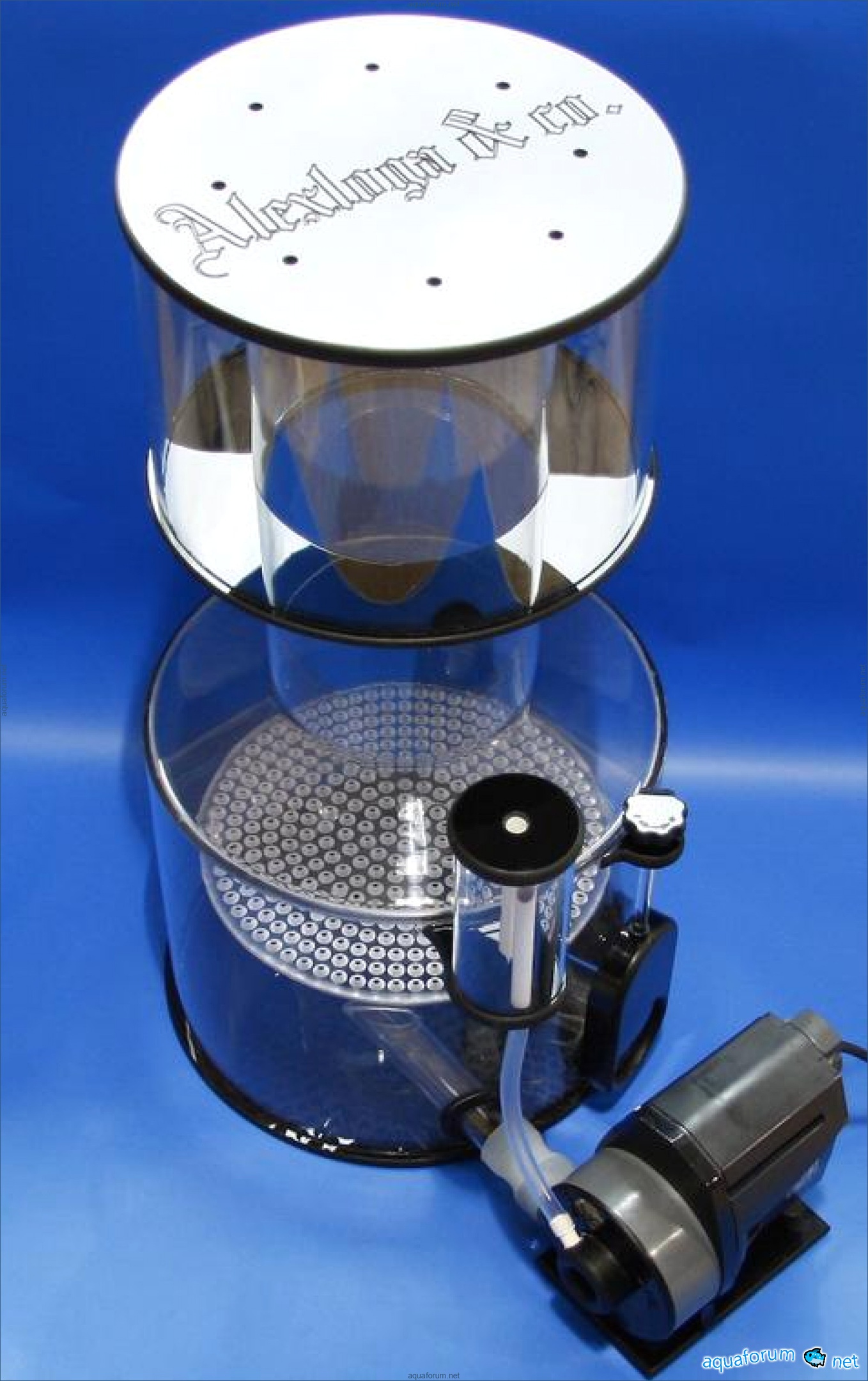

Skimmer circulation D200mm, H 600mm, pump AM OR 2500l/h Recommended for aquariums 250-450l Air intake 450 l/h Impeller - "fuzzy wheel" Minimum foam volume 1.5l To reduce noise and vibration, the skimmer body is connected to the pump via a rubber insert and stands on rubber suction cups Video of the operation of the lower (driving) part Above water

Cynthia

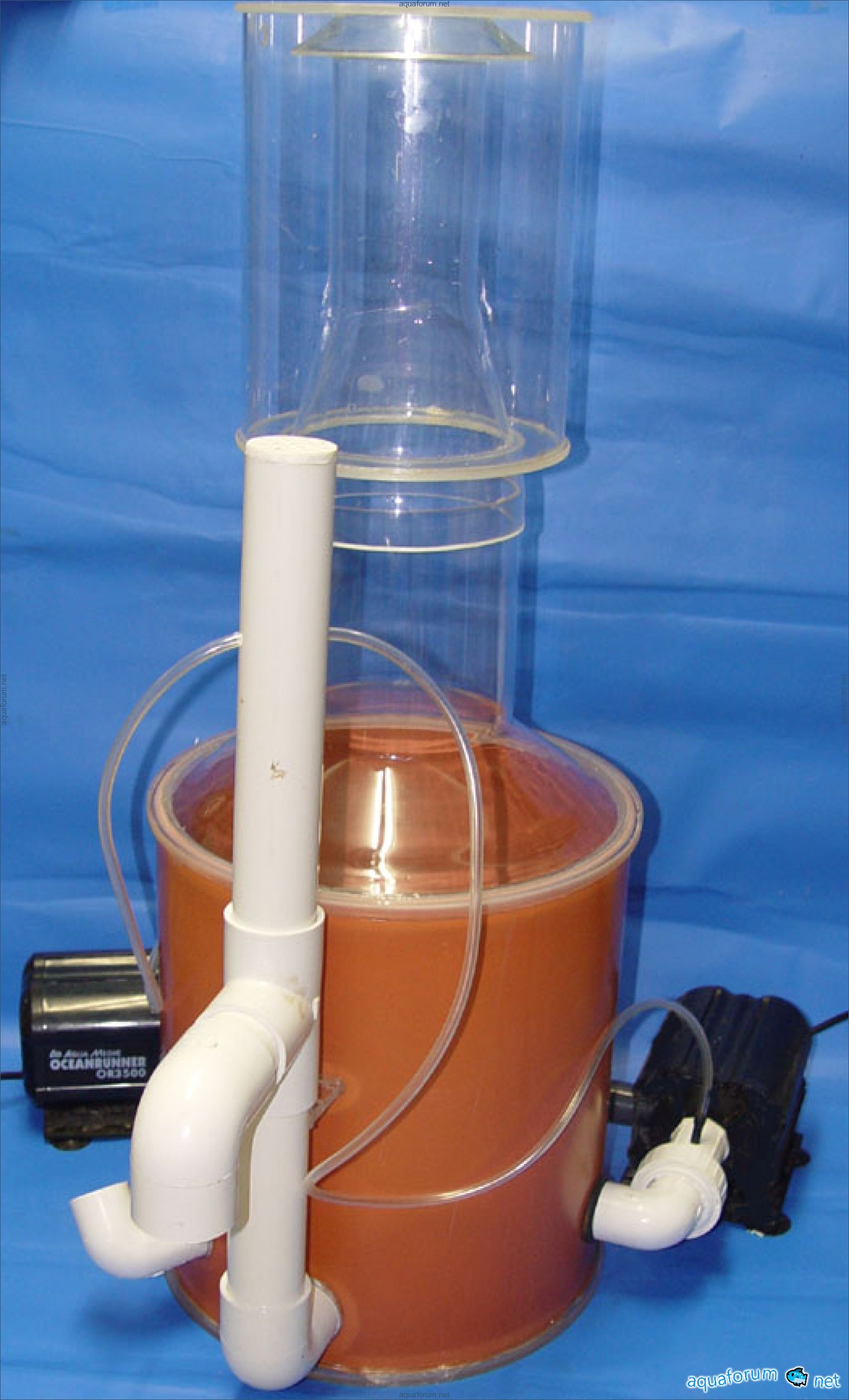

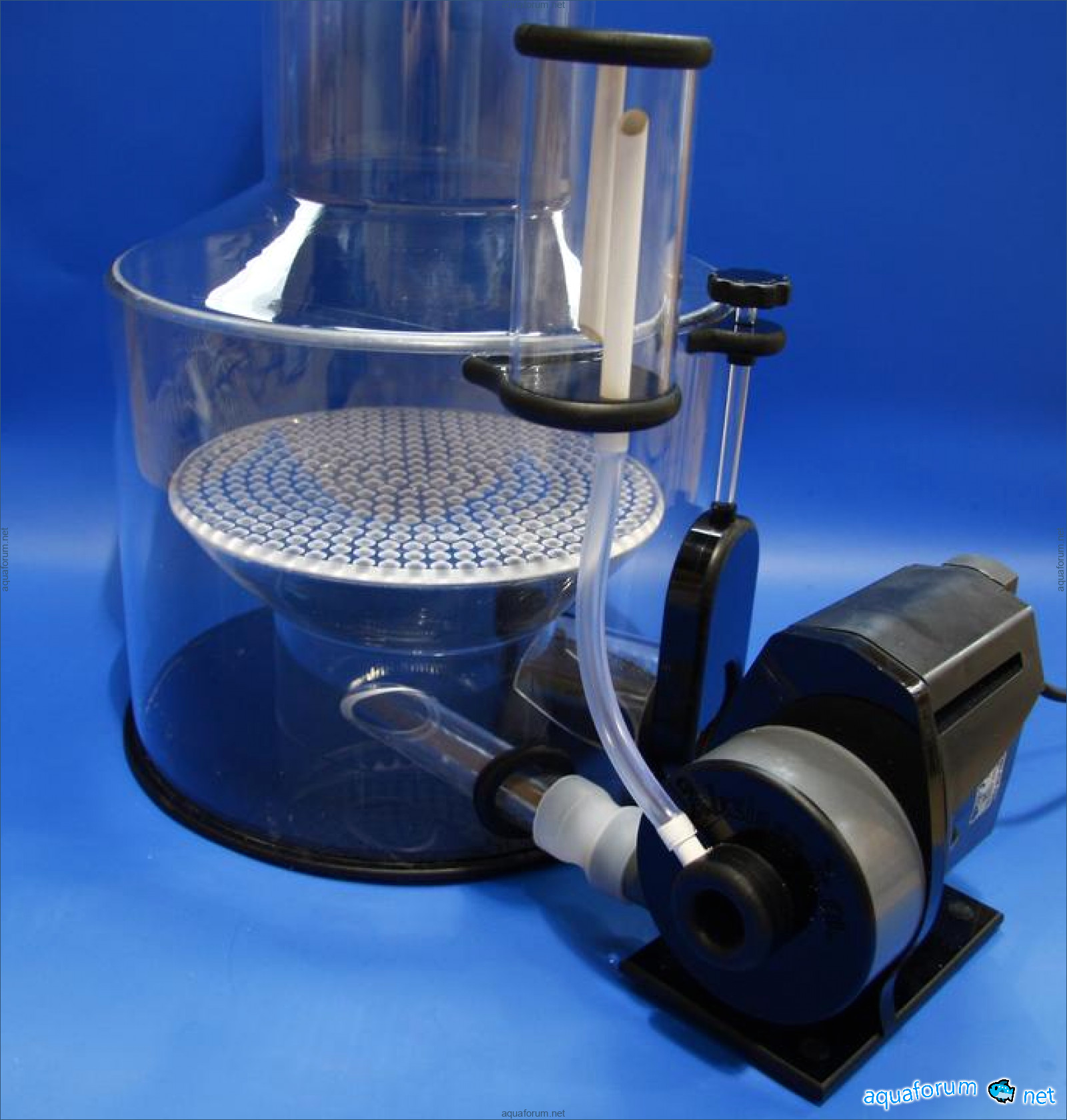

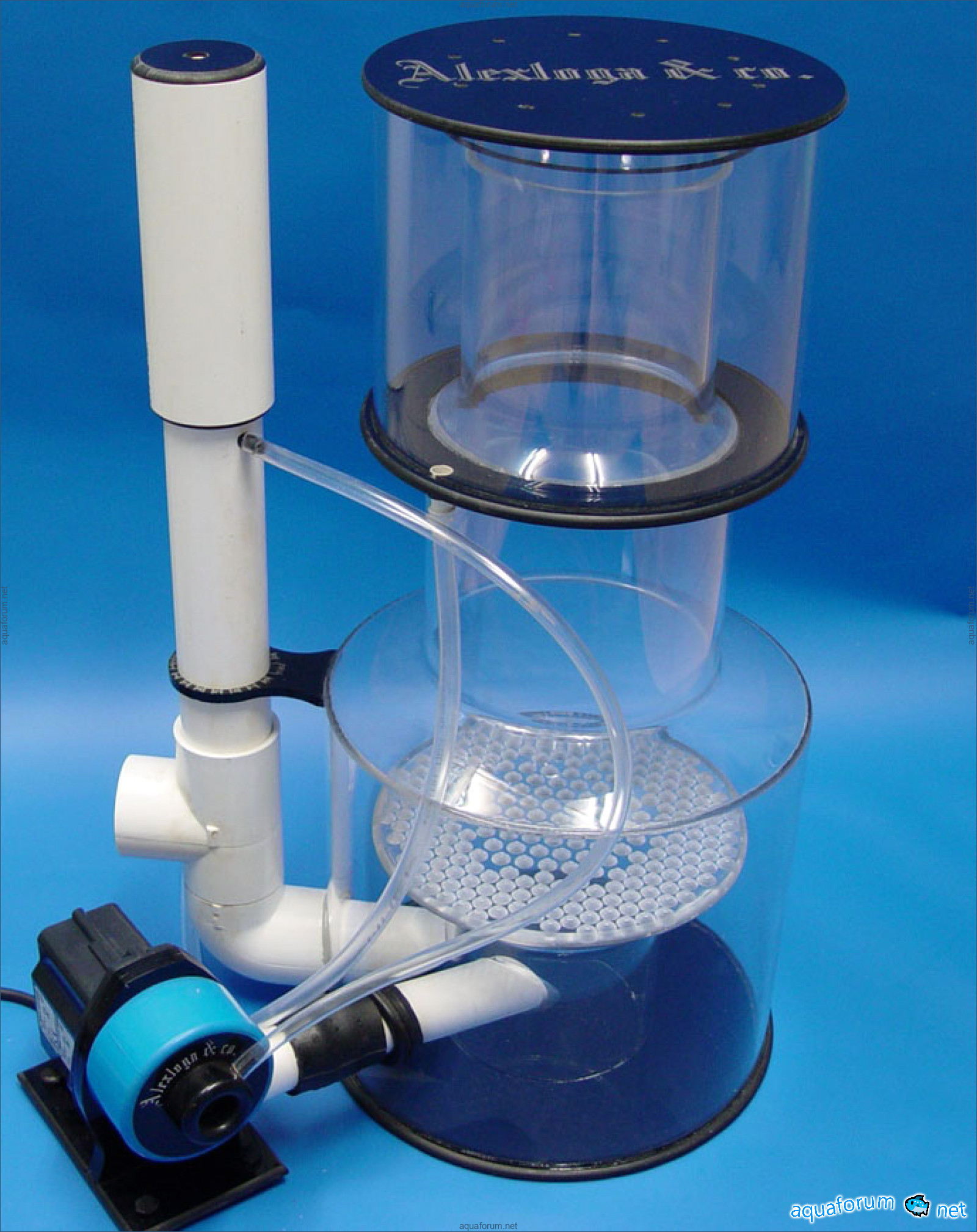

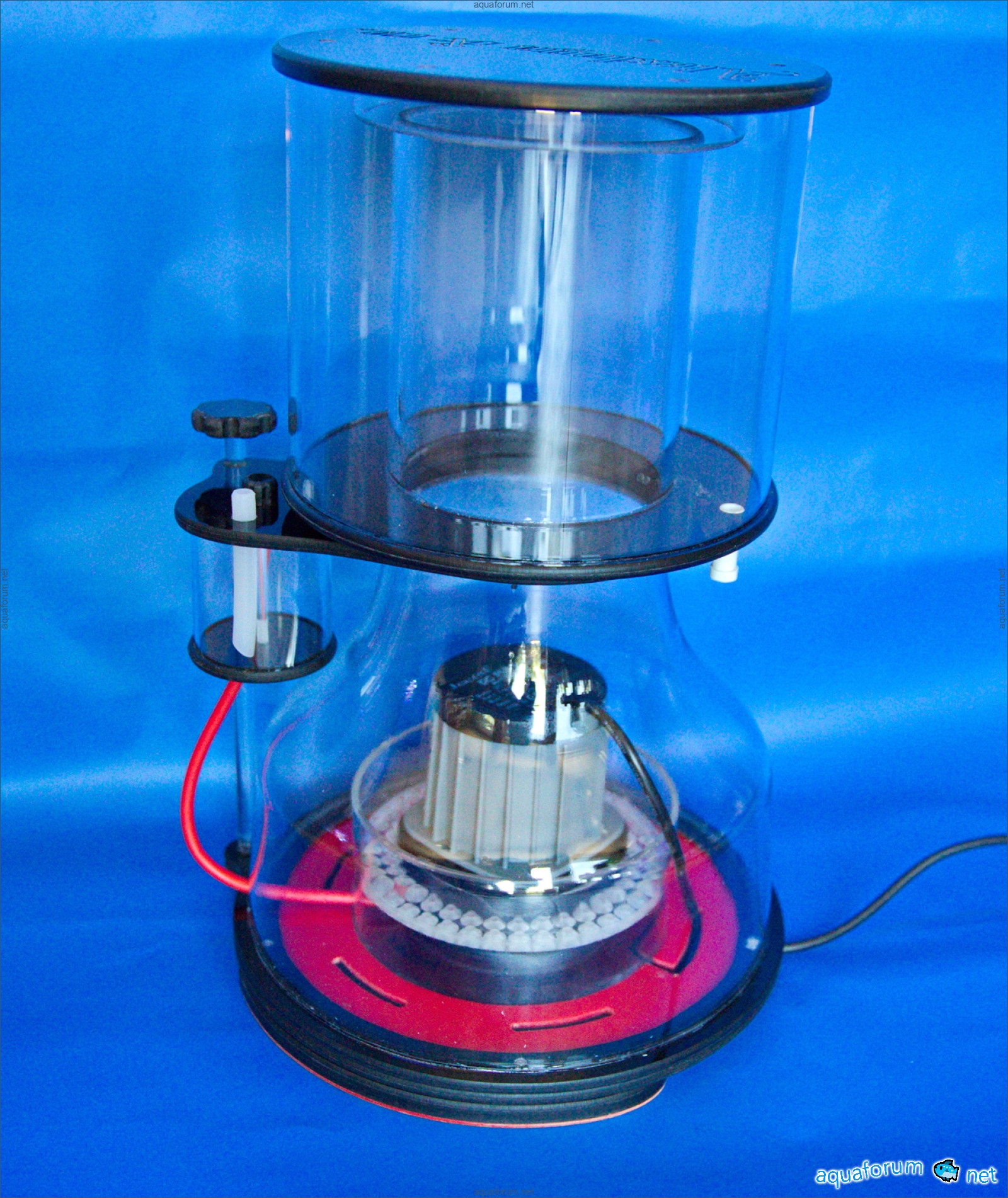

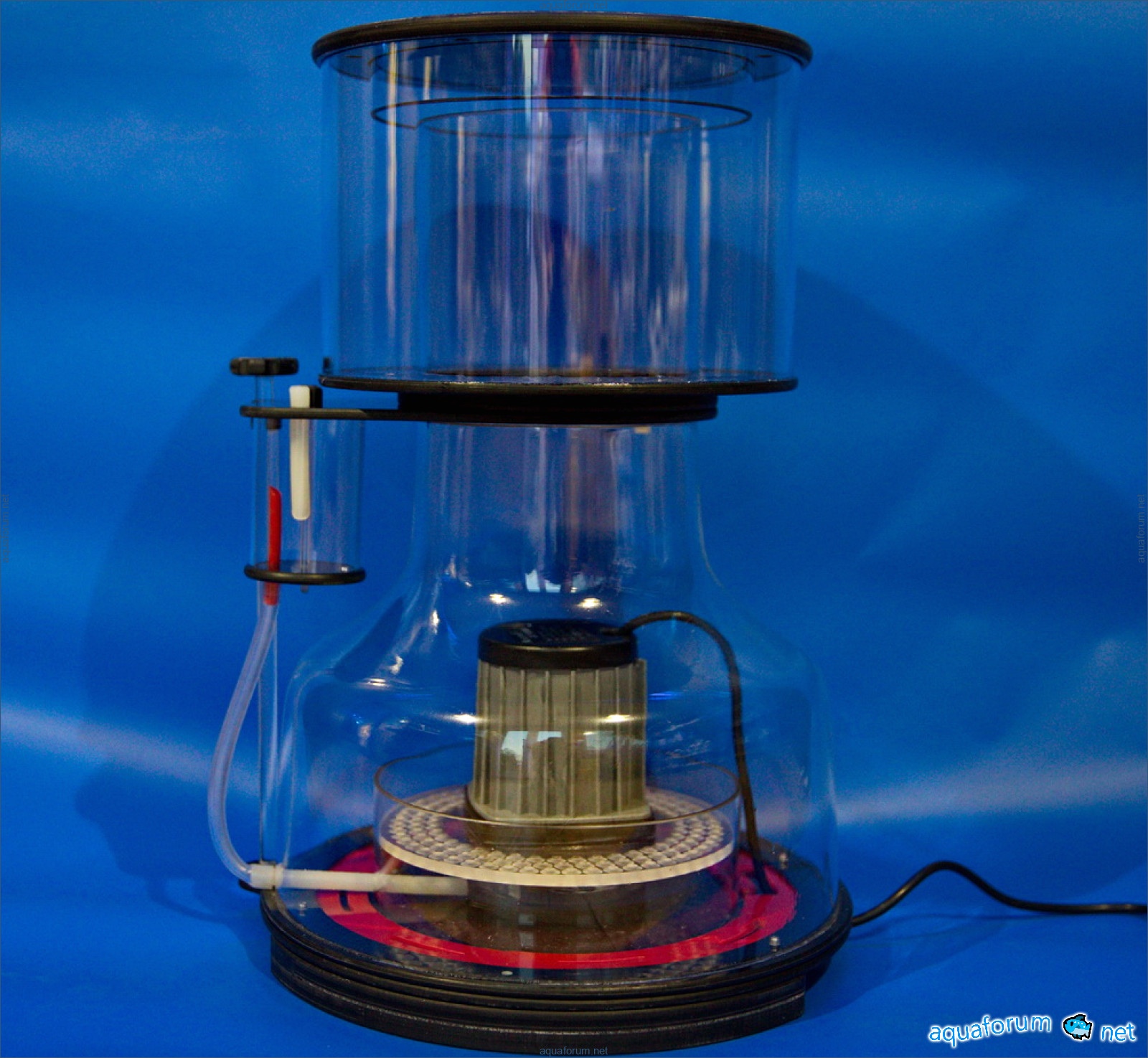

Recirculating skimmer H 720mm, D 200mm Pump AM OR 3500 l/h Impeller "Fluffy Wheel" Air intake 750 l/h Minimum foam volume 2 l Foam collector volume 4.5 l Recommended water circulation up to 2500 l/h The skimmer can be connected to a drain pipe or to a specially designed pump (as shown in the photo). Video Installation removal of the cup

Yolanda

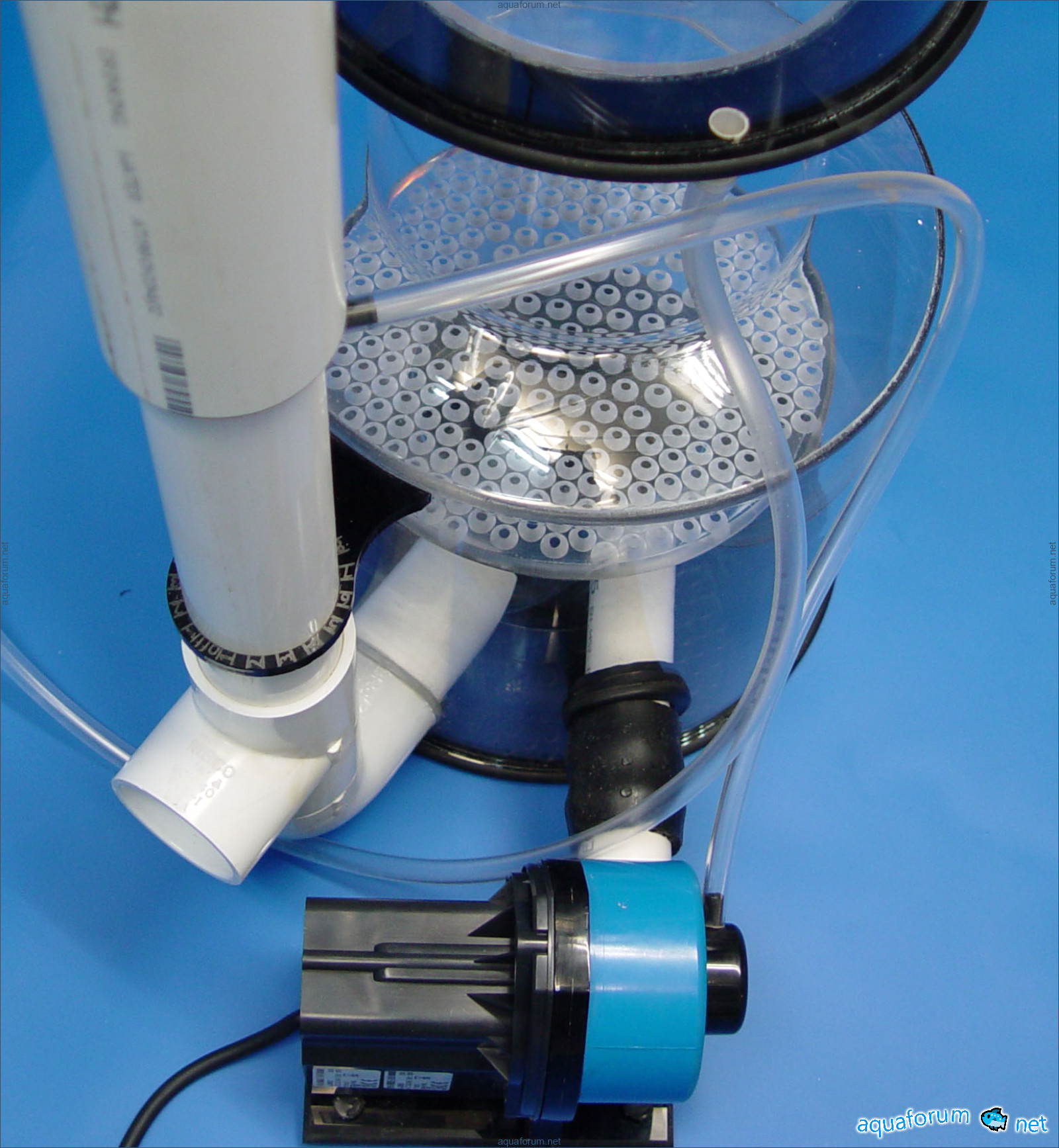

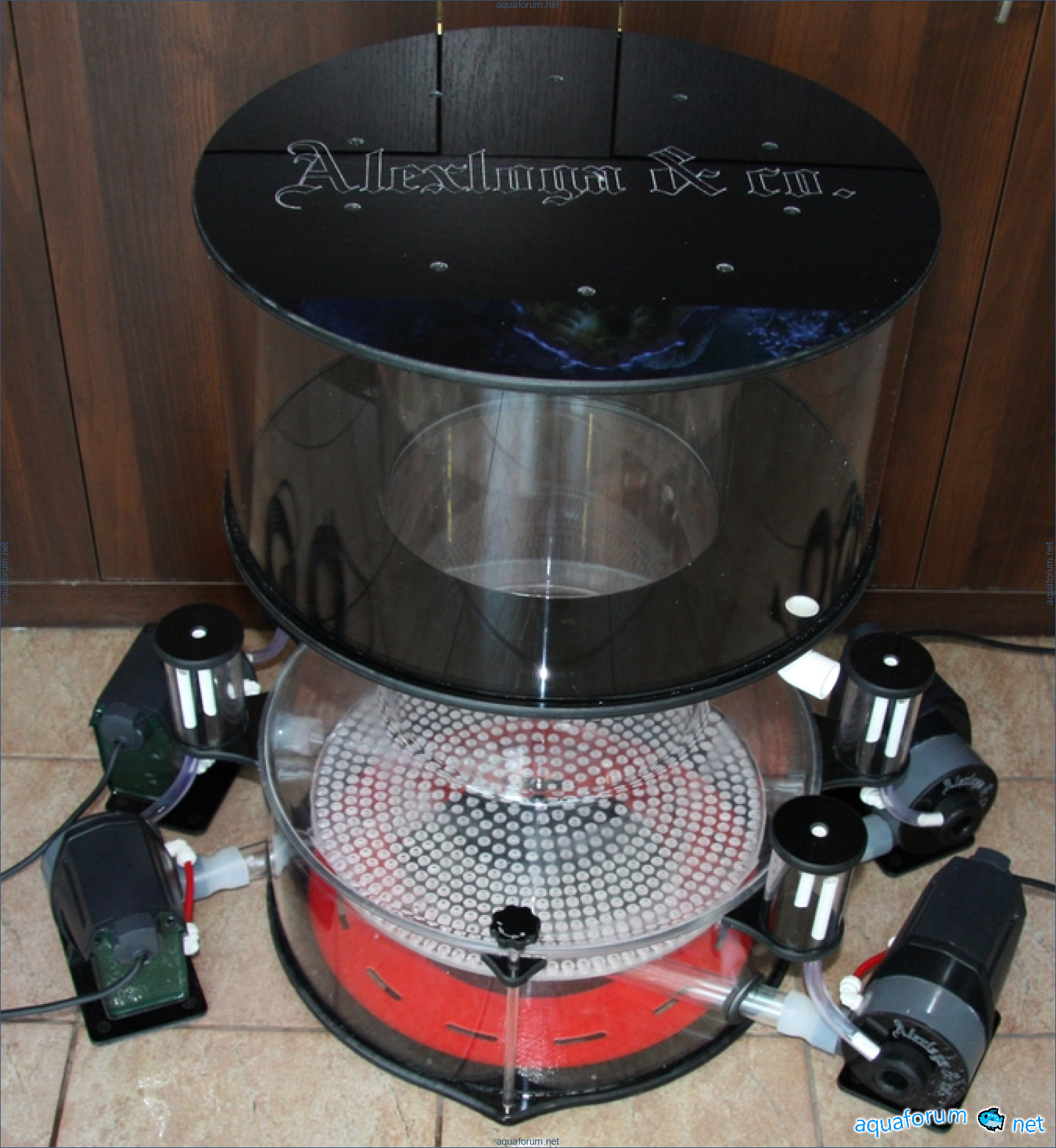

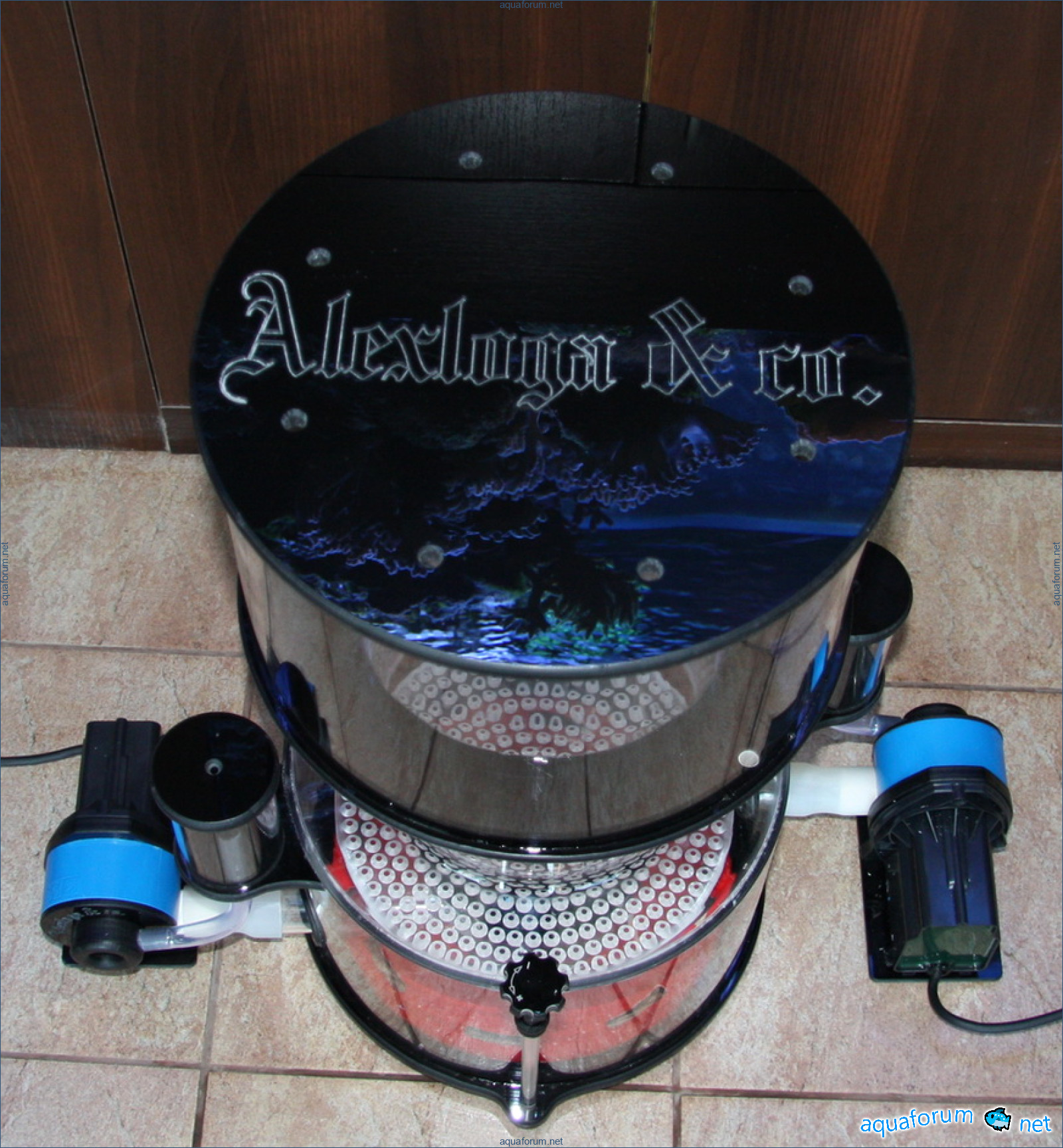

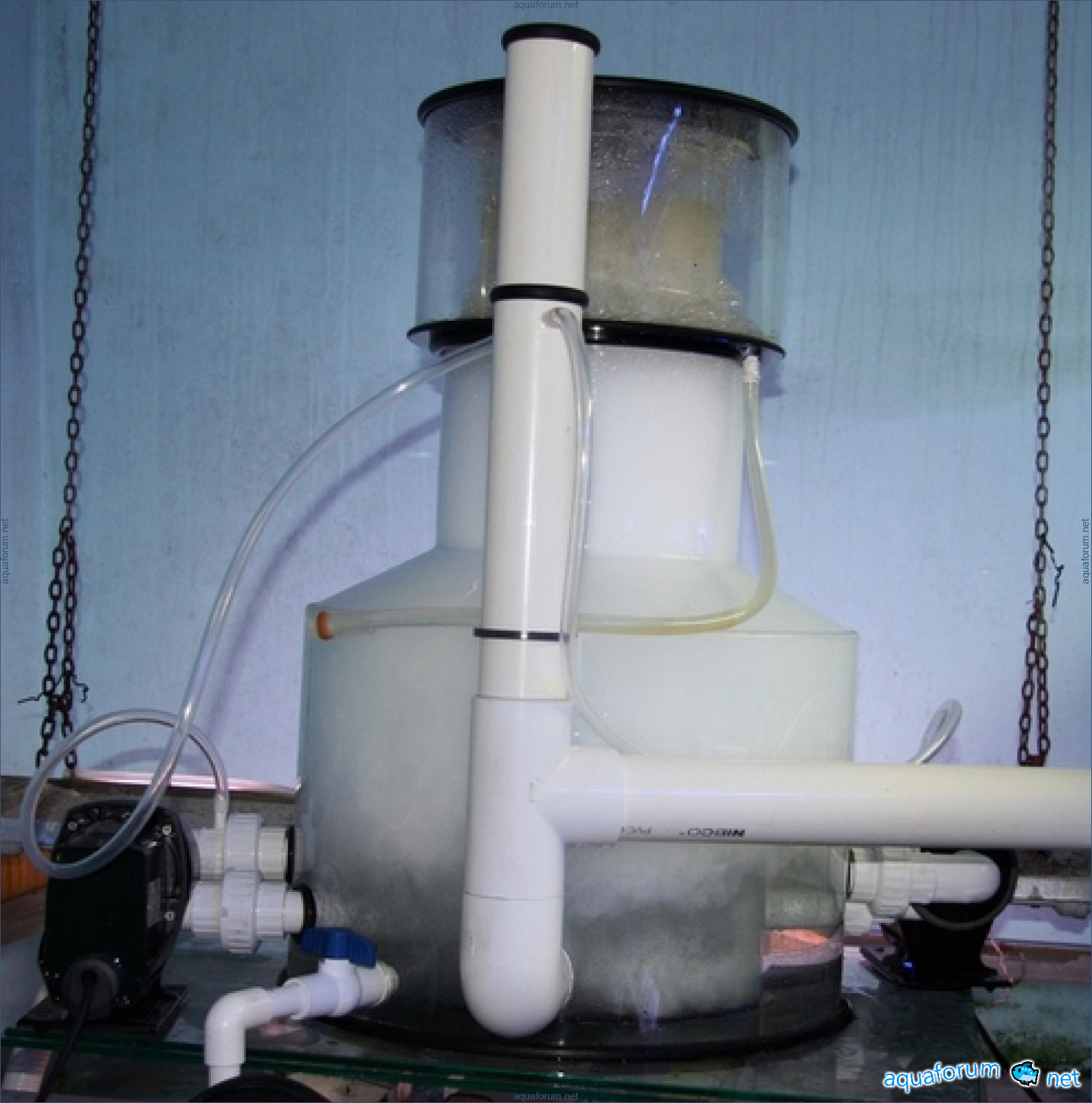

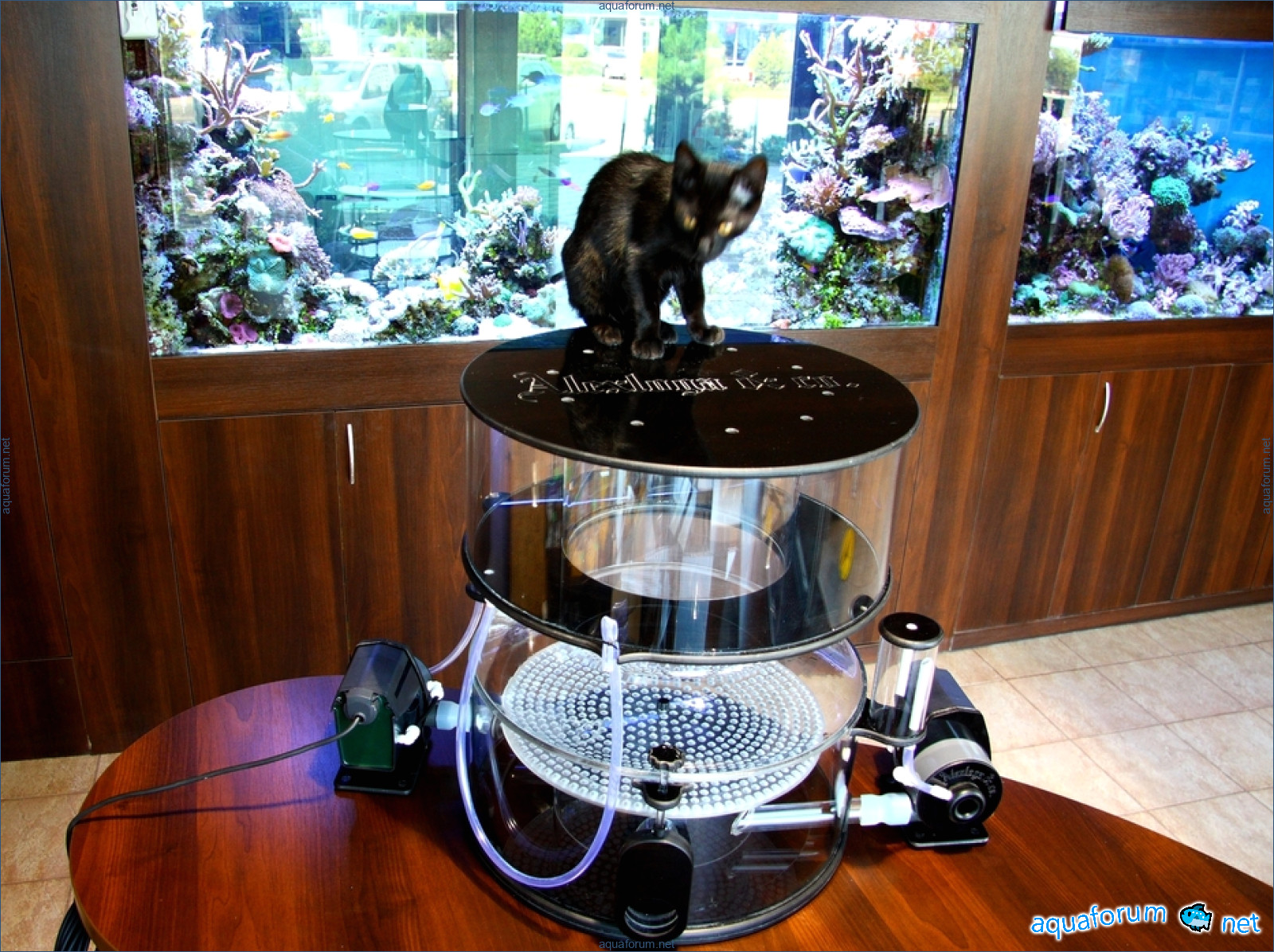

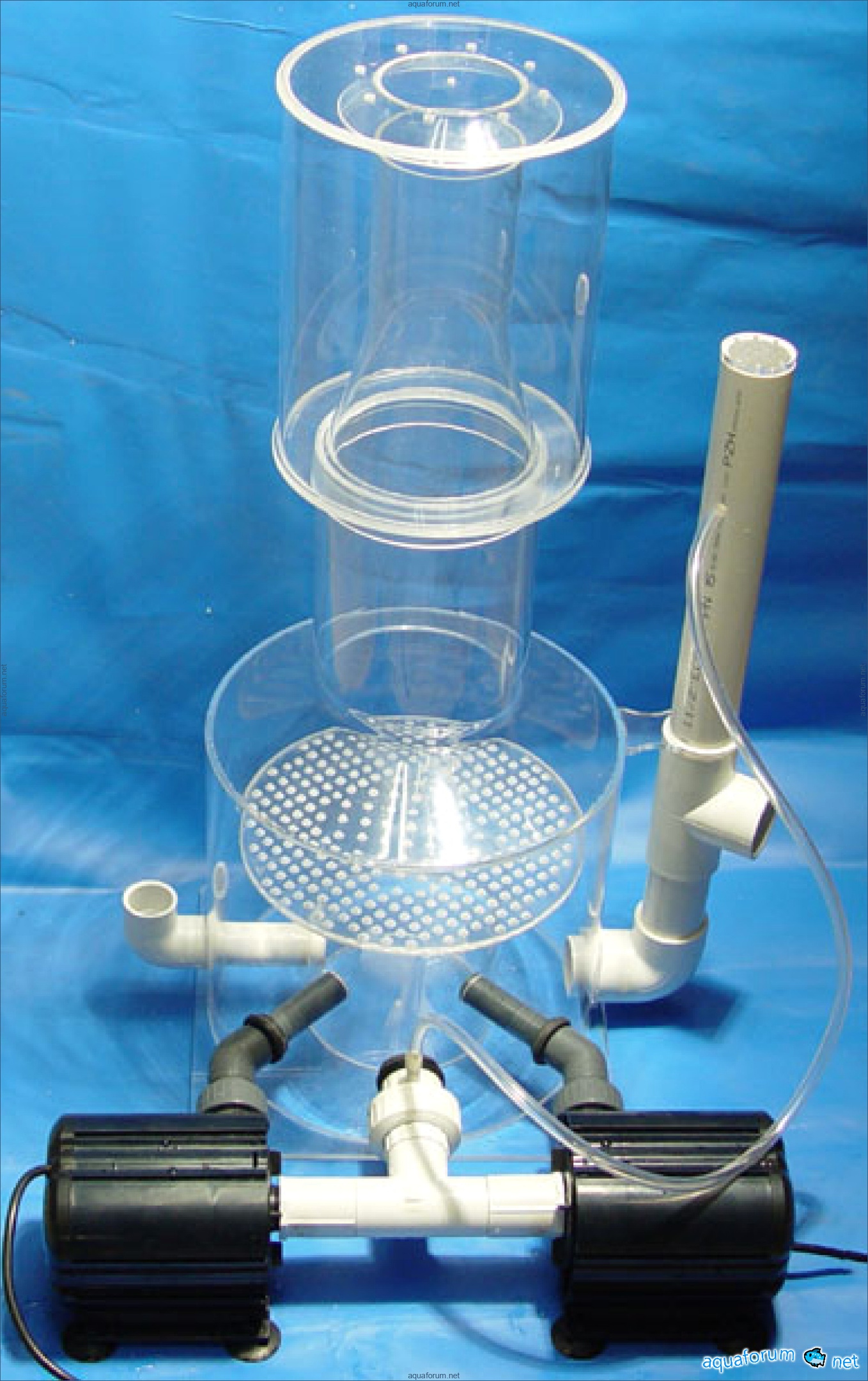

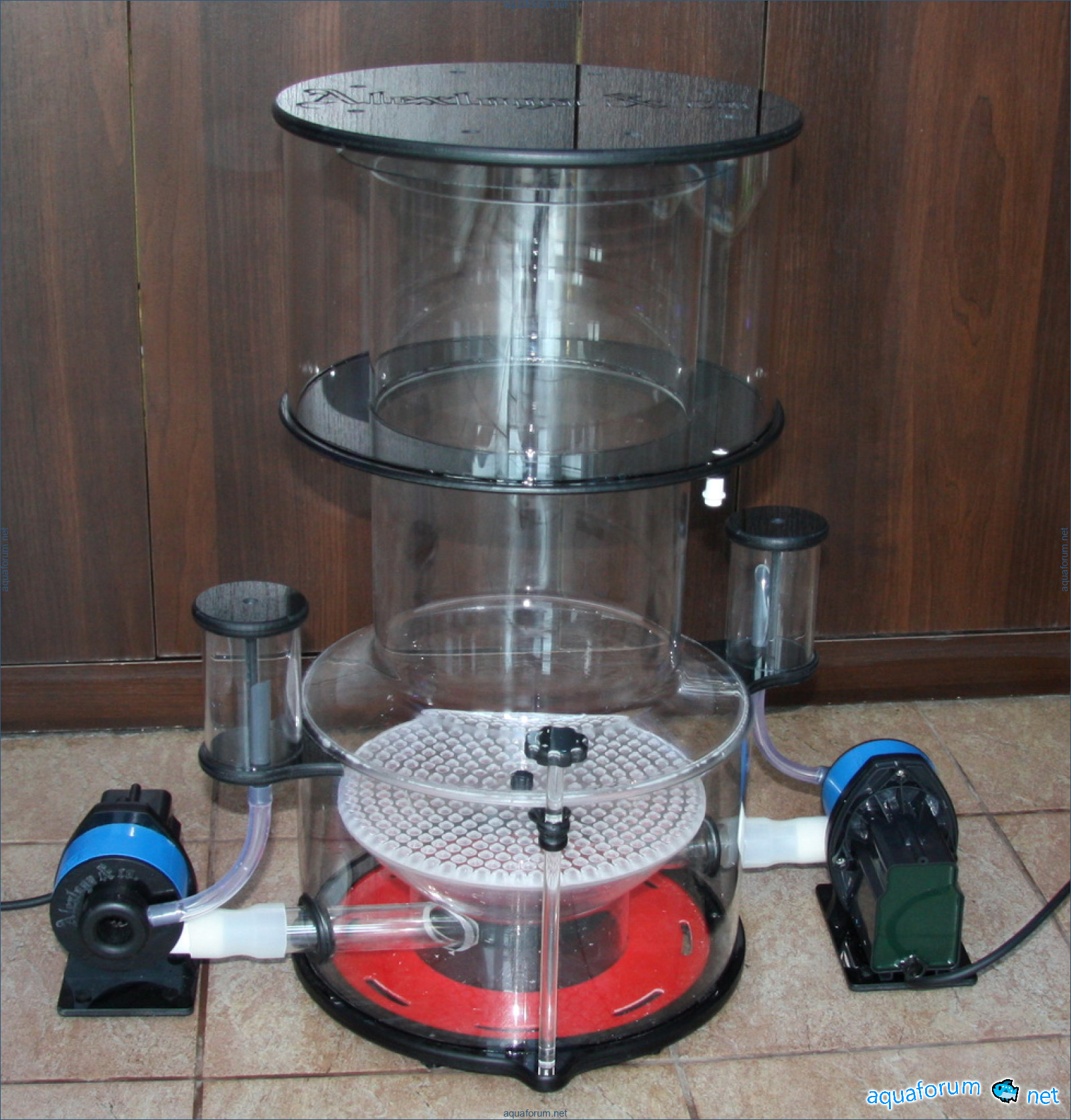

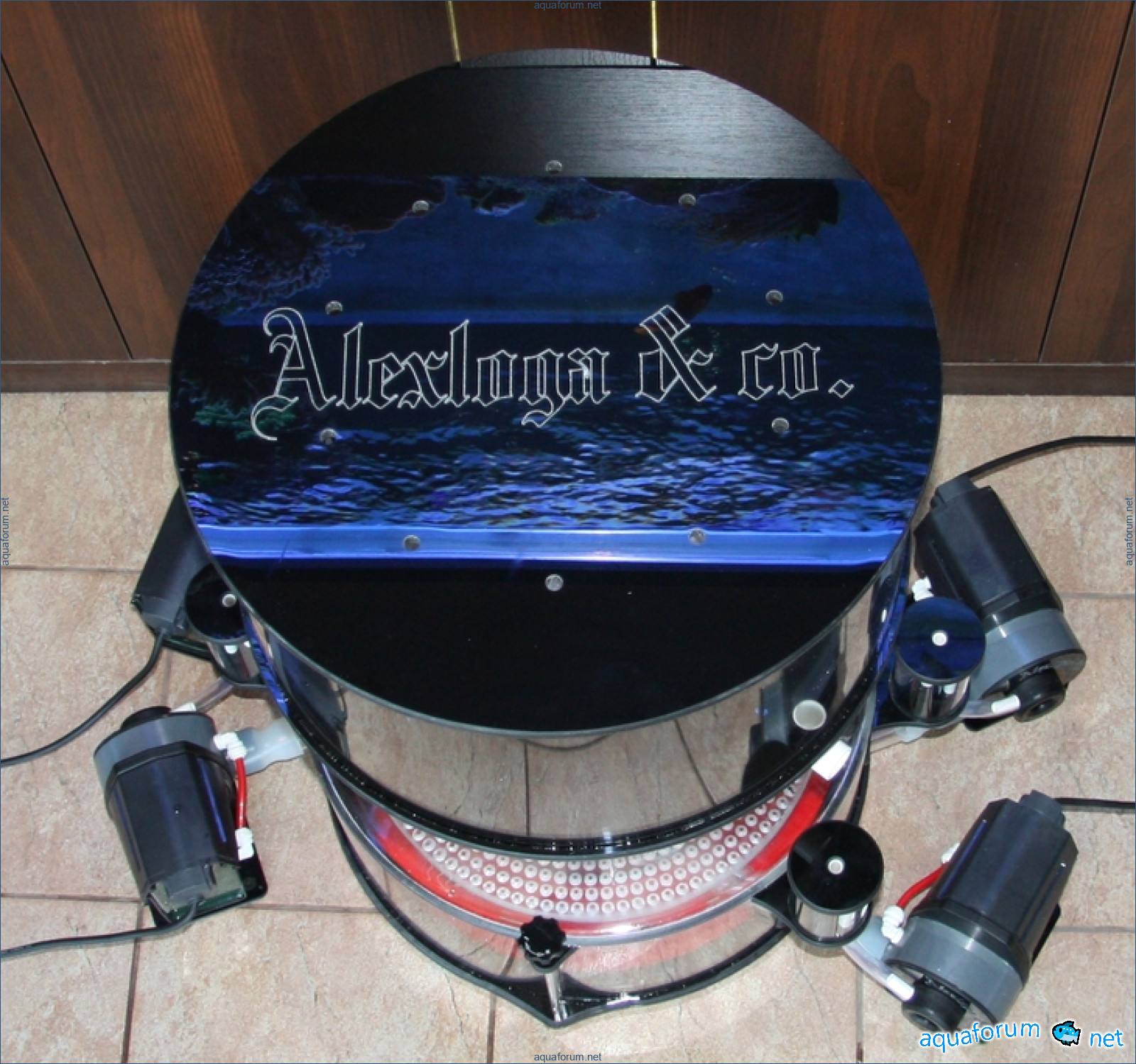

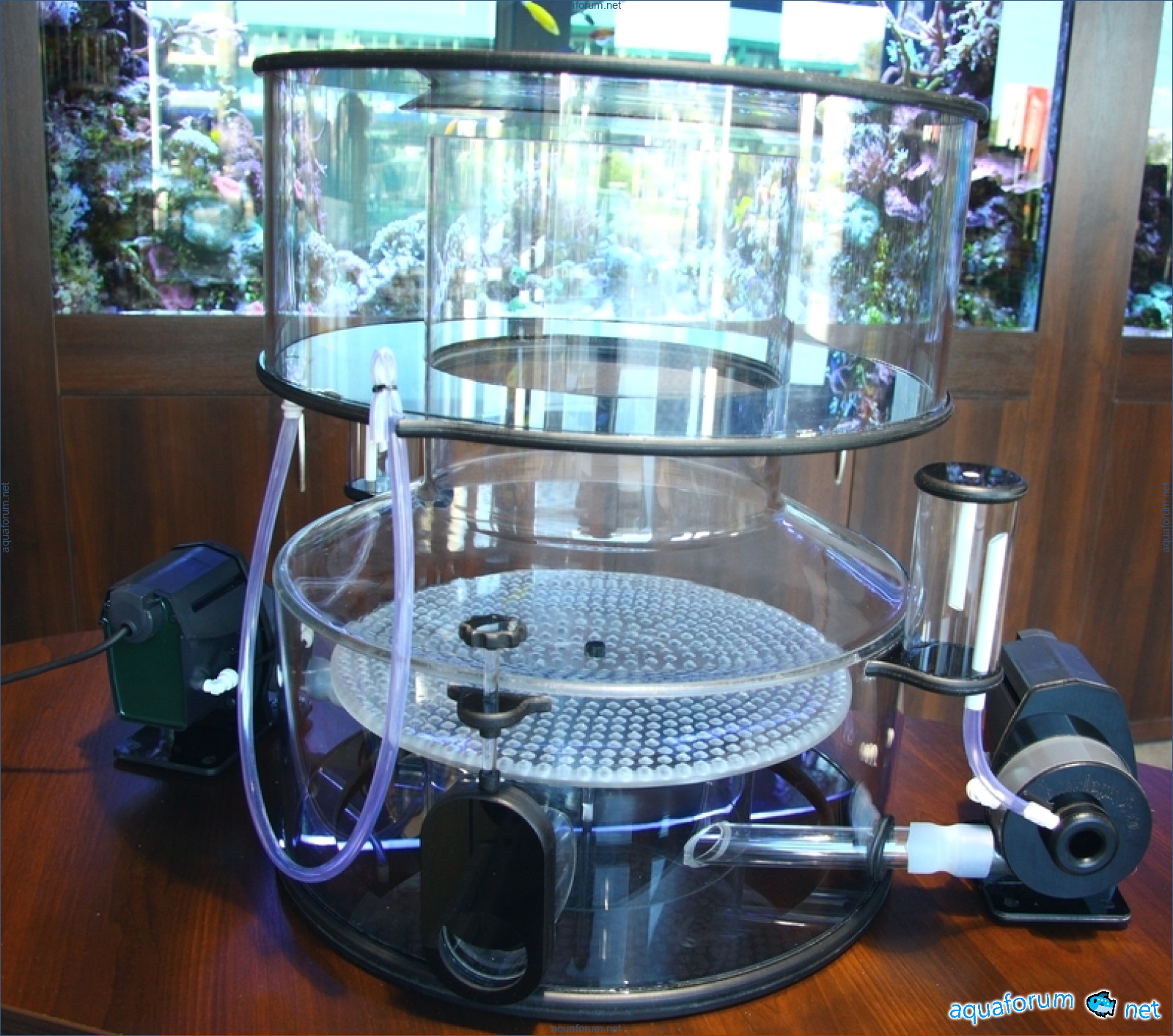

Recirculation skimmer D 300mm, H 850mm Pump AM Or 3500 l/h - 2 pcs Impeller "Fluffy Wheel" Air intake 1500 l/h Minimum foam volume 4 l Foam collector volume - 5 l Recommended water circulation up to 4000 l/h Inlet diameter 1" Outlet diameter 1.5" Recommended for aquariums up to 1500 l

Brian7092

Testing of the skimmer D300mm, H850mm.... Video

Eric5208

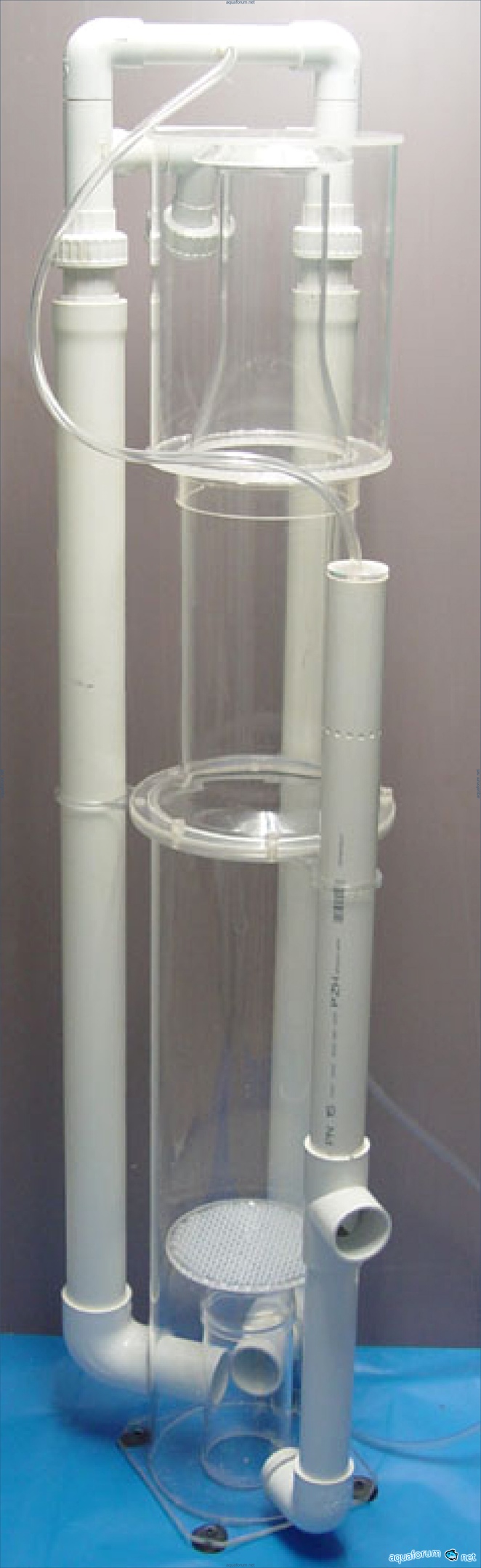

Recirculating skimmer D300mm H 1900mm Air intake 10000 l/h Minimum foam volume 25 l Foam collector volume -5 l Recommended water circulation up to 15000 l/h Inlet diameter 1.5" Outlet diameter 2x2" Recommended for aquariums up to 20000 l First test in Black Sea water, density 1.010

William

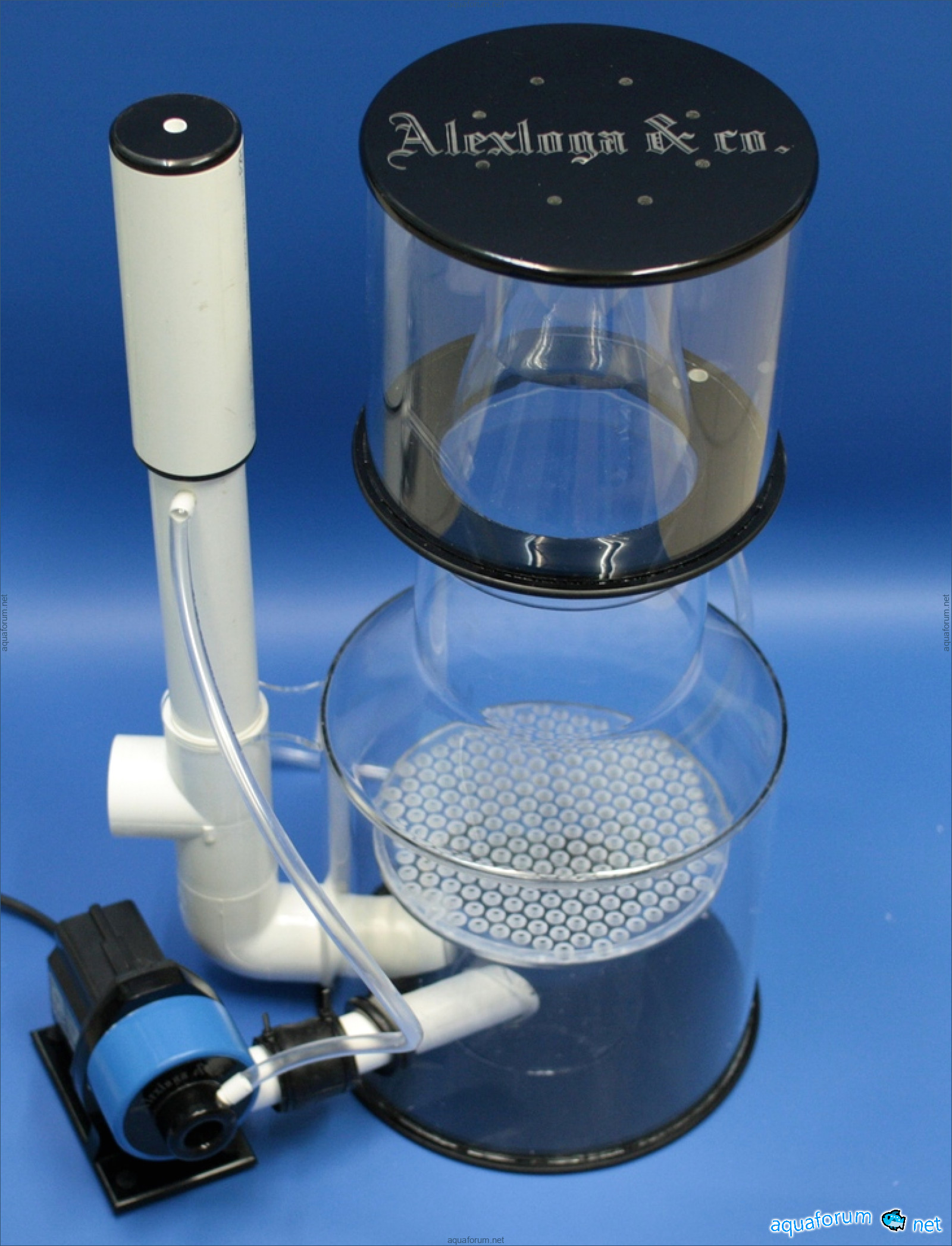

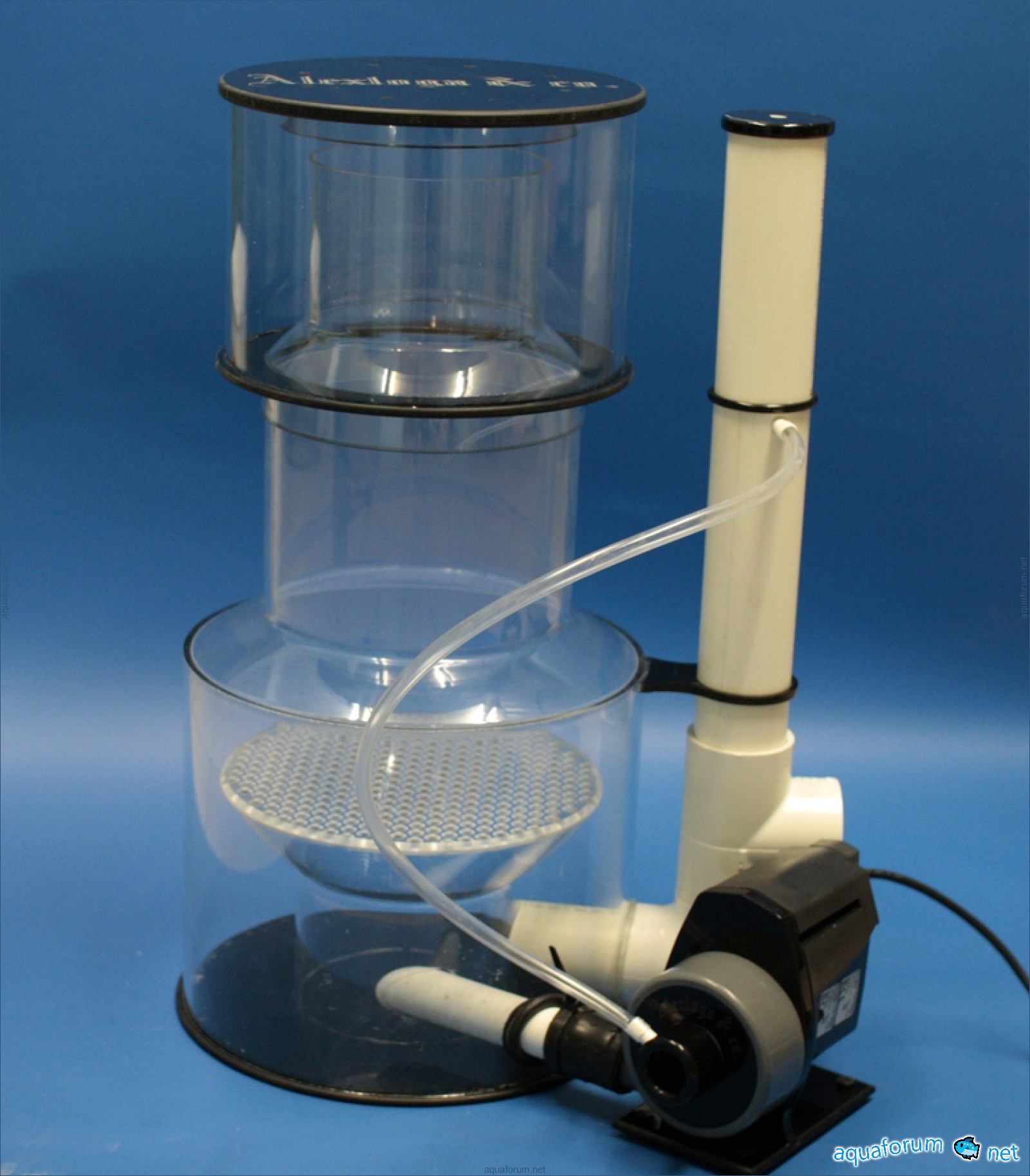

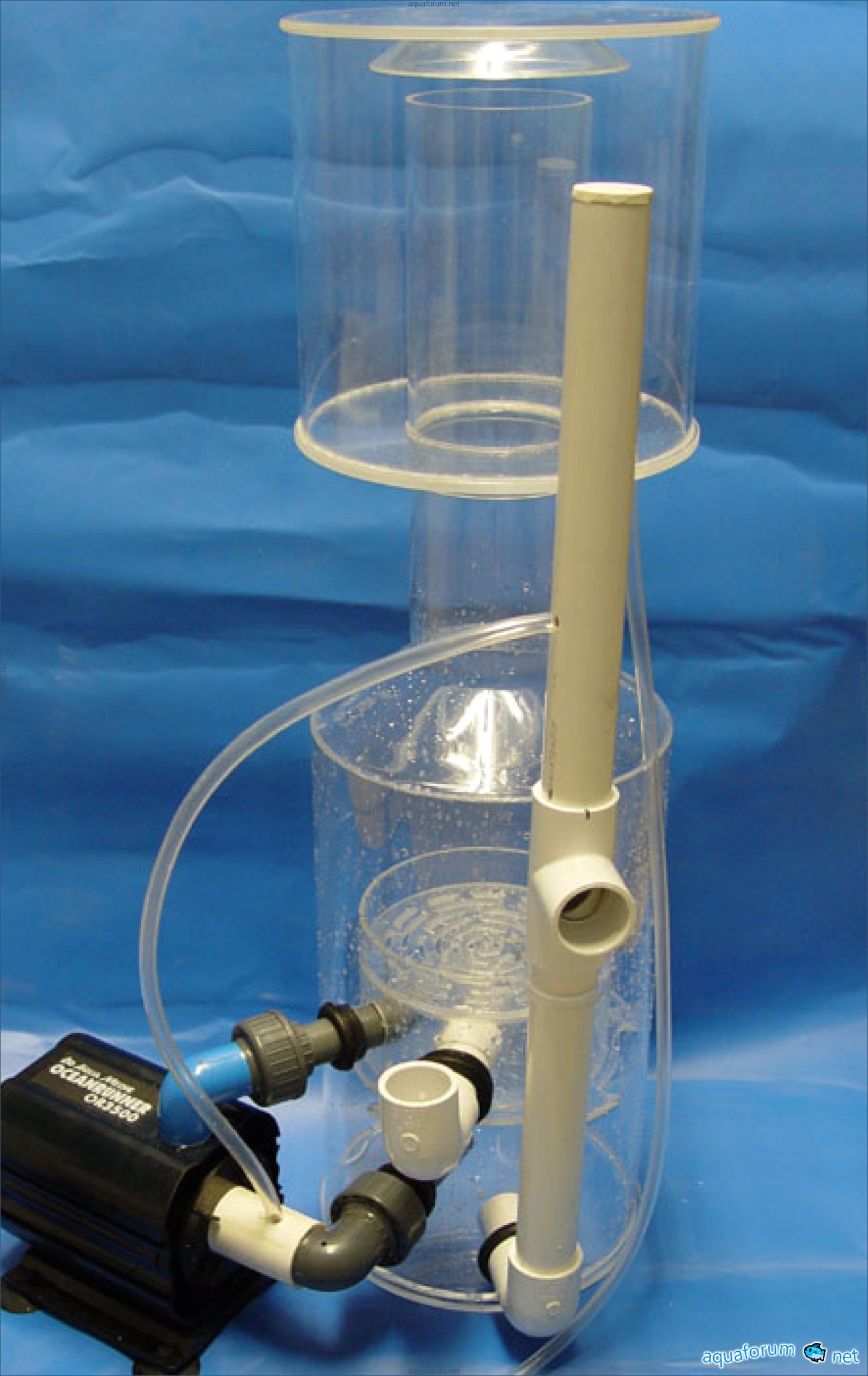

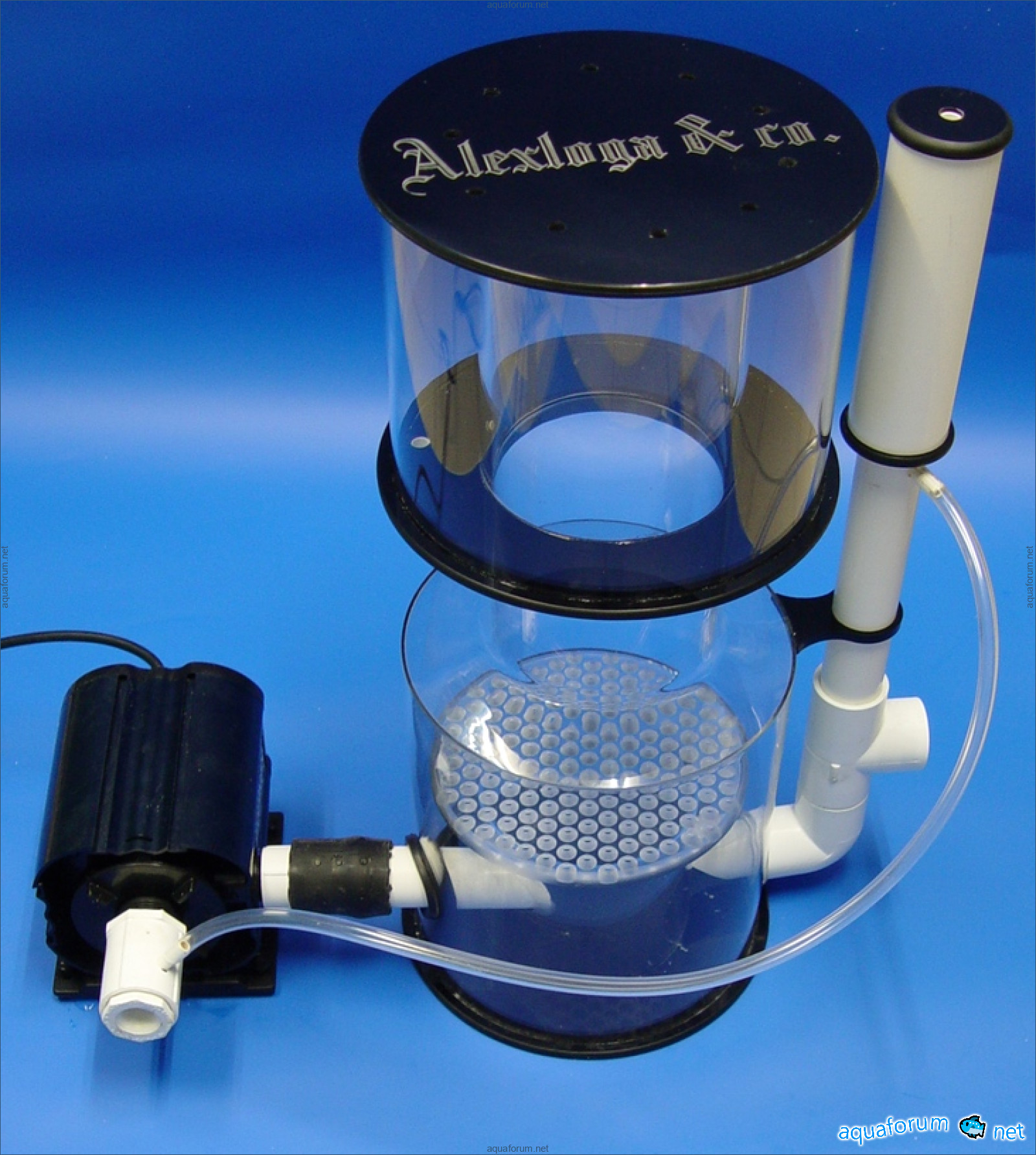

Skimmer circulation, injector D200mm, H1300mm Air intake up to 6000 l/h Minimum foam volume 10 l Foam collector volume - 5 l Water circulation up to 6000 l/h Outlet diameter 1.5" Recommended for aquariums up to 5000 l In the photo, the connection from the pump performing the return function to the aquarium Working parameters of the injector Water head H 3m, at a flow rate of ~2500-3000 l/h Air intake over 2400 l/h (exceeds) Skimmer in operation

Amy1672

If you don't mind, please provide a link where I can see a diagram or drawing of the principle of operation of a powerful air bubble generator in your systems.

Caleb6320

Exhaustively, thank you. Great respect to those who have a deep understanding of the nuances of this engineering.

Mario

Recirculating skimmer D 300mm, H 770mm Pump AM Or 3500 l/h - 2 pcs Impeller "Fluffy wheel" Air intake 1500 l/h Minimum foam volume 5 l Foam collector volume - 5 l Recommended water circulation up to 4000 l/h Inlet diameter 1" Outlet diameter 1.5" Recommended for aquariums up to 1500 l Required installation space - 510x510x790mm

Cheryl9296

Skimmer injector D300mm, H1000mm Air intake up to 6000 l/h Foam collector volume - 5 l Water circulation up to 6000 l/h Outlet diameter 1.5" Recommended for aquariums up to 5000 l Video

Wendy8540

Hi. At what pump will it provide 6000 l/h of air and water?

Mitchell3177

The pump should deliver 5000-6000 liters per hour at a head of 3-5 meters. It works well at three meters, but at five it takes off.

John1464

A pump with a rating of 5m and 6t will push 6t of water with 6t of air? Did I understand correctly?

Rodney7316

What do you mean by nominal??? The maximum values are indicated on the pumps. You should choose based on the Flow-Head curve; it shows whether the pump provides the necessary range or not.

Christopher8654

Are you saying that you need a pump that can lift 6 tons to a height of 5 meters? I understand the nominal rating as the maximum lift height and maximum capacity at 0 lift.

Melissa3820

For the injector, 5000 liters is sufficient at 3m. The pump should provide a bit more; you need to account for losses in the pipe and the lift of water from the pump level to the injector level (0.5-0.6m). If the pump is connected from the drain, a pump with lower power can be used (minus the pressure from the drain).

George5104

Could you please tell me which pump would provide 6 tons of air for this skimmer? Not general theoretical prerequisites for selecting a pump, but specifically, for example, a pump with characteristics similar to Iwaki MX250 is needed for 6 tons of air.

Teresa

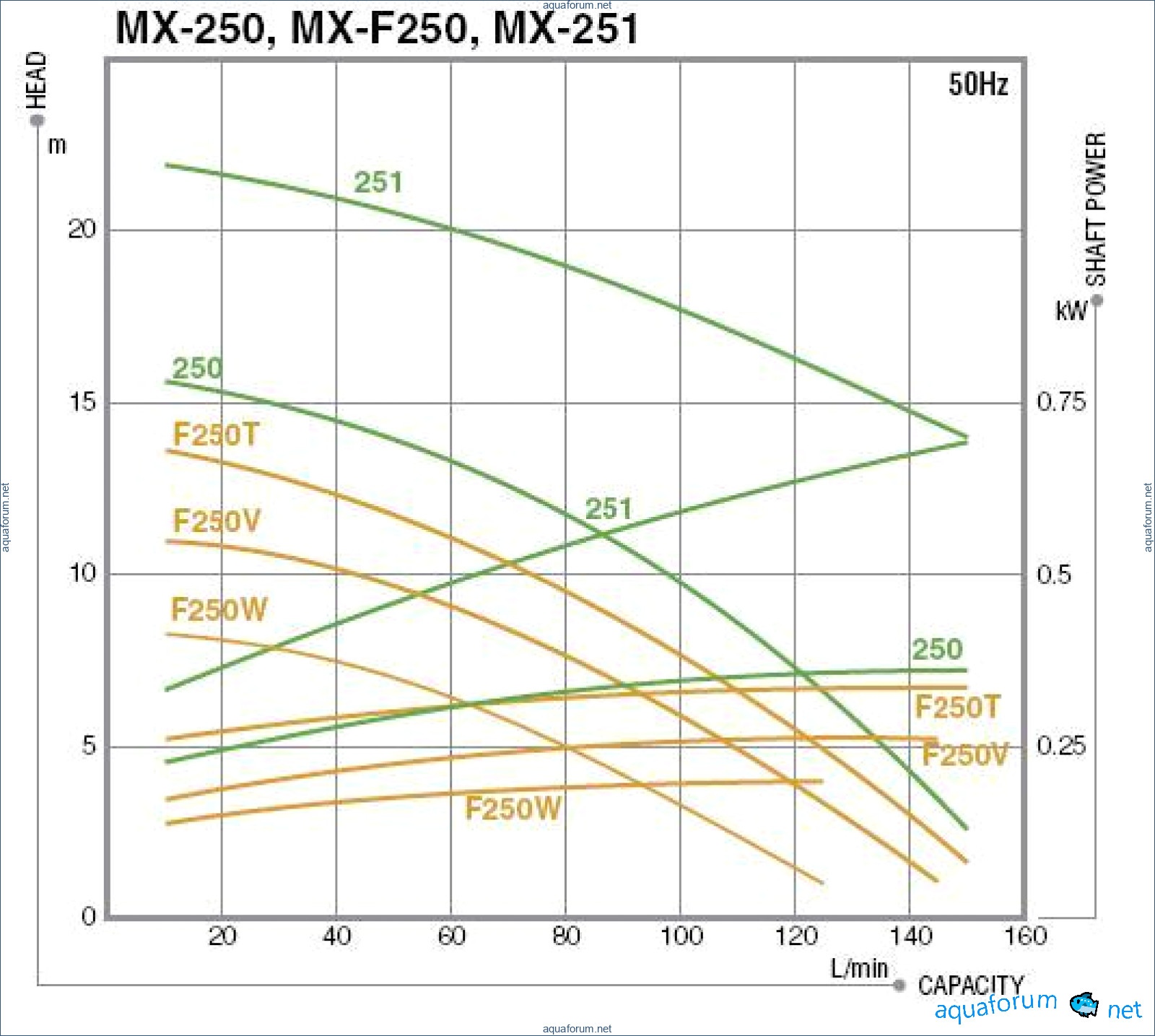

We need 5m, 100l/min. Look where it intersects the curve. Only F250W won't work.

Tara2761

To date, the refinement of serial pumps is one of the most promising directions. We are not the first, and I don't think we will be the last. The results are indeed very impressive. Hagen pumps were used for the refinement. A new impeller and working chamber were manufactured.

Jeffrey6189

Skimmer circulation N800mm D300mm Pump Laguna 100W Foam volume 6.5 L Air intake 2500 L/h Video1 Video2

Troy8808

Skimmer circulation D300mm H650mm Pump Launa 125W Foam volume 8L Impeller - needle wheel Air intake 3000L/h Video1 Video2

Cindy

The results obtained became the basis for further refinements and improvements. As a result, a quite decent outcome has been achieved... in my opinion.

Amber

Could you please tell me if this device can be used in freshwater aquariums (the hissing of air in the aquarium has been bothering me for a long time) and how noisy the unit is?

Dawn6148

In freshwater, there is usually no point in installing a skimmer.

Stacy6866

The scalar apparently meant oxygen enrichment, not the removal of organic matter. It is possible, but for a freshwater aquarium, it is expensive and the fish will likely die from oxygen saturation (gas embolism), and the plants will not grow. Unless you take a very, very small model and run it at night, the skimmer operates much quieter than the compressor.

Holly

Hello, now it's not just a good pen, it's also beautiful!

Angela

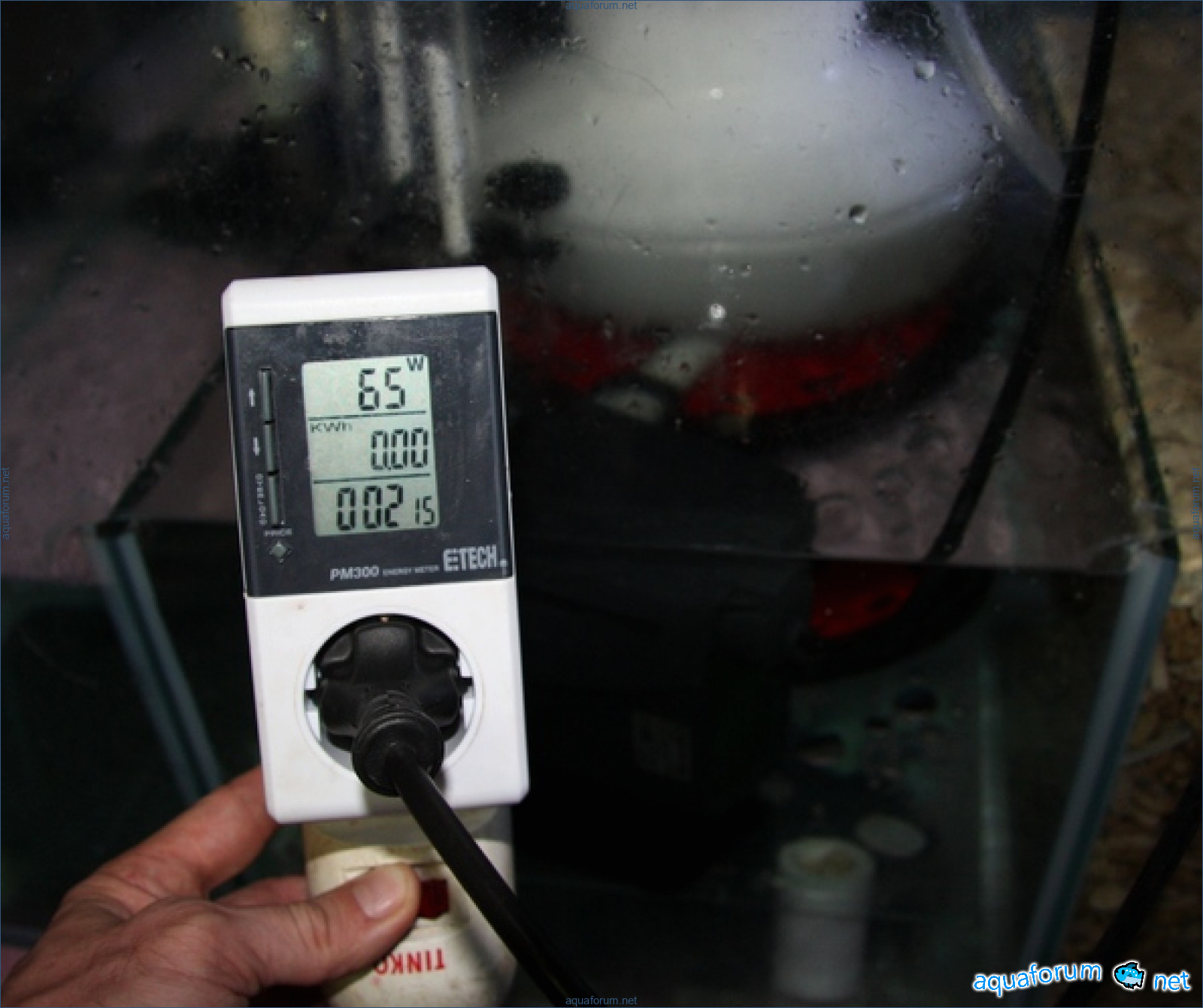

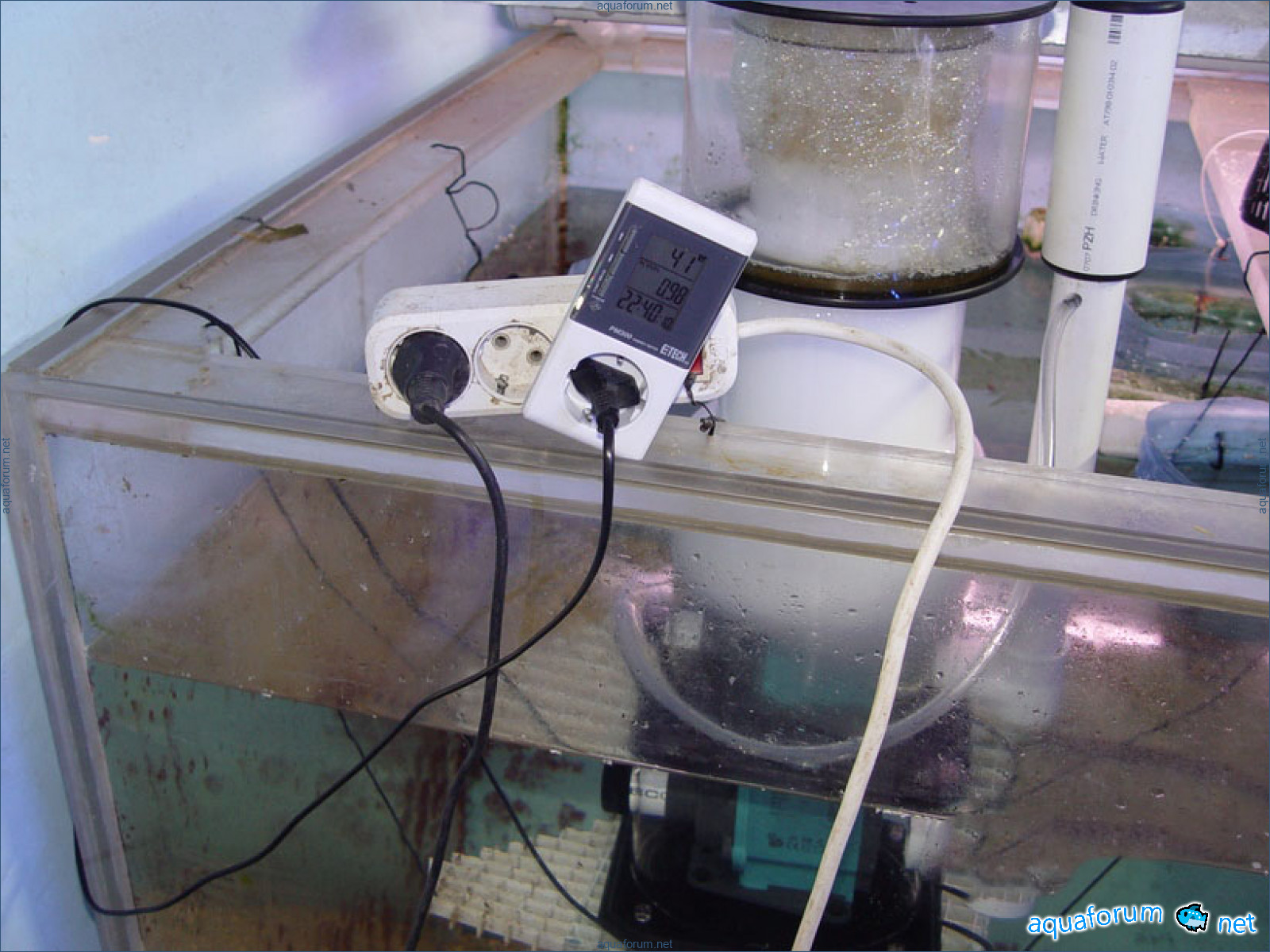

Skimmer circulation D300mm, H620mm Power consumption 80W Air intake 2000L/h Foam volume 5L

Phyllis

What made you think that gas embolism is caused by oxygen saturation? It occurs due to a sudden drop in water pressure in the system, and as a consequence, from the foaming of gases, mainly CO2. So, is there some pressure here and its release?

Andrew4194

I have heard this many times. If I'm not mistaken, it was written in some book, and people remembered it and keep repeating it.

Stuart

Пожалуйста, предоставьте текст, который вы хотите перевести.

Bridget

When you open a bottle of mineral water, carbonated, you can clearly see what happens - gas starts to be released in a gaseous state, which was previously invisible. In embolism, gas bubbles in the blood. In flotation, there is no pressure and no release of it, so there cannot be and is no embolism.

Phillip9722

Well, it's clear, like decompression sickness in divers. But if you search on Google, you often find a description similar to this one, for example.

Christopher4108

The information about non-settled water is correct; there is a pressure drop in the water supply, with a pressure of 2.5-4 atm in the pipes, plus gas intake in the pumps. When the stream breaks or is poured into the aquarium, gas foams up. Everything else is utter nonsense. It is inappropriate for a decent professional like Pavel Morozov to rewrite such nonsense.

Nicole263

I think you have delved too much into theory.

Scott9892

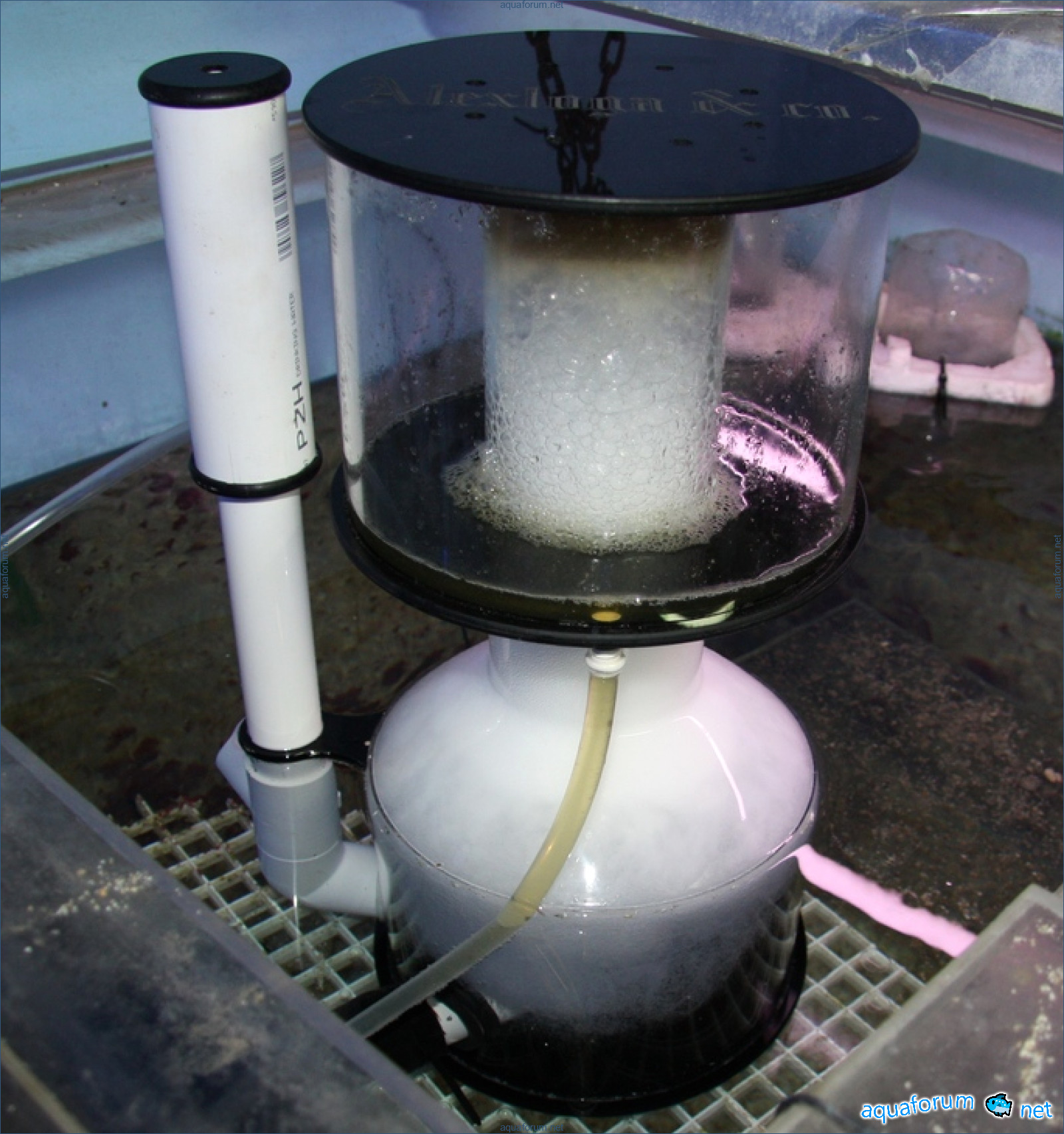

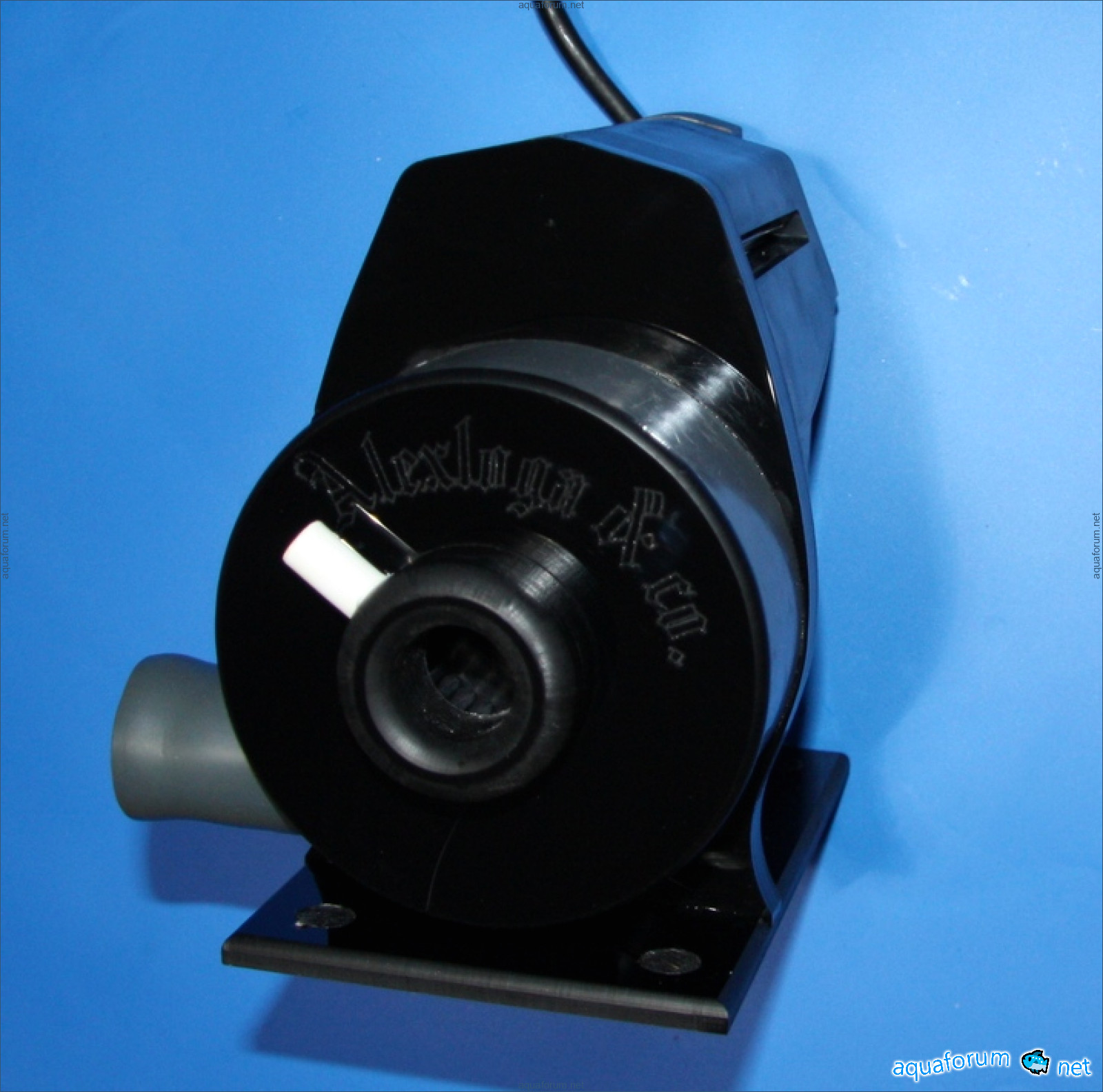

We made this little gadget. Pump - Sicce 2500 The pump is made well - ceramic shaft and bushing, thrust bushing, it looks like it will be very hard to break. There is a question about the sound - the gap between the shaft and bushing could be smaller, which would reduce vibration. To eliminate vibration, the pump connects to the skimmer body through a silicone coupling. With the original impeller, the flow is weak, but with the hairy one, it's quite decent, around 600 liters per hour. We haven't tested it yet; it's drying.

Chad4168

Little Lagoon 55W

Robert5335

Skimmer circulation D250mm, H600mm Power consumption 80W Air intake 2000L/h Water circulation up to 4000L/h For aquariums up to 2000L

Tina

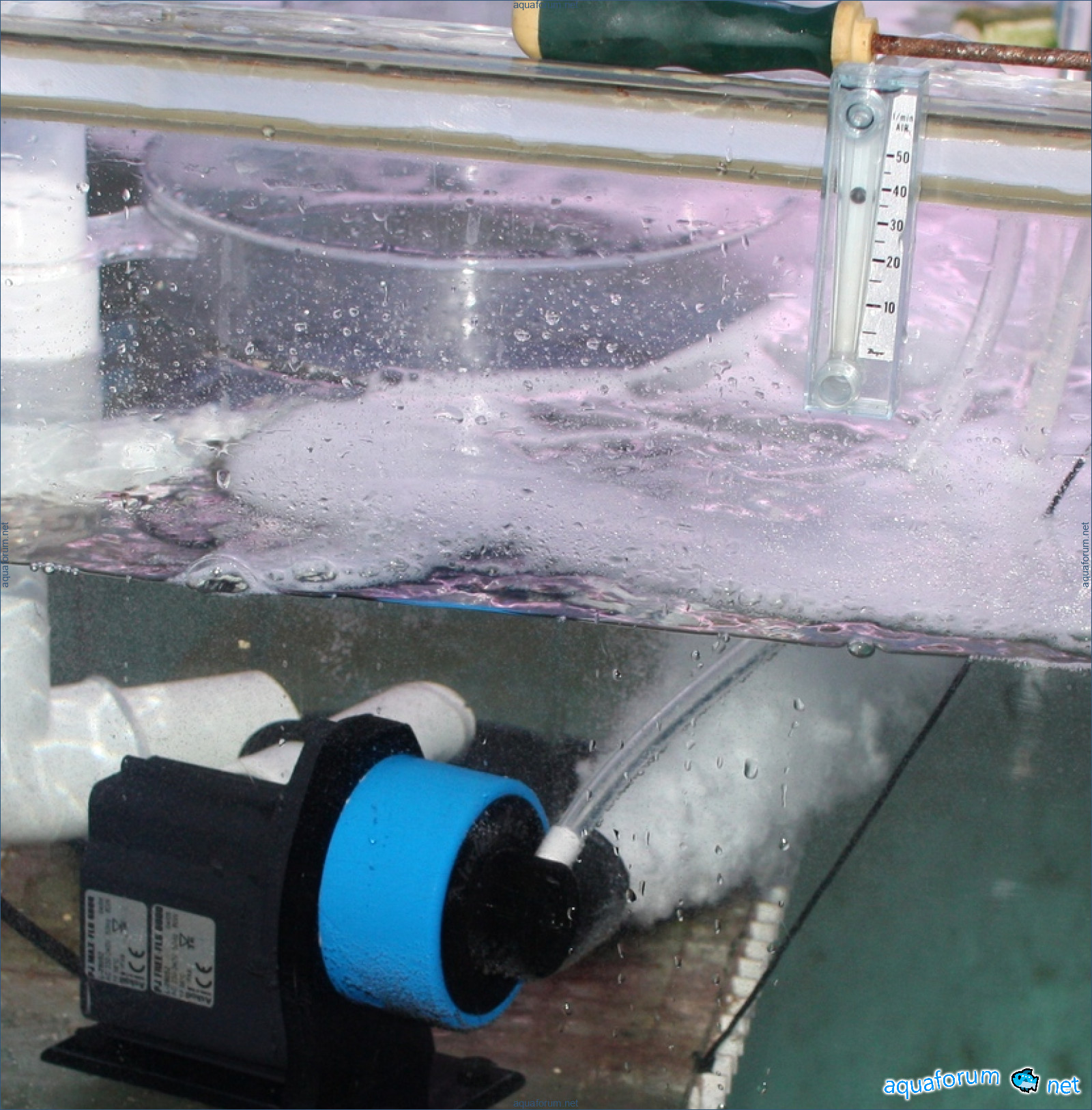

In the last photo, the pump is running without load; is that how it pulls 2000 liters/hour of air?

Dennis

No, it pulls 37x60=2220 l/h. When connected, it pulls 2000.......

Michelle

Hello everyone, I can only see the pictures, but who can provide the sizes? Please.

Nicholas

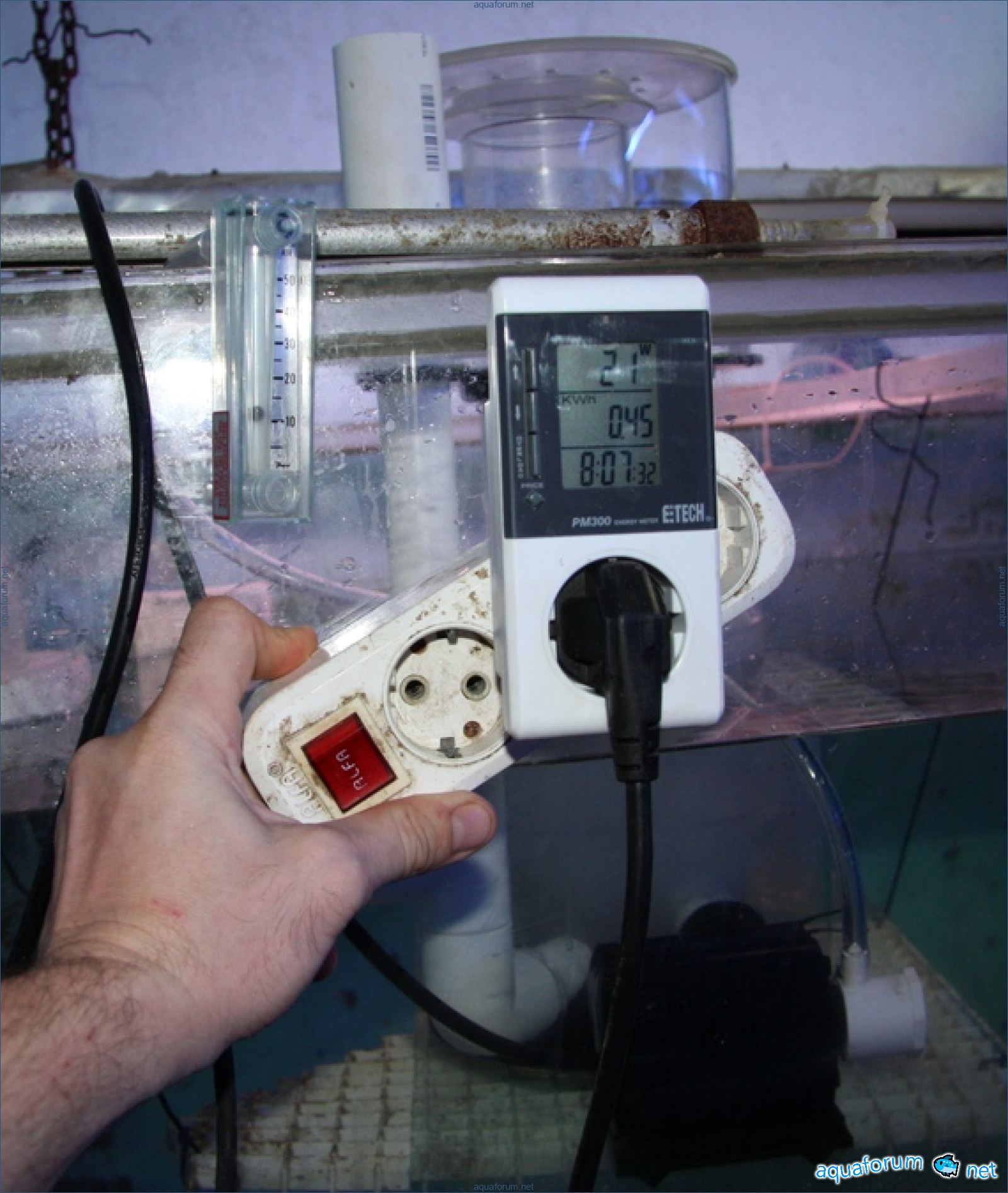

Skimmer circulation D 300mm H 560mm Power consumption 100W Air suction 2700L/h

James1625

The photos are interesting, but it's hard to see how these foamers perform in use. What are the reviews from end users?

Mark9853

Skimmer circulation N530mm, D200mm For aquariums 150-450L Pump AM PH2500 Impeller Air intake 450L/h To reduce noise and vibration, a silicone coupling and feet are used.

Joshua

Where do such figures come from?

Devon107

Are there any doubts????????? I can send photos of aquariums where such things are placed.......

Katie4842

What gives you such confidence that THIS penny will handle a volume of 150-450 liters? What besides your categorical "I know" supports this?

Darlene4238

These figures are not pulled out of thin air. They are obtained from years of observation and experience. One of the aquariums where this is installed. Moreover, it has the same pump, but the casing is of an outdated design, and the performance of that skimmer is inferior to the latest models. If that's not enough for you, I can provide you with a dozen more examples.

Gene1948

Well, here we go again with "years of observation and experience." In principle, the declared volumes of THIS foam can be handled, but for some reason I thought that since you claim it can handle 150-450 liters, it must be calculated somehow, like A2 + B2 = C2. P.S. It reminded me of a joke: After the first wedding night, the husband asks the wife: - You said you were a virgin? - Did I say that? - You did! - Are you sure I said that? - I'm sure you said that! - Oh, how awkward, how awkward...

Natasha

Well, if you want some numbers and formulas... Here it is - the volume of water in the display aquarium multiplied by 1 liter of air intake gives you the minimum skimmer performance (in l/h of air intake). This ratio actually works in practice in most cases.

Robert

Skimmer circulation D300mm, H620mm Power consumption 125W Impeller - needle wheel Air intake 3500L/h Water circulation 6000L/h Aquariums up to 3500L Had to do some tinkering to measure the intake...

Kenneth2761

1. The cup simply sits on the body of the foam maker - what is the gap? 2. The white tube at the entrance to the foam maker. The outer tube is sealed with a rubber ring, but what is the gap between the inner tube and the white tube? 3. How heavy is the needle wheel? How is it balanced? Does the bending of the acrylic needles outward affect the balance and strength? 4. The connection between the pump and the body of the foam maker is through a silicone insert. Does such a short insert significantly reduce vibration?

Katherine

Is the Earth round?

Joshua3019

- NONSENSE. The questions are on the topic and concern the quality of the products. I am interested in hearing the answers to them. There can't be only advantages in foam products. There are also disadvantages. Sometimes pointing out shortcomings improves the quality of subsequent products. Or maybe these questions and remarks are trivial. It's interesting!

Courtney

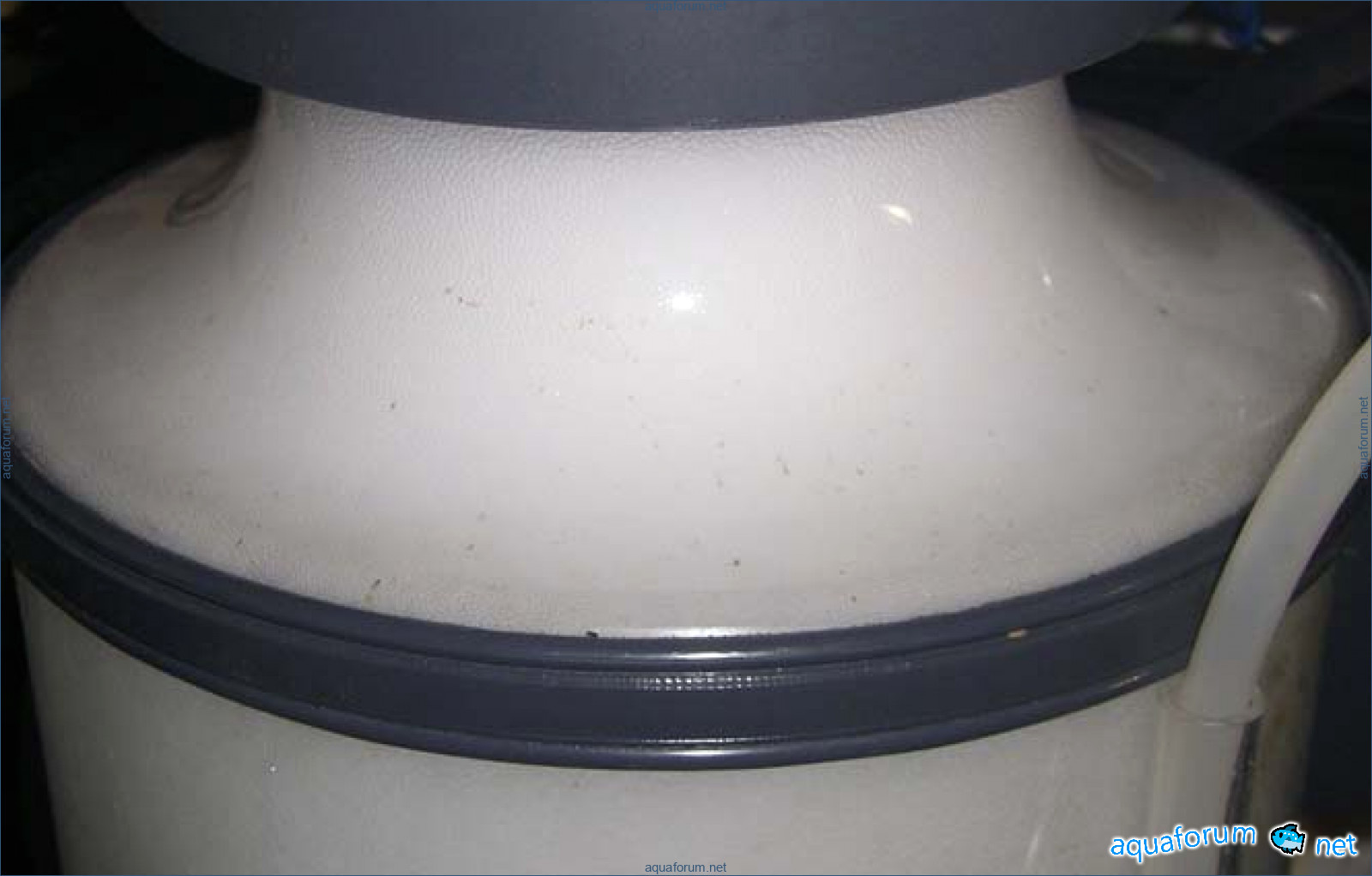

It's a bit rough, but it'll do. The Chinese even use a rubber ring for sealing. I meant the inner pipe. The gap is clearly visible in the photo. "I don't believe it" (c) All the photos of impellers I've seen are glued, and they're glued poorly, with the pins sticking out in different directions; this needs more work. I would like to see a photo of this machine or at least how an impeller is made on it, something like this:

Susan

On the Bubblemaster, it also has a rubber ring and seems fine.

Richard

it was a long time ago, now everything is much easier

David2398

cleaned

Derek7322

The better. The simpler, the more reliable.

Michelle104

A fun link. I added it to my personal collection (even though it wasn't meant for me). Seriously though, the recent posts have been filled with uninformative questions and answers. At least for me, they don't provide any new information about skimmers and their principles. And I want that. Specifically, the question: as far as I understand, you have already figured out through experience how much you can get out of each pump. Based on that, you determine the volume for the foam. Here, there are options: you can use 200 pipe, but longer, or 300 pipe, but shorter. How is this regulated? Or does it not matter?

James5032

It's fun here with you ))) And I'm very happy with the foam roller, it's really great!!! Even my mom, who is far from this, asked, "It must be expensive, is it a branded item?"

Amber6362

I don't aim to teach everyone how to design and manufacture skimmers. This is necessary for a very narrow circle of people, and in my opinion, they should figure it out themselves. I am trying to teach how to properly assess and choose a skimmer. This is something that almost everyone encounters, and it's not always easy to do.

Todd8452

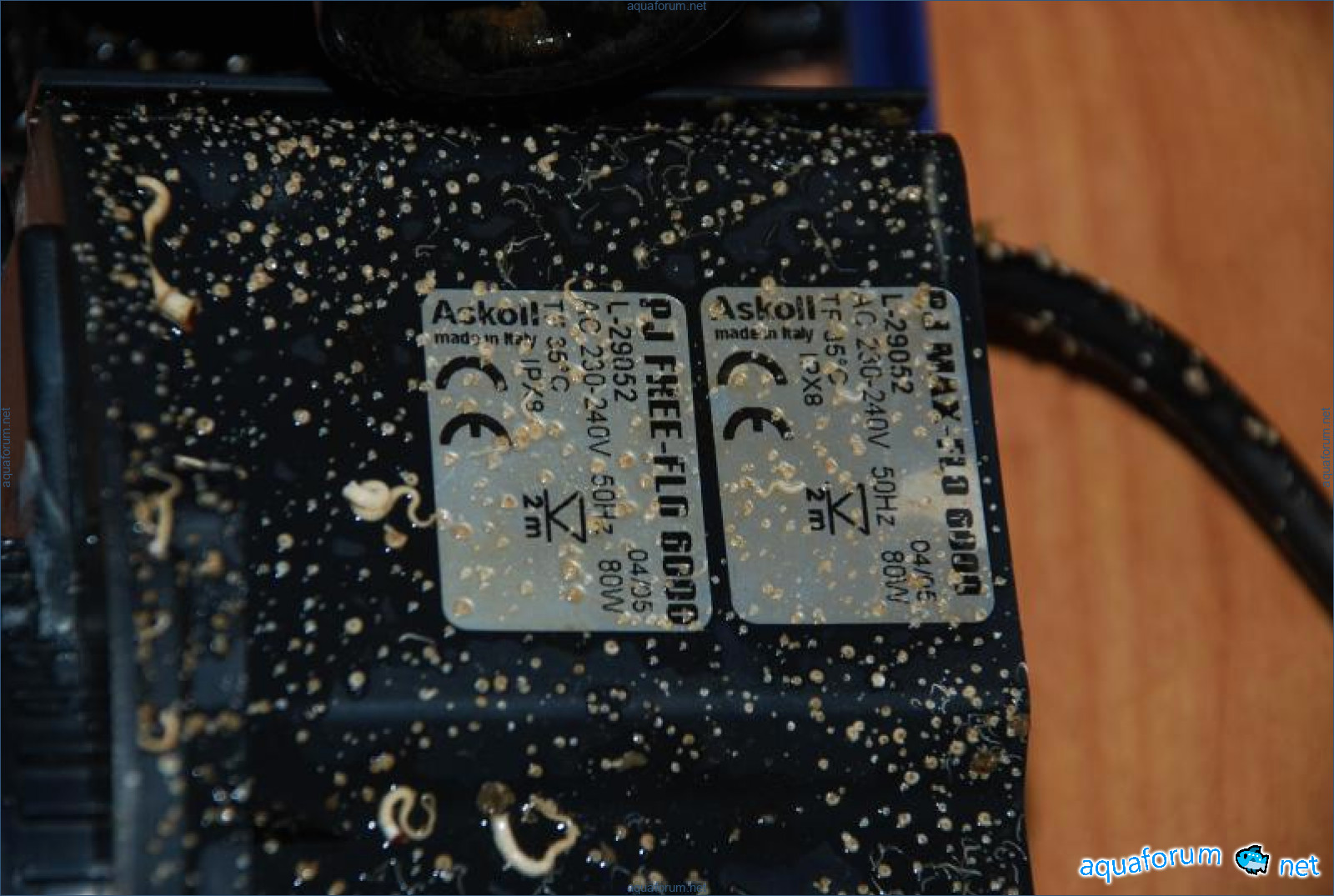

Skimmer circulation D300mm, H 620mm Pump Askoll 9000 Power consumption 75W Air intake 3200 l/h Water circulation 6000 l/h For aquariums up to 3000l One of the features of the design is that the pump inlet is made tangentially to the inner chamber, which imparts a clockwise rotation to the mixture at about 50-60 rpm. After passing through the grid, the mixture changes direction and speed, moving counterclockwise at around 5 rpm. This helps reduce turbulence and ensures a longer contact time between air and water.

Cheryl

finish upgrading your penises, don't tease people. By the way, in your previous penis (which I have), the entrance to the pump chamber is at a right angle without any tangents, and it works without turbulence.

Shane

I feel the same way. If only they would upgrade our pens for free - that would be something!

John3432

I can suggest installing a silicone sleeve, it's a useful thing.

Christopher

This process is virtually endless.

Amber1273

Do you need to send it to him? And what is the value of the coupling?

Cheryl

Your position is certainly interesting, but... 1. The title of the topic implies a discussion of types of skimmers, their comparison, and differences. 2. If this is a homemade device, at the very least, a detailed answer to questions about what it is made of and how it was made is needed. Why it was done this way and that way. 3. Try to share the entire manufacturing process, not just a brief description of the product. Similar to how aquariums are presented, starting from the beginning and showing what it looks like now. If you could also include the price, it would resemble an advertisement.

Loretta5483

On what basis are these recommendations made? What should be the ratio between the volume of foam, performance, and dimensions?

Diana8604

I adhere to such ratios or based on specific experience using the skimmer.

Tanner

I will figure out what to write and how without you. You mixed up the sign a bit; there are no such rules here.

Elizabeth6302

Can your posts be understood in this capacity?

Chris

I would advise you not to impose your rules on others. The forum was created for the promotion and advertising of the company. The forum was not created for a specific company and provides an opportunity for advertising and promotion to everyone on equal terms, which I am taking advantage of. All our developments are intellectual property, and I have the right to take measures against excessive encroachments on them. I suggest we close this issue here.

Lee425

From this point, could you elaborate more on what specific developments you mentioned and what exactly this is?

Thomas5021

We have interesting relationships on the FORUM!!! ... And I am satisfied with Sasha's pen.

Jessica6754

I've been reading about this topic for a long time. If everything in life is so stressful and considered a trade secret, then you have a section to showcase your products in the store with photos and prices, and that's it. The fact that you are not asked about everything jealously like a lady... and there's nothing to fear from competition. Some things will be borrowed from you, and some you will borrow... progress doesn't stand still. I'm sure that at some point you also took someone else's brand and reworked it.

Angela

The vibration from the pump does not transfer to the housing, it operates more quietly. I don't think it needs to be sent.

Antonio

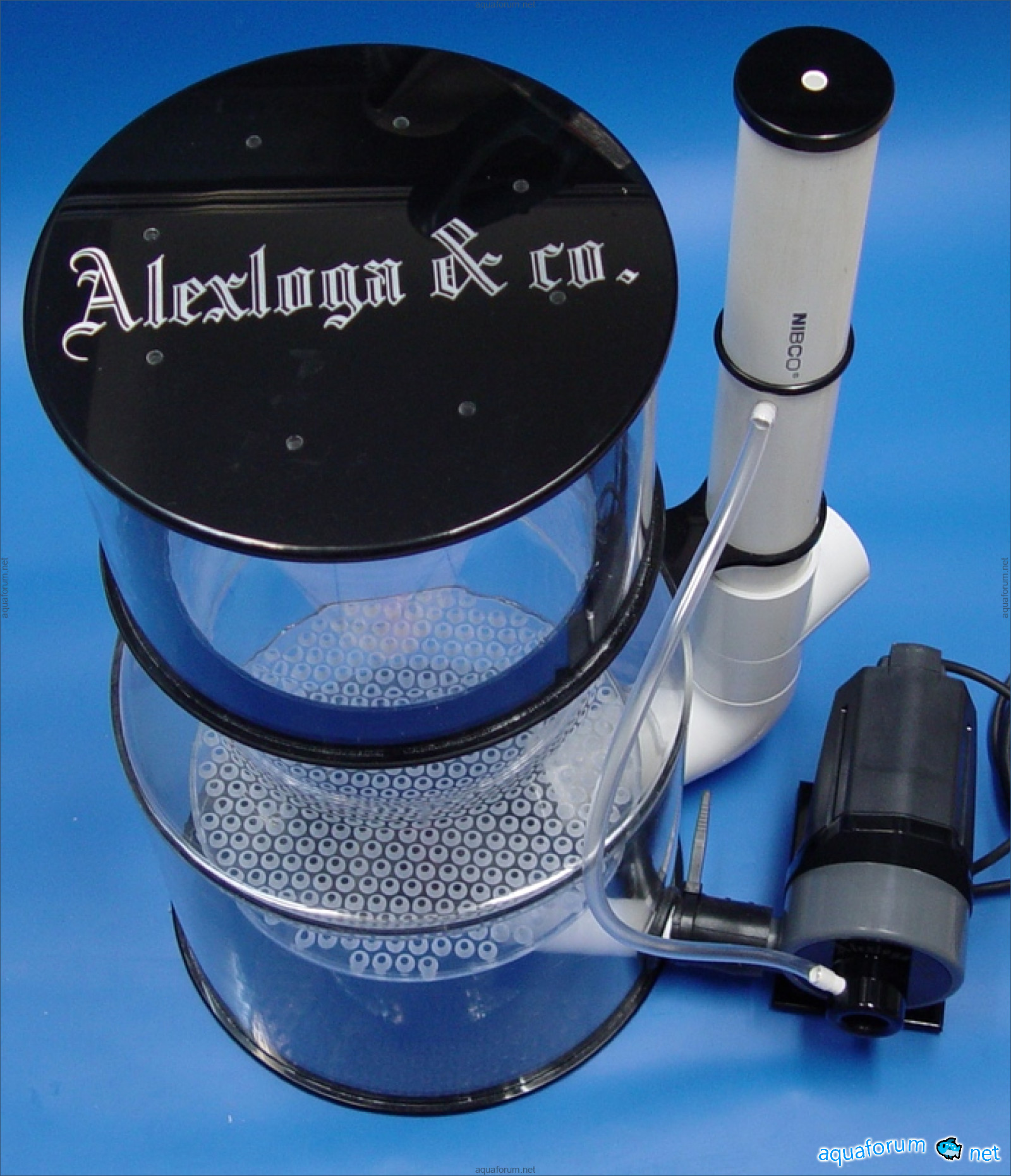

Skimmer circulation D 200 mm, H 600 mm For aquariums 500-1000 l Air intake 1200 l/h Water circulation 2500 l/h Power consumption 42 W The main difference from similar products is that the pump is not rigidly attached to the body, but stands on silicone supports, which significantly reduces noise.

Susan

Skimmer circulation D250mm, H550mm Power consumption 50W Air intake 2000L/h Water circulation up to 4000L/h For aquariums up to 2000L

Eric5208

Skimmer circulation D 200mm, H 470mm Pump Aquamedic OR3500 Power consumption 38W Air intake 850L/h Water circulation up to 1700L/h For aquariums up to 800L

Monique1236

Skimmer circulation D 200mm, H 450mm Aquamedic PH2500 pump Power consumption 22W Air intake 650L/h Water circulation up to 1300L/h For aquariums up to 500L

Nicole7122

Skimmer circulation Diameter 200 mm, Height 500 mm For aquariums 500-1000 liters Air intake 1300 liters/hour Water circulation 2500 liters/hour Power consumption 42 watts

Linda

I got a pen. I ordered a custom sample in advance. DSHV + volume. Well, what can I say... Actually, there's nothing to say... It works, I like it. Respect and appreciation.

Angel628

I really want to see the photos.

William

I really liked the post 174 Skimmer circulation D 200mm, H 450mm Pump Aquamedic PH2500 Power consumption 22W Air intake 650L/h Water circulation up to 1300L/h For aquariums up to 500L Well made, I think, and works great. Well done.

Caitlin3279

I'll get a camera and post it. For now, I can only send MMS.

Darlene4238

I understand everything.. Maybe it's not just me..

Kayla7655

I don't understand!!! What is this "king size" penis on the photo? What is the diameter of the tube? What pump will it work with? (or how many pumps)

Caroline1599

The baby has a width of 450mm and a height of 750mm. There will be two hundred.

Steven757

Cluster skimmers, I saw them in use by one of your clients (a family friend). Many have praised them, but I must say that in most cases they are very productive skimmers. I'm thinking of getting one for my large setup from you over time as well.))))

Chad231

Who are these many who criticized? This is the first time I hear this about the "penniki." Can you be more specific?

Alexander

I know such people. I think soon we can get personal so that the country knows its heroes. As for aquarium service, I know that very often people ask for help after dealing with such unfortunate specialists.

Larry9400

I think the PERSONALITIES felt the loss. I am currently taking care of my parents' aquarium. I made some changes, replaced the light, and slightly upgraded the skimmer (but I think it should be changed). Right now, it has an alternative external filter charged with activated carbon from Aquamedic, and from Coral Clavularia (which is dying). In terms of fish, there’s a Doctor fish that has nothing to eat, female fish, tomato clowns, and a butterflyfish. The rock is S.R.C. (dry reef rocks) covered in filamentous algae. The aragonite is populated with DSB, but the rock doesn’t look great; I hope to improve it. So far, everything is just theoretical, but in practice, it’s quite different...

Kevin8087

In connection with the recent posts in the thread, I have an interesting question - what is the warranty on the product? I will ask both competing organizations. What is the warranty on your product? What does it cover if it is limited?

Heather

The body of the skimmer, the pump, and the impeller can easily last a year or more... As for the pump itself, the question is more complicated in terms of how to determine the cause... Practice has shown that there can be situations where it can burn out not due to the manufacturer's fault, and it can be difficult to understand the reason afterward. Anything can break, but the important question is what happens next. We can repair, replace, or provide another one as a substitute almost immediately, and this is very important for MA.

Melissa1838

For your big.....

Rodney7316

It looks impressive!!! What is the volume? And the price, please?

Tracy

The RE recommends a similar one with approximately the same parameters for 4000-10000 liter aquariums. I think it will handle 5000 liters quite densely populated, and in about two to three months, it will be clear how well it performs.

Eric5208

Bubble King is a pay-for-show product. The cost of the skimmer is up to 500 euros, which is a small amount compared to the selling price.

Debra

There is plenty of show-off there, but the cost of what the Redragon 2 pump offers is more than 500. The pump itself is expensive, and for good reason – it is a synchronous motor with frequency control and the highest energy efficiency class.

Joseph591

As far as I understand, they also make the pump, so I think the cost price is lower.

Lindsay

The same can be said about Mercedes and BMW... just show-offs! Why do people buy such expensive cars...?

Jeanne

You think too highly of RE. The Redragon2 pump is a serious product; it's not even an Ascol, which they also didn't make. Such products are made by large factories. RE just buys them, modifies them, and puts on their stickers. I do the same thing.

Jason

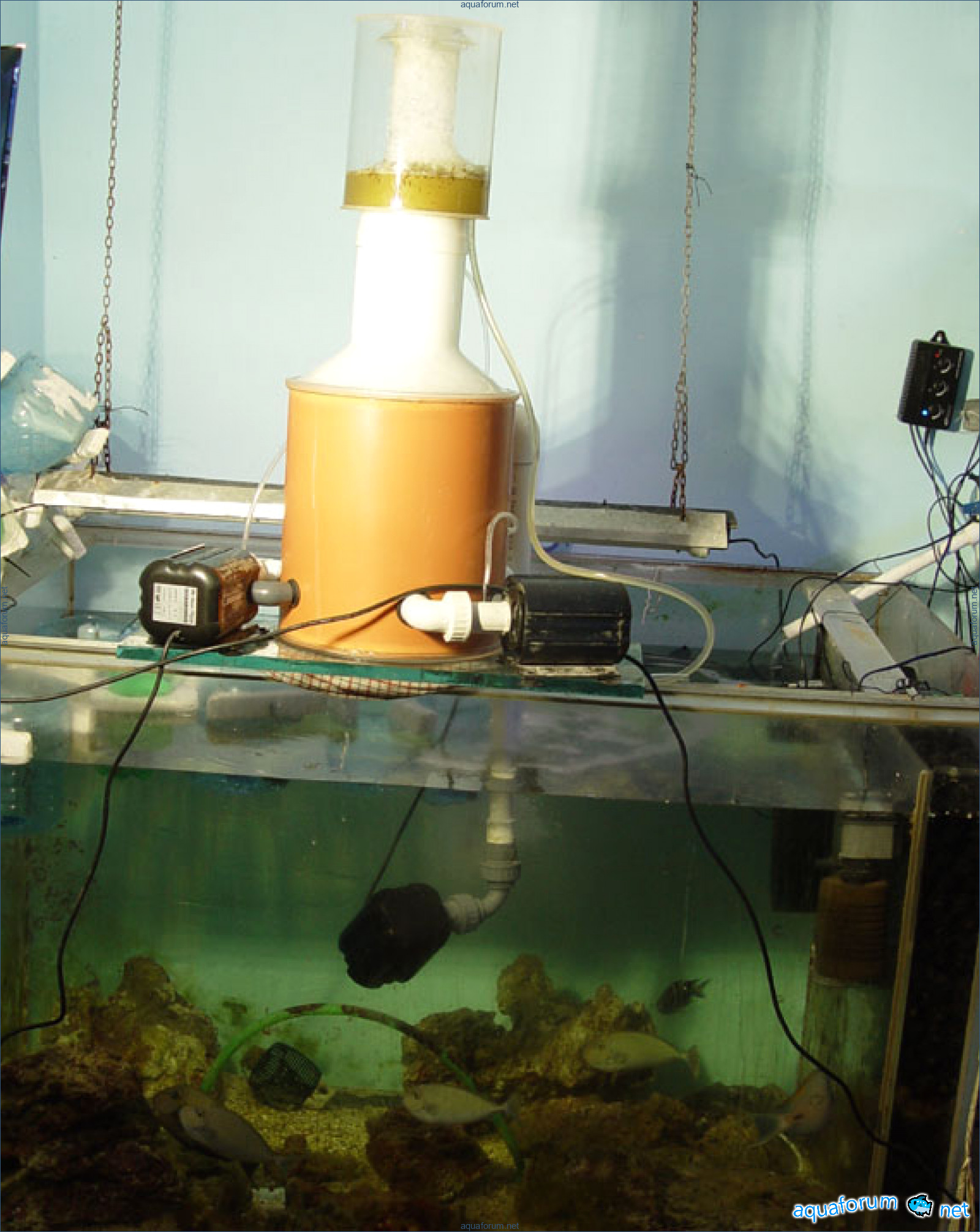

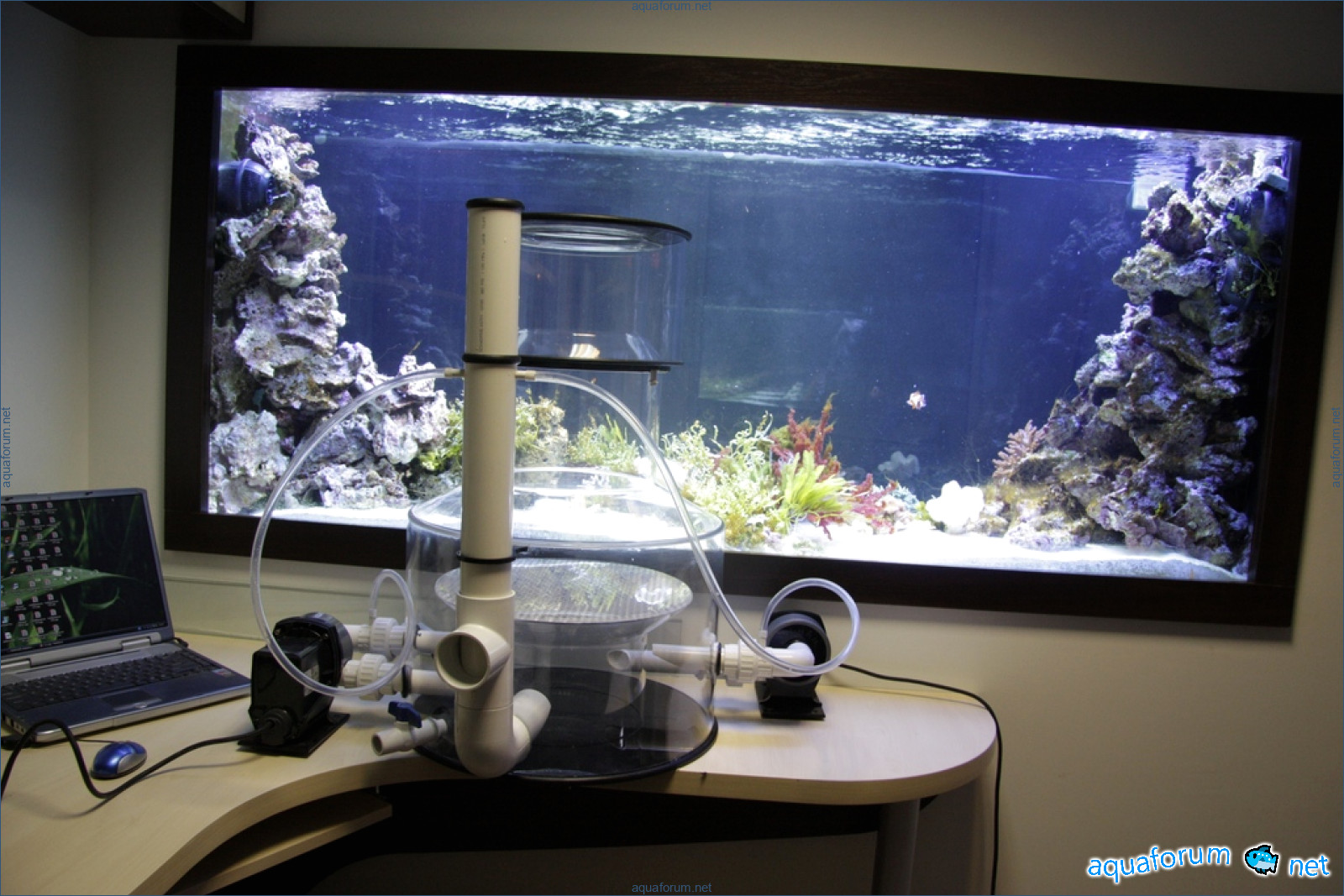

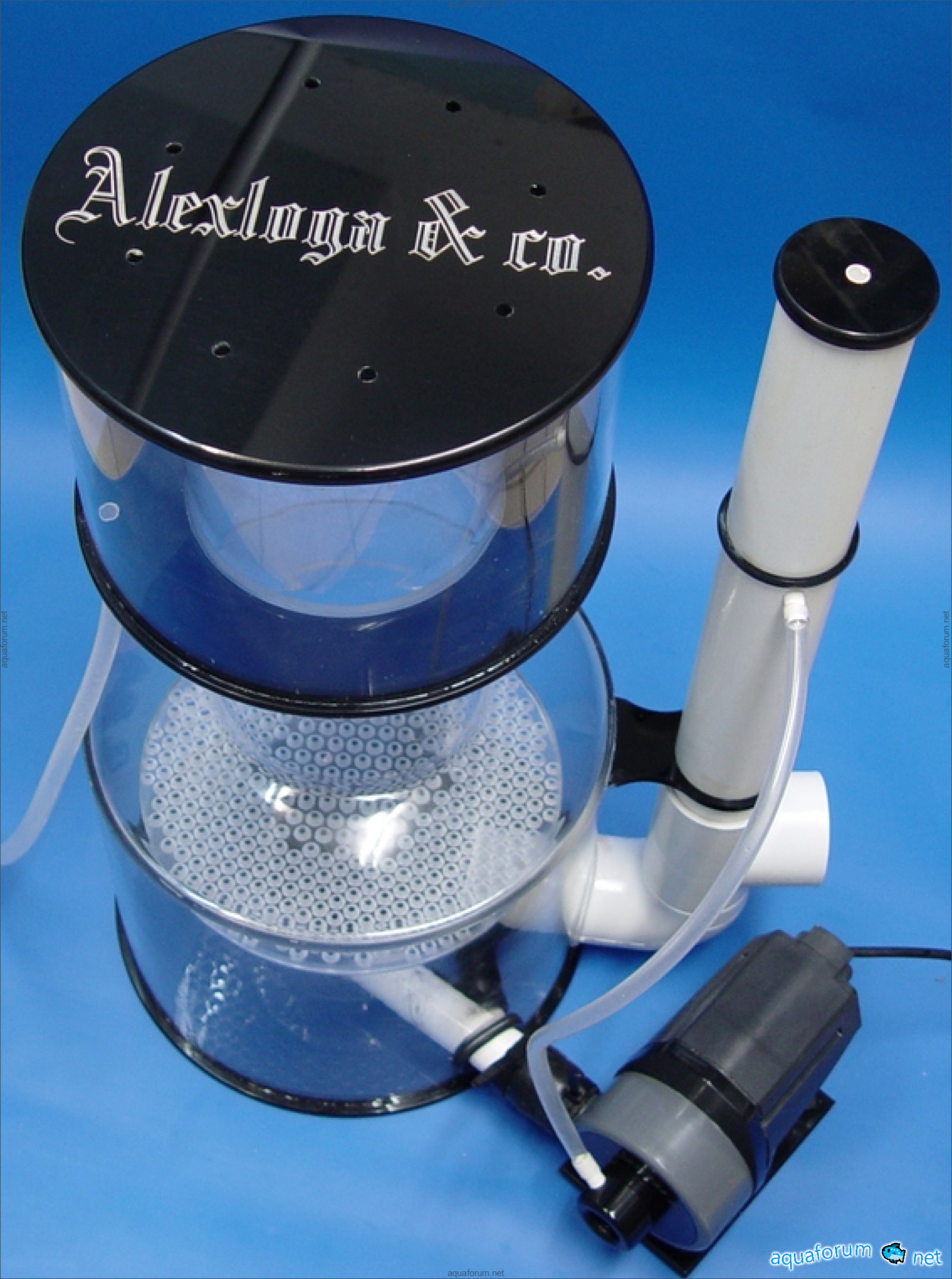

Recirculating skimmer, external H750mm, D450mm Two Askoll 9000 pumps For aquariums up to 7000l Air intake 5500l/h Water circulation up to 7500l/h Start

Paul

Thank you, Sasha, but I think it will be too much. My big one is not 5000 liters, but 600 liters ))))) But the filter is great, and I still need to figure out how to connect the plumbing for my big one. The renovation is in full swing...

Vanessa

Oh... RD2... the pump is certainly interesting, no doubt about that... but its origin... hmmm... Askol makes it? Seems like Italians... but RD2, I think, is made by the Chinese. In general, it's possible that RD2 is actually more affordable.

Stacy6866

The subtle hint was not understood. Okay. I'll ask differently: Honkar or Grundfos? Have you already made your choice? When will we see the skimmer on the controlled pump?

Jessica5348

For now, I can't say for sure, the issue is being studied..... At the moment, in most cases, Laguna is sufficient, of course, this is not the limit... Technically, we are ready to solve any option, at the level.

Anthony

Did you take the machine from the Luhansk people?

Rodney3101

Can I find out what amount I should expect for the penalty? The volume of the aquarium is 250-300 liters.

Patricia

Iron horse replaces the collective farm horse.

Julie4738

150 dollars

Ryan

Hello! What material is it and how much does it weigh?

Marie5348

Vitalik, this is acrylic. What used to require two pieces can now be done with one, and there is also the possibility to improve the geometry (I don't mean the inscription). Technically, it is possible to make the impeller completely solid, but for now, I don't see the point in that; the combination of the disk material and the pins we are using has turned out to be very successful.

Theresa5149

Can the "snails" for the pumps be machined on this machine?

Michele

If you don't mind, I can share my achievements. Material Murytal® C

Sheila1322

Yes, of course, you can.

Steven

the technique gives

Christine864

It is certainly not bad, but... There are drawbacks to this technology - the length, diameter, and distance between the pins are heavily limited by the tool. Moreover, the material must be easy to process while also having elasticity, impact toughness, etc. Of course, there is much less hassle with such a rotor, but its performance will be weak...

Adrienne

This is a special material, you can find more details on the website of the company I work for, VVV.murtfeldt.de. The length of the rods can be 30-35 mm; it all depends on the processing technology and the tools used (a 2 mm cutter is used here, but there are also 1 mm and 0.5 mm options). The material is structural and meets all the requirements you specified, approved for the food industry, and is chemically inactive. I made a propeller for myself with rod diameters of 1.5 mm and a distance of 2 mm between the rods. If possible, could you advise on why such a design might be ineffective?

Caleb6320

It's actually scary There's just no limit - lawlessness My wife hid the frying pans in time, otherwise they would have gotten it too...

Javier5186

Is it possible to order a pump to replace the stock one in the AM Turbo Floater Shoti Compact (which originally comes with an OR3500) with a higher performance one that fits in the stock location? Thank you for the Laguna 80W!!! It pumps just great!!!

Debra8438

It might be possible to find something..., but it will also be necessary to increase the height of the body, as a more powerful one will overflow it.

Andrew9581

This is really problematic for me.... There is an option to forward it to you, and you can "unpack" it on your end, set everything up, and return it to me.... How does that sound?

Joseph6461

This option is not possible. We do not engage in modifications and redesigns of German, Chinese, or any other skimmers, fundamentally. This work is not complicated, and I believe there are people on the forum who can do it.

Corey3201

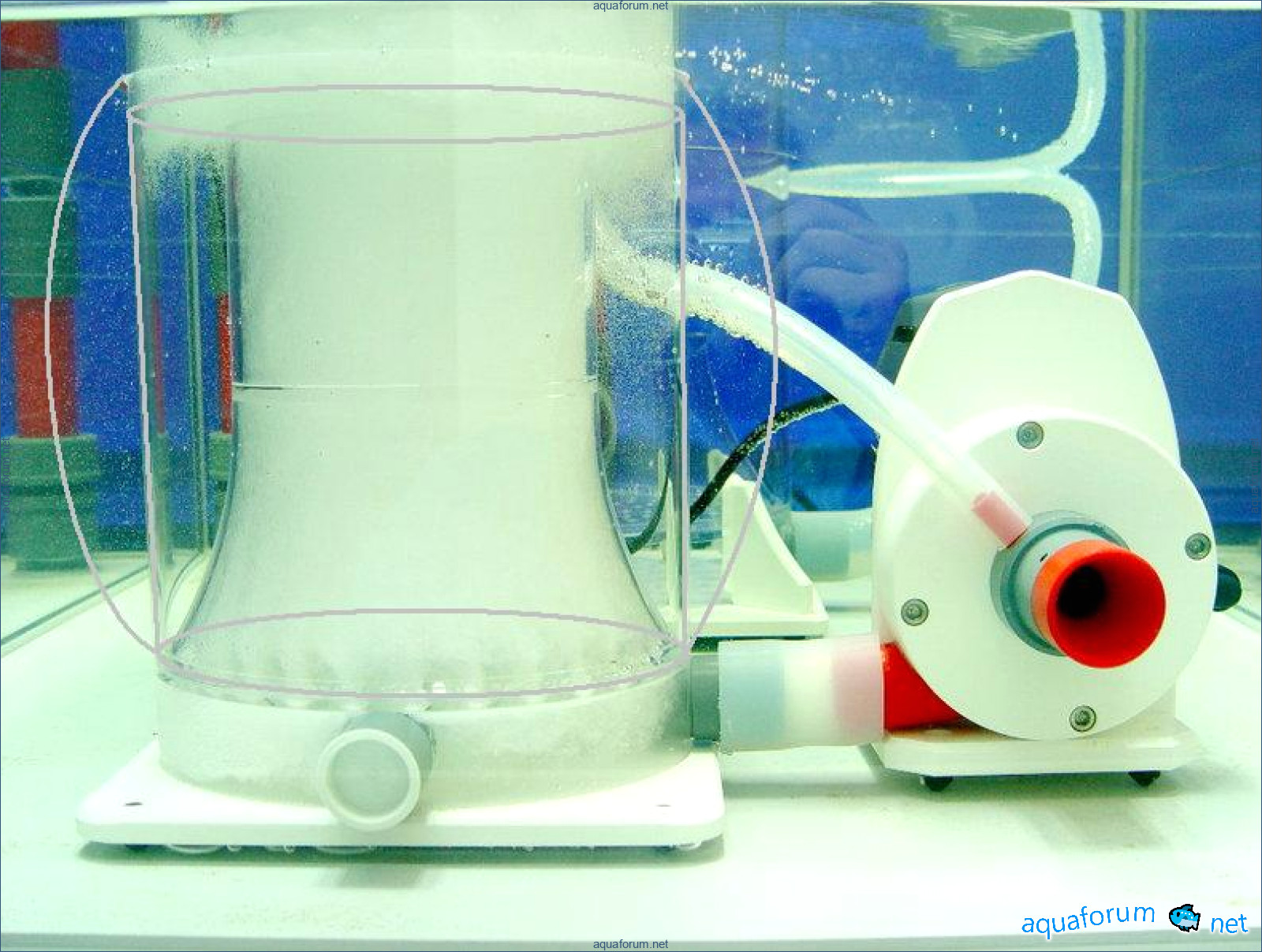

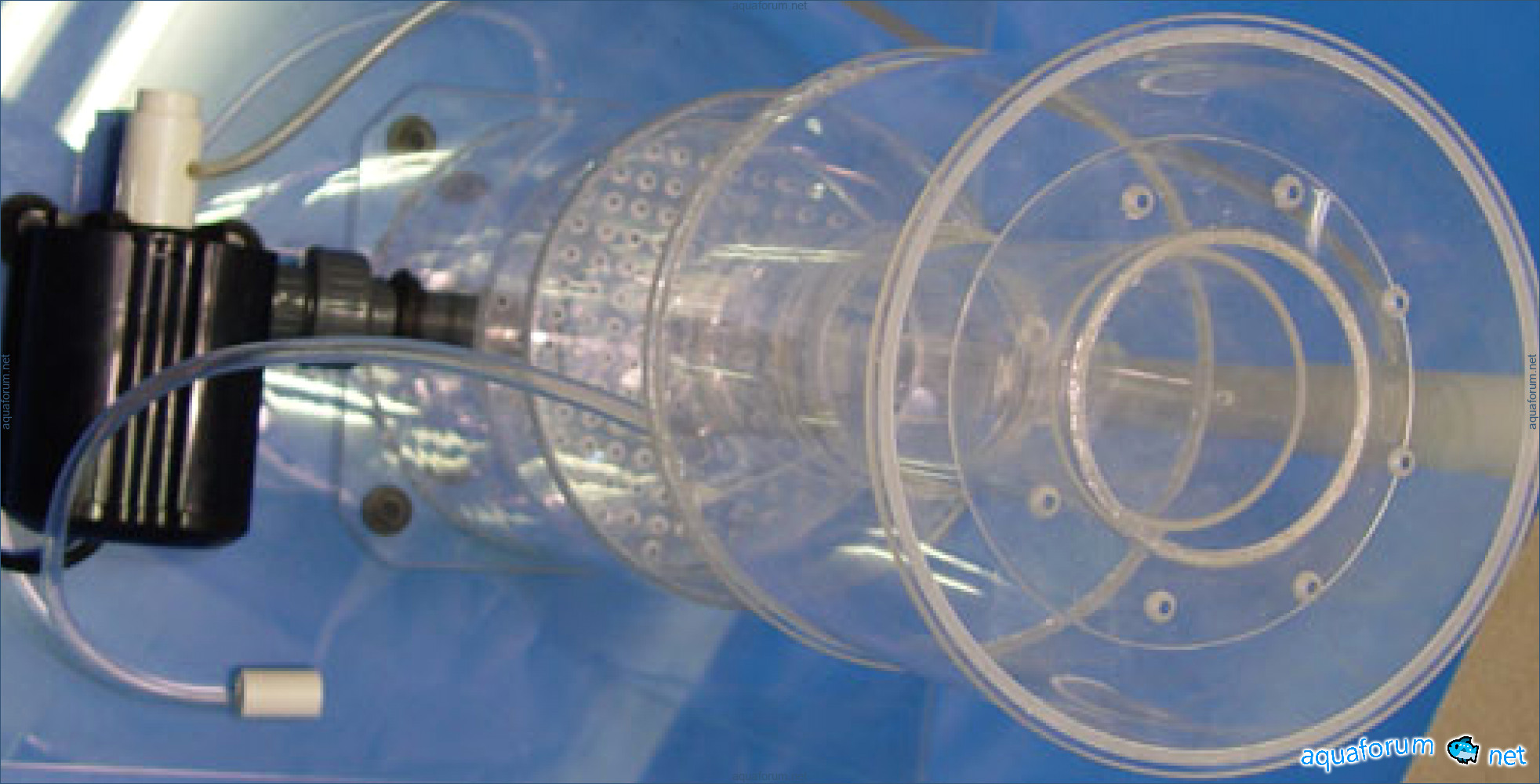

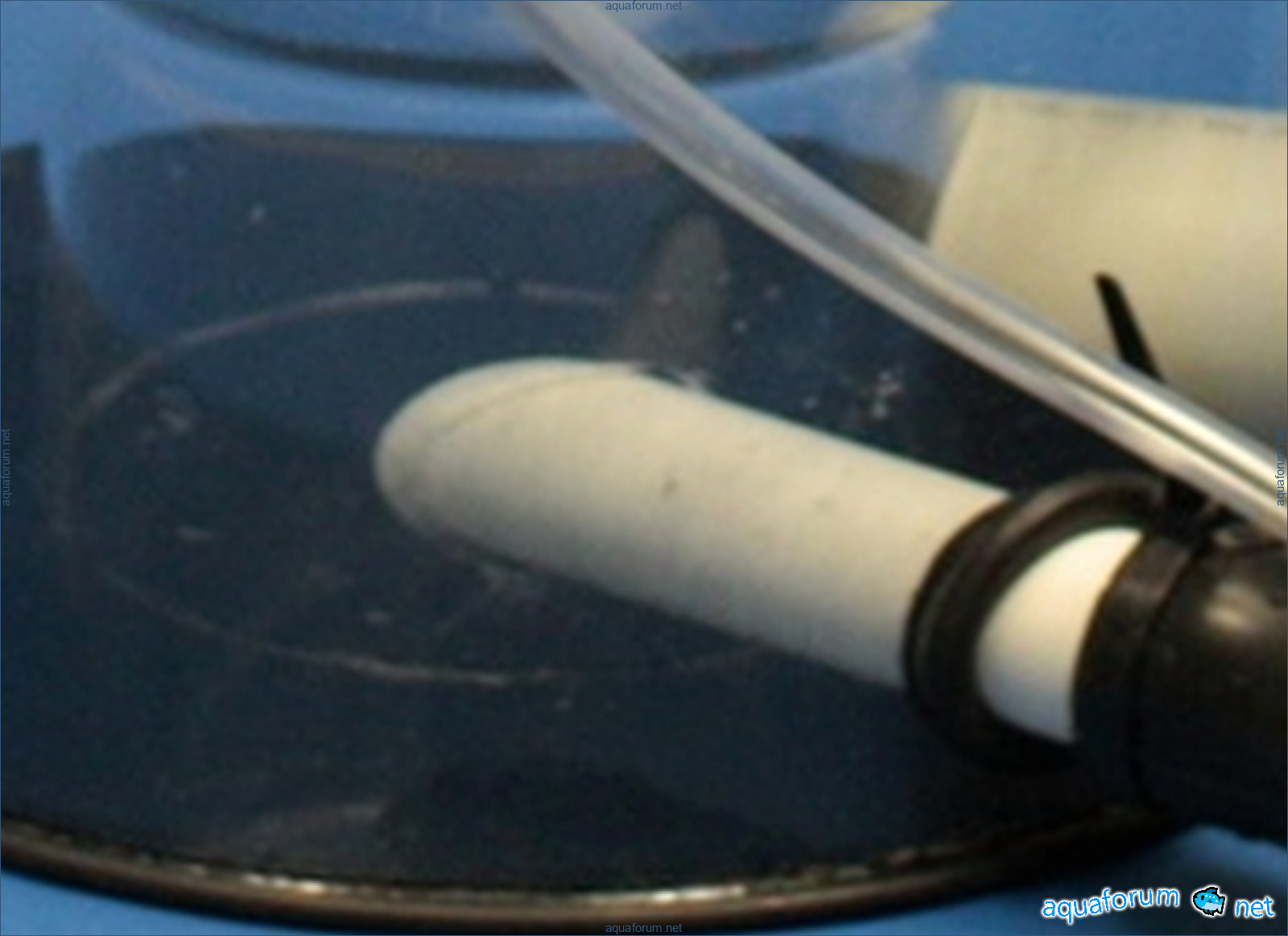

The injector design has been slightly modified. As a result, vibration (noise) is reduced, the pump operates more smoothly, and it breaks up bubbles better.

Cassandra1840

I want to upgrade this skimmer with a new injector and any other stuff to reduce the decibels. And I want the engraving "Alexloga" to be included))) - I think it will boost performance. I've been holed up in my bunker and have really neglected my clients.))))

Tiffany5069

At the very least, you should send him to my bunker.

Leah

Can you provide the price (in private) for a skimmer for an aquarium up to 1000 liters?

Danielle8118

Could you tell me how much a skimmer for 200 liters will cost?

Nicholas5194

Can I ask a question? Do the Laguna and Ascoll pumps have anything in common?

Mitchell3177

I liked your pumps!!! I will definitely reach out to you first. Question Is the "W" indicator an important criterion? Aqua Medic OR 3500. Power (W) 65 Laguna 3000 l/h 125W?

Robert5335

These are different names for the same thing. The most important criterion is the volume of air being drawn in. The more technically proficient the skimmer is made, the better the ratio between the power consumed and the air intake. As a rule, the power indicated on the pump is the maximum consumption when used as a feed pump; when used for a skimmer, the impeller and all characteristics are usually changed.

Sheila

Incorrect data: Laguna 125W - it is either 9000 or 12000 l/h, in my opinion.

Jason5071

I apologize as I am not very knowledgeable about these issues and confused it with air intake.

Ryan2281

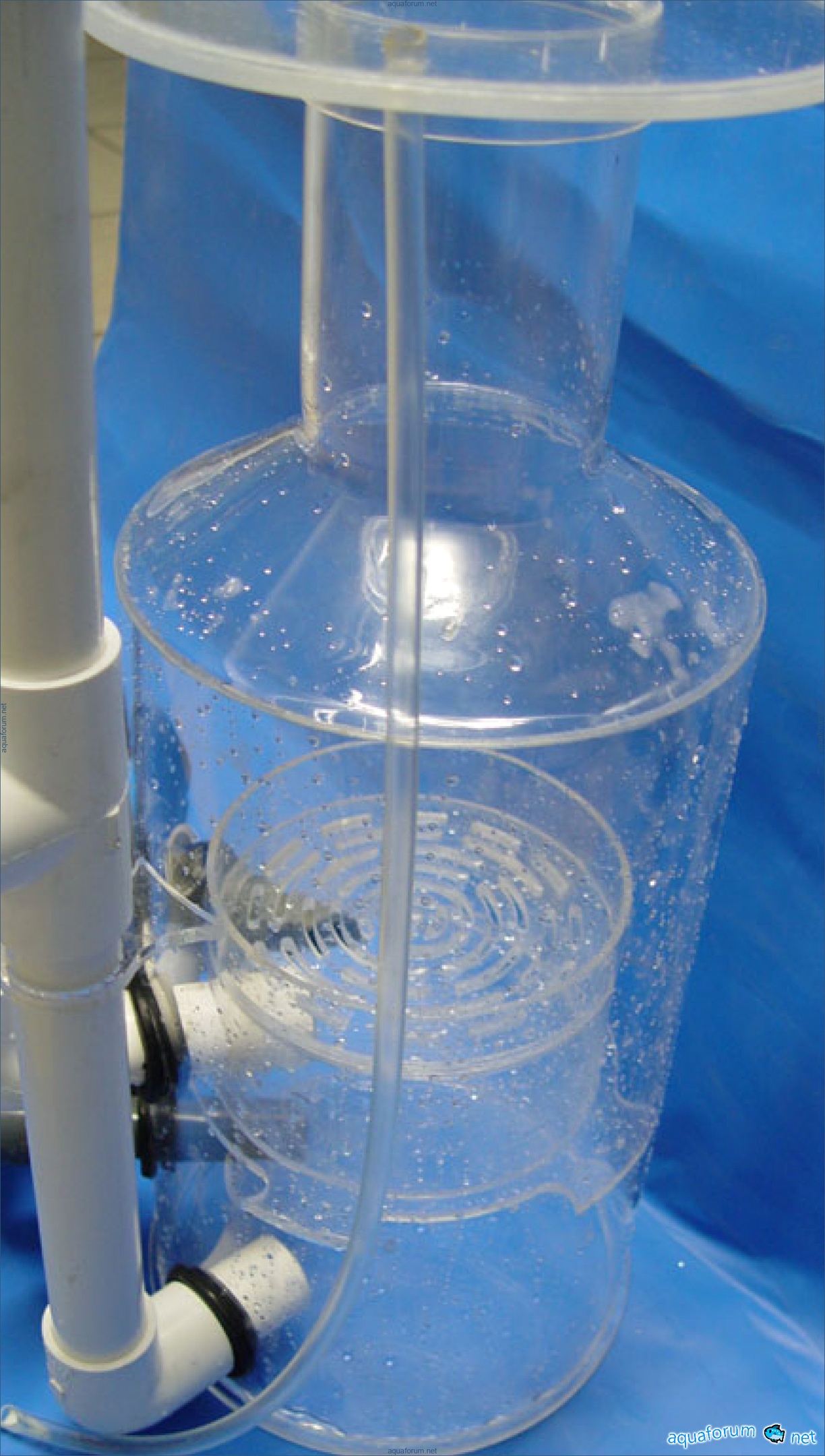

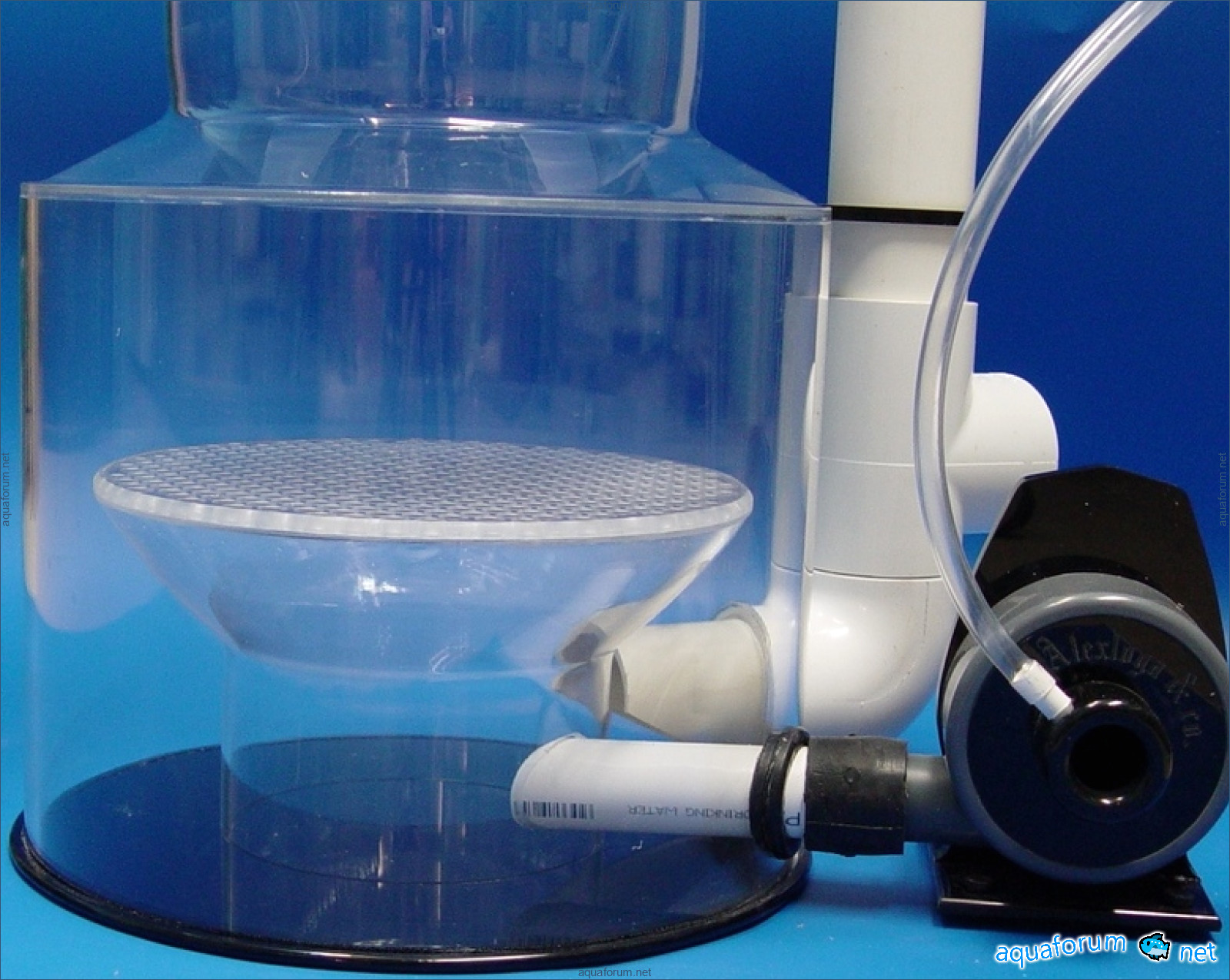

Slightly updated version with a 100W Laguna.

Stuart

Impressive!!! What are the specifications and price of this foam generator? Sizes? Are you still using a mechanical rotameter? What is the accuracy of such measurements (+/- how many liters)??? Best regards, Imir.

Leonard

The parameters and dimensions have hardly changed. The accuracy of manufacturing has improved, and as a result, reliability has increased. The rotameter is quite satisfactory; its error depends on the range of the scale where the measurement is taken, as it is more inaccurate at the edges. I think we will finish another new element next week, and then the price will be set.

Teresa

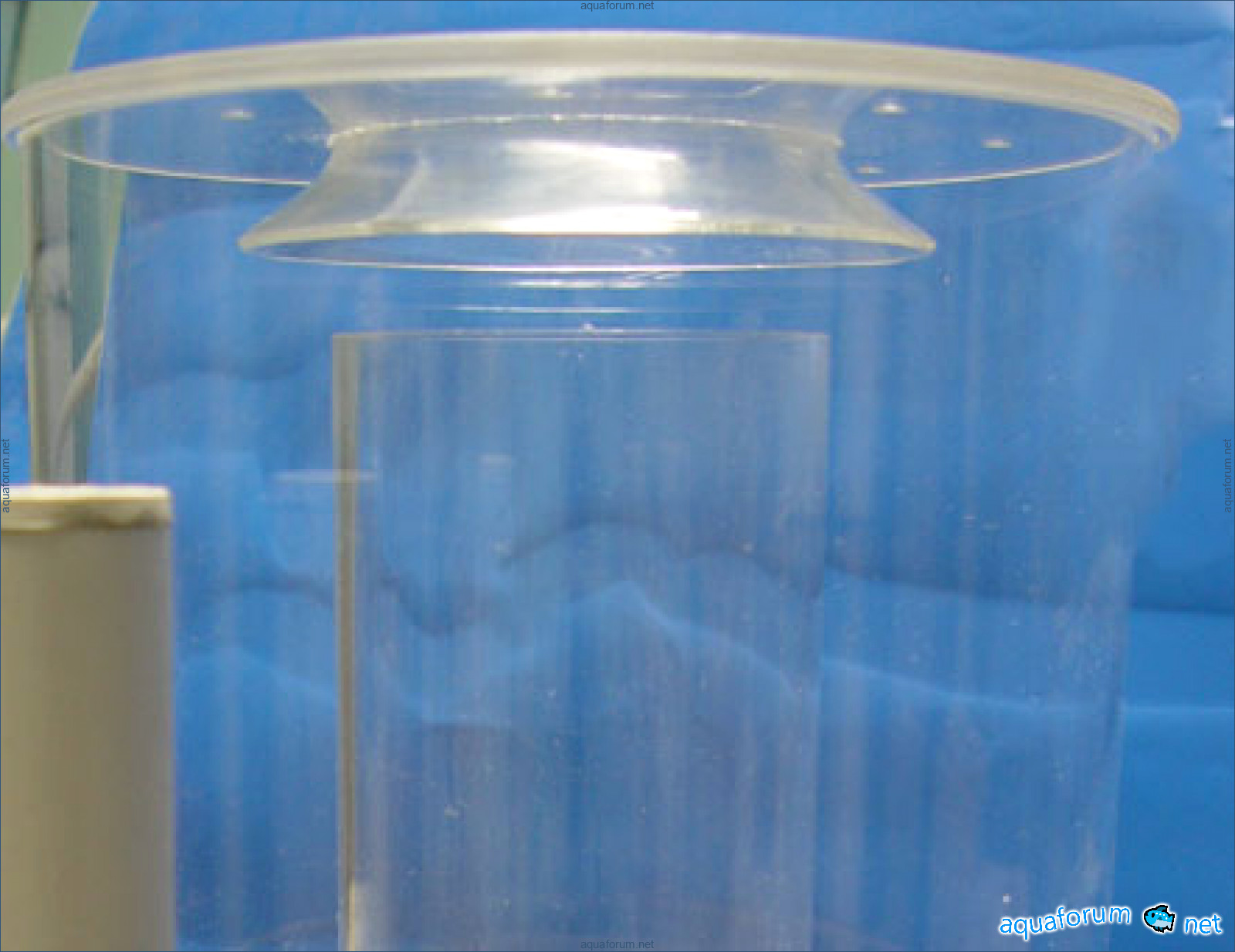

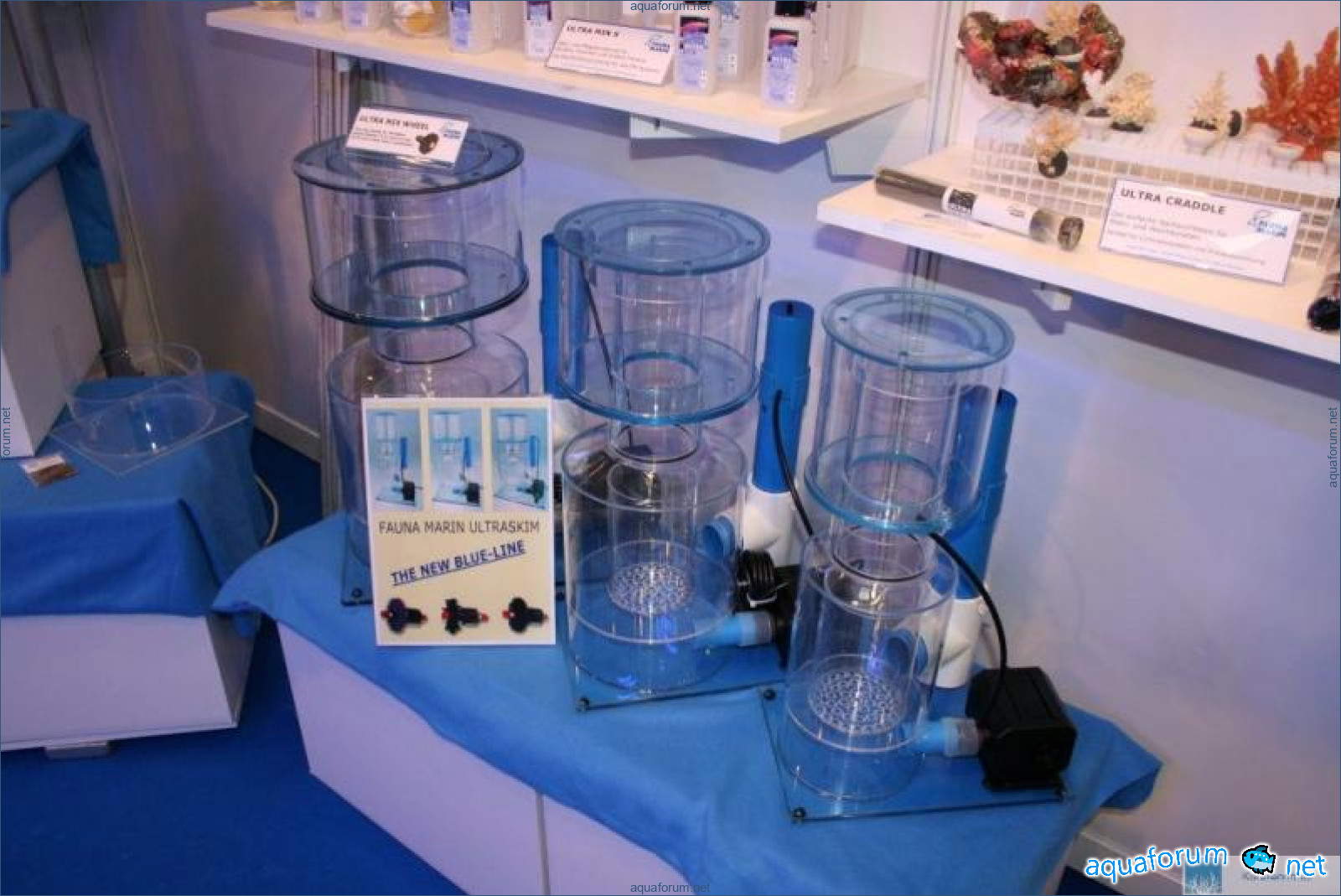

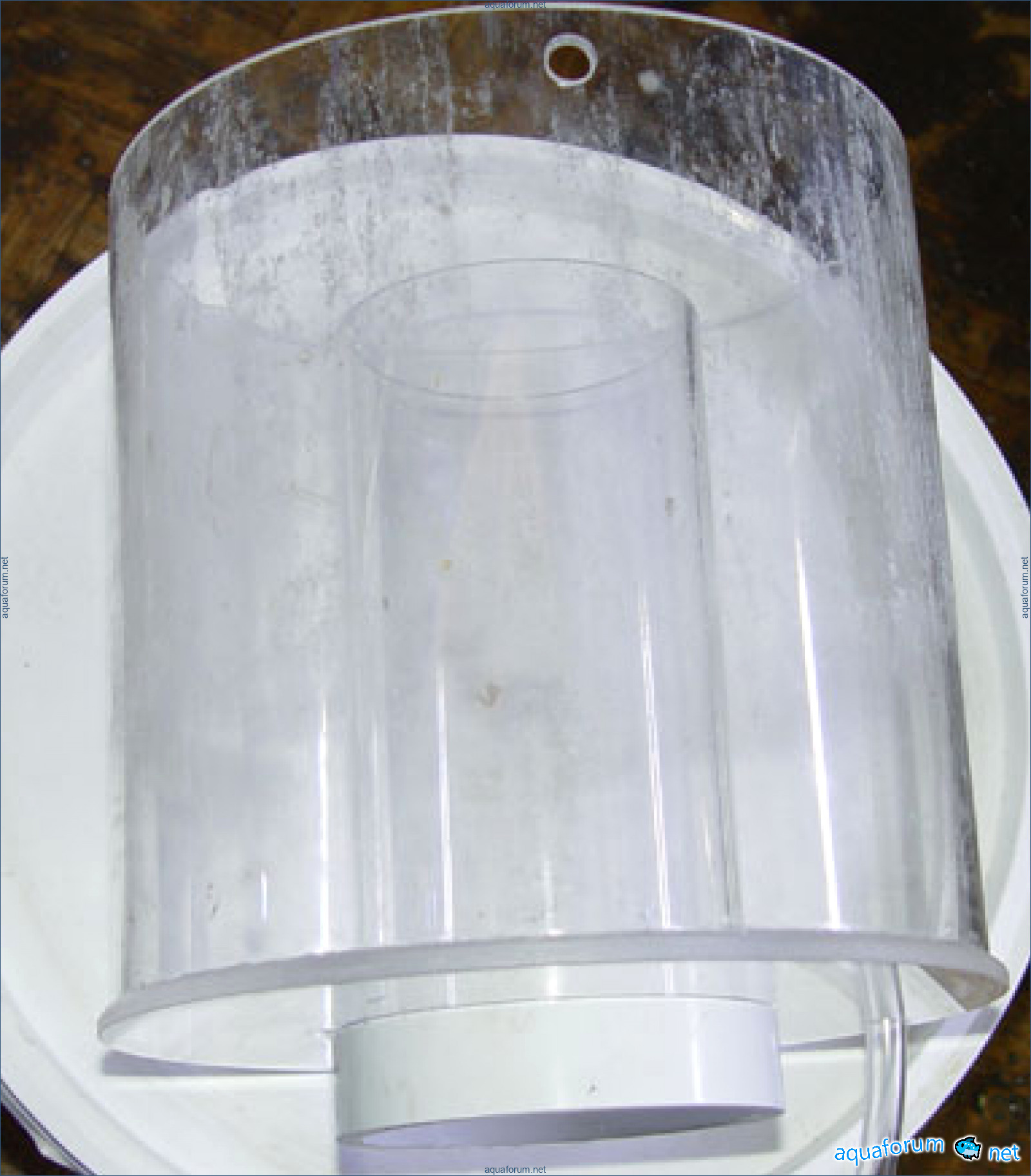

Here is this element. After looking at photos from Interzoo, the thought crossed my mind to borrow something from KZ, slightly reinterpreting it in my own way... The product still needs to be tested in action, but there are already several advantages evident.

Jonathon8514

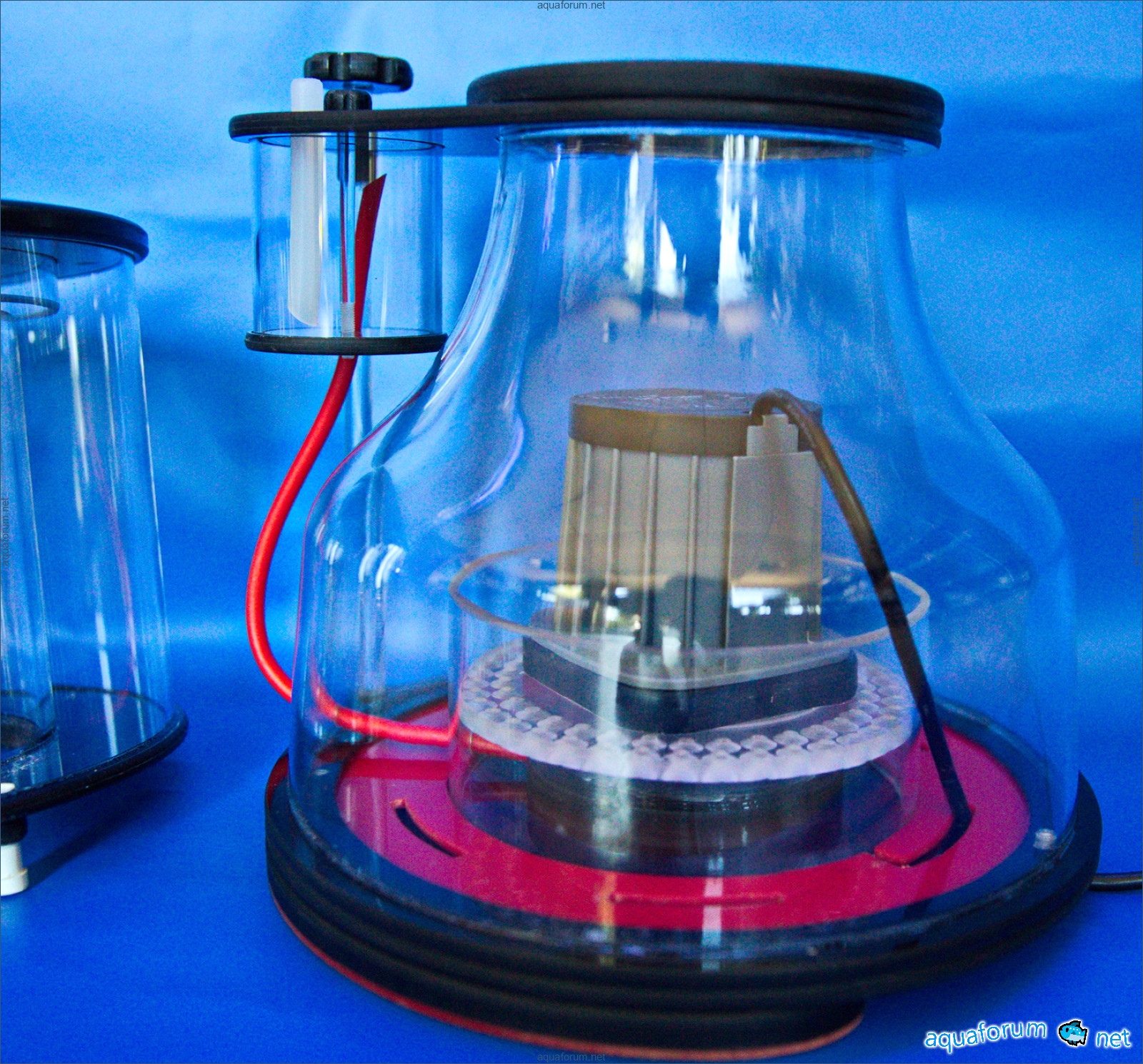

The final appearance of the product...

Shawn

Is it possible to copy from the Kazakhstani version? What does it have in common with the Kazakhstani version? What has been stolen from the Kazakhstani version??? What advantages are being discussed? It all sounds rather vague...

Amy9618

Thank you, I said, but I didn't look at the photos (the first similar photo was in the link from Virus, for which I am very grateful to him). You should pay more attention to the material, especially since your company represents Kazakhstan; however, the material part needs to be studied. Regarding the advantages: - compactness - smooth adjustment - high throughput - the unit is technological - parts are made only of acrylic, it glues excellently and reliably - it looks amazing In addition, there are plans to make it airtight for outdoor use.

April3499

I know how the glue is made at KZ! Moreover, I have information about other companies as well. It's strange, but no company boasts that they have super glue, excellent acrylic without GMOs. For everyone, it's a matter of quality, reliability, etc. (for all companies), and even many Kiyets are glued excellently and look amazing. But to make a statement and say that everything is great now, I think it's too early... And it's not a fact that it will work as it should...

Eric5208

I'm laughing so hard))) So what's the point of it???

Andrew419

Personally, the faucets we made earlier were quite satisfactory for me in most cases, but it's not just about me. There are people with different views, tastes, and preferences. There are various circumstances that can determine the choice of a particular design. There are situations where every centimeter matters. The more options I have for solutions, the more flexible and adaptable the system will be. That's the whole point.

Tracy

I have encountered this myself.

Kevin262

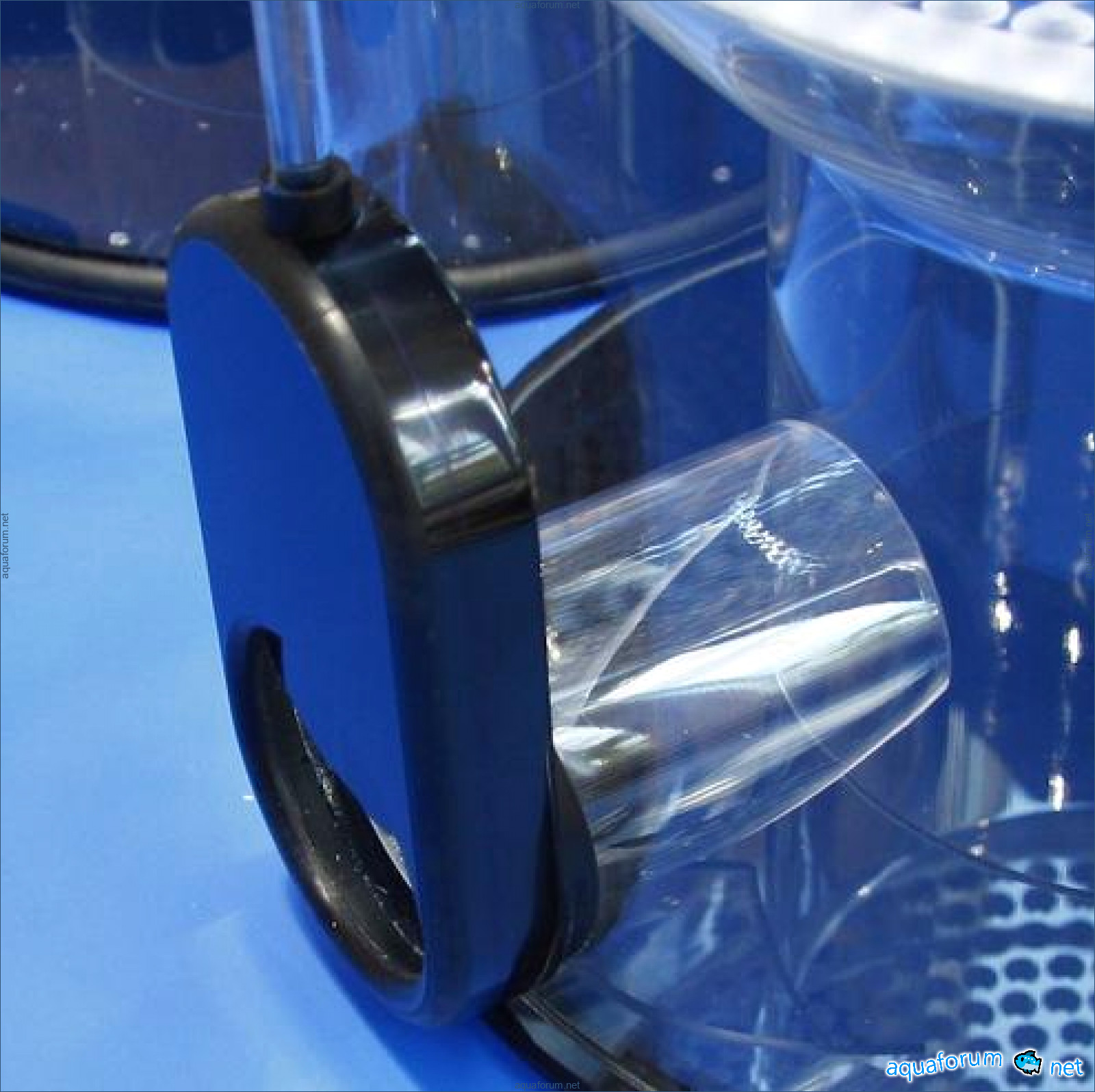

I also don't like the white pipe - it takes up space and is inconvenient to handle - so a cooler faucet will be better.

Sara

About every important, decisive centimeter - that's exactly what I wanted to write and make clear! But here, stolen from KZ thanks to the photo - nothing has been said about the important centimeters.

Vanessa6144

There are cases when every centimeter makes a difference - that is, size matters!?

Rebecca1419

I think we have a very high opinion of "great" brands. There is nothing magical about KZ or RE. The Germans just really need the money, which is why they have a profit margin of 1000%. A pile of plastic cannot cost several thousand dollars. In our country, people buy cars or a little house in the village for that kind of money. I believe that ALEXLOGA pens are no worse than "famous" brands. But considering the price difference, the choice is obvious (at least for me). P.S. The "new product" with a tap is great. It's compact and has finer settings.

Karen2578

+100. I share the same opinion. My pen drives work perfectly, whether you want "nigrol" or "diesel." Why overpay for a brand if there are no complaints about this product?

Antonio

No one is saying to overpay))) But there are many complaints about any equipment, whether it's a foam maker or equipment from German brands. You can compare this to buying a car. Why buy German junk when we have such wonderful, affordable cars being produced?))))) It's all just a joke... They make decent foam makers, that's a fact! I work with them, they provide foam, etc. But there are times when the foam maker fills the bowl with water overnight. Why?

Barbara8192

But there are moments when the pen fills the cup with water overnight. Why? It's just terrible what's happening!?

Robin

No, it's not terrible. It's just that the adjustments are not set, or some kind of chemicals have been poured into the aquarium. Miracles don't happen. Here, two interests have simply collided: one from the equipment manufacturer and Denis's (by the way, until recently, ALEXLOGA's products were highly praised). They just need to sell products from KZ and RE. But this is not suitable for our country for many reasons. P.S. There have never been any problems with the skimmer and filling the cup. Minor issues (like when I broke the pump shaft myself) were resolved by Sasha in two days.

Sarah

To be fair, I should note that this design was first shown by Zhenya (Slyam) from Moscow back in December 2009, and then apparently after monitoring the Logo forum, KZ copied it and presented it for the first time at the exhibition in Nuremberg, since before that they were using different cranes, which also surprised me with the similarity. The photos from the exhibition have only recently appeared, just to be fair. Overall, the design is good, cheap, and reliable.

Brent8919

What's new here?! - principle!? - a guillotine for cigars!

Charles5941

A cigar guillotine had never been used before to adjust the water level in a foam maker, that's all.

Tracey

In this topic, there is only one interest!!!... This topic is about Alex's interests. I haven't written anything bad about the products; they exist and are excellent! The questions that arise are not related to regulation, chemistry, or magnetic storms... They just appear))) The main thing is that it's stolen, cheap, and for our market... everything is just wonderful! How it is made, calculated, and tested is how it works! No complaints))) Everyone is satisfied))) P.S. Stas! We don't strongly recommend KZ and RE equipment; we only recommend quality products, that's the main thing! So that later we won't be ashamed to look into each other's eyes...

Sheila1322

All three points are off the mark. There's no need to react like that - it was a very simple question. I don't understand what the aquarium has to do with this (isn't everything there also, thank God?).

Dawn6148

This is not a question, it's an attempt to create a problem in the style of "Your tomatoes are wormy." If you have a problem, please describe it in detail and we will discuss it thoroughly; there's no need to spread gossip here.

Amber9312

Well, in that case, I took revenge on Slyam. It's one thing to see, another to do. Stupid copying never brings any benefit. KZ did everything quite beautifully, but there's one thing - they absolutely do not understand the specifics of the device where it is located... To turn the valve, you'll have to put your hand in the water, and that will immediately affect the operation of the skimmer, any skimmer, and with that injector they have, especially with the pump they are using, the foam will drop instantly. Making the tap wasn't that difficult; the question was how to connect it beautifully to the skimmer body, and that required some serious brainstorming.

Jeremy

It's interesting what the difficulty is in connecting acrylic to acrylic and why it was necessary to rack one's brain.

Alexander

Wow!!! I applied it, stuck it on, and here’s the result!!! A flood and death to animals.

Kevin3579

Looking at the photo, I remembered a long-standing discussion on this topic, specifically regarding the KR, but that was in 2007.

James1625

Let me remind those who are not aware of what this is about. The product has a welded PVC pipe insert into an acrylic pipe. Acrylic is not metal, although it can hold some load, which I warned you about. But apparently, I did not take the human factor into account... Not understanding the reasons for the failure, I suggested redesigning the product (of course, there was no talk of money), fundamentally changing the design so that such inserts would not exist. However, it seems that at that time, Airif's business plans changed, and the product they intended to sell and the person who could have become a partner turned into a competitor.

Adrienne

Is KZ Korallen-Zucht? If so, doesn't such a remark about an excellent company with a global reputation seem ridiculous to you? Just please don't start a pointless debate, given that KZ invests in research amounts that exceed your company's budget.

Nicholas5194

Injector skimmers are sensitive to the fat content in water. The valve on the skimmer is positioned in such a way that to turn it, you have to put your hand in the water; as soon as this happens, the fat from your hand will enter the water and disrupt the skimmer's operation, meaning it can no longer be adjusted. This point (and there are others) gives me reason to assert that these skimmers were made by amateurs. By the way, KZ skimmers are not recognized worldwide. Money can be spent in different ways - it can be used for research, or it can be wasted on marketing a product.

Matthew7977

What bothers me about such companies (KZ, RE) is this: yes, the product, I think, is quite good and deserves attention, BUT... how can it cost 1700 euros?!!!! For a pile of plastic + a ready-made aqua pump?! The foam injectors were made by Tkatch at the beginning of his career. And I seriously doubt that KZ spends millions on the development of such products. It's not that big of a corporation. I think the company's know-how is in chemistry and the zeolite system. In fact, I liked this company's developments in feeds, sorbents, bacterial starters, amino acids... You definitely can't mix that at home in the kitchen.

Anna9752

Is this someone's double!?

Amy

Yes, that's absolutely right - this is a double of AYRIF, and he is not alone. What are the grounds for such a statement? - A person from space, neither an aquarium, nor messages, nor... the last topic. And here is what raises vague doubts - such species of fish were brought in by AYRIF in the recent past. This topic was nothing more than a test of supply and demand from AYRIF. AYRIF promotes new technologies. A question for the moderators and the admin - how long will such antics go unpunished? Is it really so difficult to put a stop to this once and for all???

Anne

There is someone like Anima mundi on the forum. If you ask him, he can mix even more complex things... Technologically, it's reproducible and can be done in the kitchen. The question is, who will take the risk? Probably, it will be someone who will brew it themselves...

Ryan1989

Business is a dirty affair! No one wants to give a "cut" to the "uncle"! In general, everyone is trading—those who don't want to can choose not to buy the goods, and no one will beat them for it!

Gary6376

He is Gosha, he is Zhora, he is Goga, he is Gora, he is Georgiyych - does he live here!?

Debra6575

he himself

Laura3615

And these people shout the loudest - "we are the most honest." In every matter, there should be at least some rules of decency.

Heather

In this topic, we discuss skimmers, not clones and/or forum participants. If you want to talk about this, do it in private messages or in the general section. I will ban. The issue of clones is being addressed. If there are any accusations, send them in private messages.

Jenny

These types of fish have never been imported by our company! The topic linked was created long before the establishment of iReef and has nothing to do with us. Additionally, we would like to point out that we do not have bots, but we consider everyone who speaks the truth about your products to be our employees.

Michael5242

I understand that it's off-topic, but... Do these logins come from the same IP address?

Jessica5016

Offtopic Don't consider me a bot. I have a real phone, and you can find me on it and arrange a meeting. to Alex Logo I have the same attitude towards Airif as you do towards your low-quality products.

Nicole263

Denis, with all due respect... Look at your own thread, posts 30 and 47. You've been using Sasha's products for over a year. And now they suddenly became of poor quality. I am an outsider to the aquarium business. But I am somewhat bothered by the fact that there is "poor quality product" in my aquarium. If there are valid complaints, please post them as a claim in this thread, with facts and photos.

Erica

Off-topic, heh heh, I suspect that Airif just had a falling out with someone over something, and it has nothing to do with his issues...

Brian

Off-topic. Who are we to talk...

Thomas

The issue of clones is currently being addressed.

Julie3950

In summary of the topic: Don't think! If you thought it, don't write it!... Did you create something with your own hands? Don't publish it!... If you suggested or conducted a reconstruction, wait, they'll catch up and hit you again... Initiative? We'll punish you... "Stars" of Kyiv M.A. (marine aquarium), wow!....

Erica752

Some kind of trouble again.

Jason9385

I remind you once again that in this topic we discuss PENNIES from A, not him or other forum participants. Otherwise... P.S. I'm tired of these disputes.

Tasha

You won't believe it - you're not the only one.

Christopher1774

On the way from Kyiv, while battling sleep, another thought popped into my head again about the cranes. After being realized in acrylic, I liked it even more and I think it will remain in use for all models. The skimmer is entering the mode. Once it stabilizes, I'll take photos in action.

Robert1845

Impressive!!! Can I get the sizes and price of the pen without the pump in a private message?

Anthony4281

base diameter 260mm, height 520mm skimmer with Ascol (Laguna) 6000 pump, can be used for aquariums up to 1500l All body parameters are strictly calculated for an air output of 35l/min (2100l/h); it will work poorly at any other output.

Jeffrey2277

your disks will get messed up. if there is light, they will overgrow with coral. they will spin poorly. in general, it's not right. the most interesting thing was the last one with the vertical curtain...

Ryan

Not quite like that. It can only grow on the top of the disk, the areas that can get clogged are shielded from light, and besides, it can be completely disassembled and cleaned. In the photo is one of the previous versions, it worked for more than six months without cleaning, there are no Carolinas, but there is plenty of g... and it is more on the side opposite to the drain. In the latest version, water flows evenly across the entire diameter of the bottom, the streams are distributed as symmetrically as possible, and the skimmer actually works better.

Ryan2281

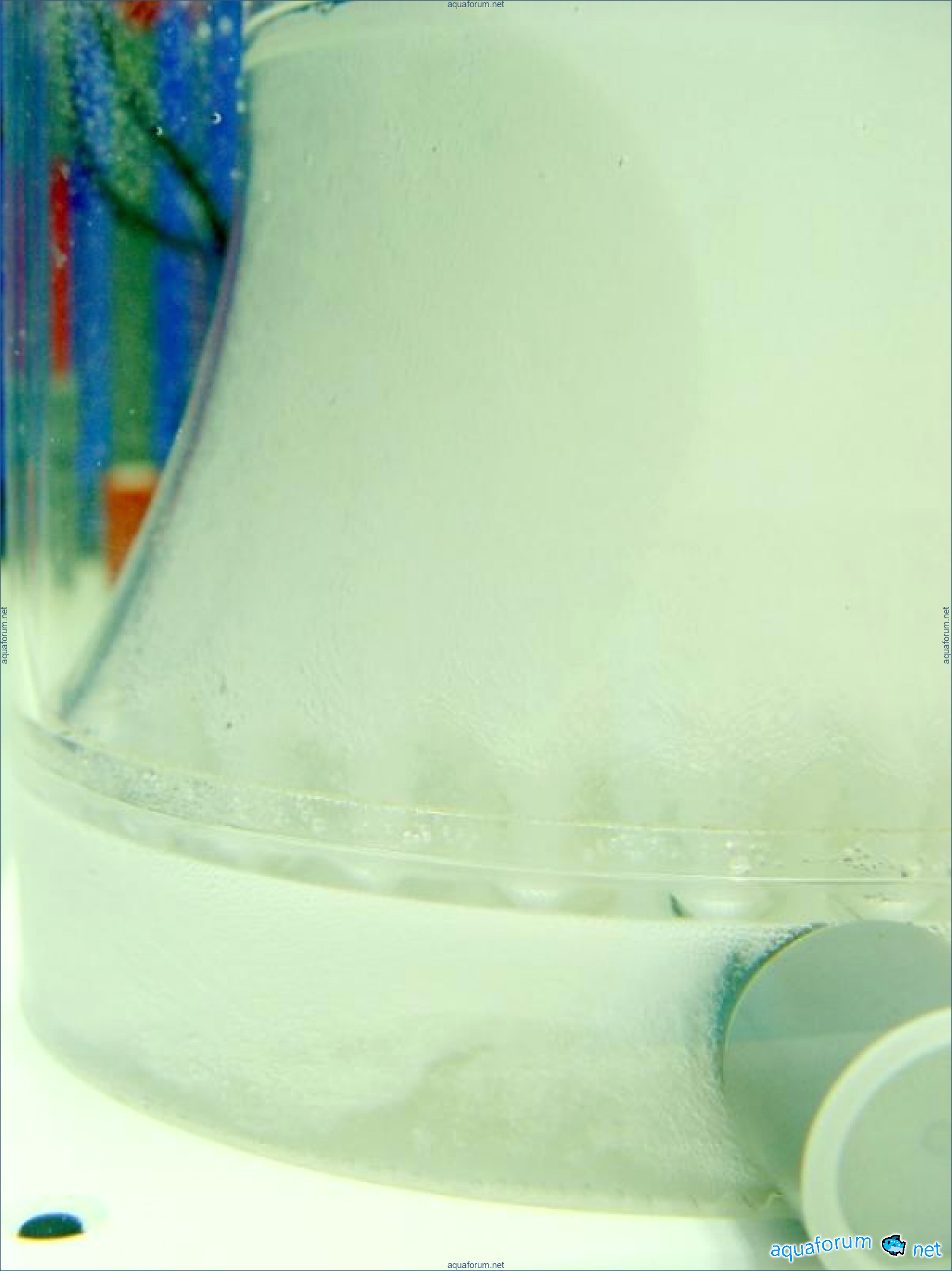

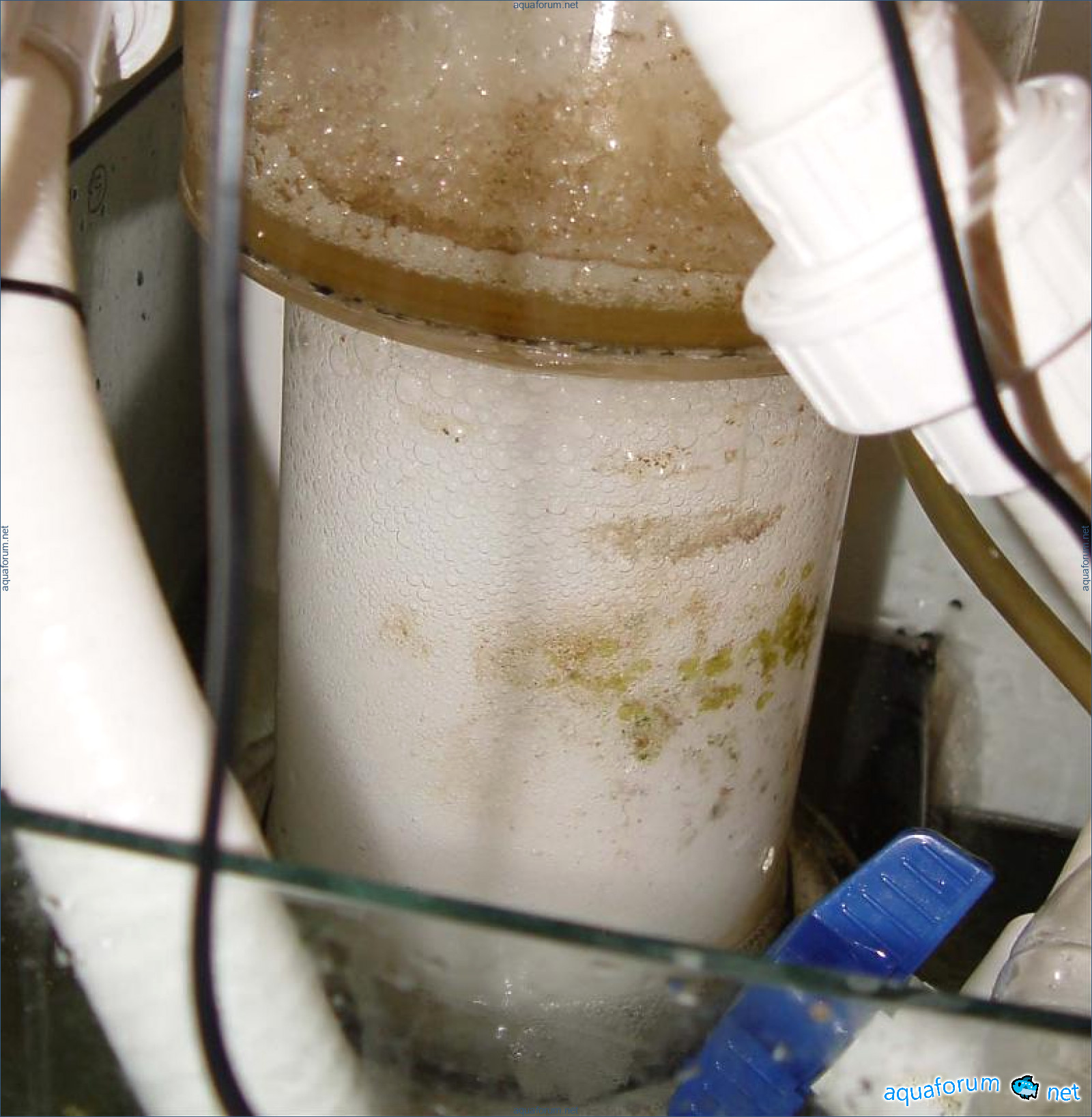

Listen, why is there so much detritus settling in the latest version? I don't have that much; somehow, turbulence is pushing everything out through the discharge. Maybe I missed something.

Thomas5021

The point is that there shouldn't be any turbulence there; the less there is, the better the skimmer works.

Justin

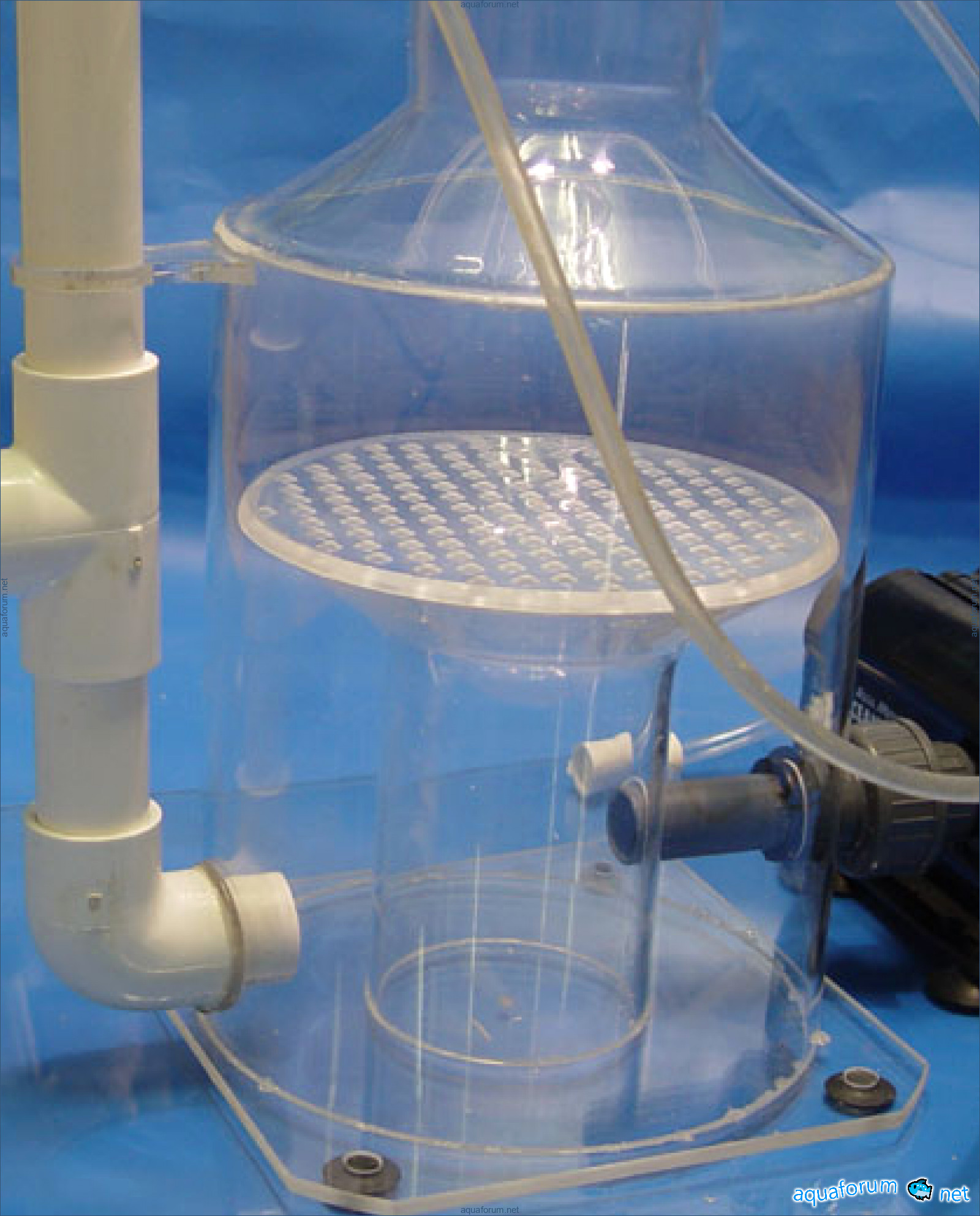

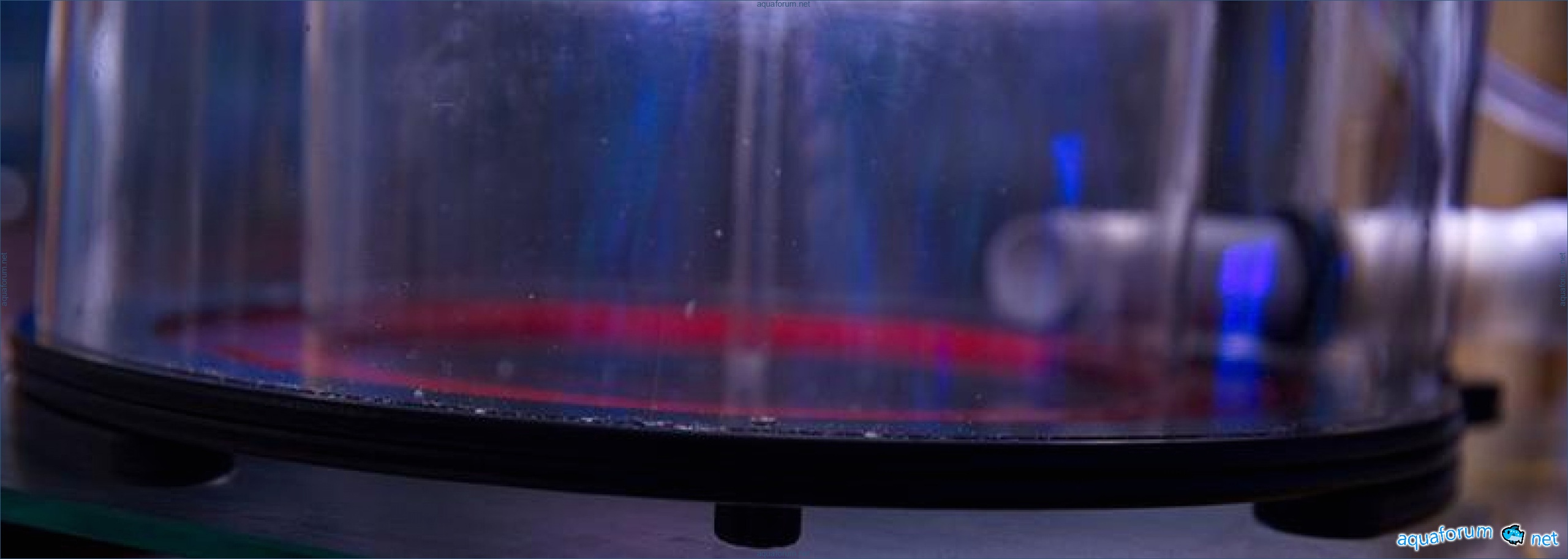

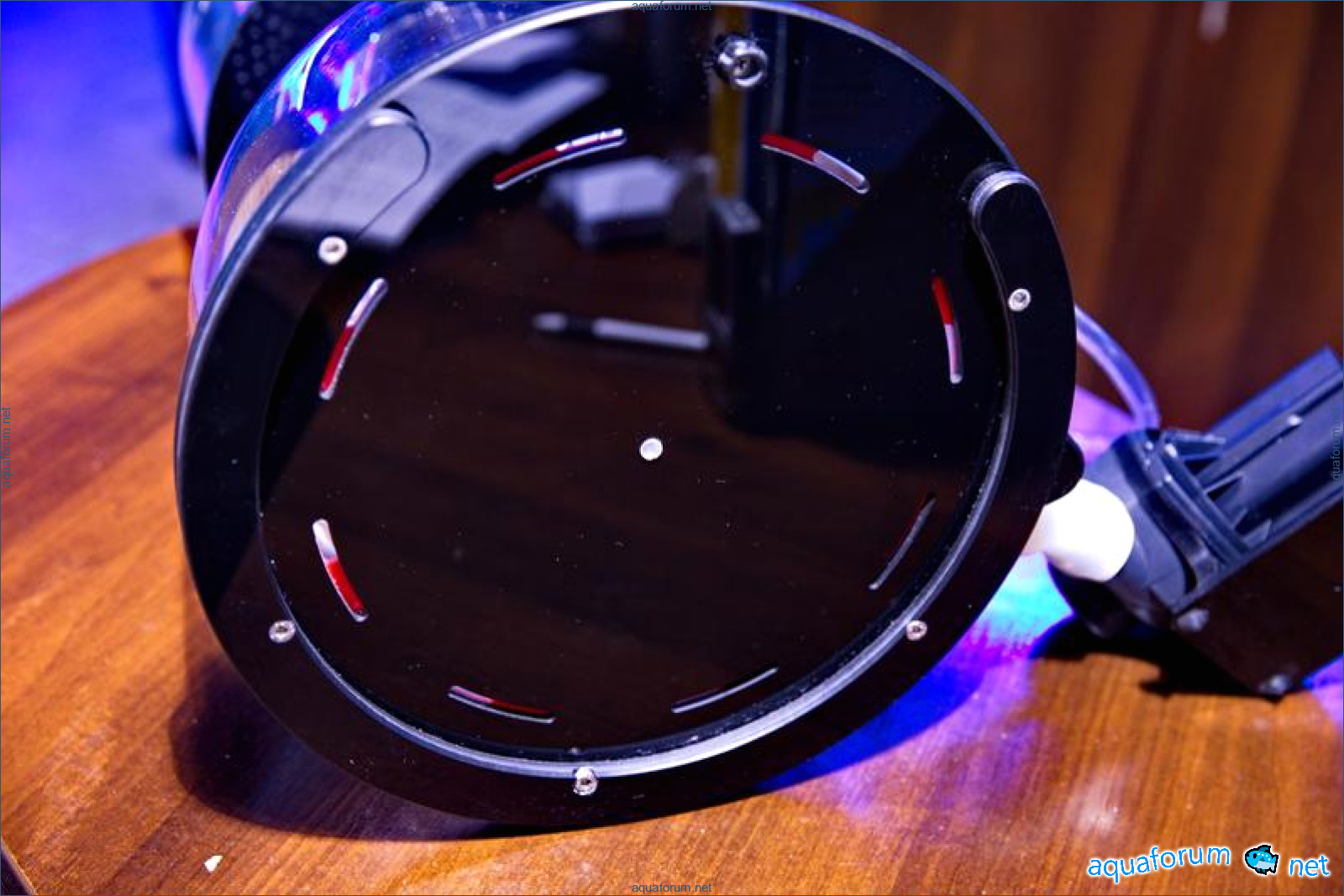

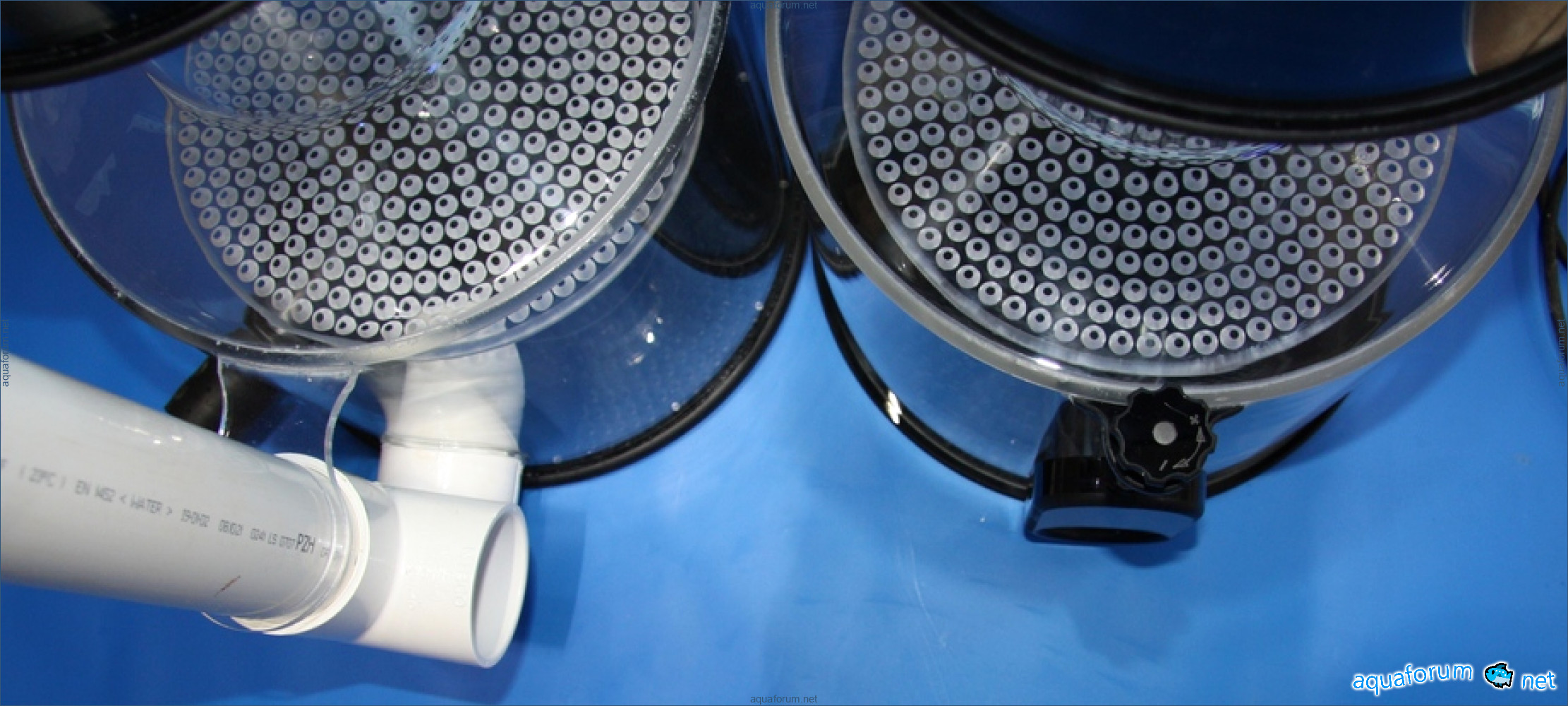

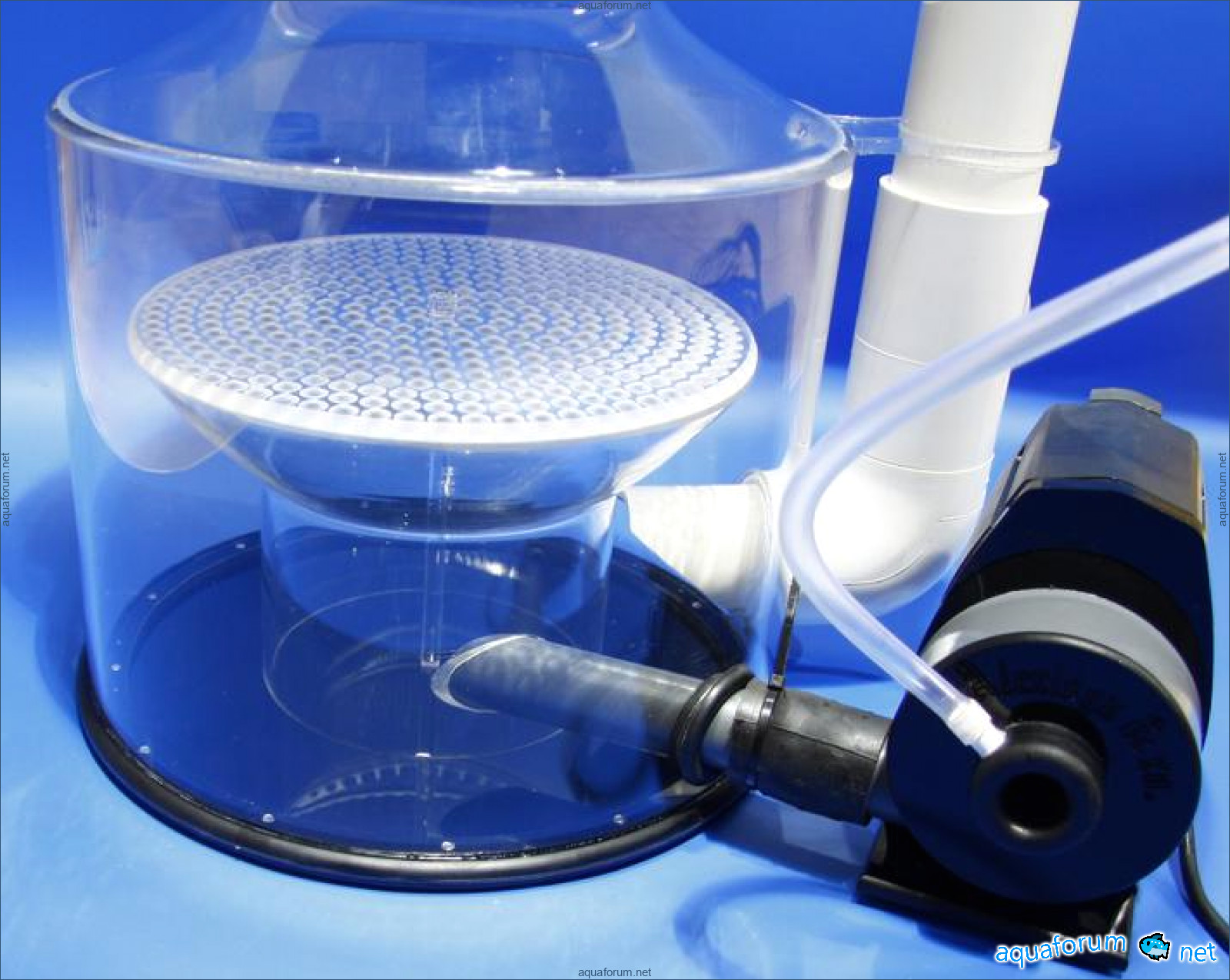

for clarity, a photo of the lower part...

Corey3201

But why not a vertical blind? I think it wasn't bad either, and it would be simpler in terms of costs.

Cynthia

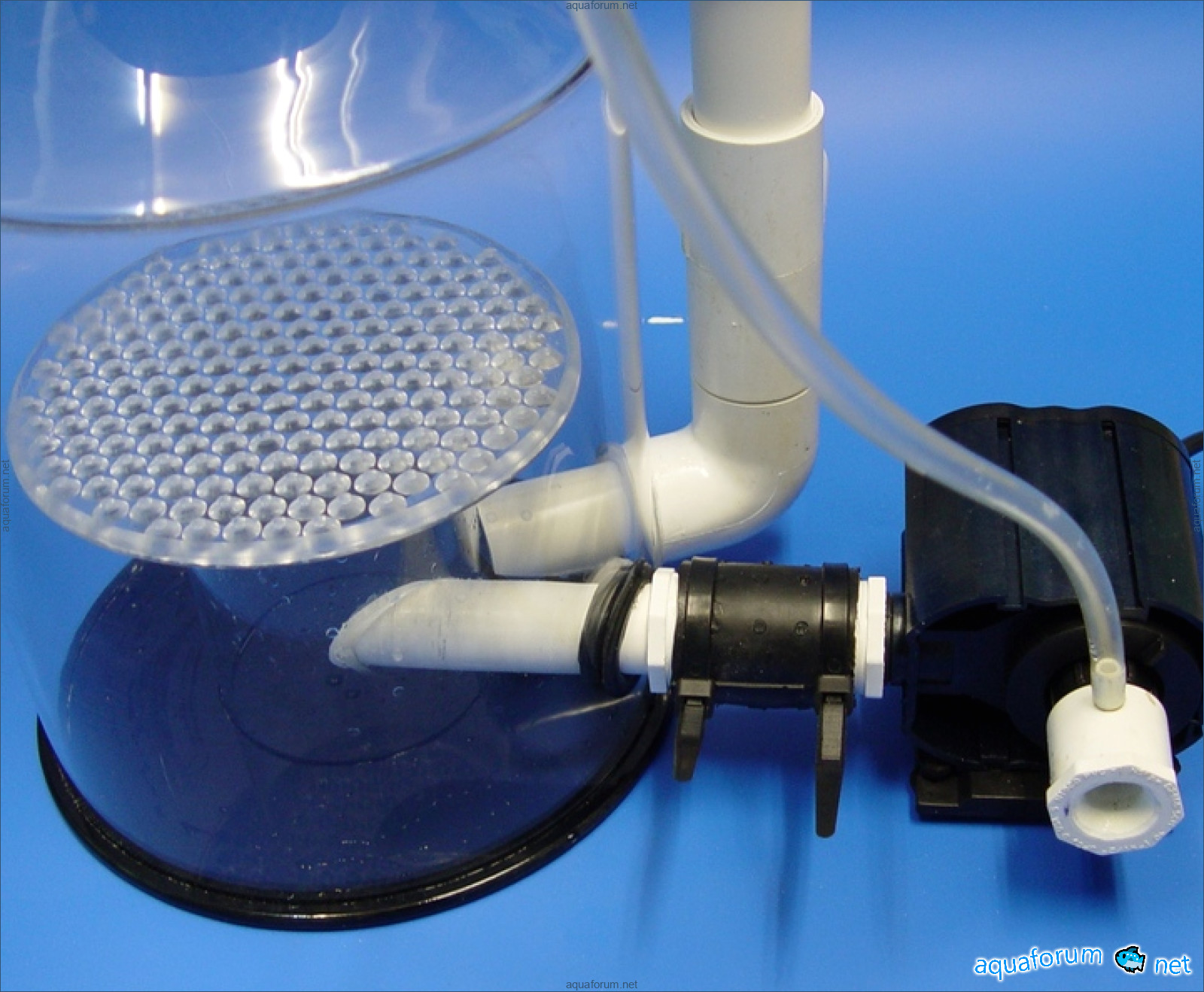

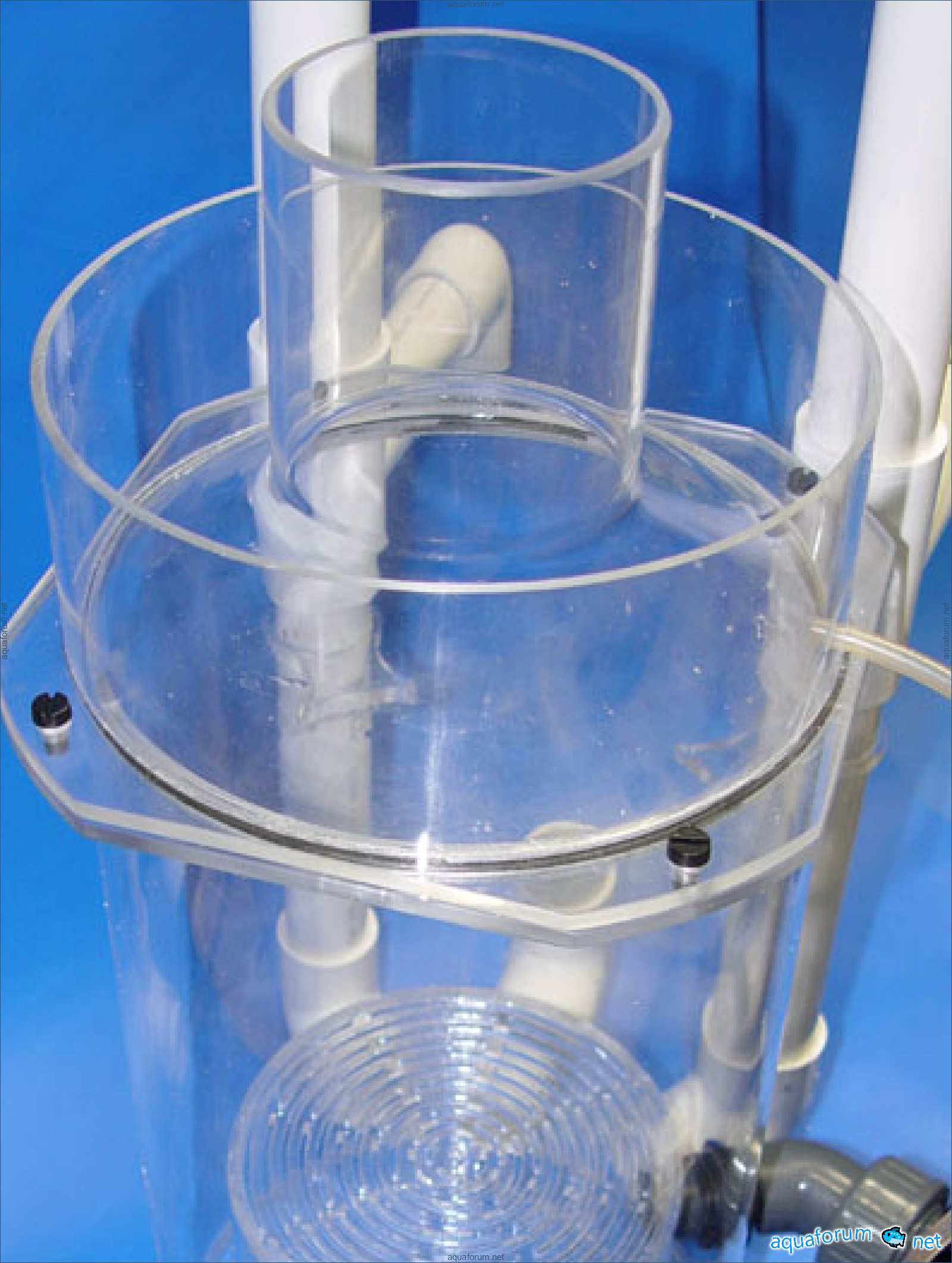

This water outlet allows for changing a few more dimensions of the body, and overall, the skimmer's performance improves. In terms of labor intensity, these options are roughly the same. Tomorrow, the skimmer will go into operation, and it will be clear where the advantages lie. For now, the red one is winning. Come by and take a look yourself.

Raven7170

Sure, just drop by to you... It's better if you come to us. P.S. Prepare a one-and-a-half-tonner for me by the end of August.

Leonard

At the end of the month, I am going to Tarkhan.

Brandy

Don't forget to call.

Jessica

No doubts, even the smallest ones, remained by morning. The design exceeded even the most optimistic expectations. Compactness, smooth adjustment, 2400 l/h (40 l/min) of air with a consumption of 60 W.

John1464

ready to take a sample for doubt))))))

Katie5500

I liked this model. Can something similar be made for 500 liters? What will be the pump's power? Again: dimensions and $?

Aaron580

We are working on it... it will be ready by the end of the week.

Joseph6461

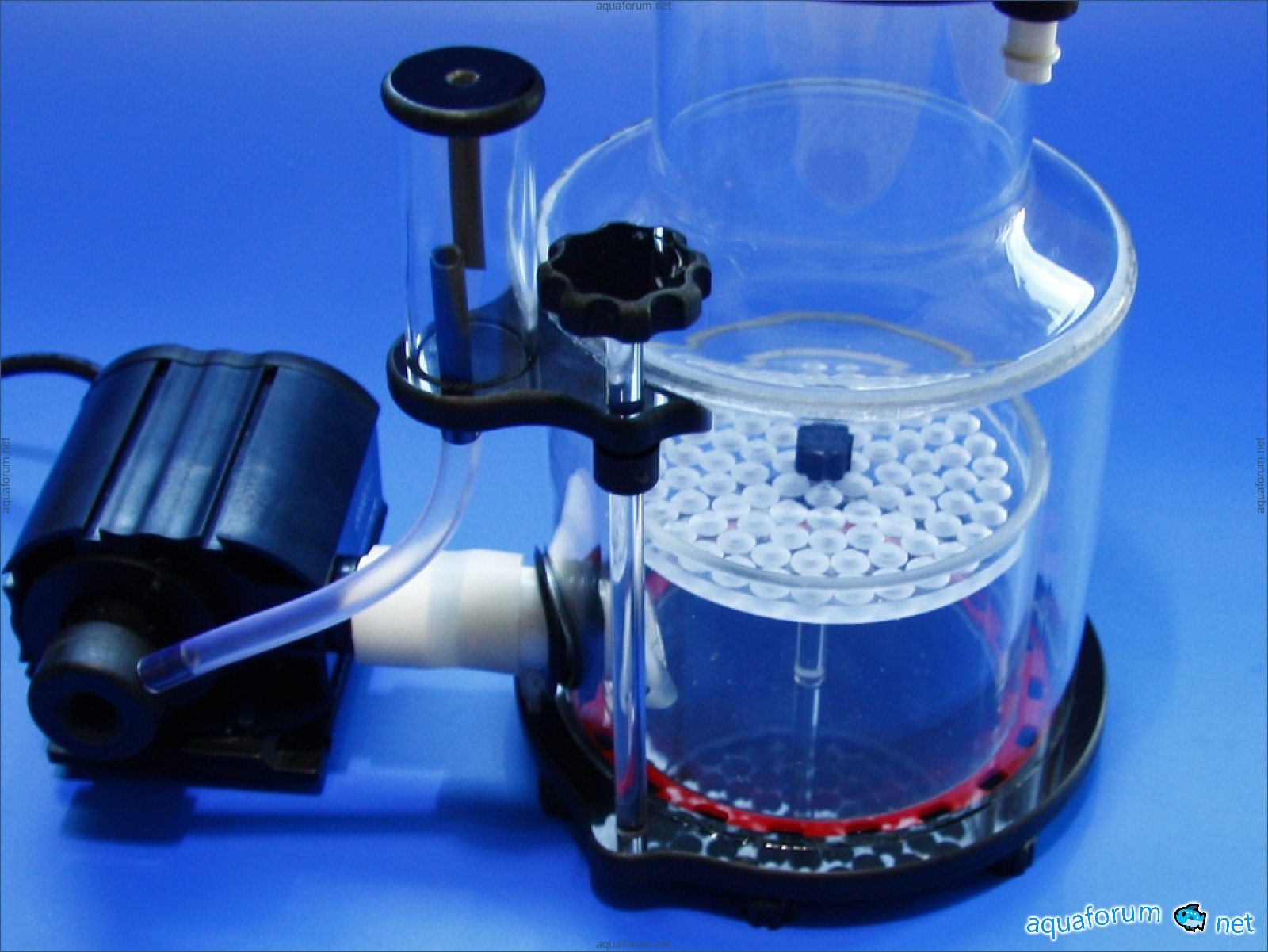

finished... Pump Nydjet 4500 Air intake 1300 l/h Power consumption 40 W Body diameter 200 mm Height 480 mm Tomorrow I will send photos in action...

Catherine

And the price, please. How many liters will the system handle???

Jesse3979

With moderate stocking, it will require 1000 liters, and with dense stocking, 600-700 liters.

Kenneth2761

Beautiful

Amy

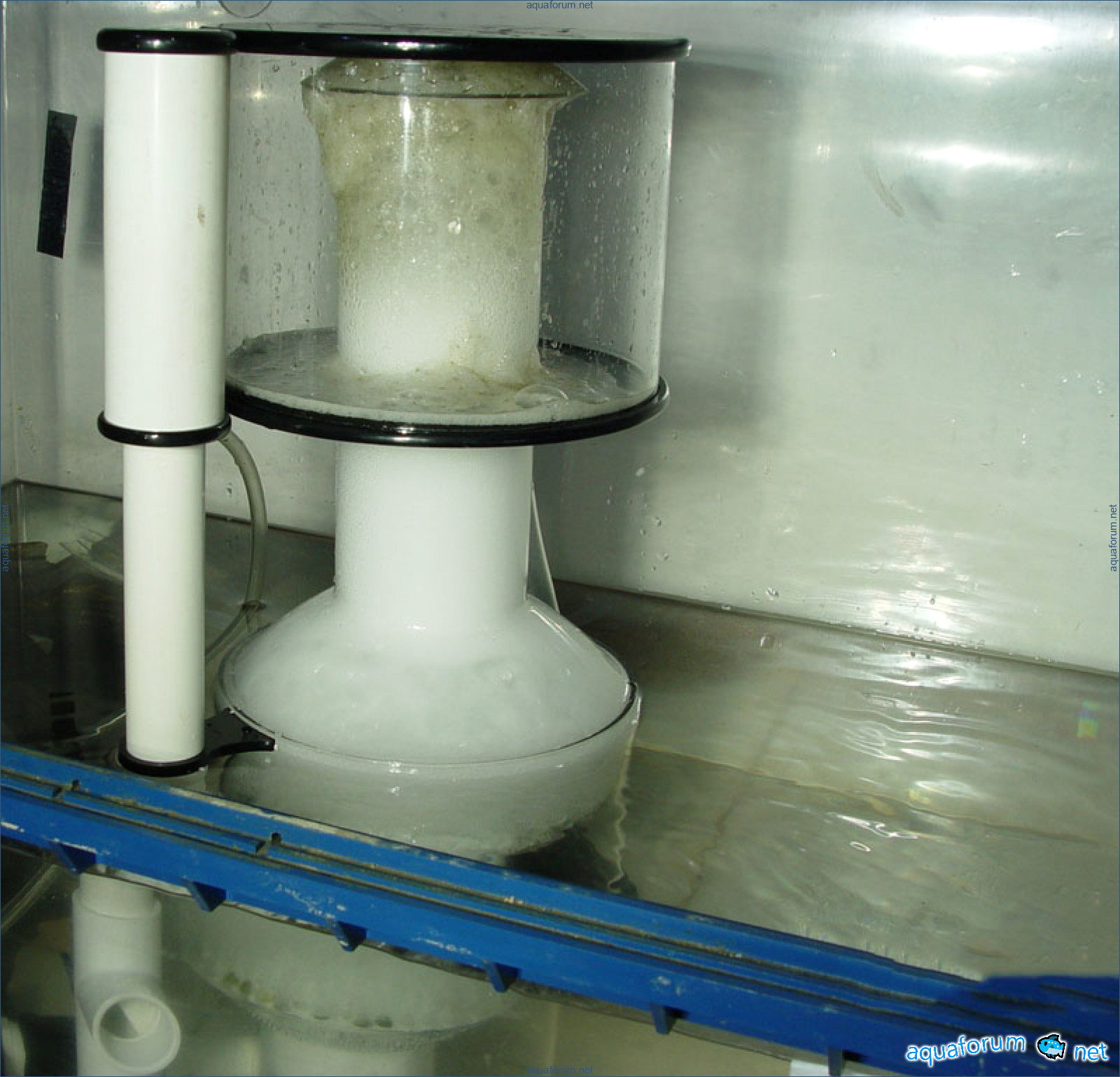

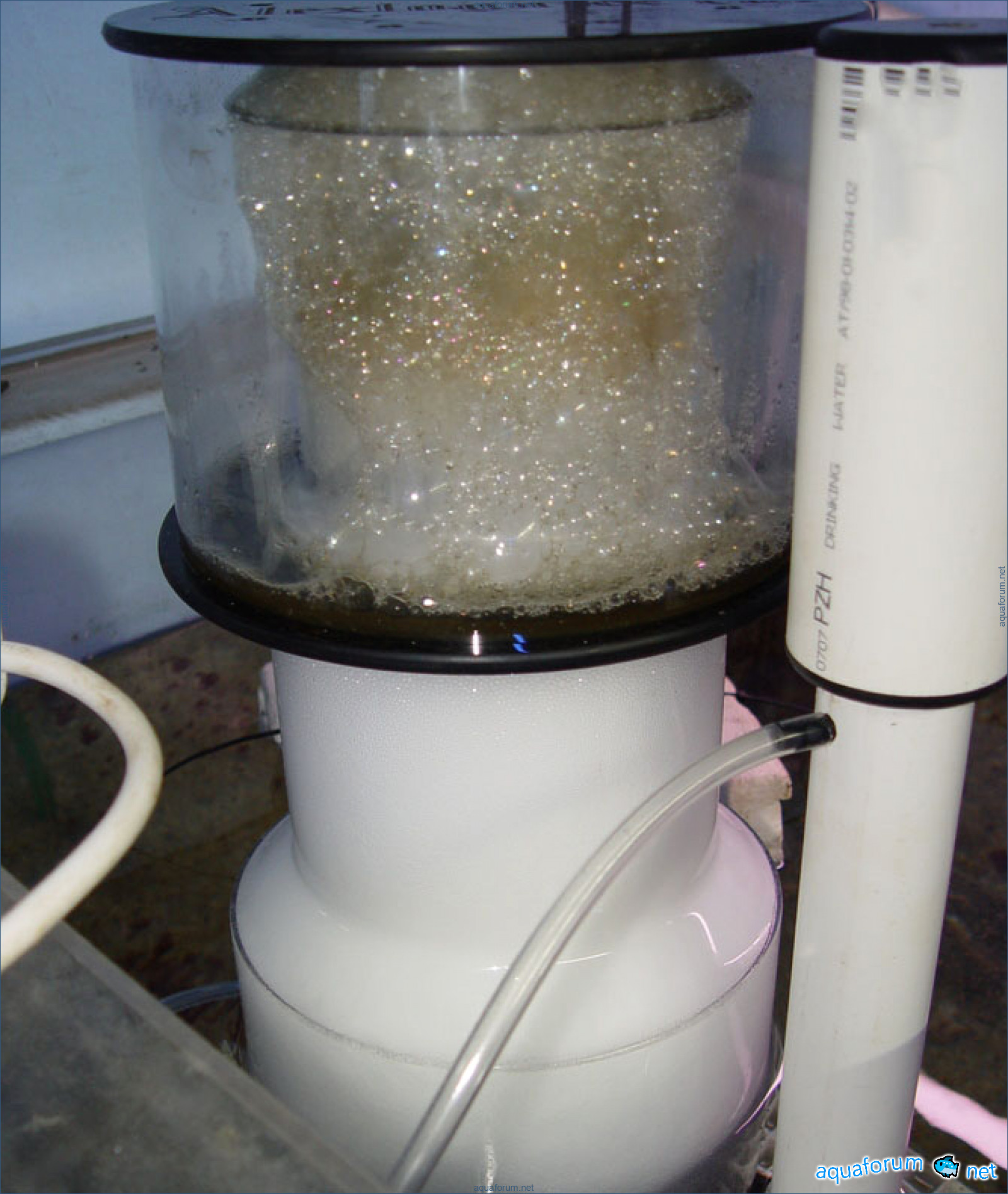

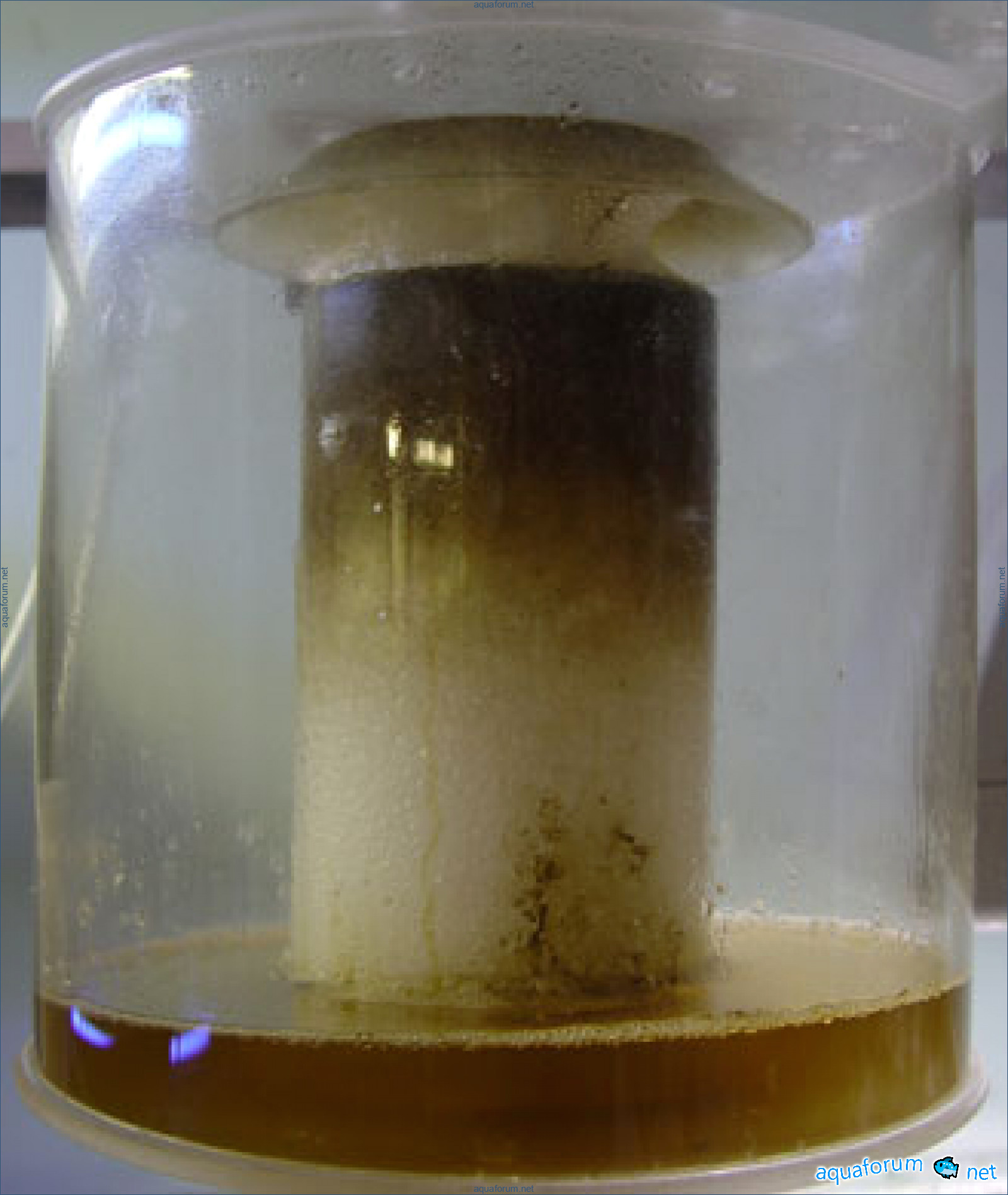

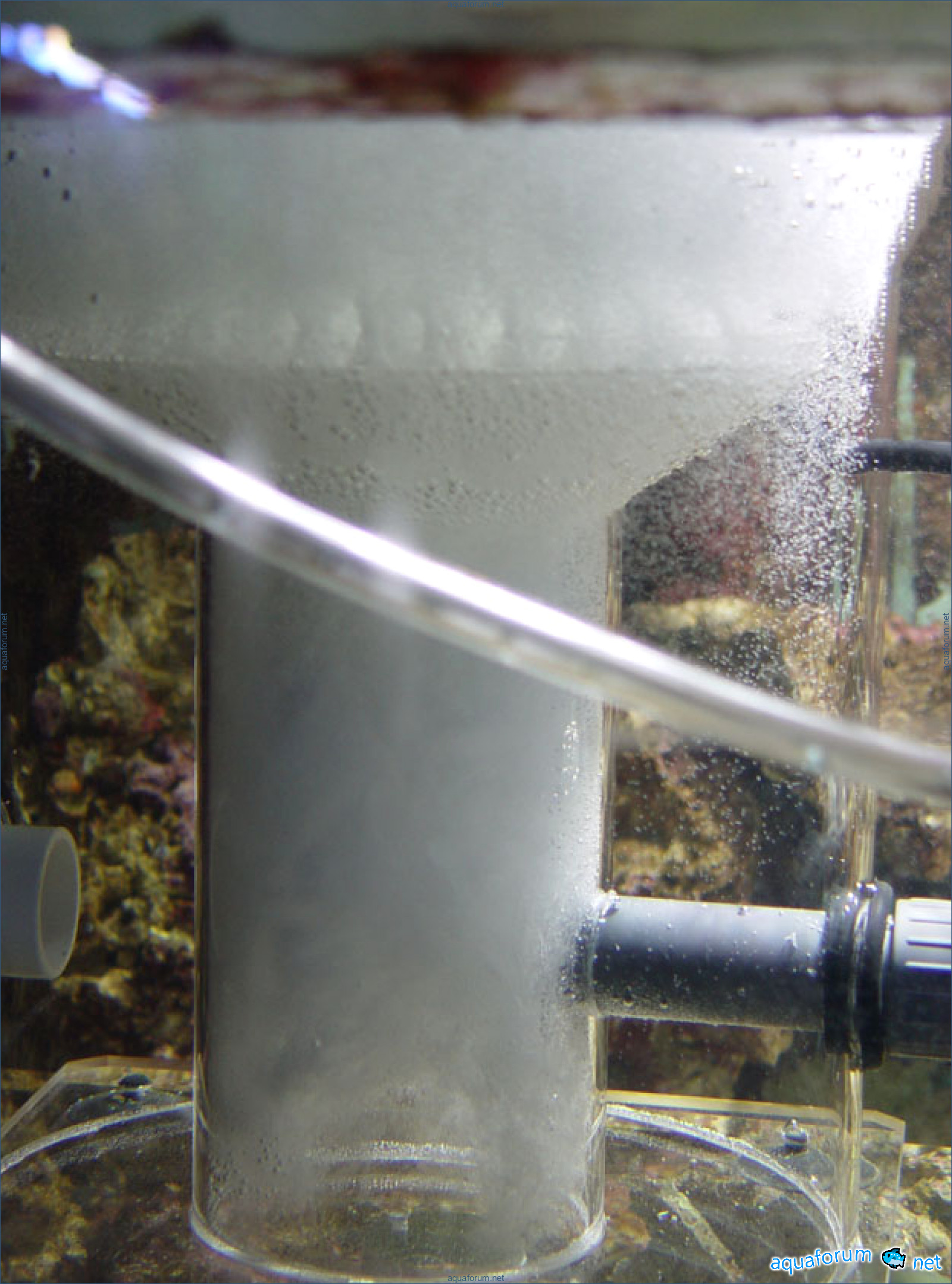

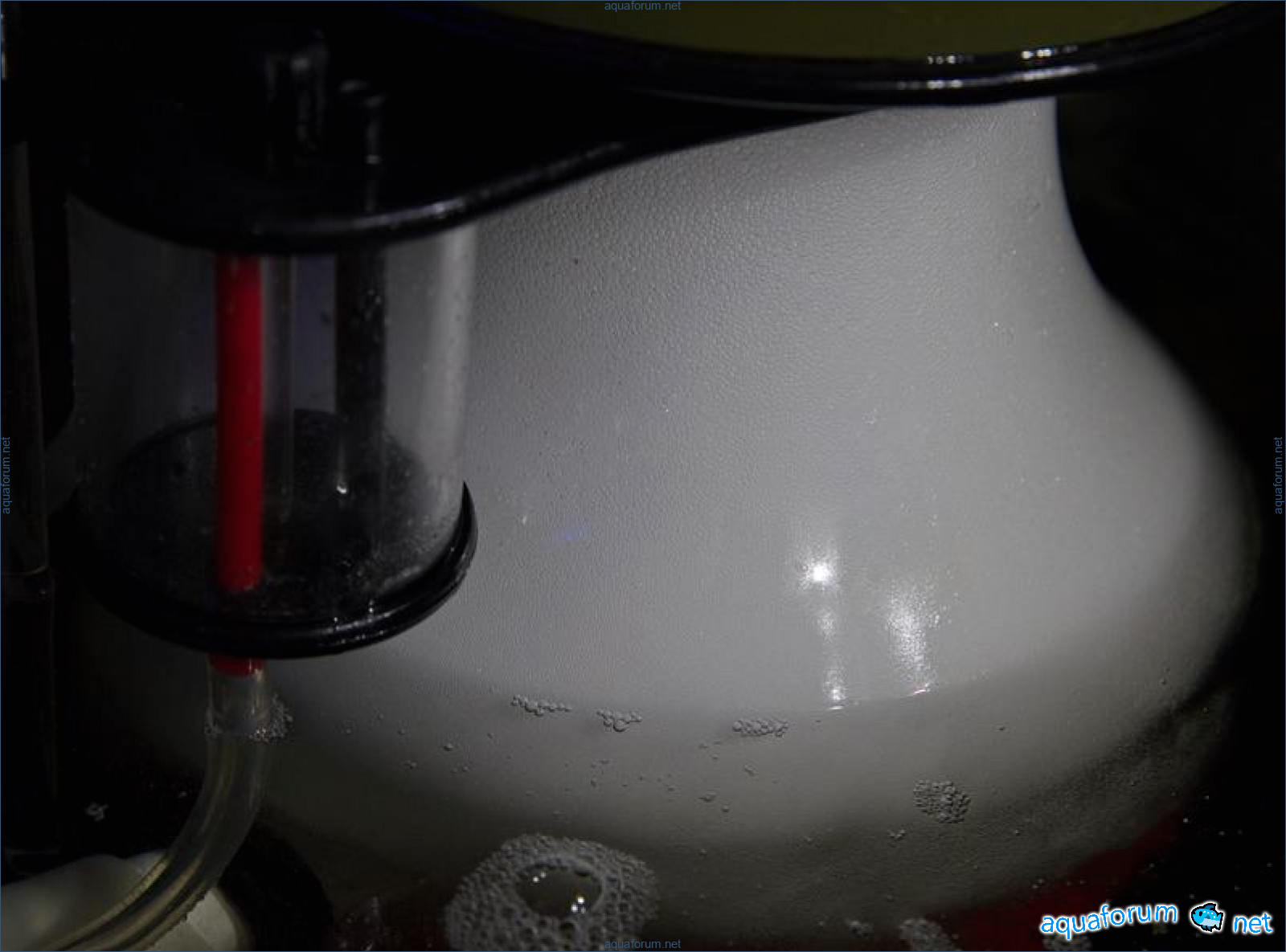

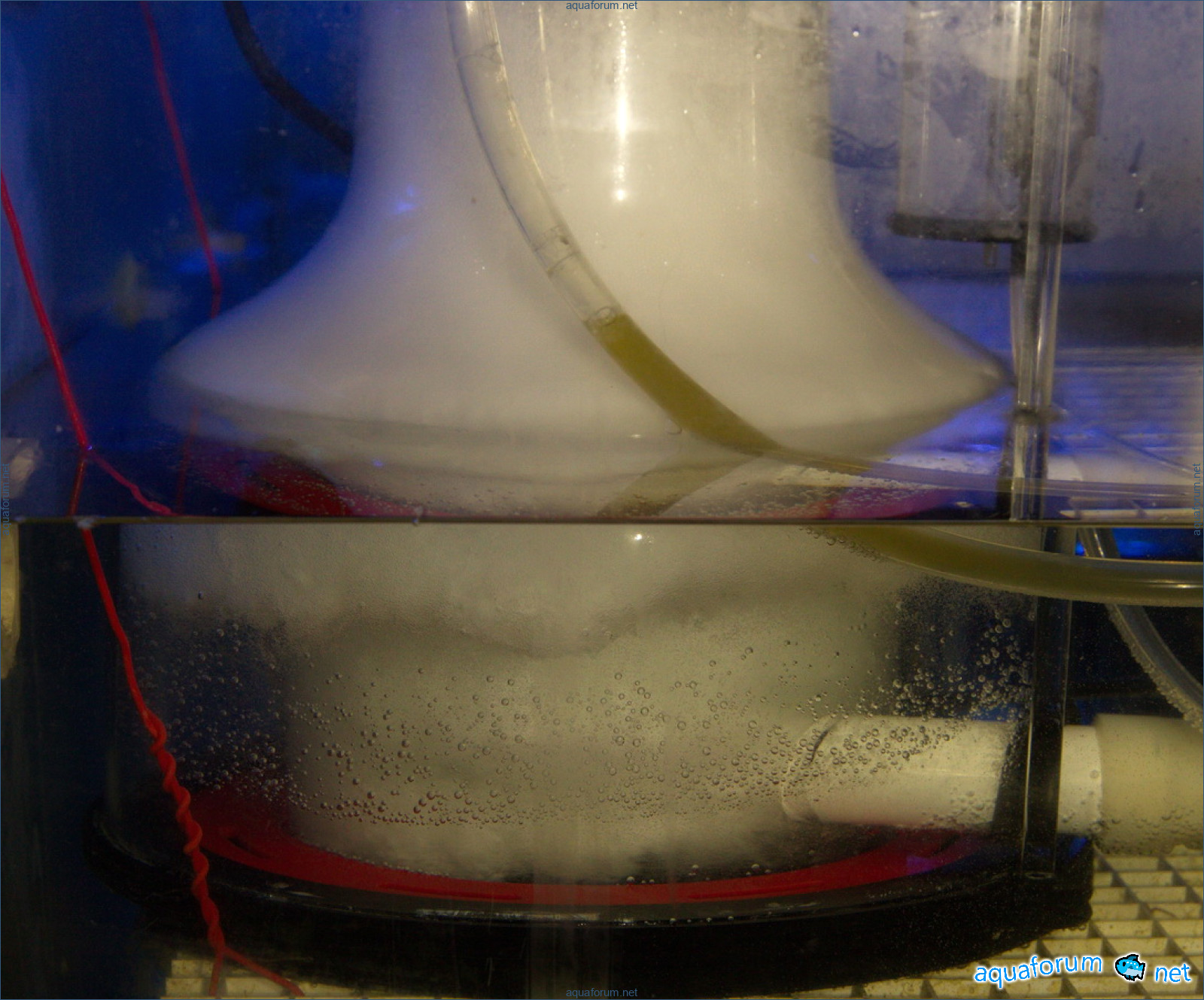

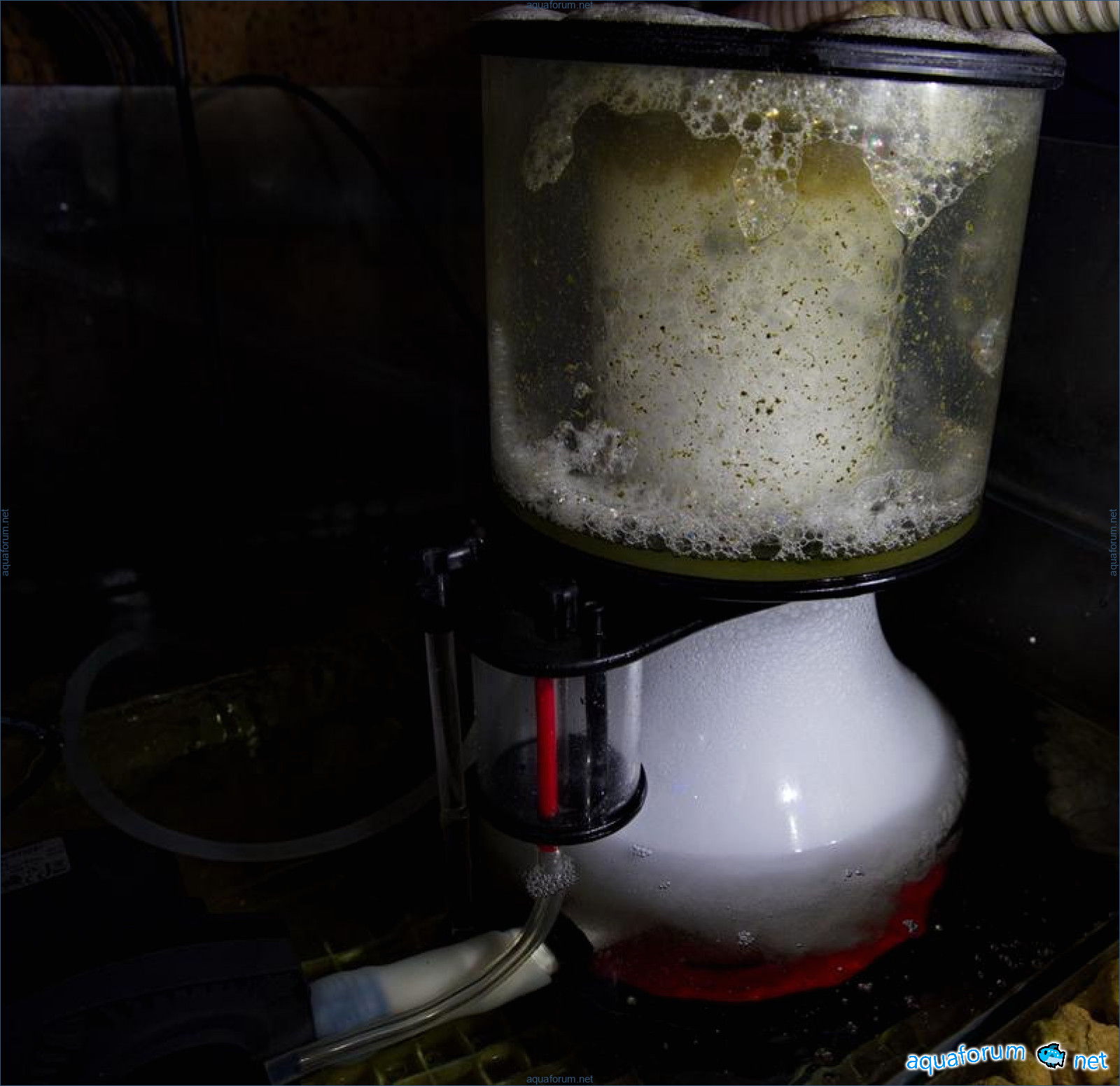

And here's how it looks in action.

Andrew7823

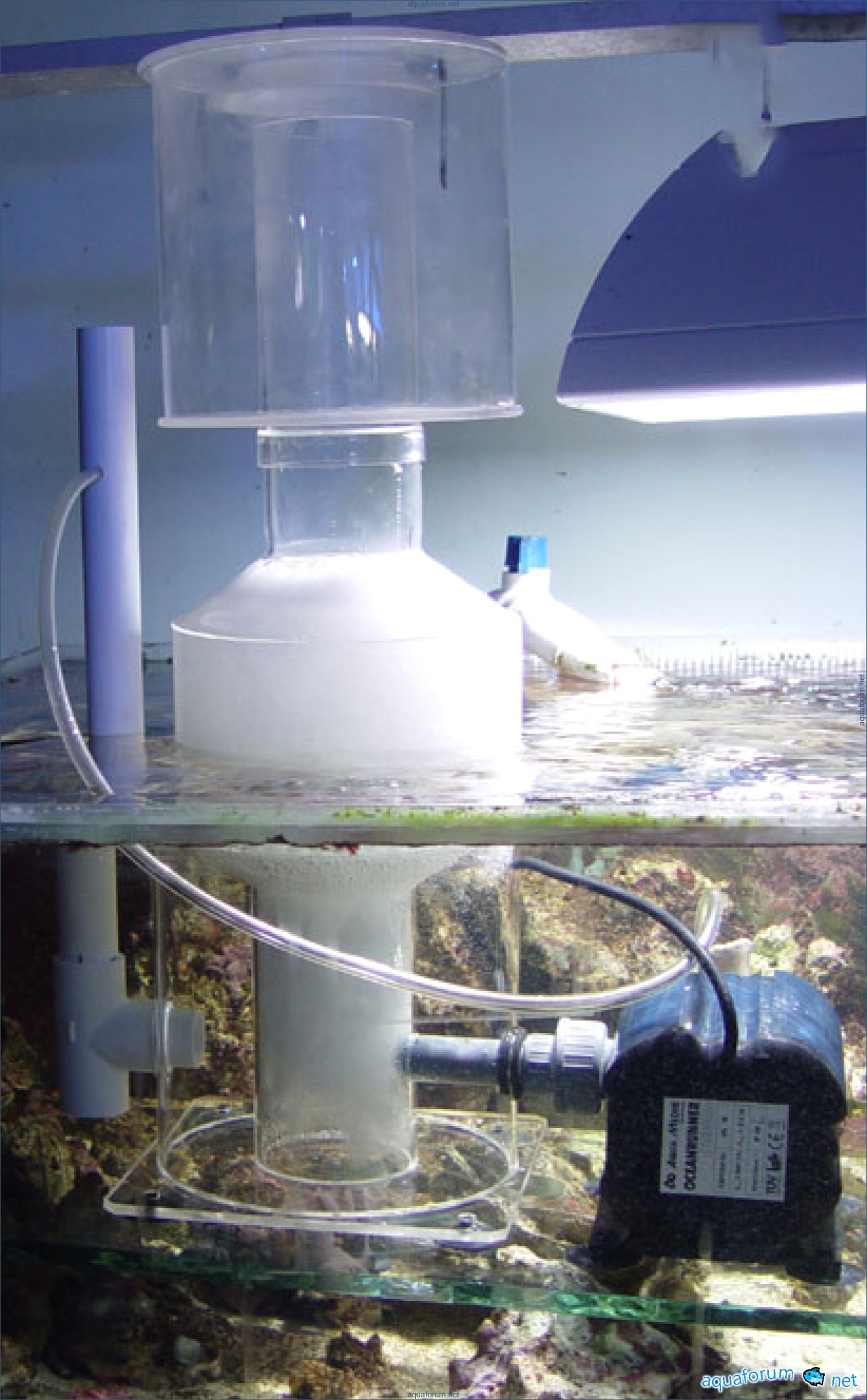

here is such a little one... Diameter 150mm Height 400mm Pump AM RN2500

Susan

bad option. I thought you had crossed out AM 2500 from your life already.

Kimberly

You are probably confusing the OR series with the pH series. The OR2500 operates quite noisily, while the pH2500 is practically silent.

Phillip9722

Is this the one you told me about? The 400-liter one?

Brian6895

about him

Heather6148

I definitely didn't pay attention)) Then you're the enemy))

Jerry

If you attach it firmly to the skimmer, it also makes noise, but if you use silicone, it works very nicely.

Joe

I received a pen that is a masterpiece. It works very quietly. I tried it in the bathroom, although it hasn't been salted yet, but the result pleased me. Now I would like to work in the same spirit around the world.

Ronald5720

Glad you liked it. One thing - it's better not to turn it on in fresh water, as it puts more strain on the pump.

Sarah7284

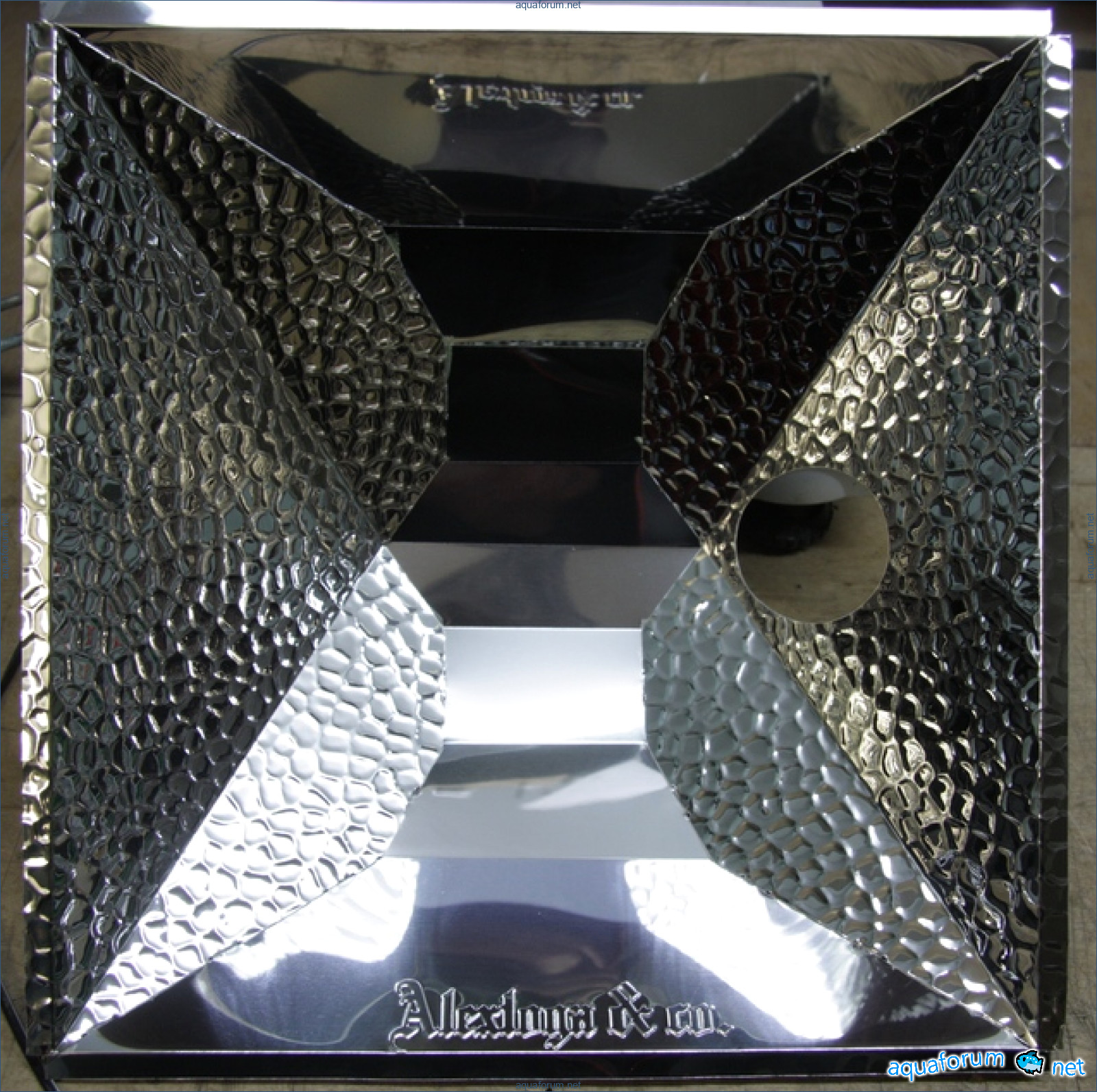

How will things be with the lamp? If they will be at all?

Tina

Everything will be fine, but not in this topic. To begin with, the drawing of the aqueduct, and here with questions.

Amanda

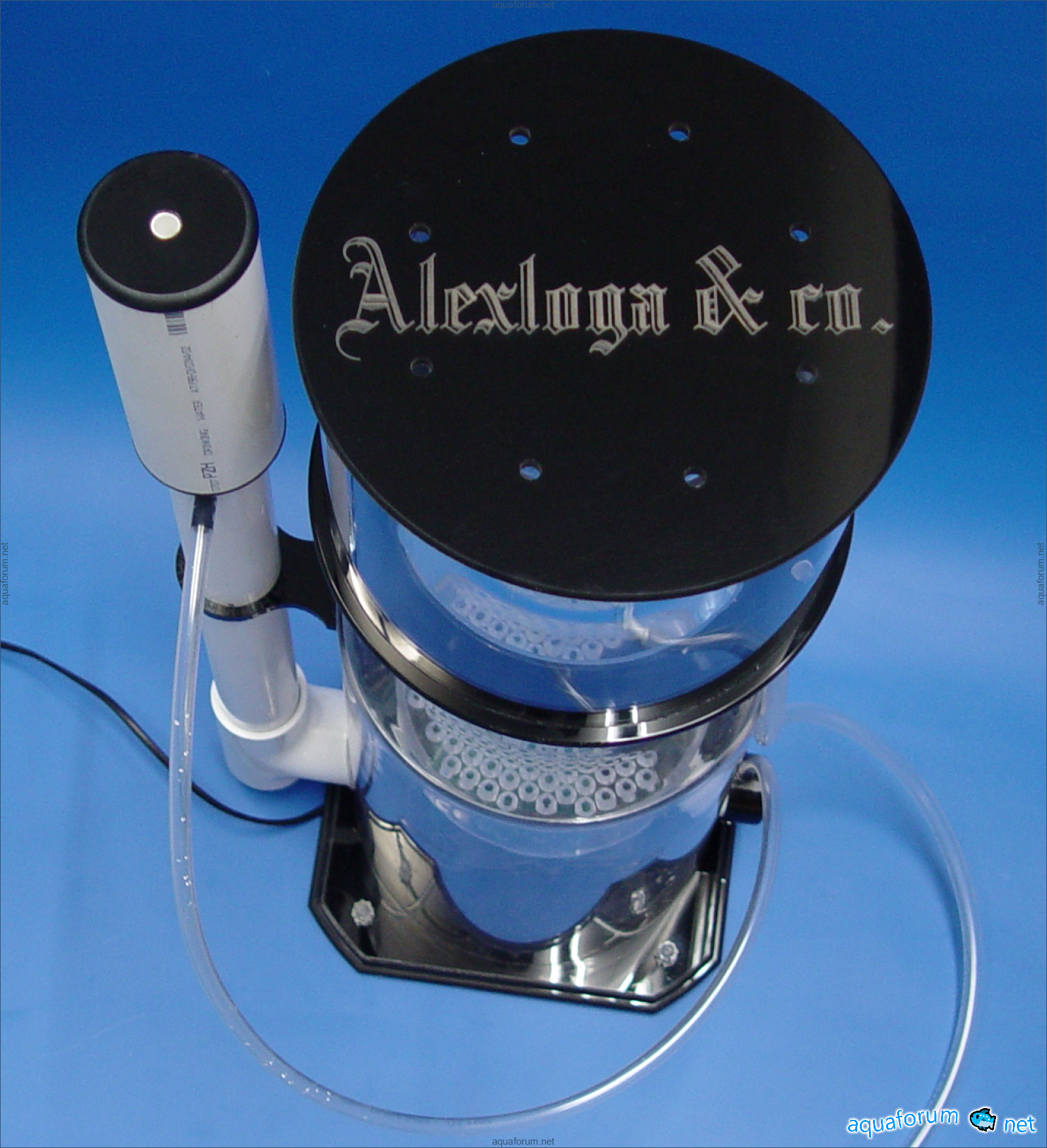

New model of the older version Diameter 300mm Height 570mm Air intake 45l/min (2700l/h) Water circulation 5000l/h Power consumption 65W

Denise

the older one is the same size as my younger one)

Caitlin3279

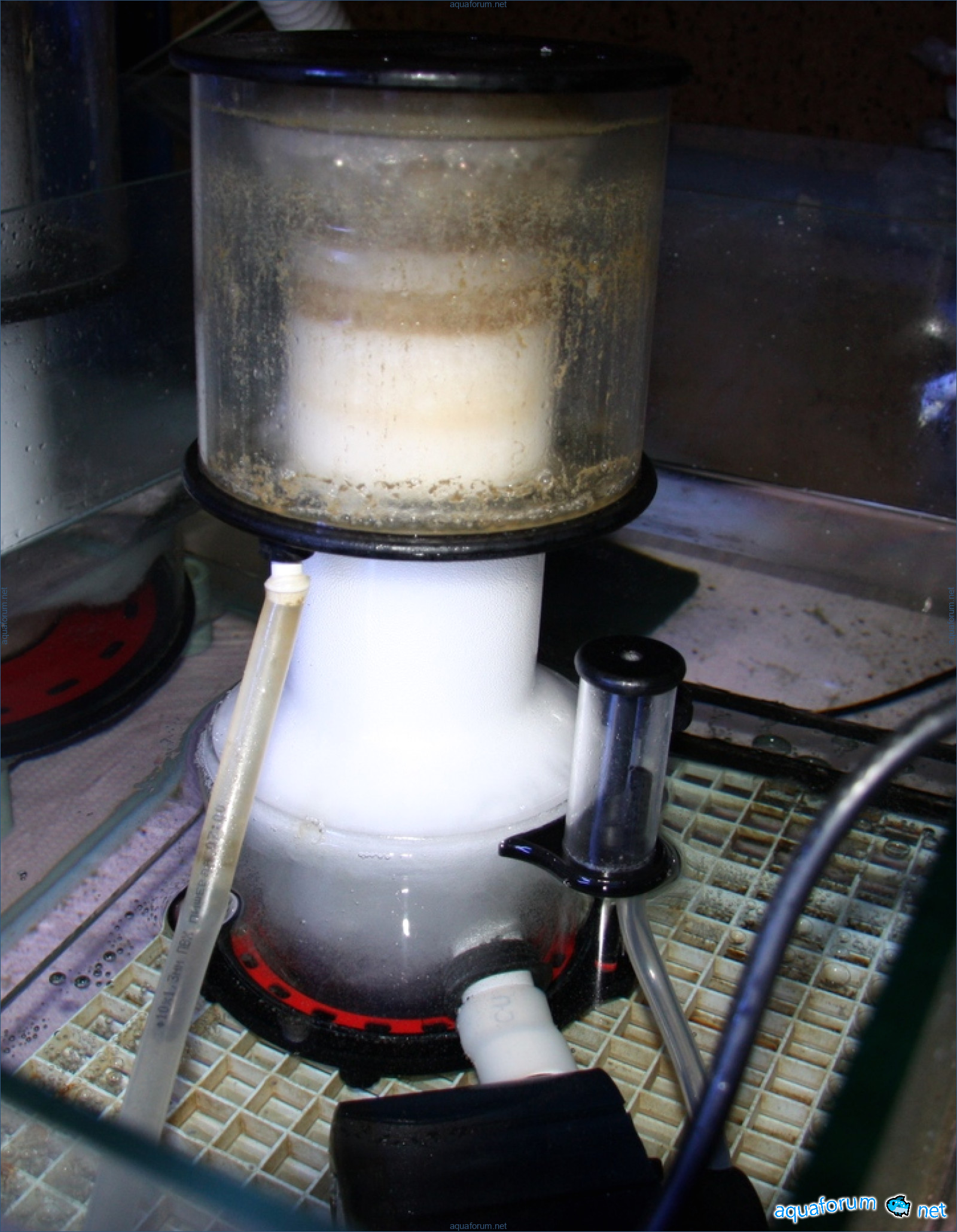

I changed the pen nib. This is how it looks in action.

Russell8484

How much better is the new skimmer compared to the one you had before?

Chelsea567

Heaven and earth

Brandy

Dumb question, will the A&C 150 handle a 240-liter aquarium, or..?

Sheila

will manage...

Stephen5857

I am interested in a skimmer for a 300-400 liter aquarium.

Thomas1044

You can use A&C150 or A&C200.

Nicholas5194

What are the prices for such pens? And what if it's without a pump?

Javier5186

Skimmer without a pump - a piece of plastic... we do not sell.

Jeffrey6189

Skimmer for volumes up to 5000 liters Height 550mm Diameter 460mm Power consumption 2x65W Air intake 5000l/h

Yvette209

come in ... either we will do it or we will change it

Nancy758

Hello everyone I received the package with the pen There were some minor issues, but they were resolved quickly by the manufacturer through direct messages with a replacement cup photos of the issues good luck

Bethany

I didn't understand anything, what do you actually want?

Angela6489

In the original version, before editing, the message was longer and more interesting.

Jennifer9100

Another garbage truck. Can't you just call and ask a stupid question?

Diana7891

Gentlemen, no panic, there is no reason for war. The item was slightly damaged in the mail, no problem to replace the part...

Amber1273

skimmer circulation injector diameter 460mm air intake up to 20000l/h water circulation up to 22000l/h for systems up to 20000l

Robert1845

Is this for Kharkiv? Have the water tests been conducted yet? In my opinion, the hull volume is too small for such a large amount of air; a lot may escape. Although I understand this is the maximum pipe diameter available, 600 mm would be more appropriate, especially for a volume of 20 m³.

Kathy

Did you create something similar for the freshwater fish from scratch?

Jenny

not yet

Andrew7823

A&C 450 Quadro100 Body diameter 450mm Height 700mm delivers parameters - air intake 10,000l/h water 20,000l/h power consumption 4X60W for systems 5000-10000l

Lori4746

I have been using penknives for several years now and I don't see any alternatives in terms of price and quality. If there were any issues, they were resolved quite quickly; more time was spent on shipping (to and from). What is this about???

Alexandra

see post 340 over the years, I have gotten used to unfinished work and constant resending; I don't think this is good. If all customers demanded quality manufacturing, the producer would be forced to do it more carefully. Of course, promptness and adequacy in resolving issues are a huge plus, but the quality of manufacturing is a minus.

Cynthia

No, I actually haven't gotten used to it. It's just that over the years, there have been almost no "unfinished" works. To be honest, I was surprised by your photos; there was definitely nothing like that before.

Sydney

Maybe it’s worth at least turning on the product and testing it before arguing with people who have experience in this.

Kayla7655

Model A&C300twin diameter 300mm height 600mm air suction 4000l/h

Kimberly2102

and a pen for nano 30l?

David4089

Hi, I have such a problem, such a problem... a handful of small snails got stuck in the pump, and it got jammed. When I tried to disassemble it with my weak little hands, I pulled it a bit crooked and the ceramic shaft broke. What to do, what to do?

William

Hello two options - 1 new shaft 2 repair send it by Nova Poshta, we will do it

Amber

June 18, 2009 So he has already worked for you for three and a half years... Is there any wear and tear?

Selena4467

To be honest, it was just lying around, and I've been working on it since spring of this year, around March. I have a question - should I send the whole pump or just the internal part?

Christina9947

Good afternoon! Do you have a pen holder option for the VOYU TL-550? The compartment size is 11.5 x 11.5 cm. Height - 50 cm. Thank you.

Bryan1851

there is none

Wanda666

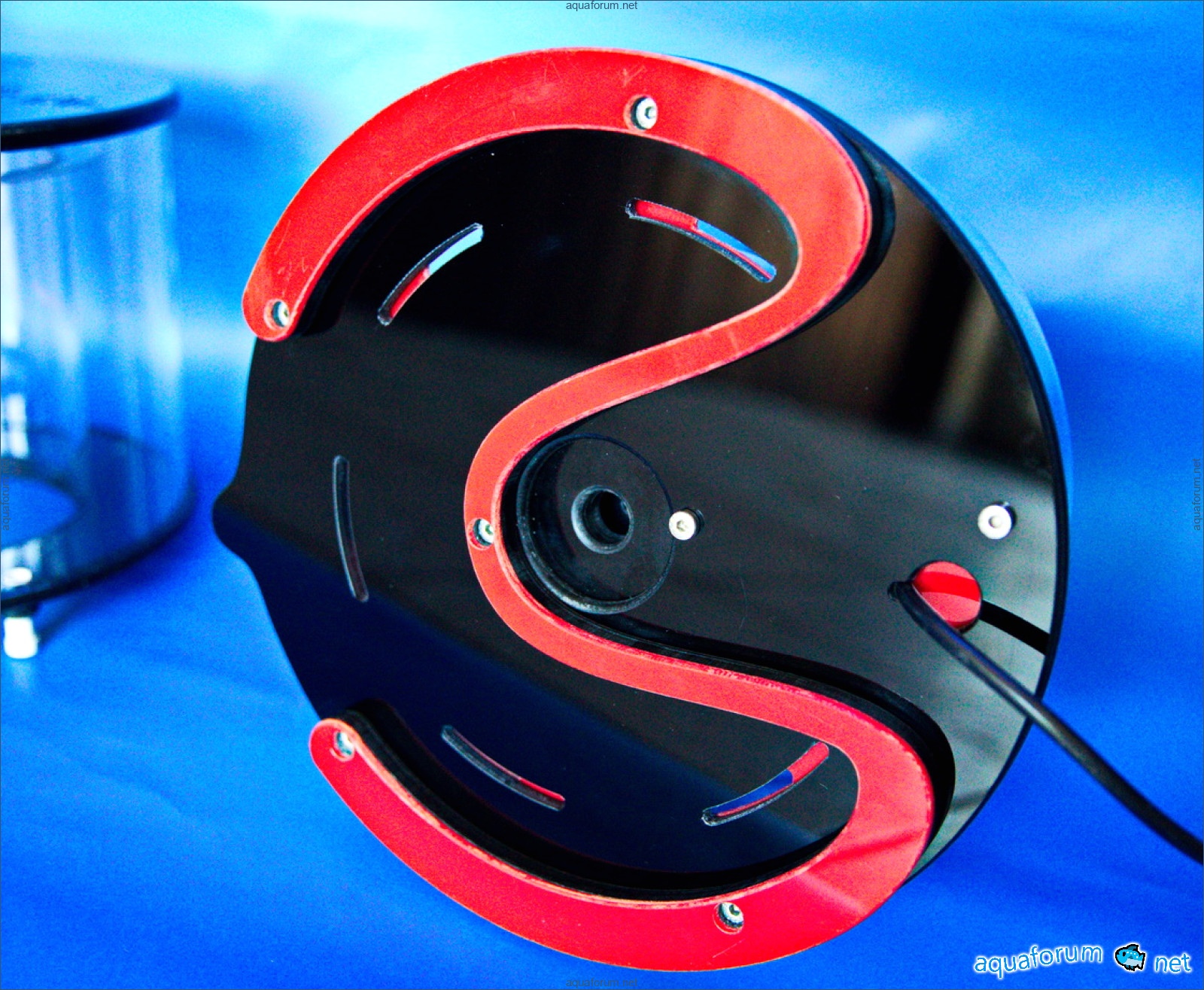

The new line of skimmers, after long struggles.

Nicholas

What kind of pump is installed? It's hard to tell from the photo. How is it in terms of noise?

Rodney3101

lagoon minimal sound

Justin9867

How much money?

Helen

call, let's discuss

Joshua448

Minor changes in the water release system allow the direction of the outgoing water to be set thanks to the horseshoe at the base.

Stefanie9771

The next model A&C 250drop

Troy8808

250 and 300

Shane

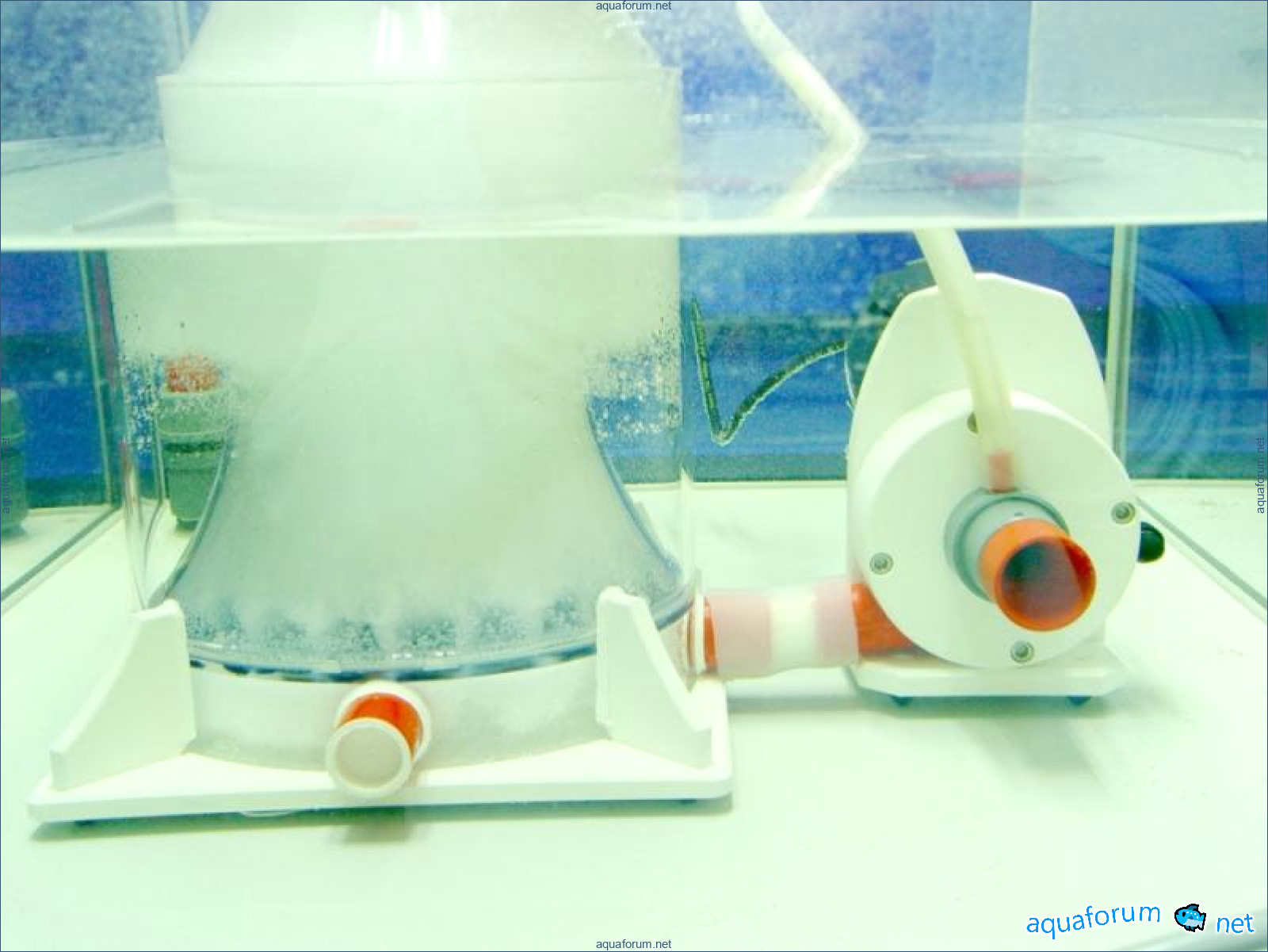

this is how it looks in action...

Melinda

How does the new line differ from the previous one?

Jill1815

it became shorter in height and larger in diameter at the bottom the water-air parameters increased

Jennifer7578

Price?

Anna9752

Пожалуйста, предоставьте текст, который вы хотите перевести.

Jeffrey6189

A&C 300twin

Jesse

How and in what way is the foam measured in liters, what does it mean? Because we are a GANG!

Daniel132

this is the volume from the boundary where water turns into foam to the upper edge of the neck

Vanessa

Is this volume the definition of pump power? Your skimmers are interesting due to their unusual size. The main chamber is slightly higher than the reactor chamber (I wonder by how much?), and after the main vessel, there is a neck, which is the foam formation size? Or do such foamers allow the use of less powerful pumps for larger volumes? Also, your reactor chambers resemble torches. Is this better than a cylindrical shape? Yes, because we are a GANG!

Kellie

one of the methods for determining performance is slightly higher, 1cm foam starts from the base of the neck due to minimal immersion level, minimal level difference in the skimmer and sump, the pump operates with maximum efficiency - produces more foam it's hard to say...

Emily

So if my Deltake pump DCS600 produces only 1 liter of foam, it means my skimmer is not the right shape. The diameter of the skimmer's body is too large. The pump is good, right? What size of the body (diameter and height above the reactor chamber) and size of the neck (diameter and height) would you recommend for such a pump? Apparently, I need to modify the body on my end. Because we are a GANG!

Loretta5483

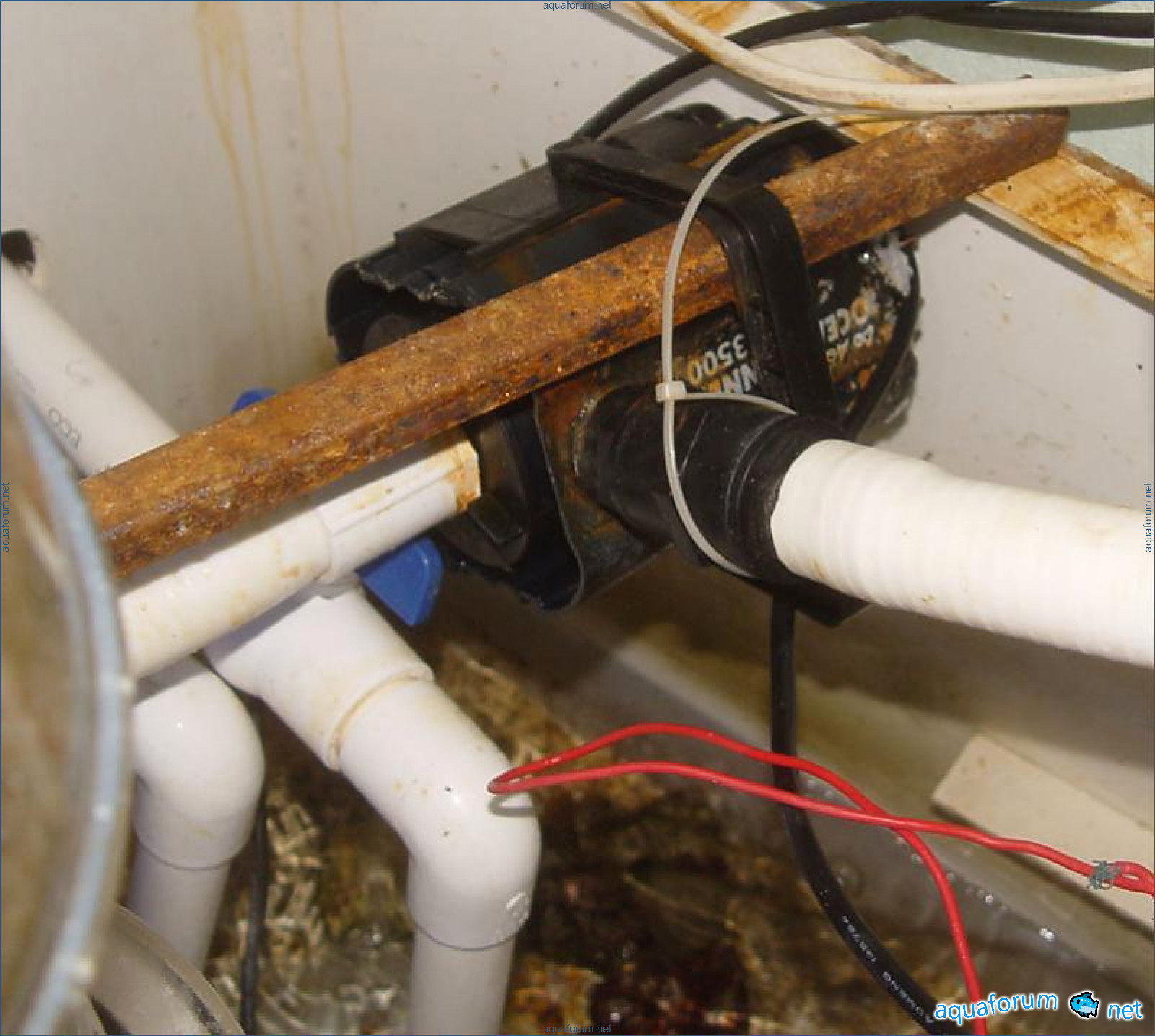

Hello. Your pump has been in operation for 3 years. There have been no complaints, everything was fine until recently. The New Jet pump has encountered a problem; it is jamming. I've been struggling with it every day for 2 months now. I disassembled the shaft and everything seemed fine. I can turn it by hand without any obstacles. But after 2 minutes of operation, it jams again, and I have to start over. What could be the reason? I am building a new system and would like to see offers for pumps with prices, you can send them to me in private messages. Thank you.

Matthew

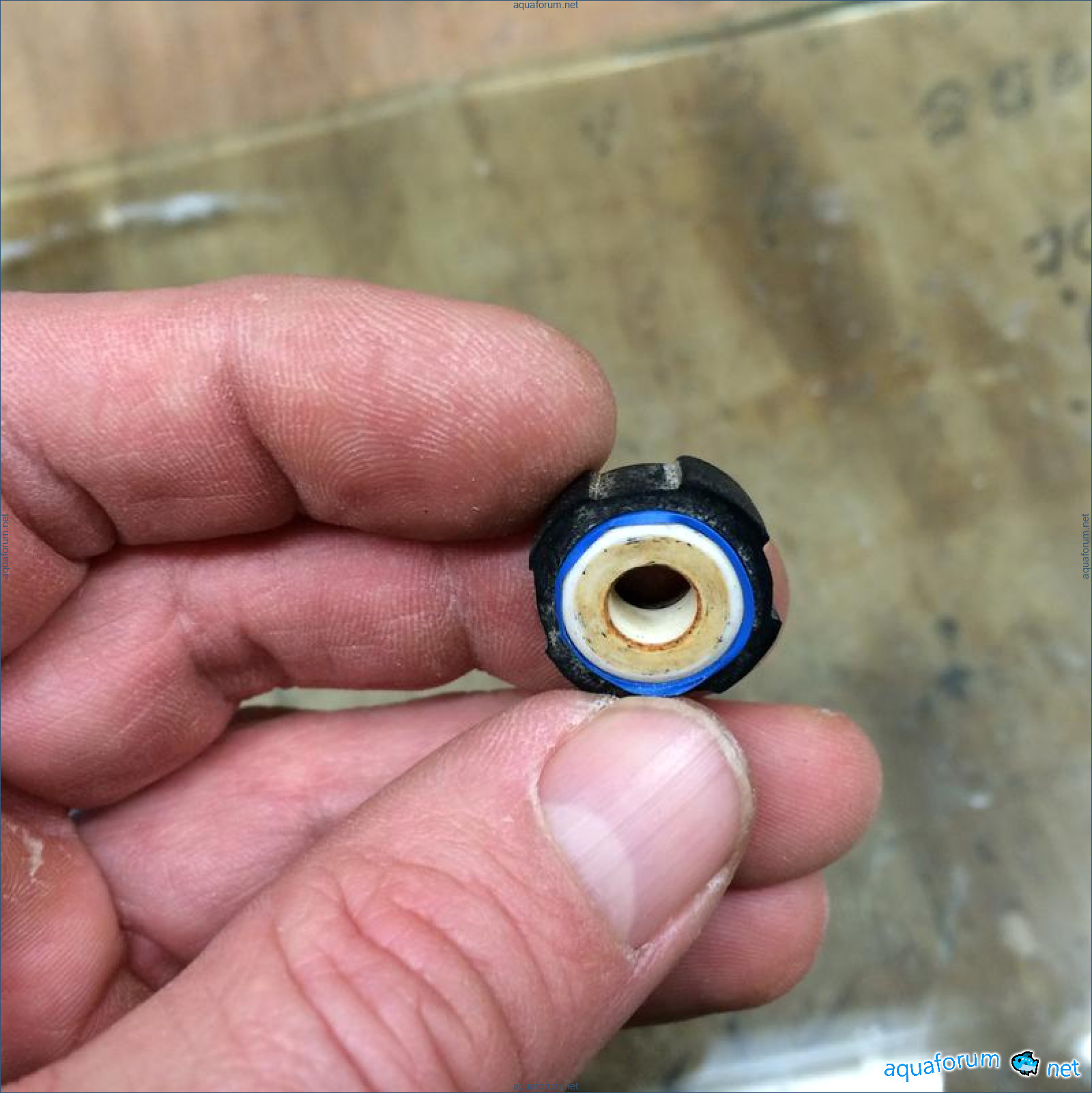

Hello It is possible that the rubber rings holding the bushing in these pumps are drying out, which can cause the bushing to come out and the shaft to lose alignment. You can wrap tape around the bushing or replace the shaft assembly.

James4342

Пожалуйста, предоставьте текст для перевода.

Tanya

Thank you very much for your work! And thank you for the "technical support." Replacing parts - no problem. Everything was done quickly and neatly! I am very satisfied with the product! Super! Penny A&C-150. Minsk.

Rachael

Greetings I would like to request new offers in private messages Thank you

Catherine

Good afternoon, what can you offer for 600+200? I am planning a coral reef with foam. Sent from my iPhone using Tapatalk

Joseph9203

Hello. I'm all about my New Jet. I've been winding the tape, and it helps, but not for long. I'm exhausted. Maybe you can sell me another motor. I can't take it anymore. Help me out.

Larry

this one will do

Danielle

Askol can be set.

Angela6489

Skimmer A&C300 drop with pump JEBAO DCT 12000 VIDEO

Troy8808

What skimmer can you recommend for my 105-liter aquarium with a sump of 45 liters, but in the future, I will be upgrading the display to 250 liters?

Erica752

Hello We have finished the tests I think the new model will be on sale next week, which might be of interest It's A&C250dropXXS Its dimensions are 260x260x420 Pump JEBAO DCT 3000 It will handle up to 500-600 liters perfectly For now, here are some photos.... Next week there will be more details

Kimberly3727

Пожалуйста, предоставьте текст для перевода.

Debra8438

Пожалуйста, предоставьте текст для перевода.

Joshua

two possible options for the impeller... I haven't decided yet - I'm considering the pros and cons

Anthony4281

One of the main advantages of this model is the convenient and fast service.

William5838

finally finished.... the project turned out to be more complex than I thought, but the result is better than I expected in the end, we have a very compact model with decent performance characteristics thanks to the pump with power adjustment, it can be used in a range from 0 to 600 liters, and in the case of a dense biological load, up to 1200 liters with a light load

Sara4035

So how has the new skimmer performed after a couple of months of testing? How has it shown itself? Is anything starting to malfunction, does it produce a lot of foam or not, does it make noise after a month or two...? And as I understand, your skimmer can be used in aquariums from 0 to 1200 liters? How loud is it? Can you sleep in the bedroom with it? (I mean not in bed with it, but next to the aquarium).

Antonio

works without complaints up to 600 SPS 1200 soft coral we are launching another 400L aquarium everything on it - pumps, streams, lights will be JEBAO

Joshua9847

DC pumps are generally quiet, it's hard to find anything quieter. I think the sound won't be heard from the stand. We have already thrown out all the old stuff wherever possible and replaced it with JEBAO.

Sara4035

Good afternoon. My ATI PowerCone 200 is skimmer has stopped working. It starts for 2-3 seconds and then turns off. Can you tell me what might be the problem? And how to solve it? Thank you.

Brenda

hello it's hard for me to say we need to analyze and see they probably have overload protection maybe something is jamming and shutting it down as a last resort, we can replace the pump, we've done that before...

Laura4892

xxx has a big brother its features - JABAO DCT6000 pump Air intake 2100 l/h Water circulation 4200 l/h Power consumption 40 W Height 48 cm Required water level in the sump 15-16 cm Required installation space 32x32xH50 cm

James

Size of the aquarium? reef, fish tank?

Zachary

The quarantine did not go without consequences))

James

The quarantine continues to rage Another victim, the 300th model

Sara

We finished working on the little one.

James3382

Finally finished the small model. Although there may still be minor adjustments.

Anthony7814

Our humble efforts have caught the attention of reefbuilders.com Thank you, Jake Adams, for your support!!

Charles894

Congratulations!

Angela6489

Hello, I found information that you make skimmers? I will need one. I'm looking.

Rick

Hello Yes Sent from my iPhone using Tapatalk

Jonathan6173

Time goes on Technologies change Size decreases, productivity increases The 200th model has been added [CODE]
