• biopellet reactor

  • Ross

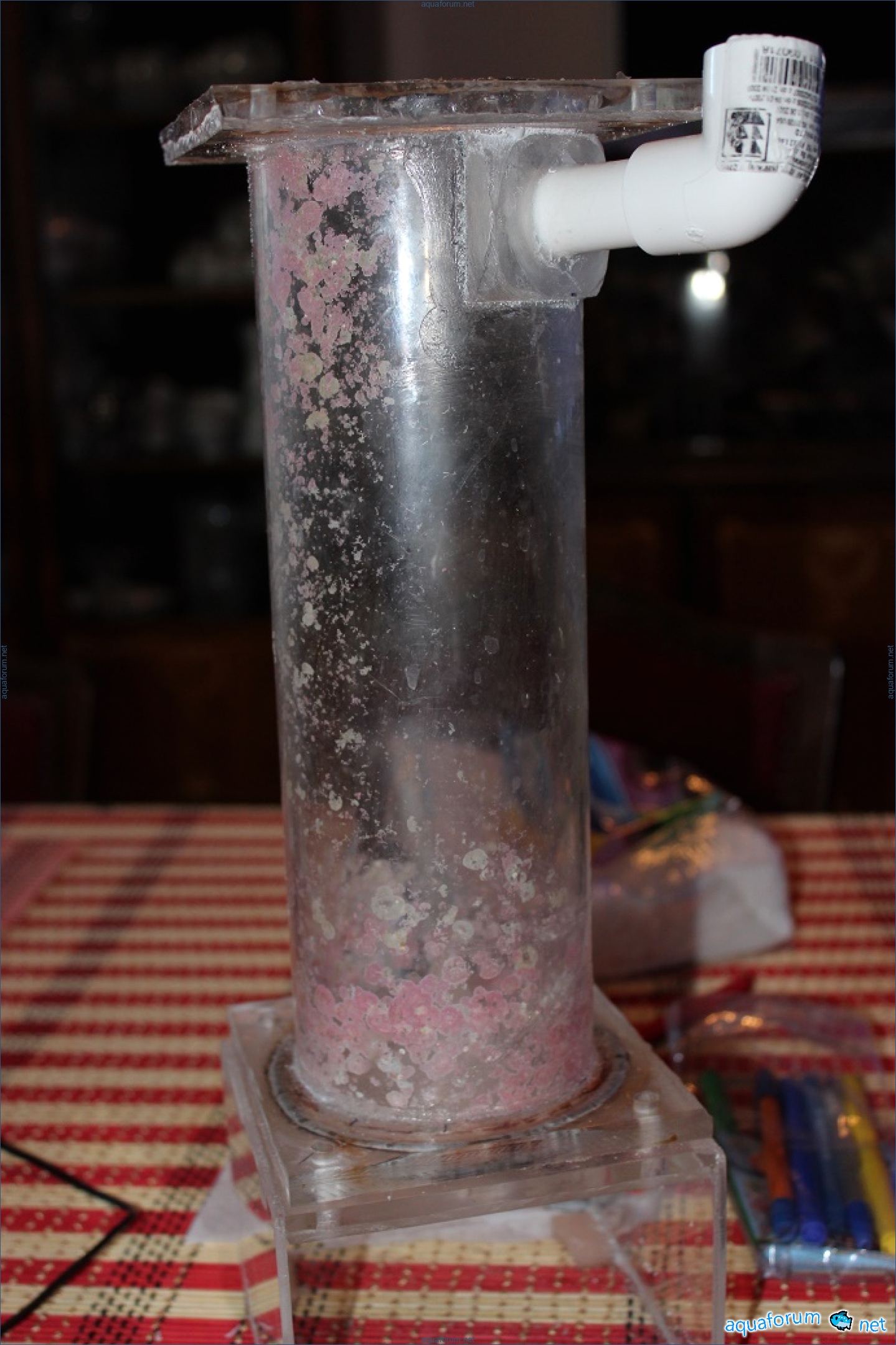

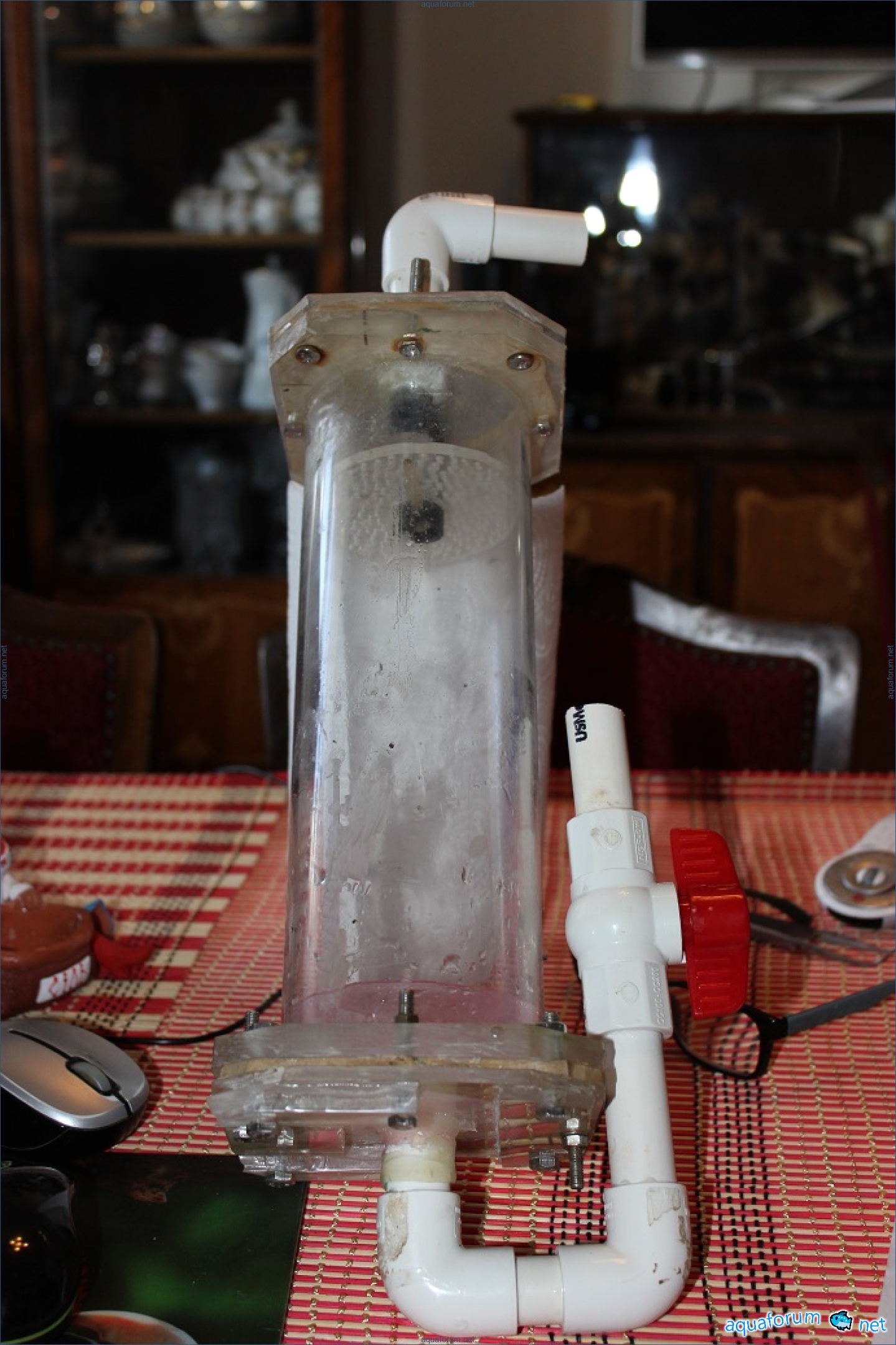

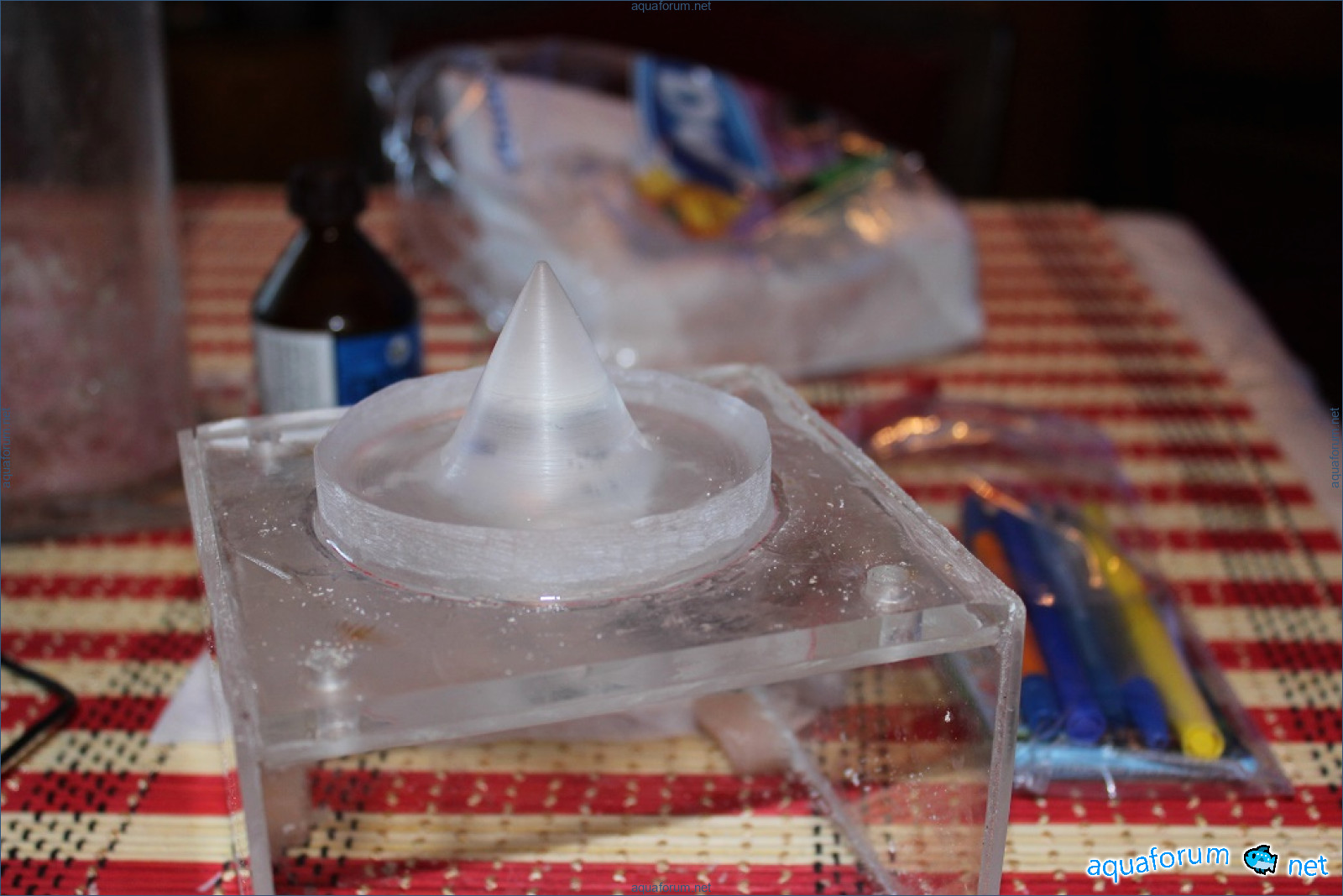

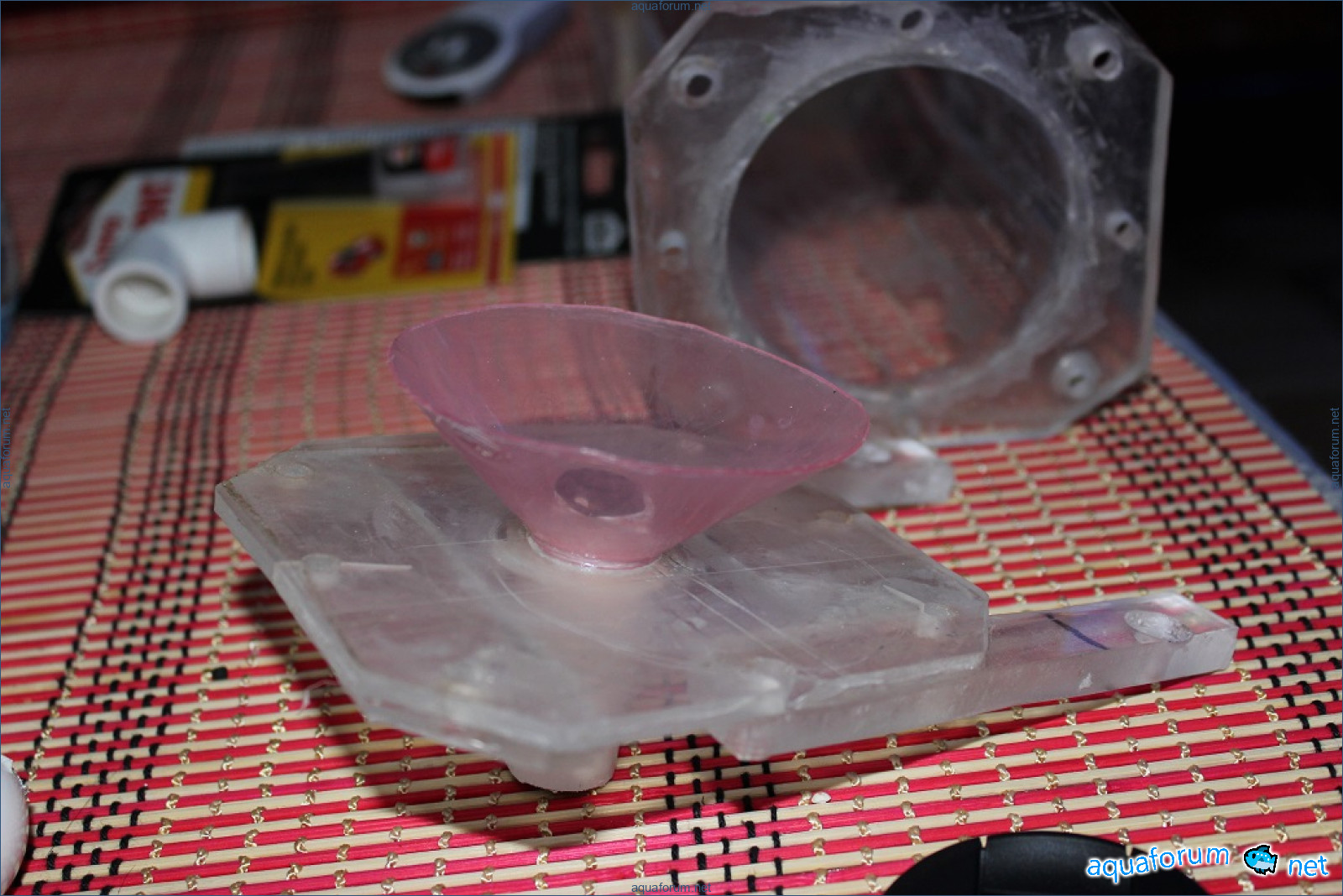

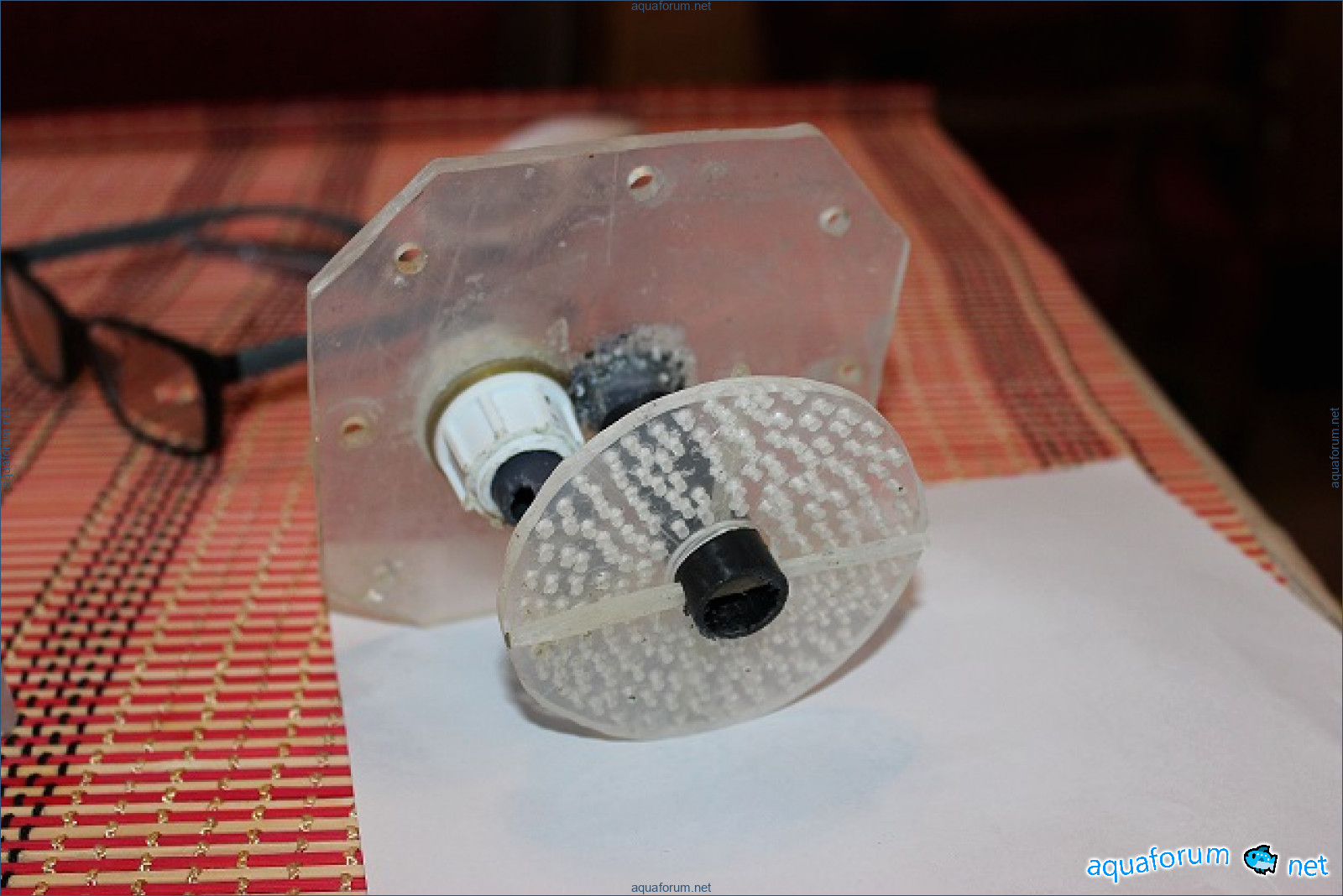

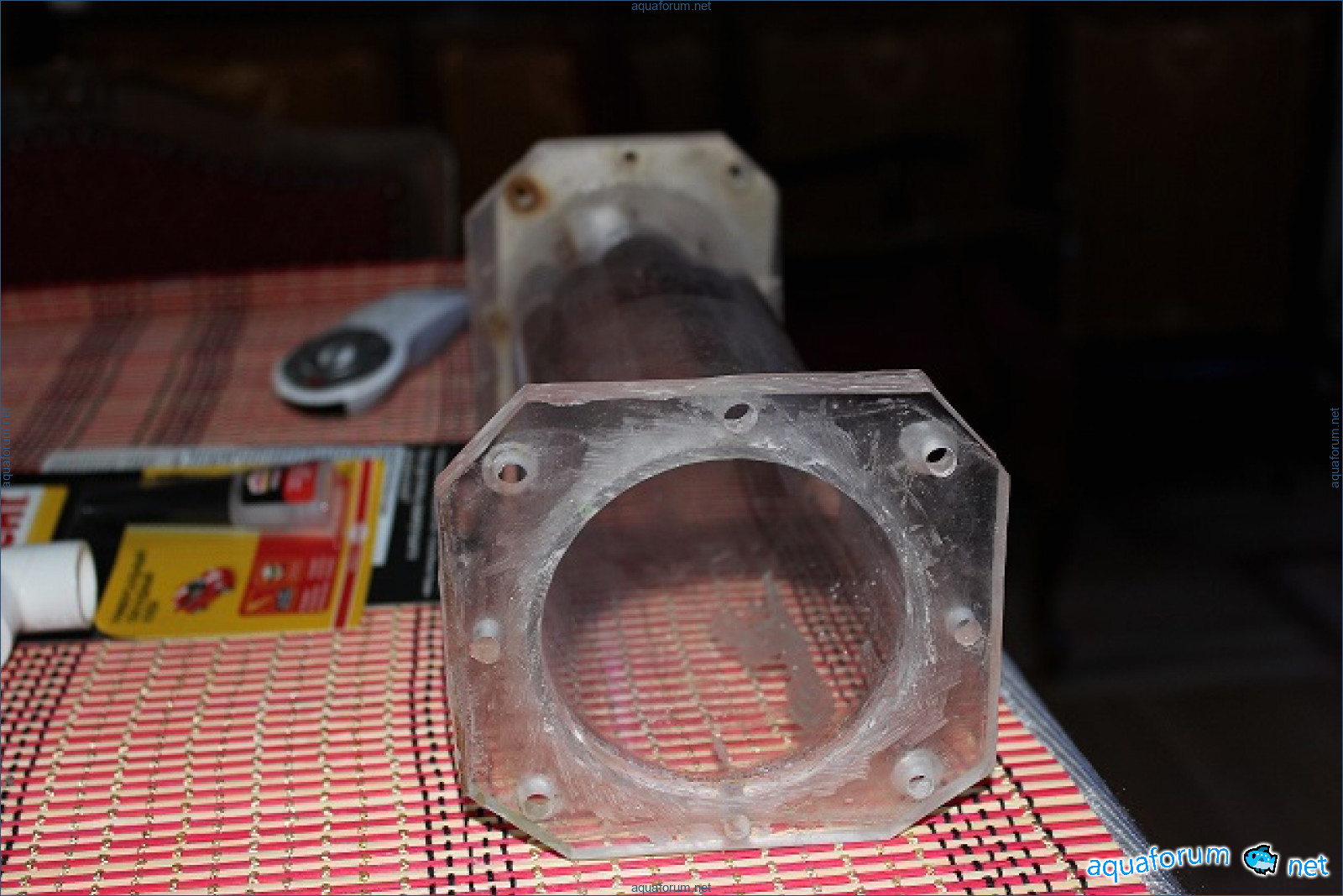

The aquarium and sump are on the same level. The algae scrubber was planned to be on the front side. I got tired of the view of green wire, so it was decided to design the algae scrubber as a small display. I bought some beautiful marine plants and might look for something else as well. To remove phosphate and nitrate, it was decided to make a biopellet reactor. I bought 90 mm pipe scraps from advertisers, made flanges for them, and glued them in. Then I made two lids, one upper and one lower, with a cone. And that's it, all assembled.

Allison

Just replace the bolts with nylon ones. Otherwise, it doesn't feel quite right.

Ricardo7341

Stainless steel bolts from the epicenter do not rust, and they do not come into contact with water.

Heather9815

What type of bio pellets will you be using? I'm pondering it myself; maybe someone can give some advice?

Christopher4108

Reef Interests All in one Biolets premium 500ml.

John3335

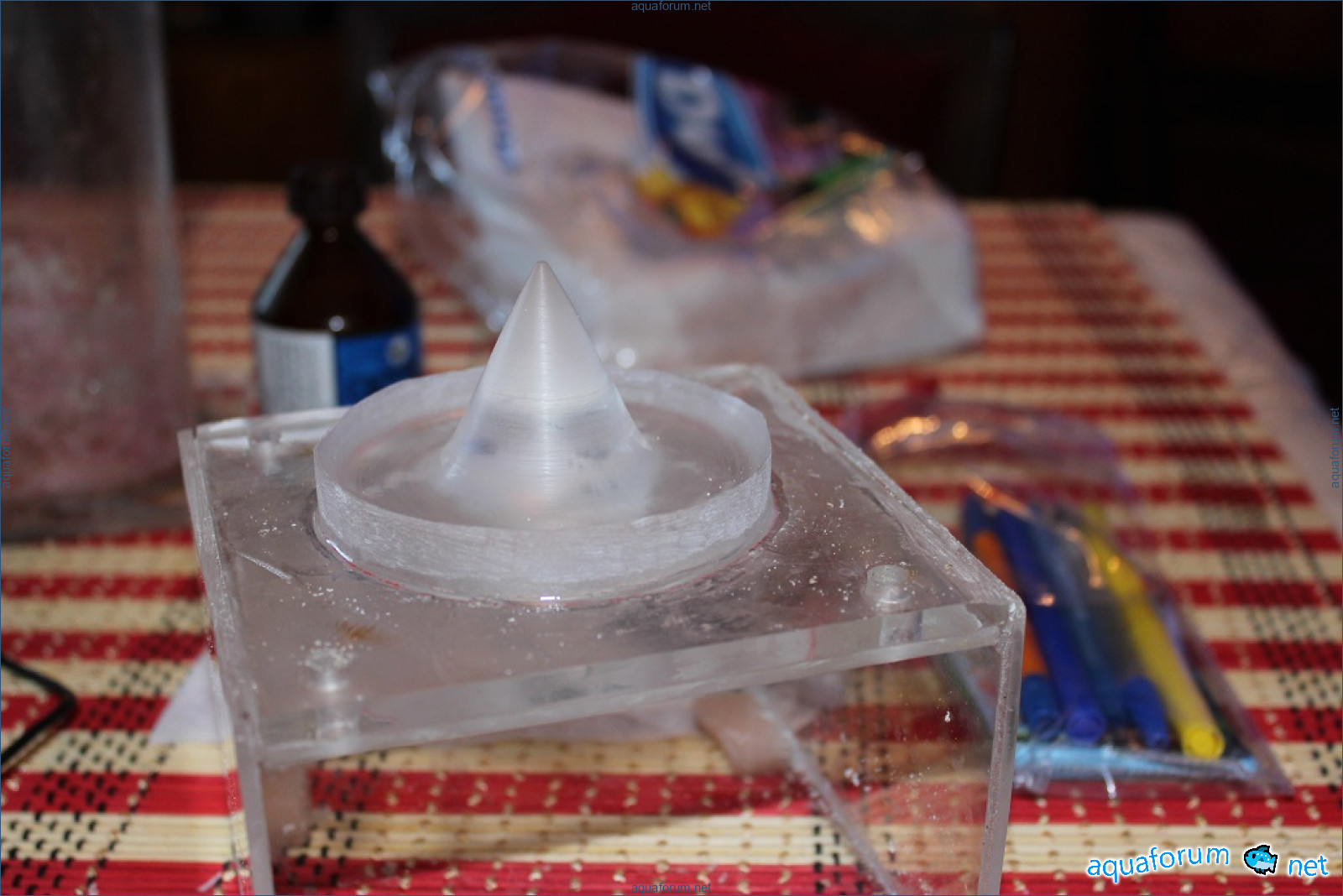

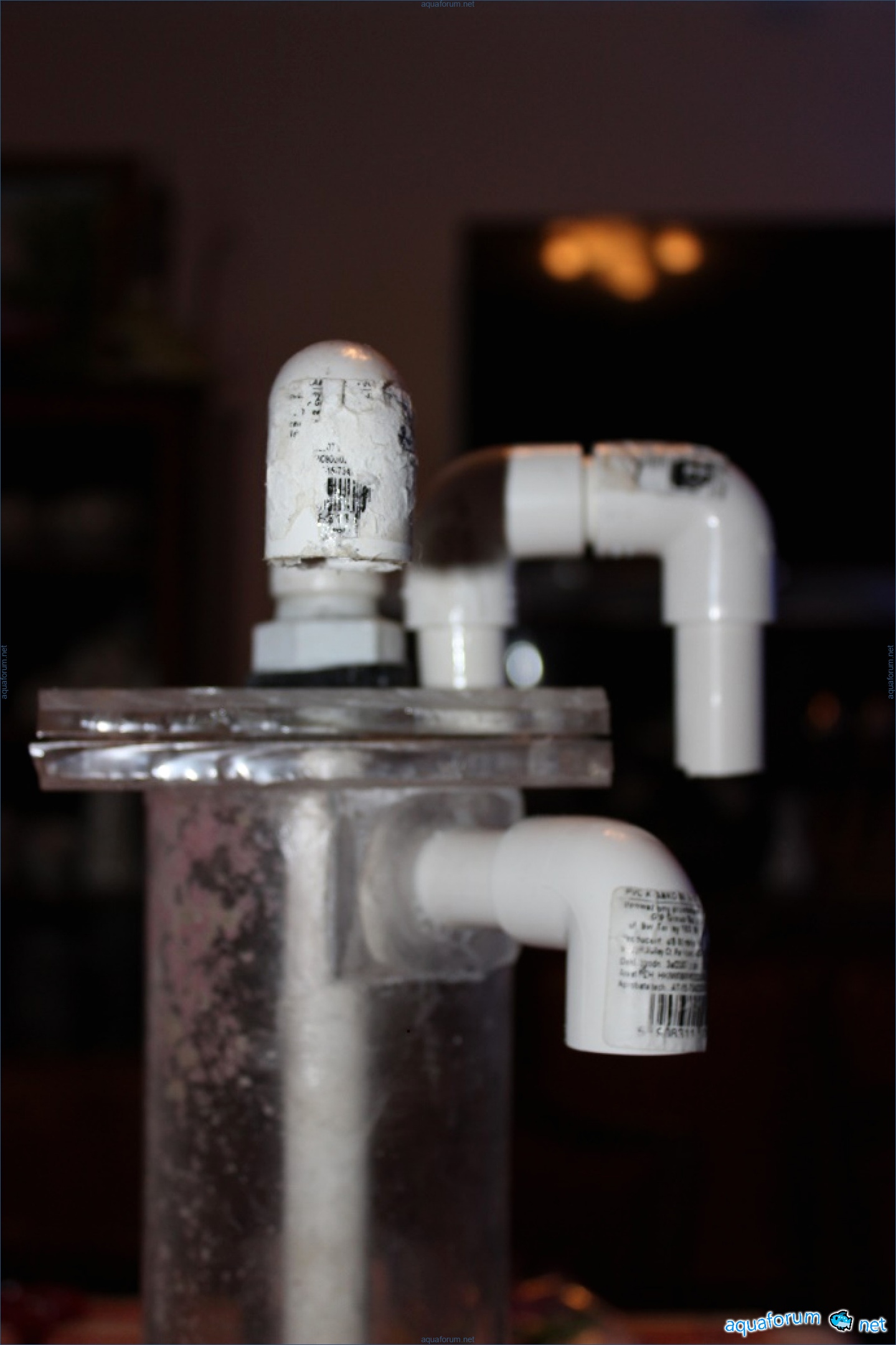

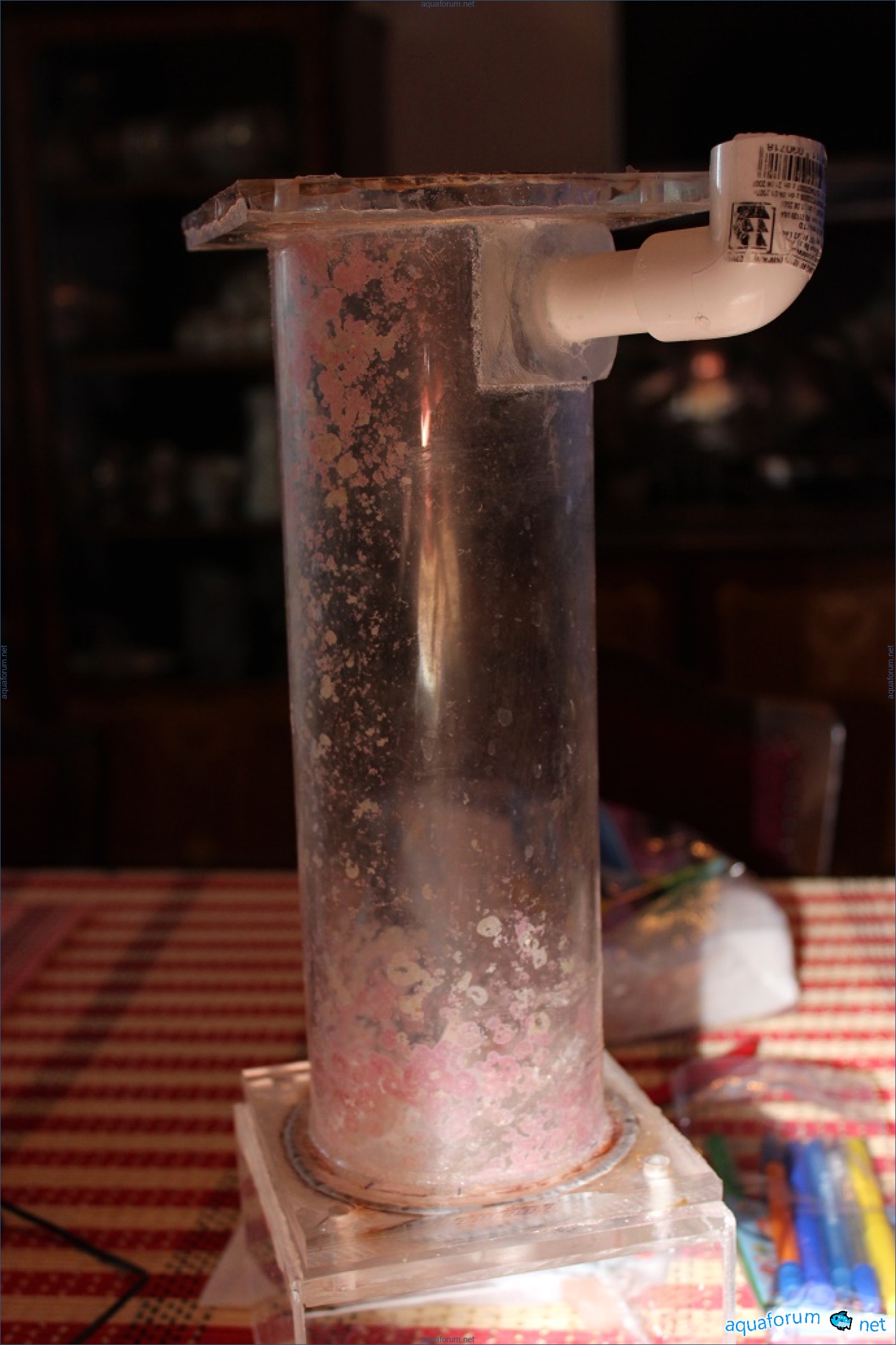

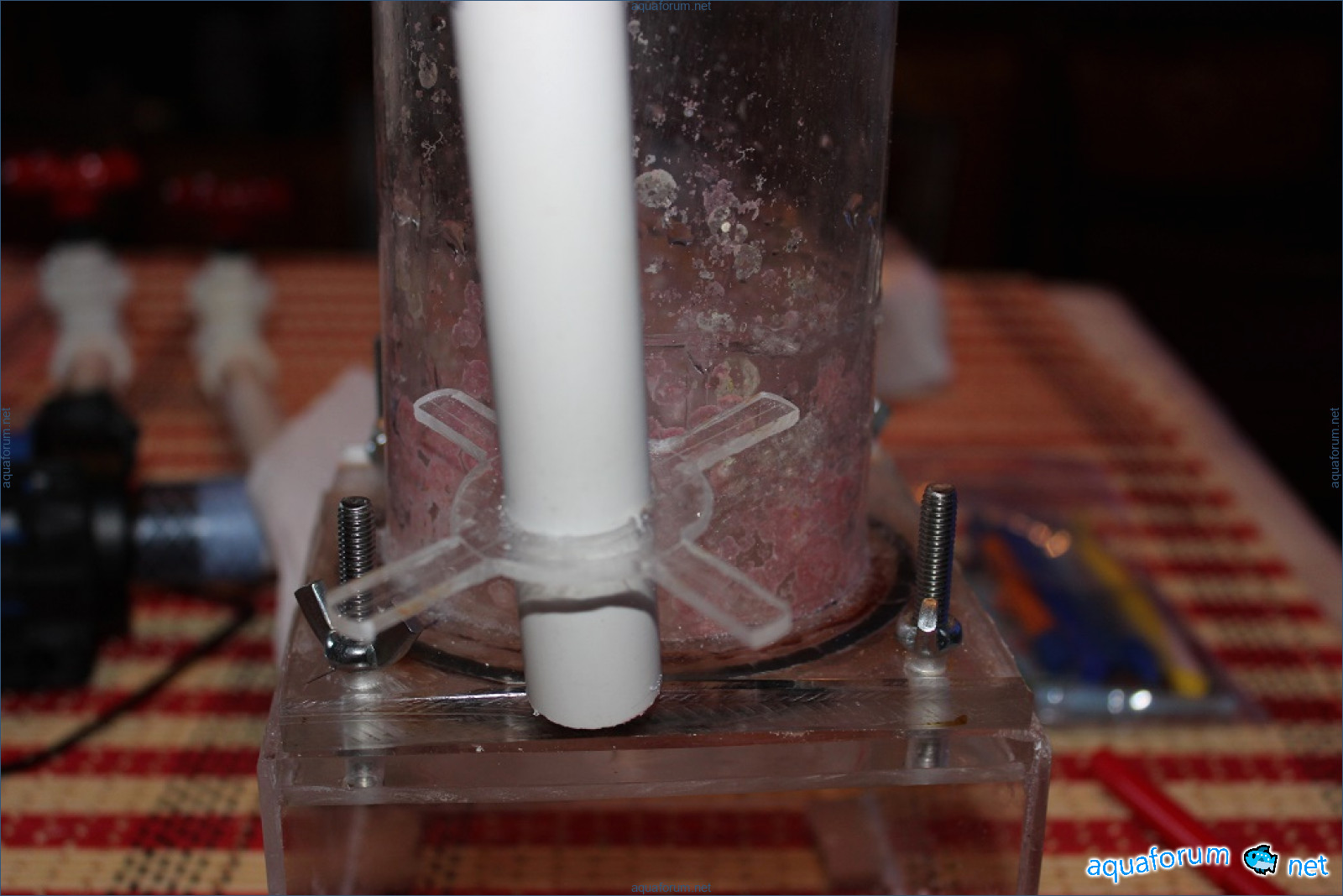

After spinning 0.5 kg of pellets, which are heavy /Reef Interests All in one Biolets premium/, I decided to redesign the reactor. The old design had very low efficiency; to process 0.5 kg, I was drawing 2-2.5 tons from the lift pump. It seemed that the circulation in the aquarium was insufficient.

Anne

I am showing a photo.

Christina9947

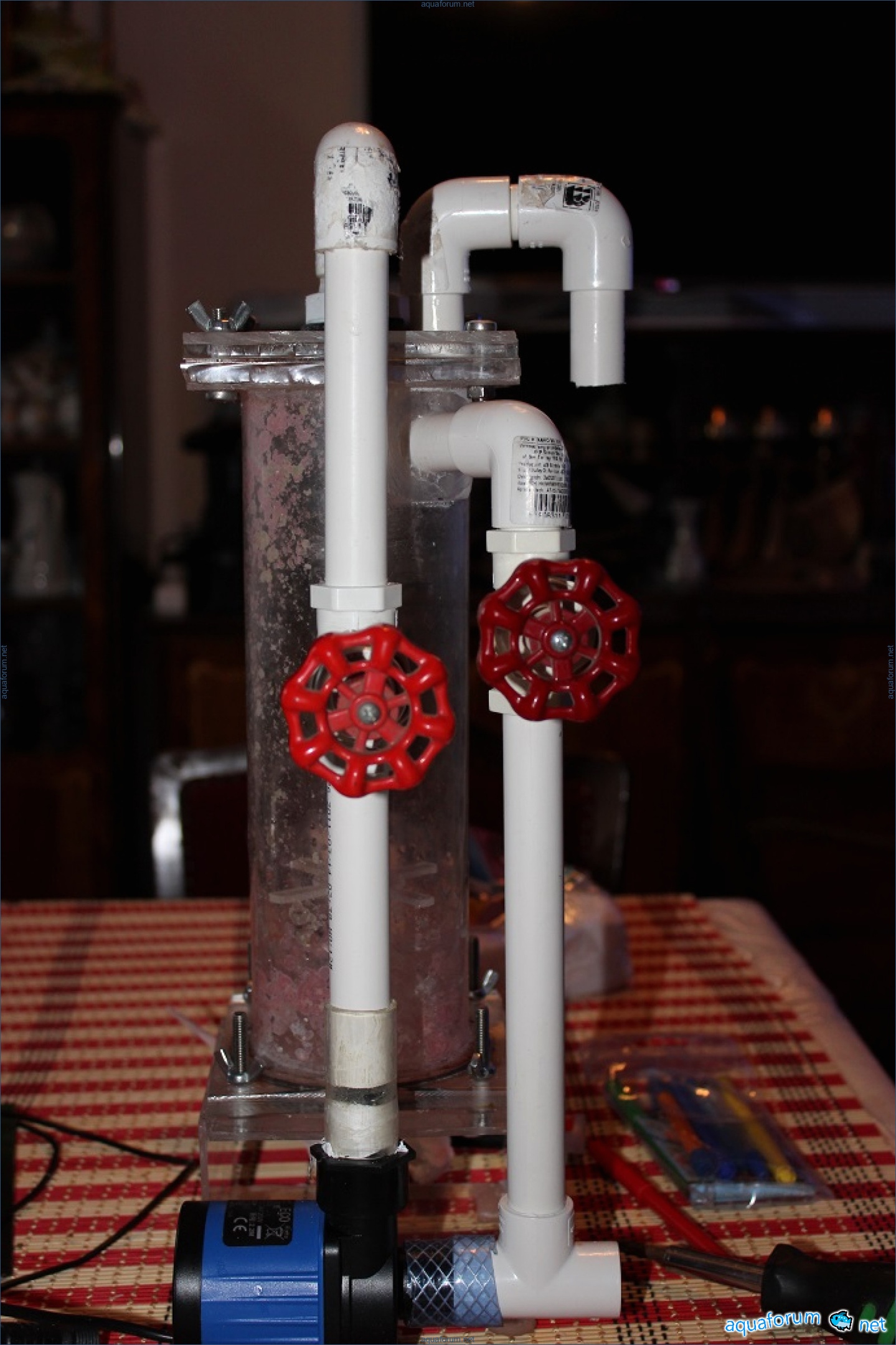

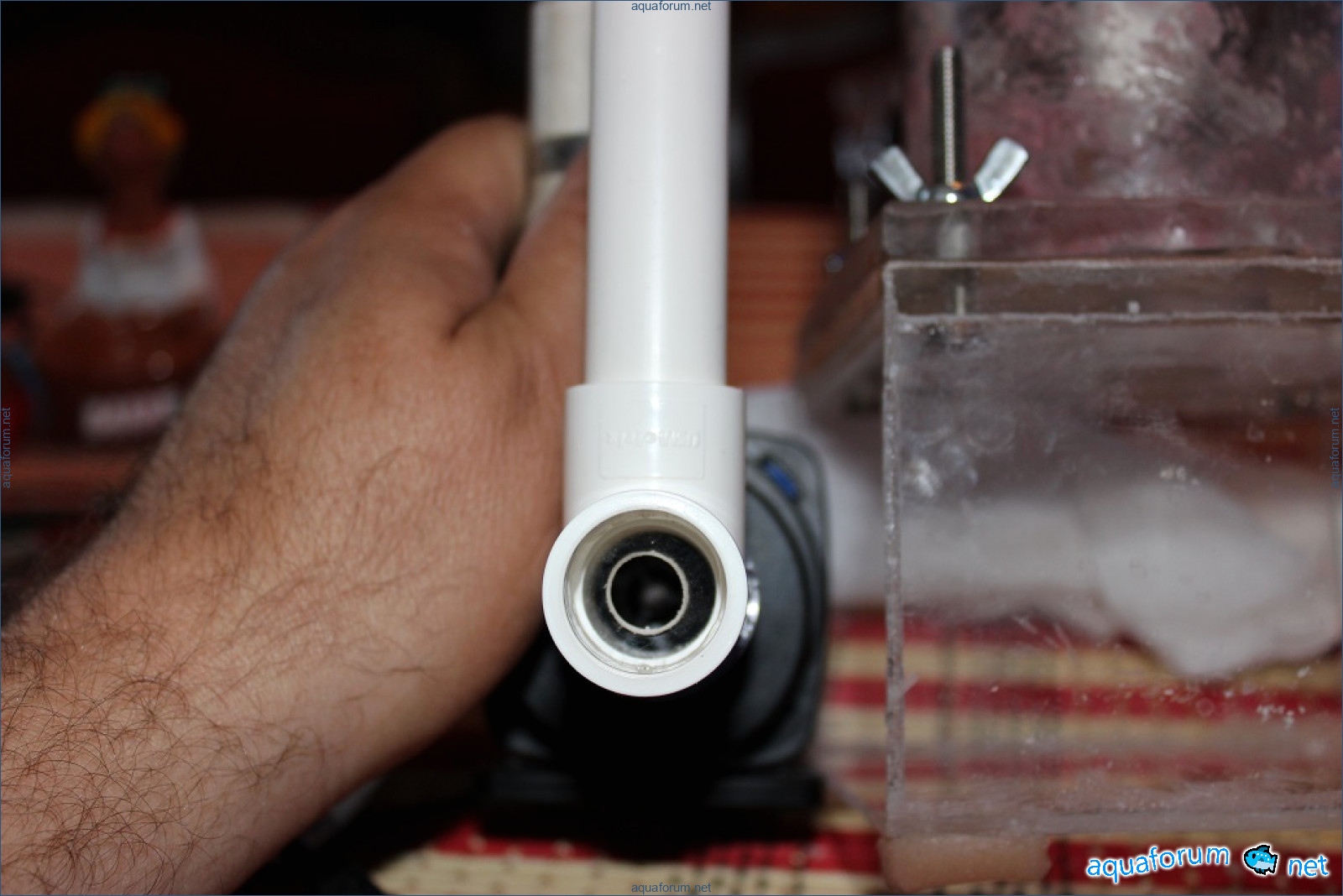

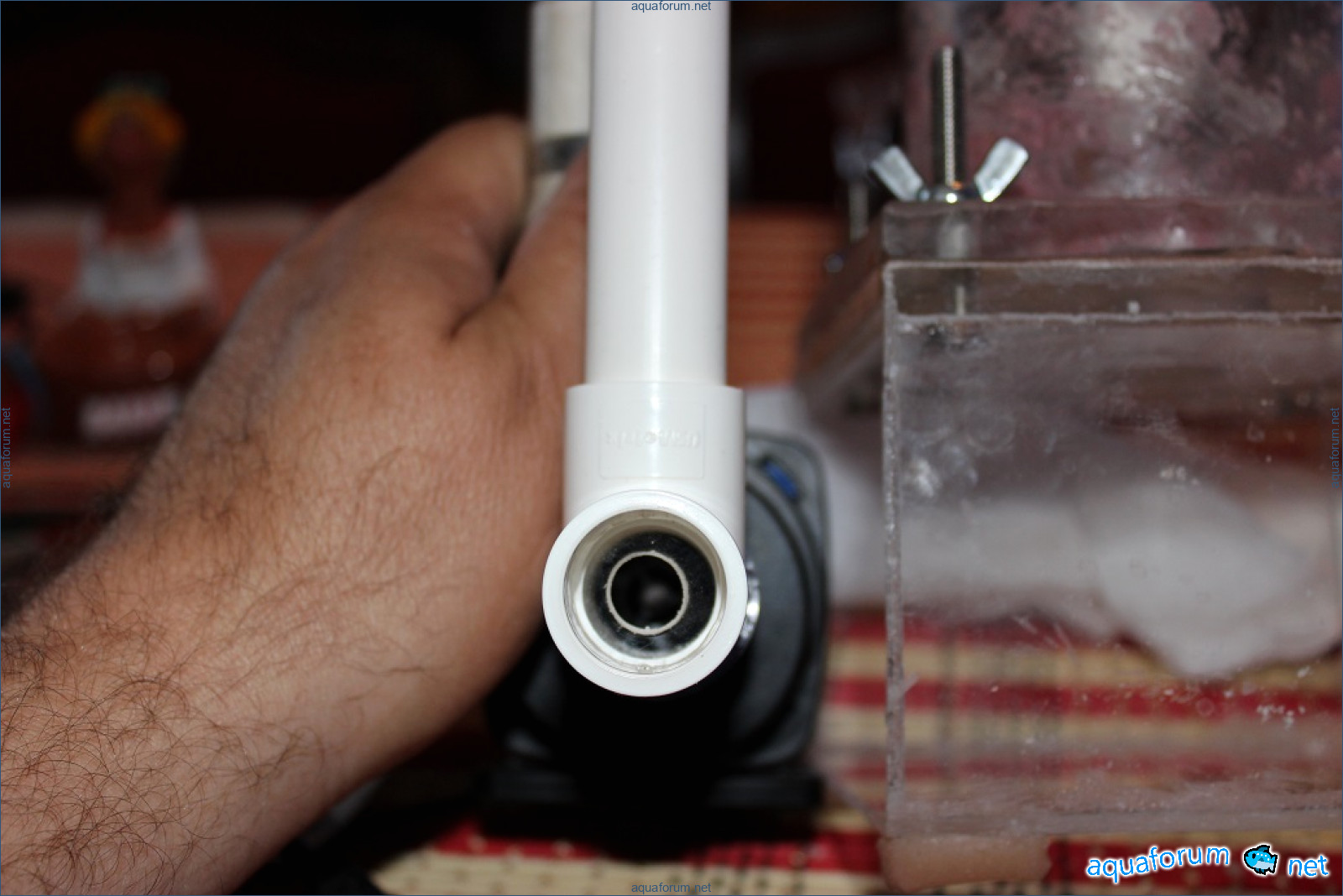

After loading 0.5 kg of old material and adding 0.5 kg of new, I started testing. They wouldn't spin. I had to think a bit and cut out the left valve. And the reactor started up. The pump is Jebao 2000. I started it at full power, but then I had to switch to two units of power out of eight, otherwise the pellets were being expelled due to the vigorous boiling. They've been spinning on the second setting for a week now.

Ronald

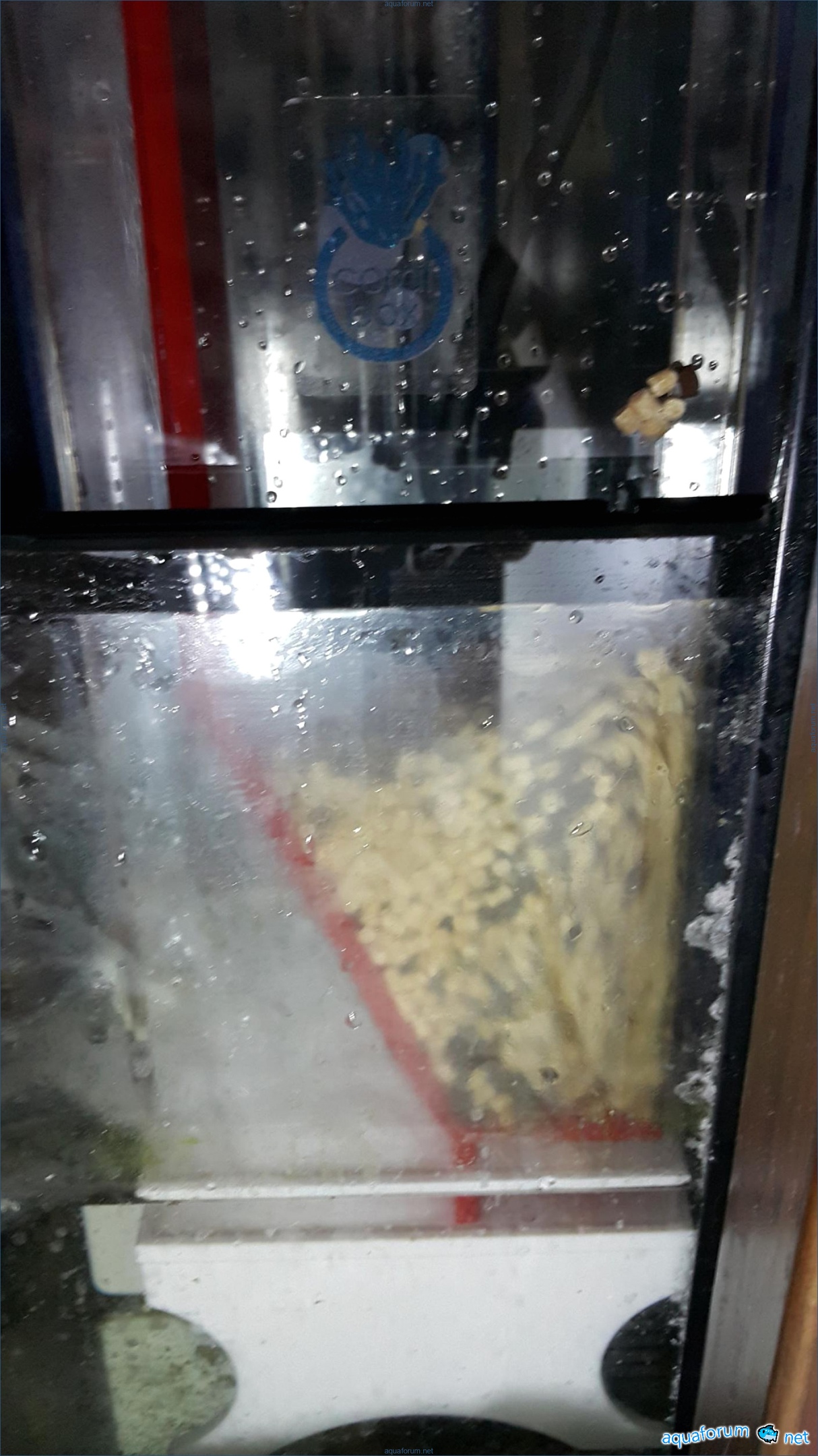

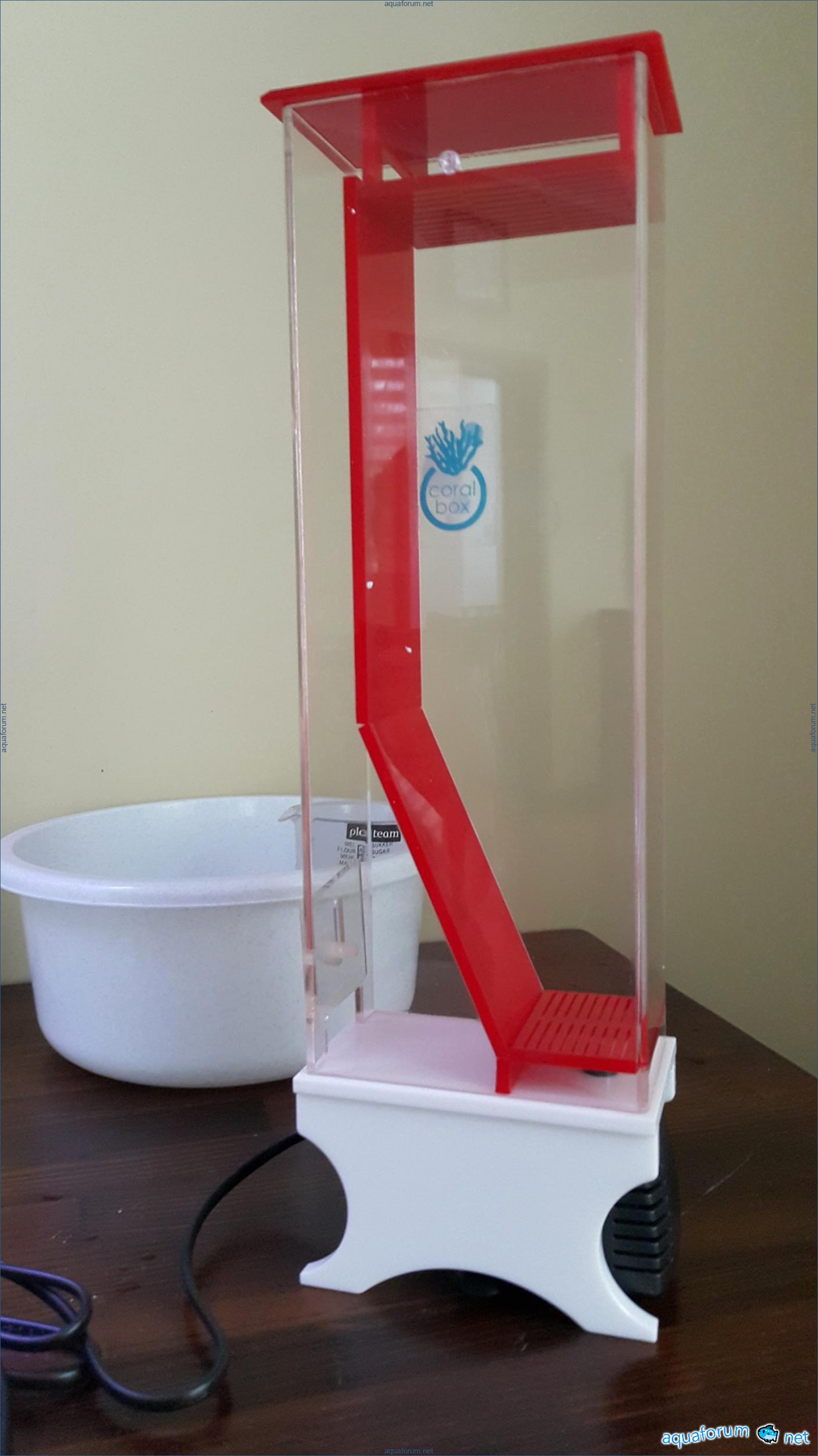

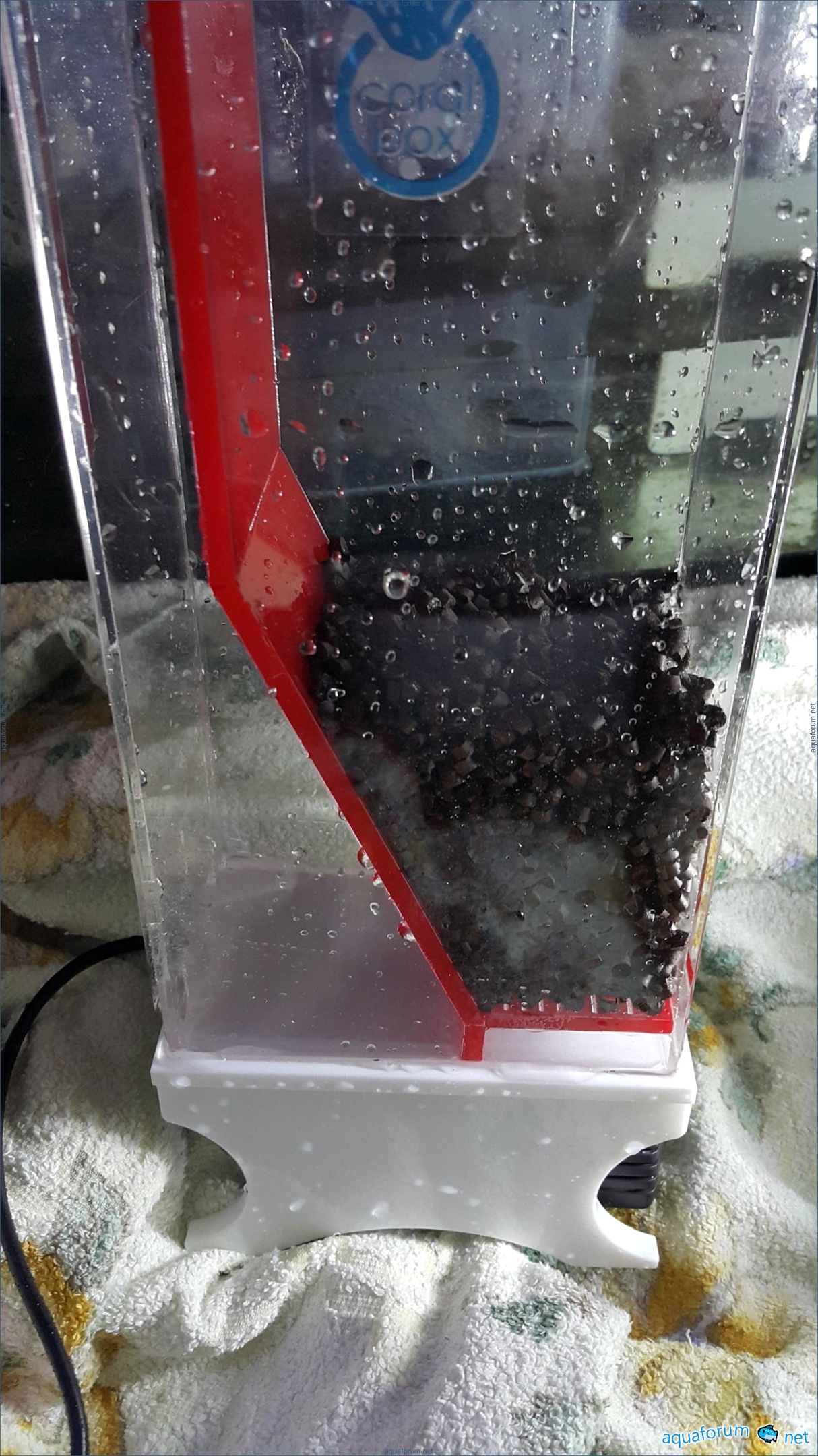

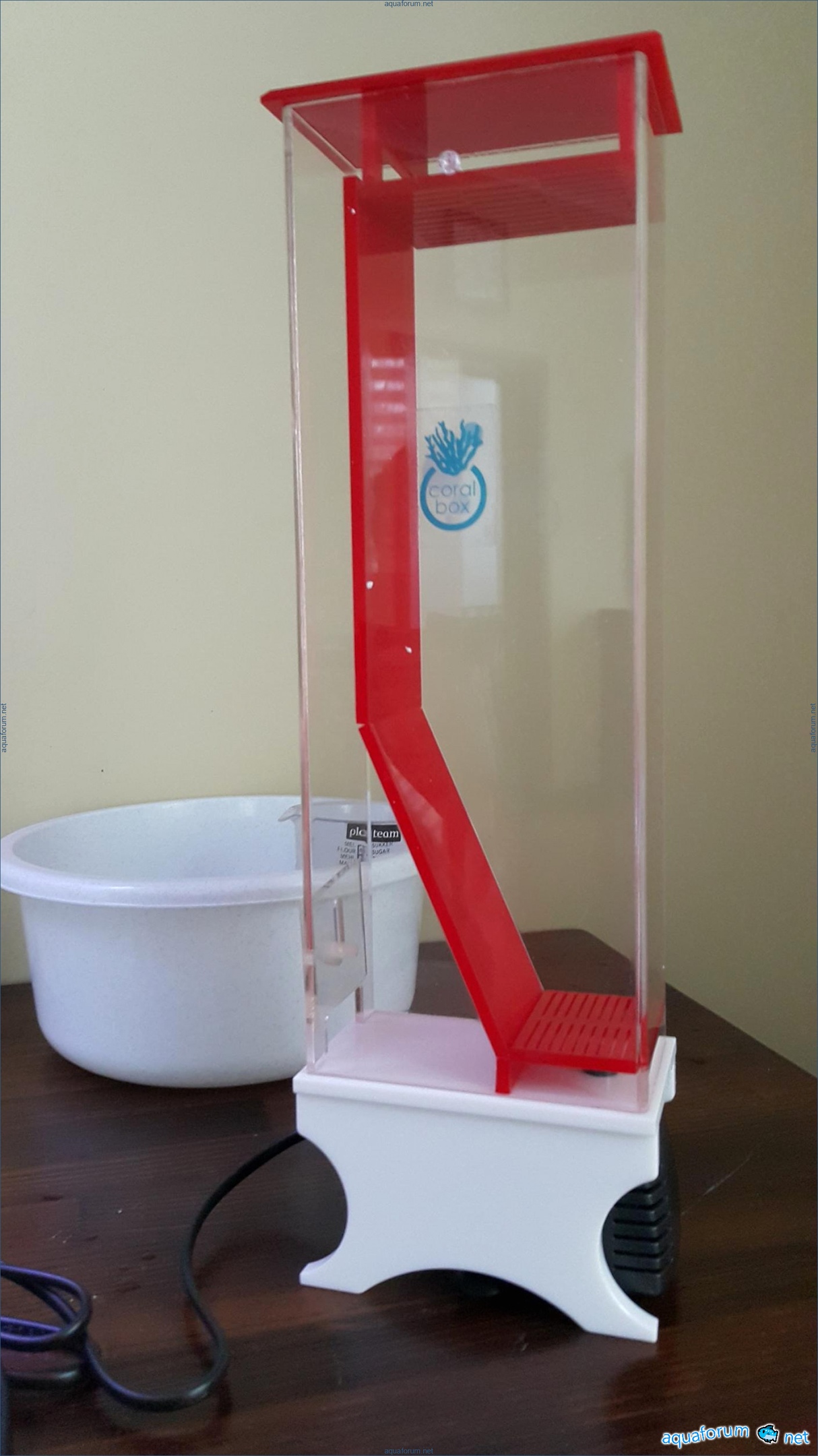

I took a ready-made Coral box and just installed a Jebao 2000 pump, it works well, with Polalat All and Tropic Marin. In the photo, you can see the number of pellets with the original pump, it couldn't handle more. Now, with the Jebao running at 2/3 power, the reactor is fully operational. I think this design is more effective than a pipe.

Spencer7805

DSC_0320.JPG Click here to enlarge the image CORAL BOX MINI FILTER 80X BIOPELLETS REACTOR Price: $75.00 1200g Jebao you have I have 1200g Jebao, 300g two pieces of such pipe, 50g lathe, the rest was acrylic. Glue and a couple of Sundays. And the design can be debated.
