• DIY Skimmer for small volumes.

  • Rebecca

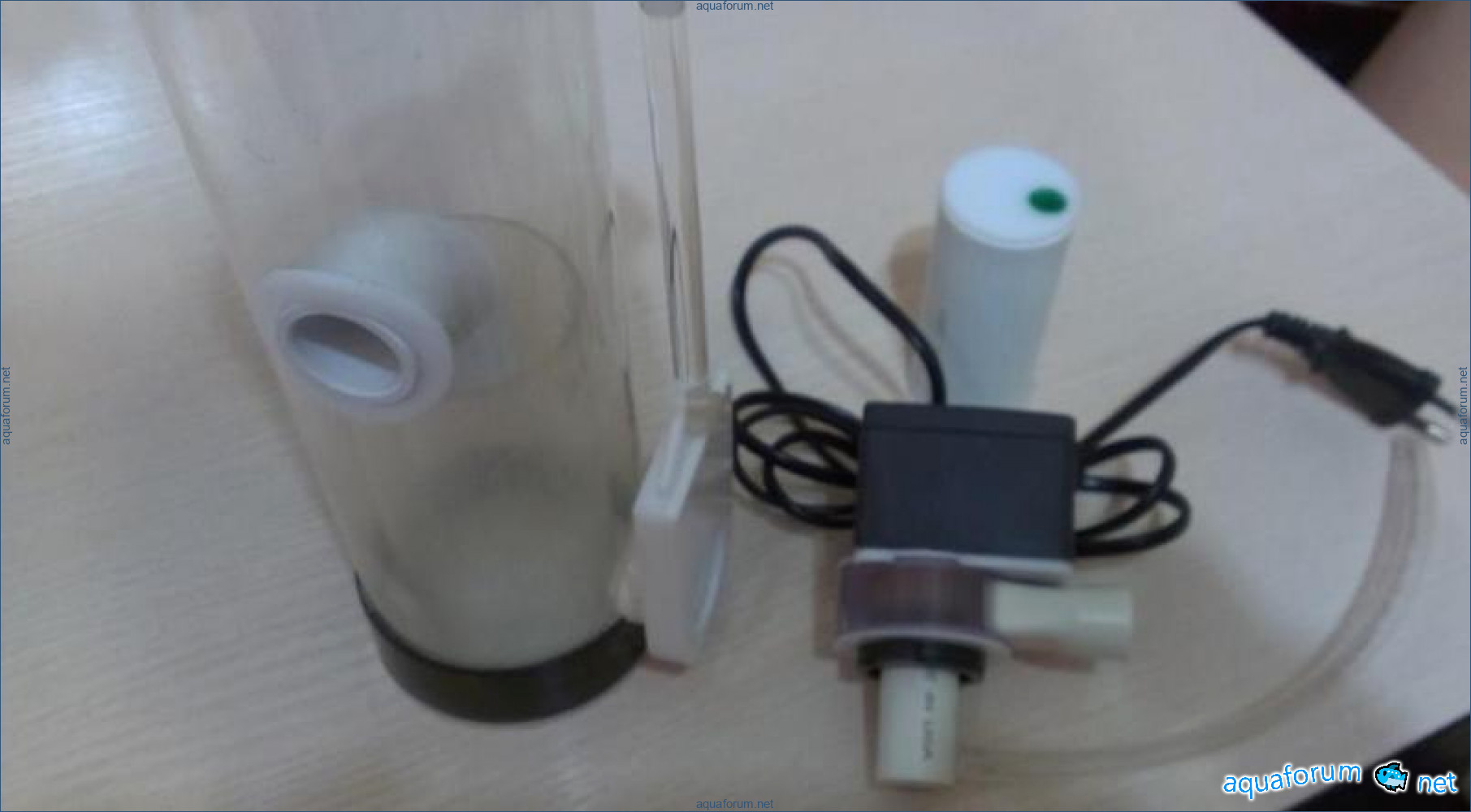

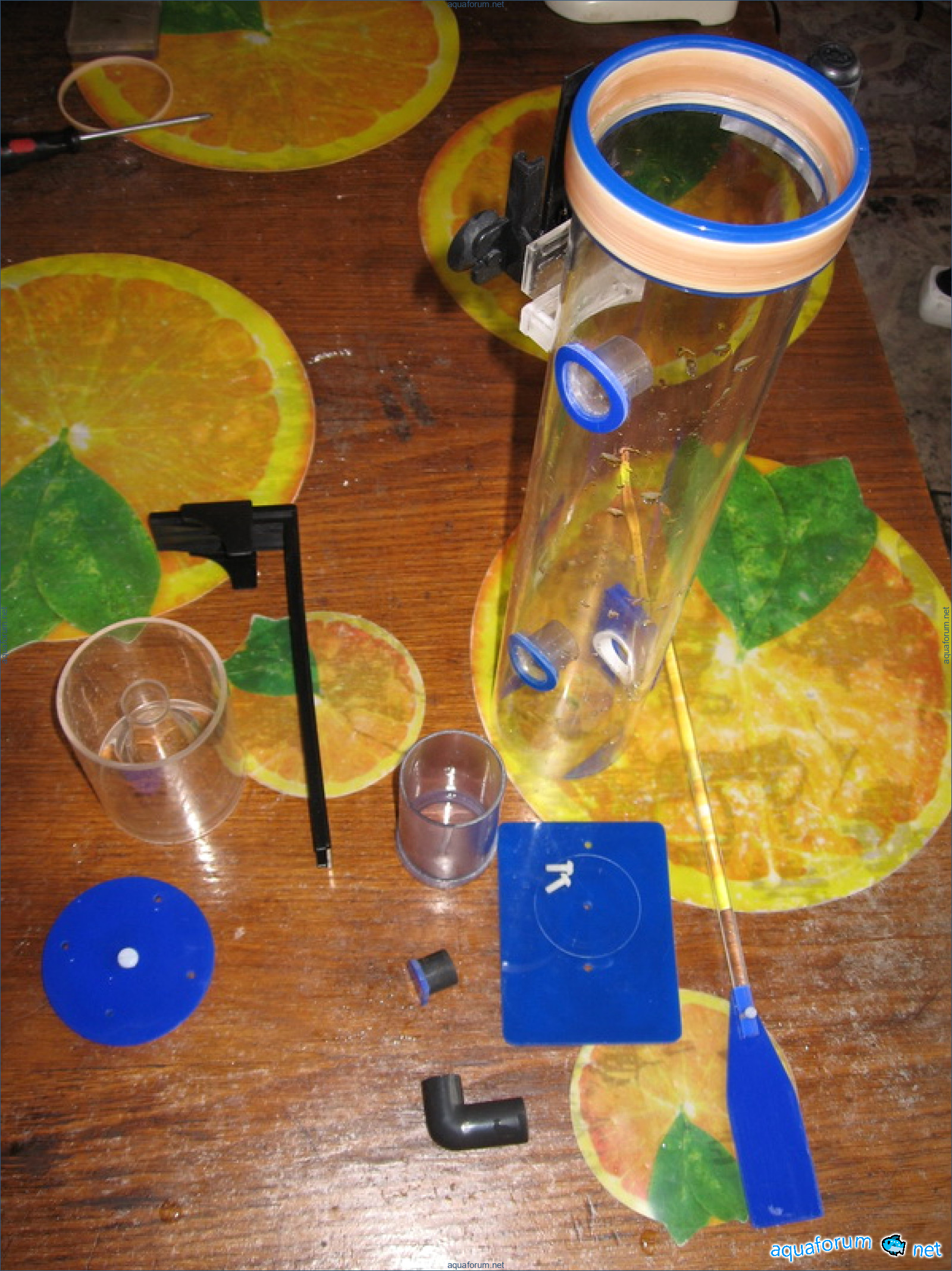

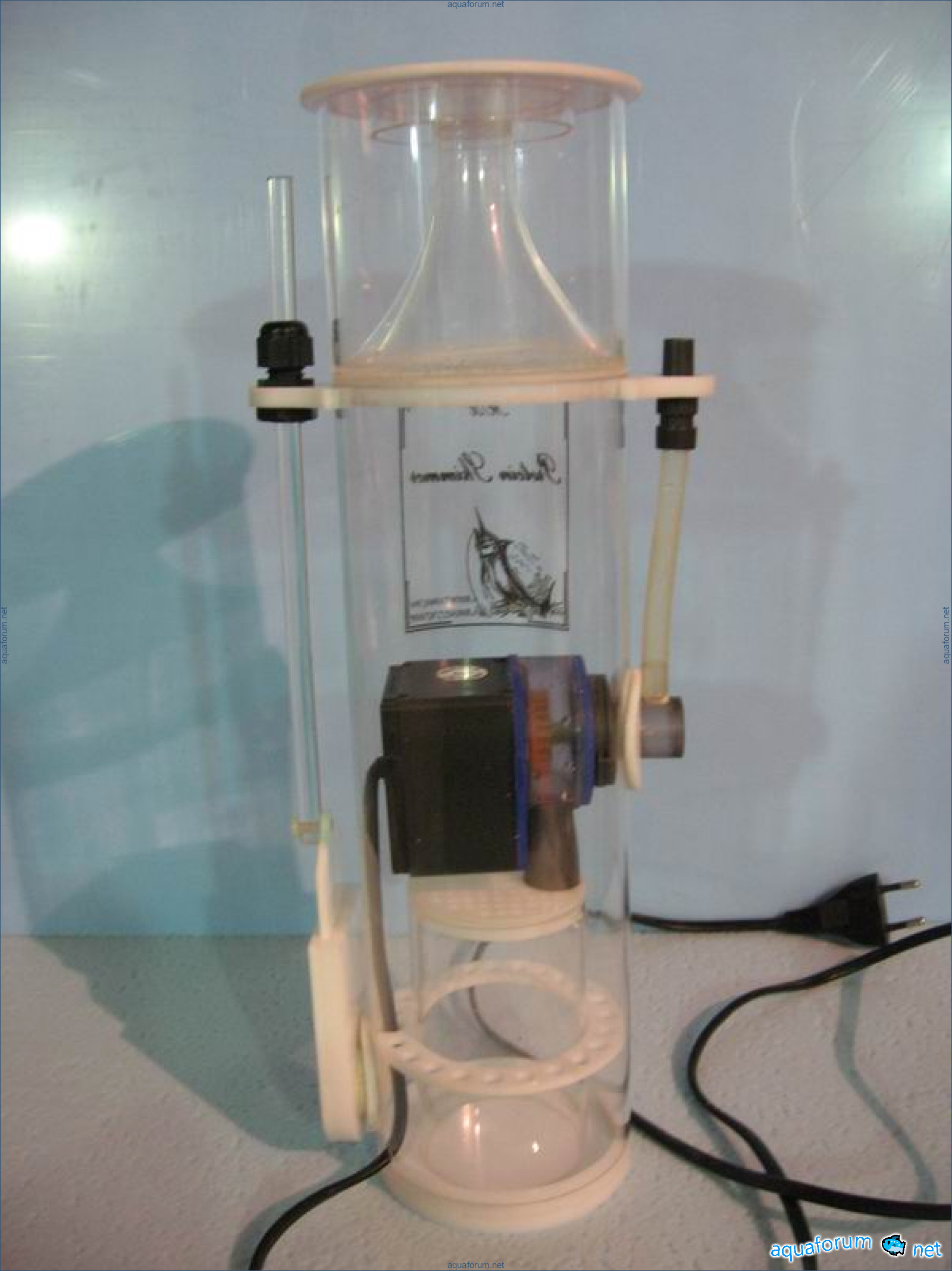

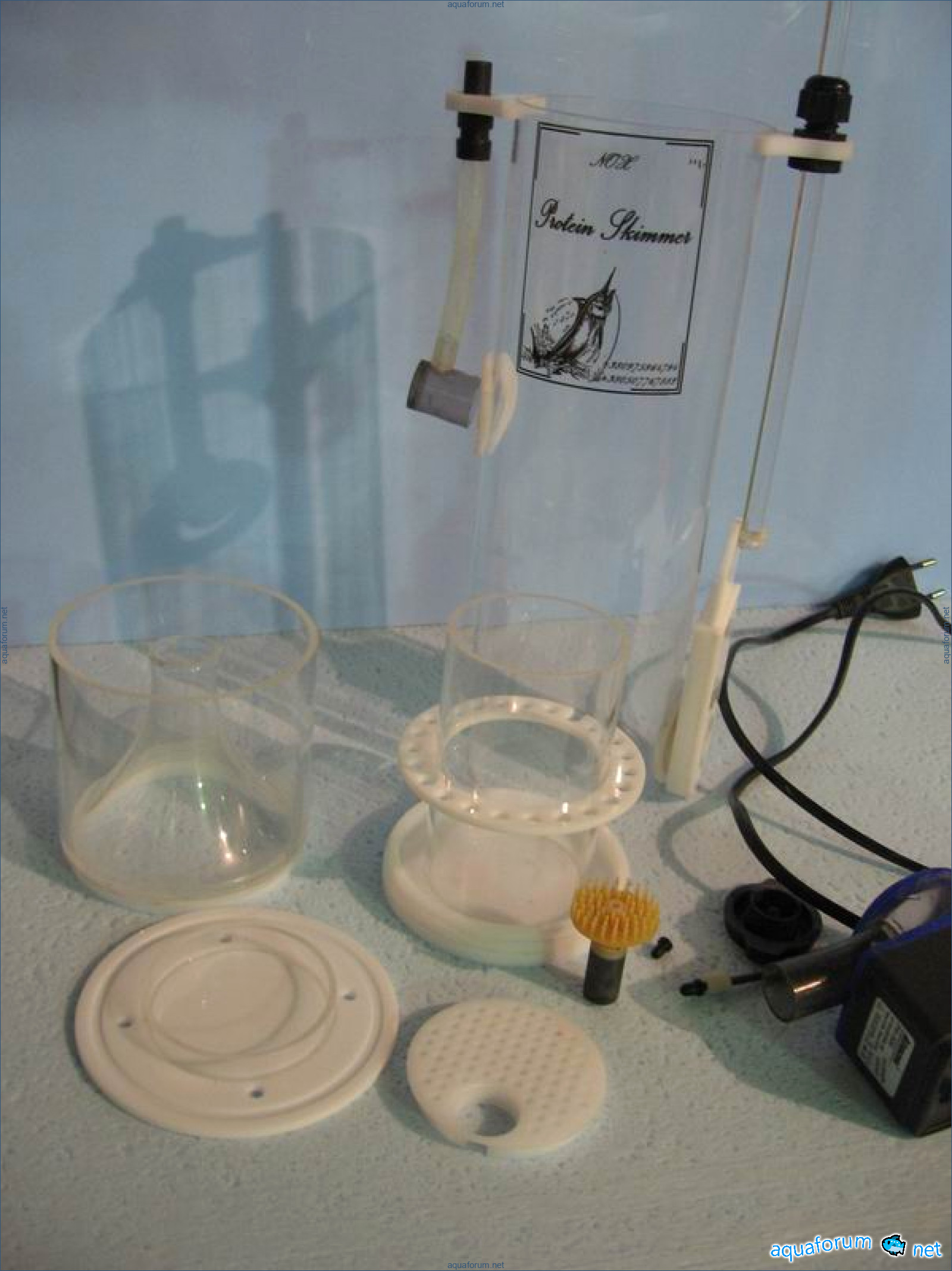

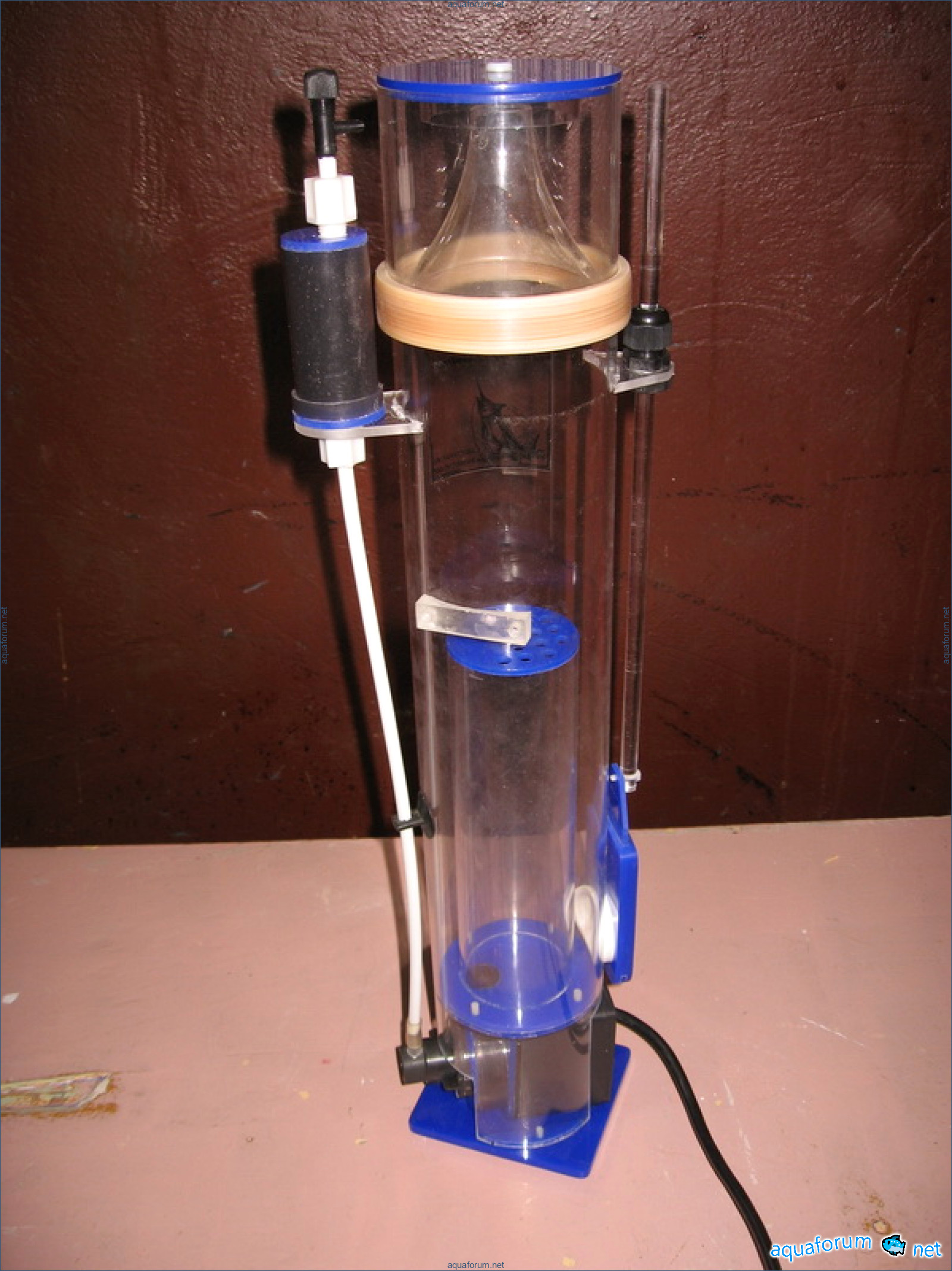

Hello everyone! While modifications are great, I want something of my own. I finished a product, a foam generator for small samplings, up to 200 liters. It comes with a 15W pump (air consumption 300 liters/hour) and can also be equipped with a 9W pump (air consumption 100 liters/hour). Dimensions: 460x120x250.

Jennifer7159

Nice, Vitaly, but what did you use the cone in the cup for?

Julie

Vitalik, create a pen that fits into the DMS 500 resin - you will have plenty of clients!

Kyle

Everything is handmade, the cone was extruded from sheet acrylic.

Heather9815

Maxim, if I had a DMS 500 available, I would make a pen for it, but buying a DMS 500 is too expensive, and it won't turn out the same based on photos and dimensions; the pen needs to be tested. Soon, a mount for small cans will be released.

Cheryl9296

It's great in double. A necessary thing))) Just forgot to put the hose on the injector ;-)))

James1625

Exactly! Damn, there's also a jammer, I forgot it in the workshop. Later, there will be a photo session in progress, I'll complete it.

Paul

Good job. It's nice when both hands and head are in the right place. Is there a possibility to install the pump from the bottom? That is, to fit the size 11*10*50 cm (internal, in the BOYU TL 550 sump).

Jill9137

I will soon be selling my used one. We can discuss it. Moreover, you have something that might interest me.

Sandra7004

I think it's possible, but only a 9W pump, as I'm currently busy with another task, finishing a small calcium reactor, then an external hang-on skimmer with a pump at the bottom, and at the same time, it will solve the internal one with a pump at the bottom.

Rebecca1419

I understand! Let's discuss it at our leisure!

Melanie

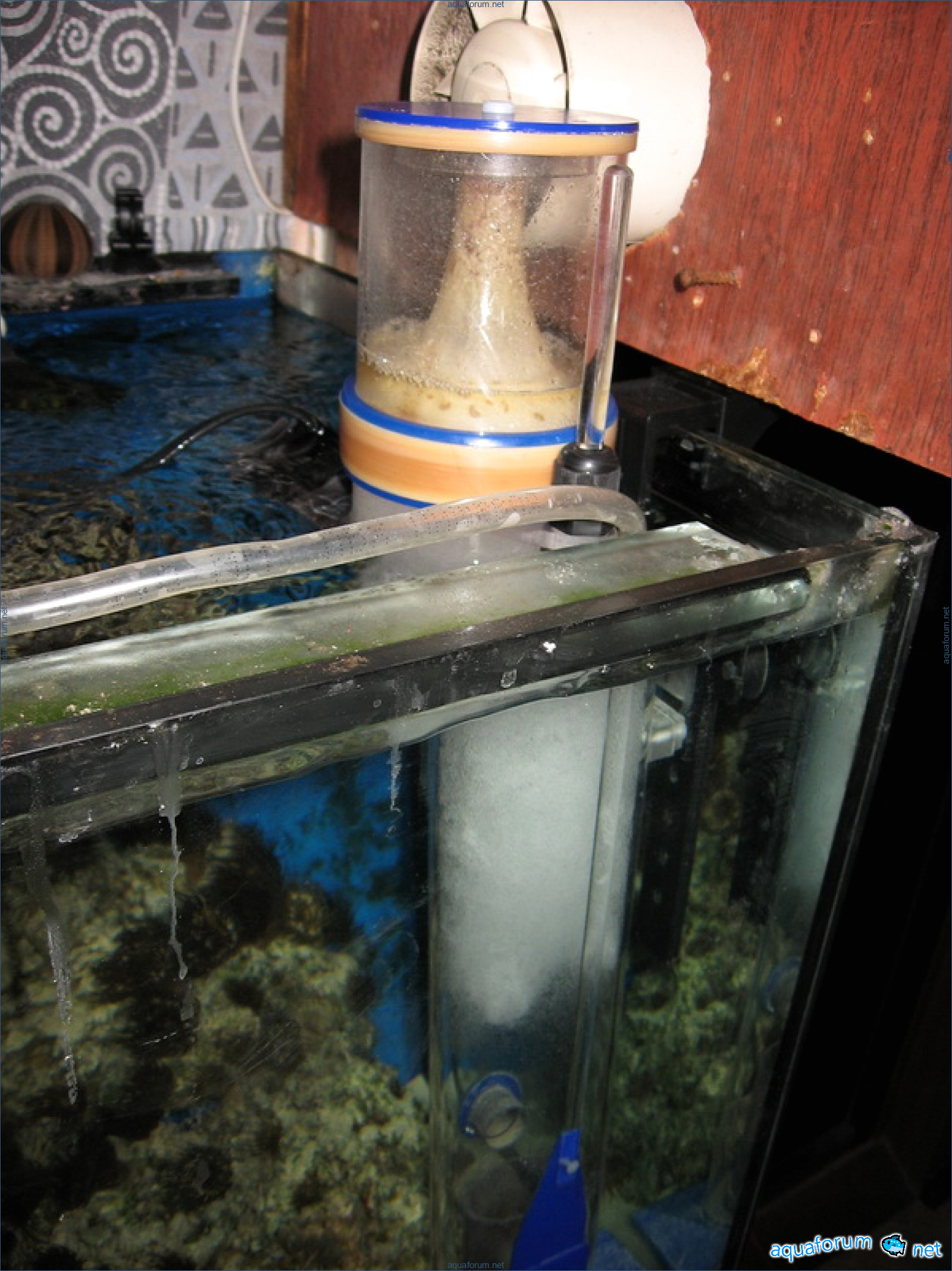

"Guy" 5 minutes in operation. I fixed previous mistakes, the silencer is in place. At the output, there is a bubble, or it's time for fitting, or the housing for the pump is a bit tight.

William5838

Two days at work, the aquarium is empty, there are no creatures, just what I could manage to fill the tank with.

Barbara8192

Vitaly, how are the projects going - have they been completed? Will there be happiness for the owners of Boy and Resan?

Vincent

Hello! While the project is on hold, there is a lot of work on orders. A flight of thoughts and creativity - if there is no work. Right now, a 200-liter tank with a leak on the external pump is "being born," but more on that later. I think I'll come up with something in a month.

Allison

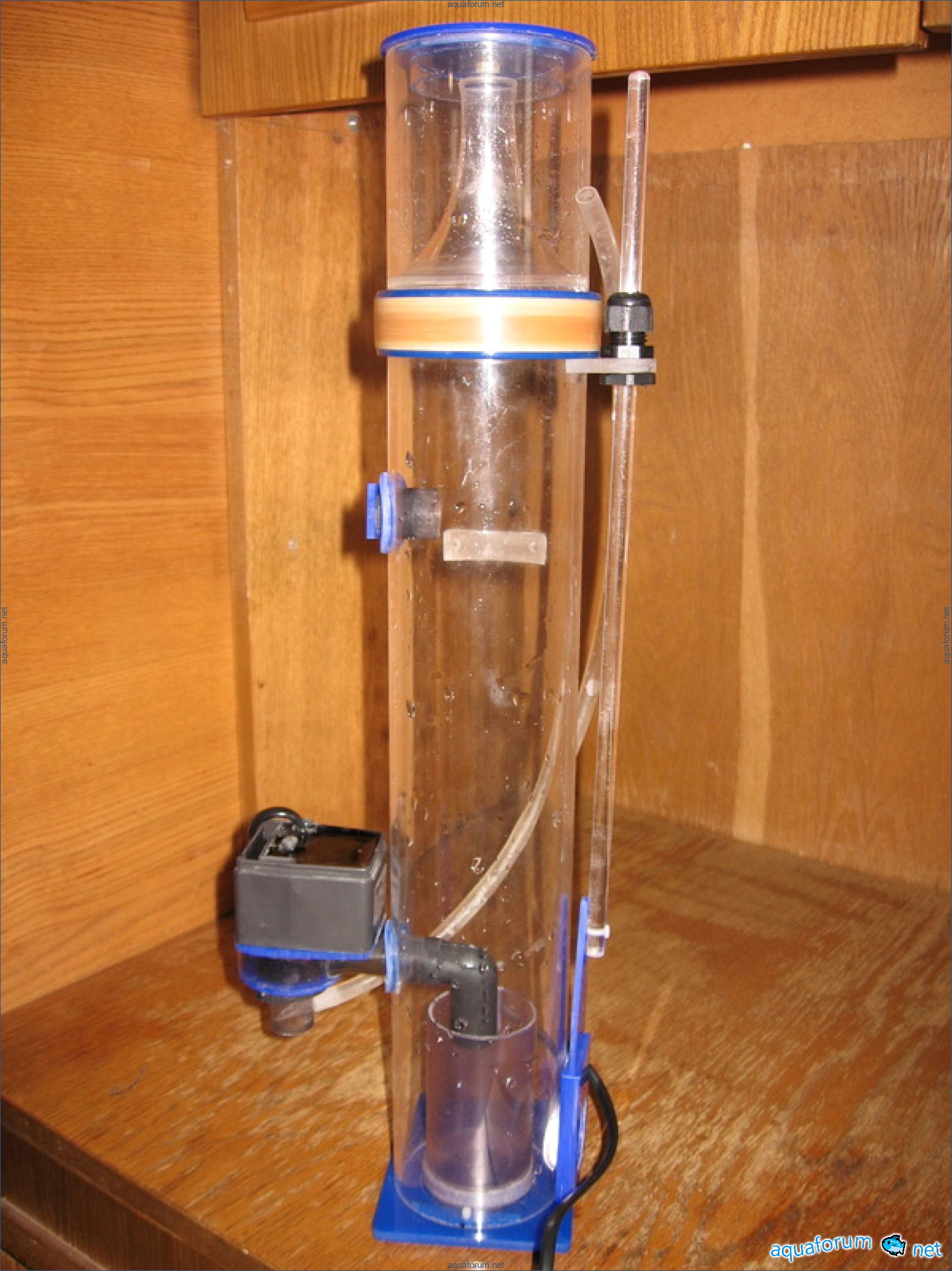

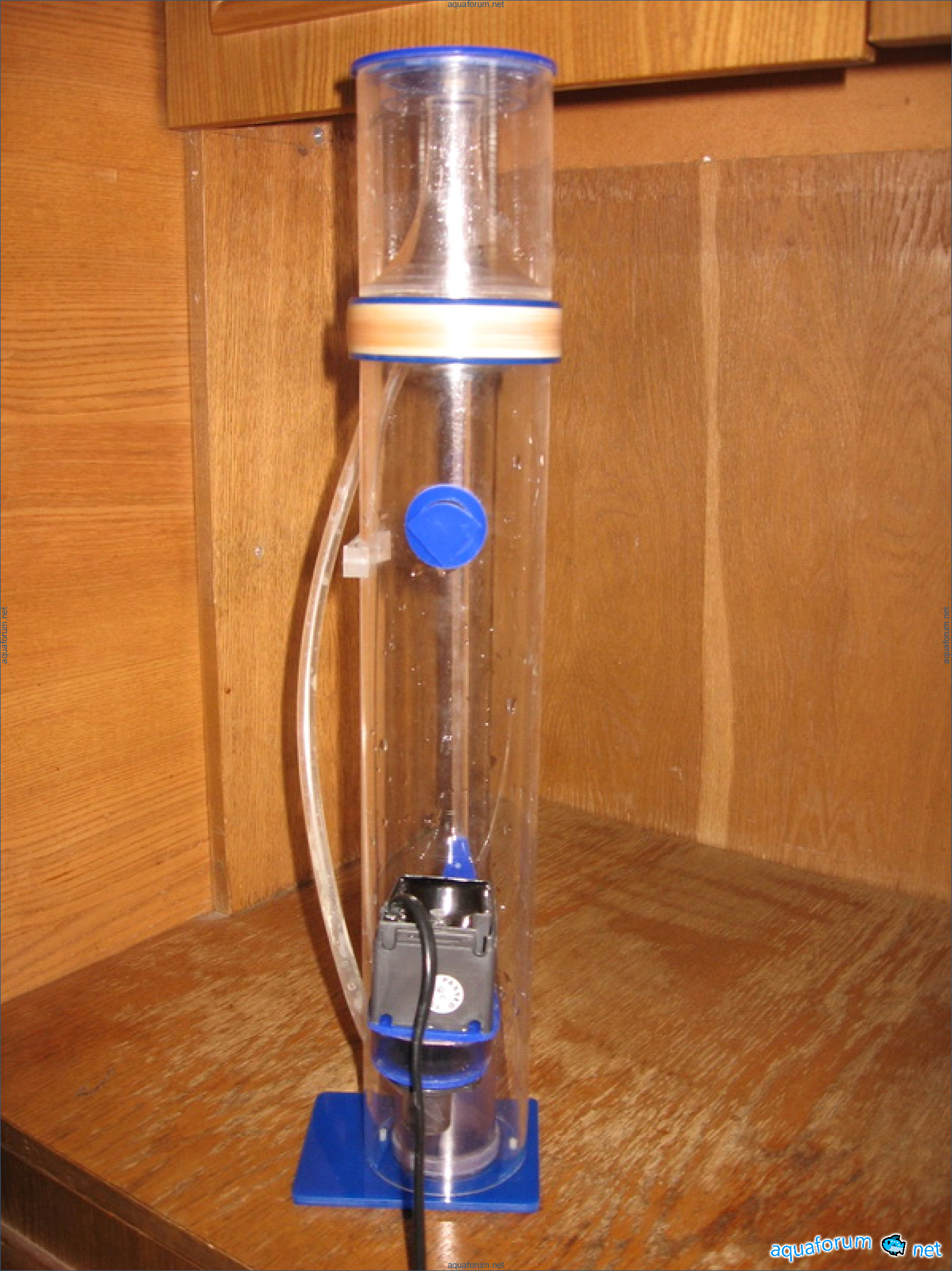

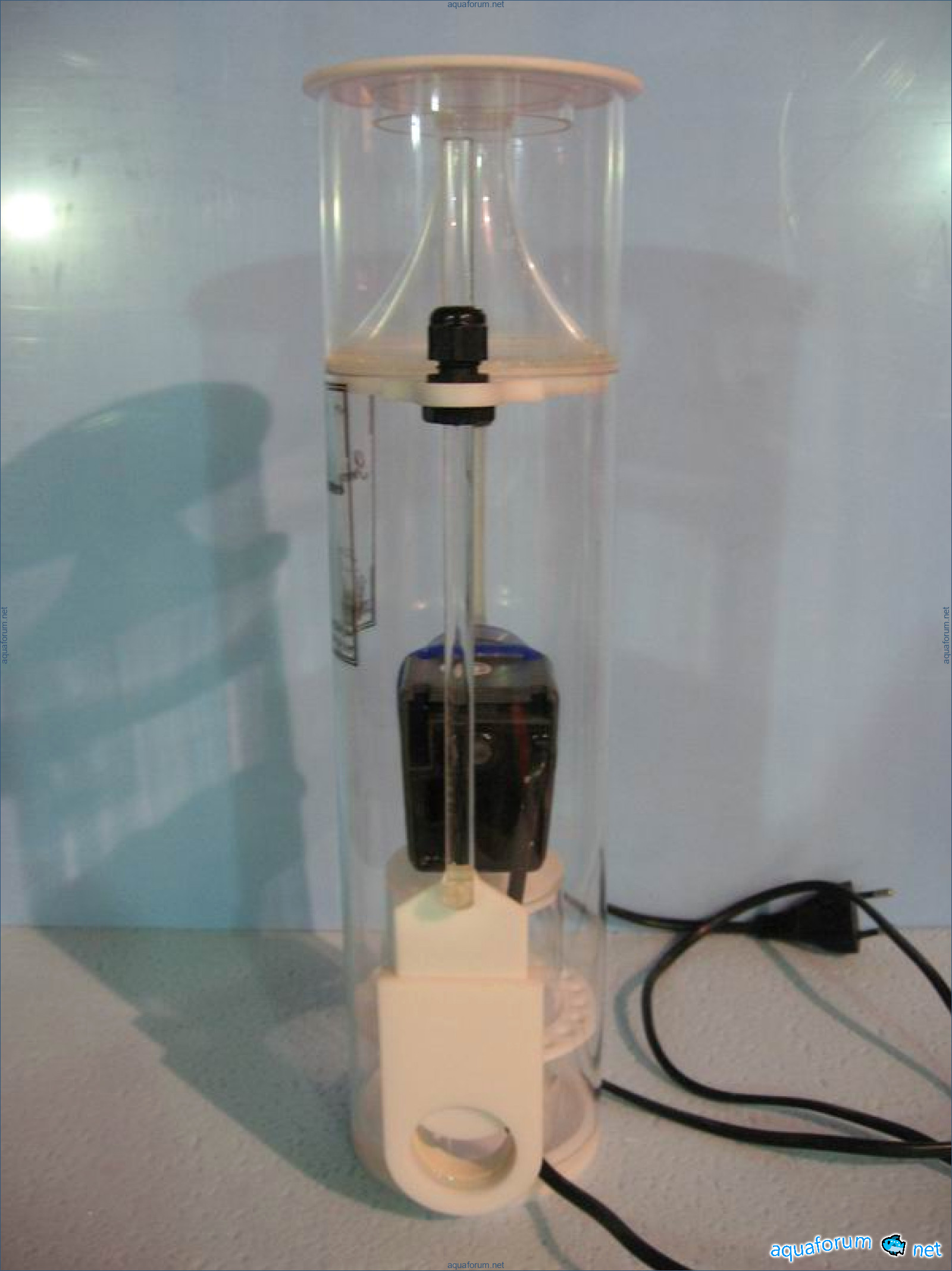

Continuing! Universal skimmer, can work suspended inside the aquarium or standing in the sump, the pump and elbow can be repositioned either up or down, and a plug replaces the hole. Diameter 80mm, pump 9W, draws air at 100l/h.

Amber1273

What volume of the aquarium is it designed for? And how deep can it be submerged in water? In the photo, I see that it is submerged almost to the very...

Caroline1599

Up to 200 liters. It can be immersed as you wish, and adjustment is achieved in two ways: - by height; - by a damper.

Robin

What kind of pump is installed?

Brian6895

Atman RN-500 9W.

Whitney

Can the performance/volume of the aquarium be increased by installing a more powerful pump?

Matthew7977

No. It will be too tight because of the bubbles. There will be a continuation with a more powerful pump for cans larger than 200 liters.

Leslie

AND WHAT ABOUT THIS? Resun DMS-500PL Aquarium AND WHAT ELSE IS THERE? AND THE PRICE, PLEASE

James5032

And the sizes!

Megan

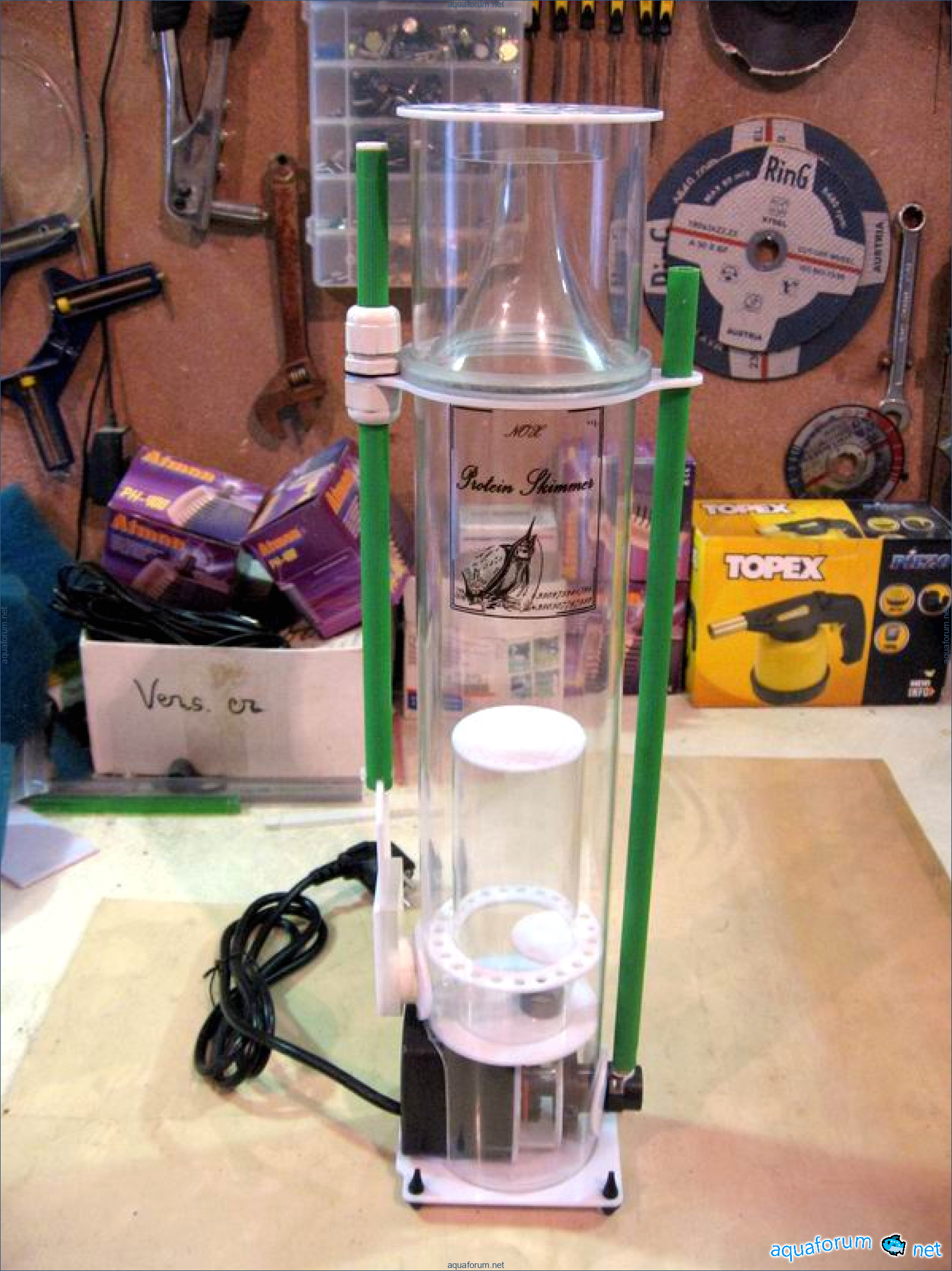

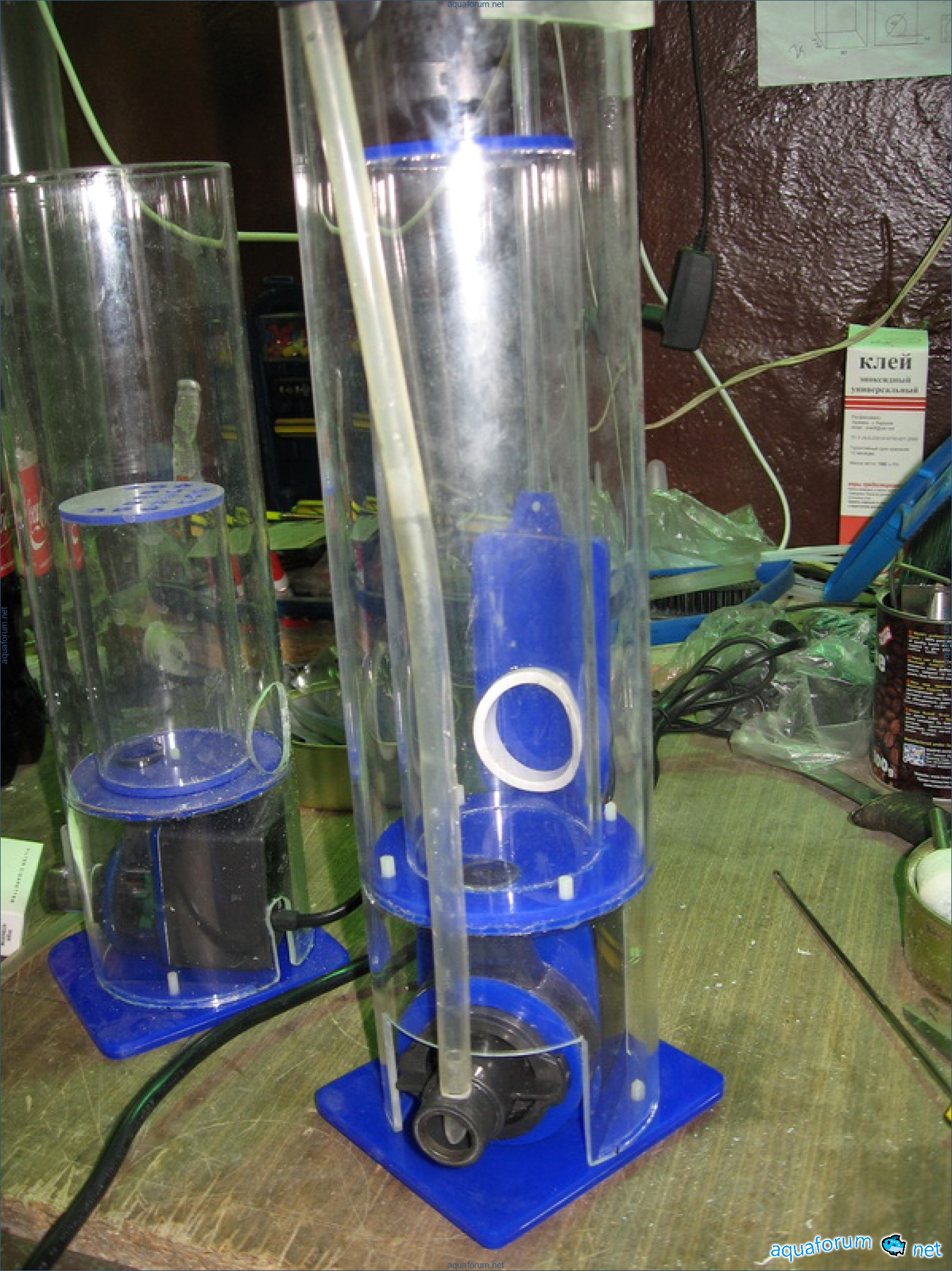

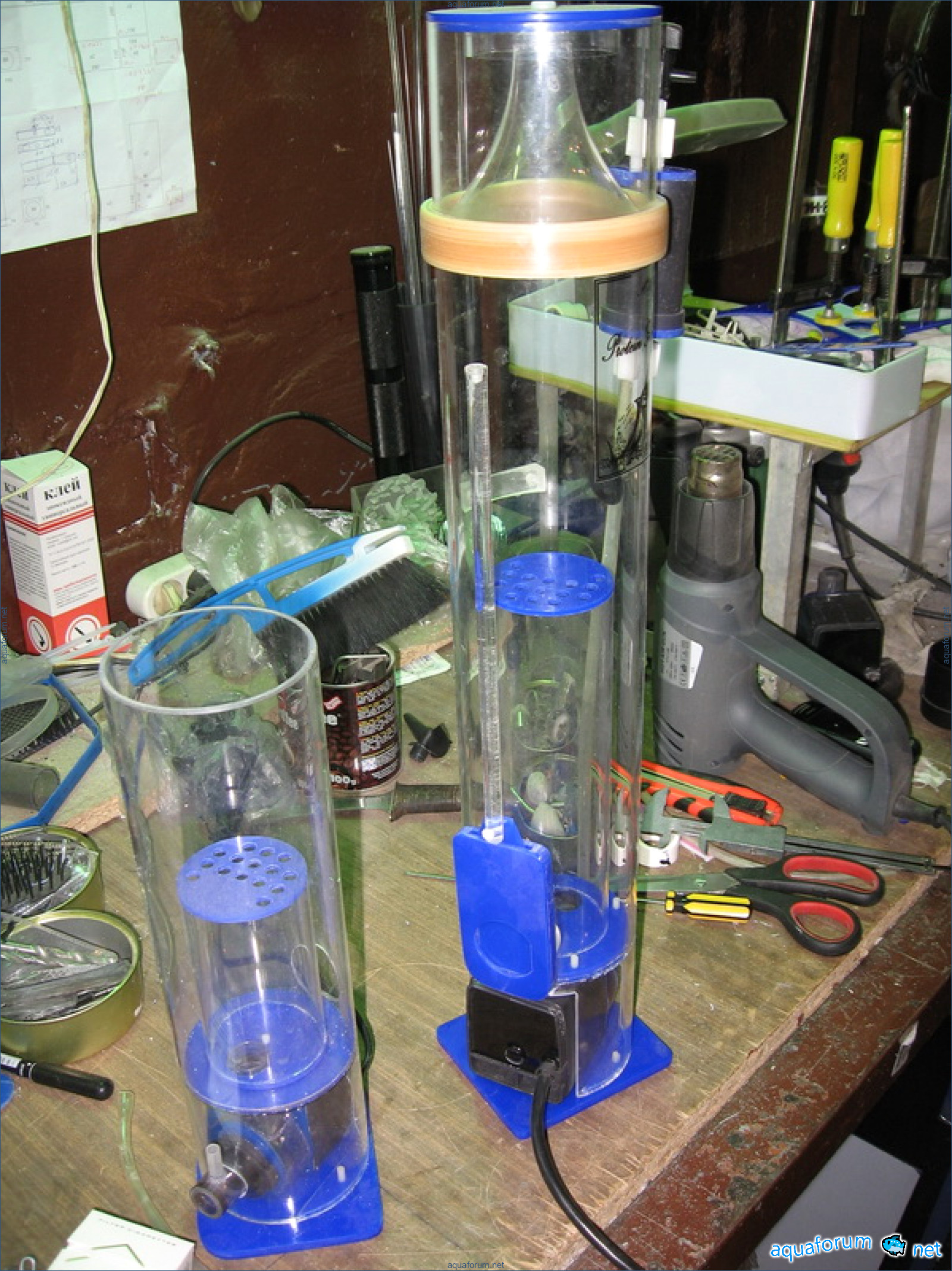

As for the Rezanov jars, there are a couple of projects, one is almost finished, the biggest one in the photo has already been tested with a 15W pump, pulling 300 liters of air per hour. Details later. I think it will go for a test drive by the end of the week.

Rachel9060

Continuing: -size (mm) 100x110x540; -pipe diameter 90mm; -pump 15W; -air 300l/h.

Chad9037

Well made, I'm envious.

Ronald5720

Vitaly, and Kharkiv will be very, very much looking forward to such penalties.

Vanessa

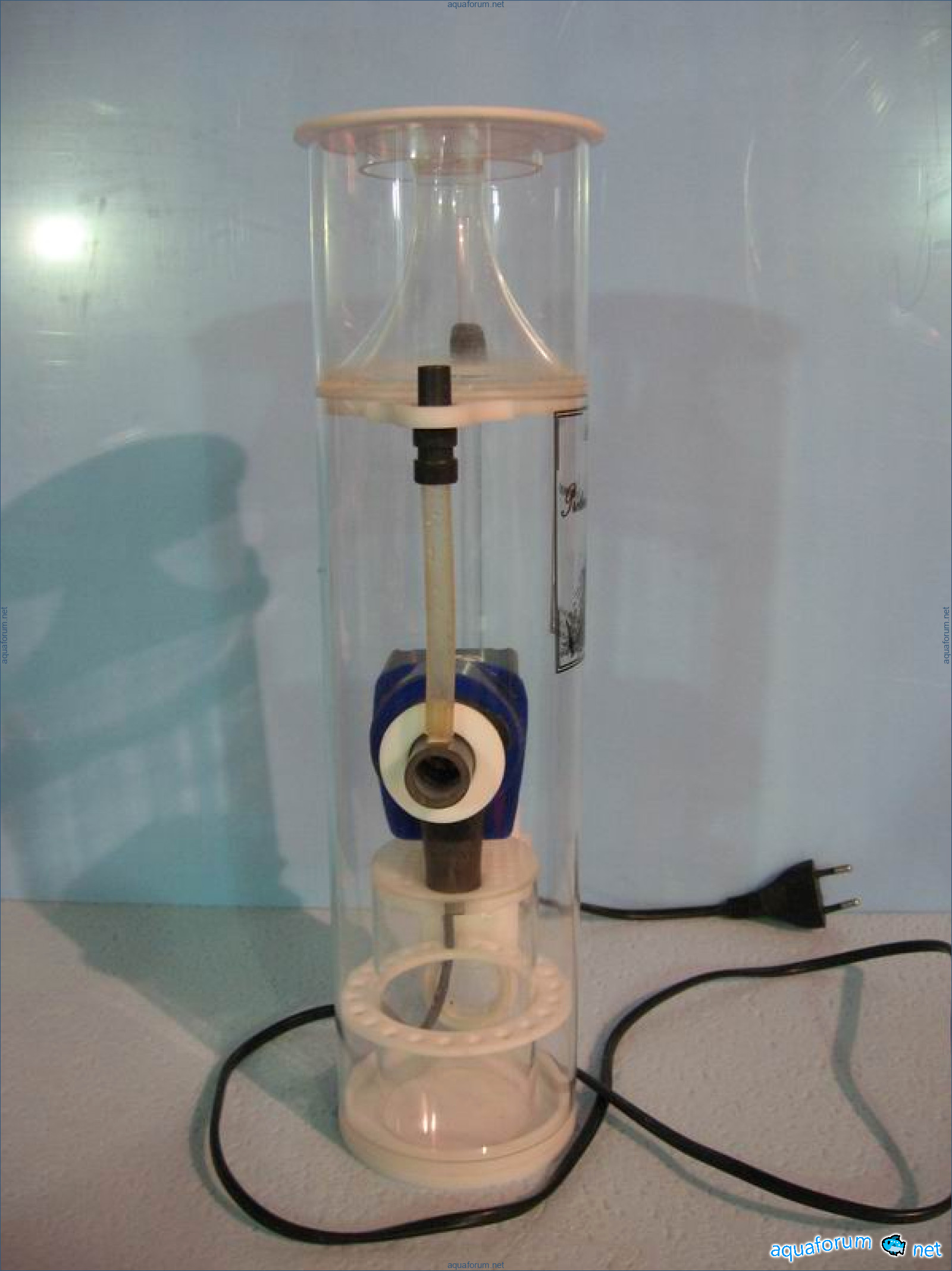

Continuing: -size 100x110x400; -pipe diameter 90mm; -pump 9W; -air 100l/h.

Lee425

Is 400 the total height? What is the minimum water level possible? If the water level in the aquarium is 350, for example, is that acceptable?

Stacy6866

Yes, 400mm is the total height. The minimum level is just below the damper (100mm). I don't know, I think so, you need to experiment with the settings of the foam generator, height, and damper.

Danielle

How much will a filter for a 150-liter aquarium cost?

Martha

Here is a solution for Voyu 450, Resan, and for all "small-sample" factory versions. I wonder if it is possible to make one with the size of 8d*6.5w cm?

Rachel

Here is another link. Such pumps are available at a.

Joshua448

What is there at the link?

Laura4892

There, a person made two mini penises and showed how.

Zoe7451

For aeration, it will be useful.

Breanna9982

A simple aerator for 30 is enough for aeration.

Yolanda

Vitaly, what news do you have about the creation of the suspended foam pads?

Curtis

so far silence, I haven't taken it on.

Daniel132

Vitaly, how much does it rise above the edge of the glass?

Joseph8842

Before the cone base 85mm, with a bowl 175mm.

Jennifer

Vitaly, sorry for the primitive question, but will the pump run dry on the first start? Do we need to fill the system with water beforehand? And what if the electricity goes out?

Brandi

When starting, the tank is completely filled with water; when the power is turned off, it functions as an overflow, and the water remains in the pipes, continuing to operate when started again.

Steven

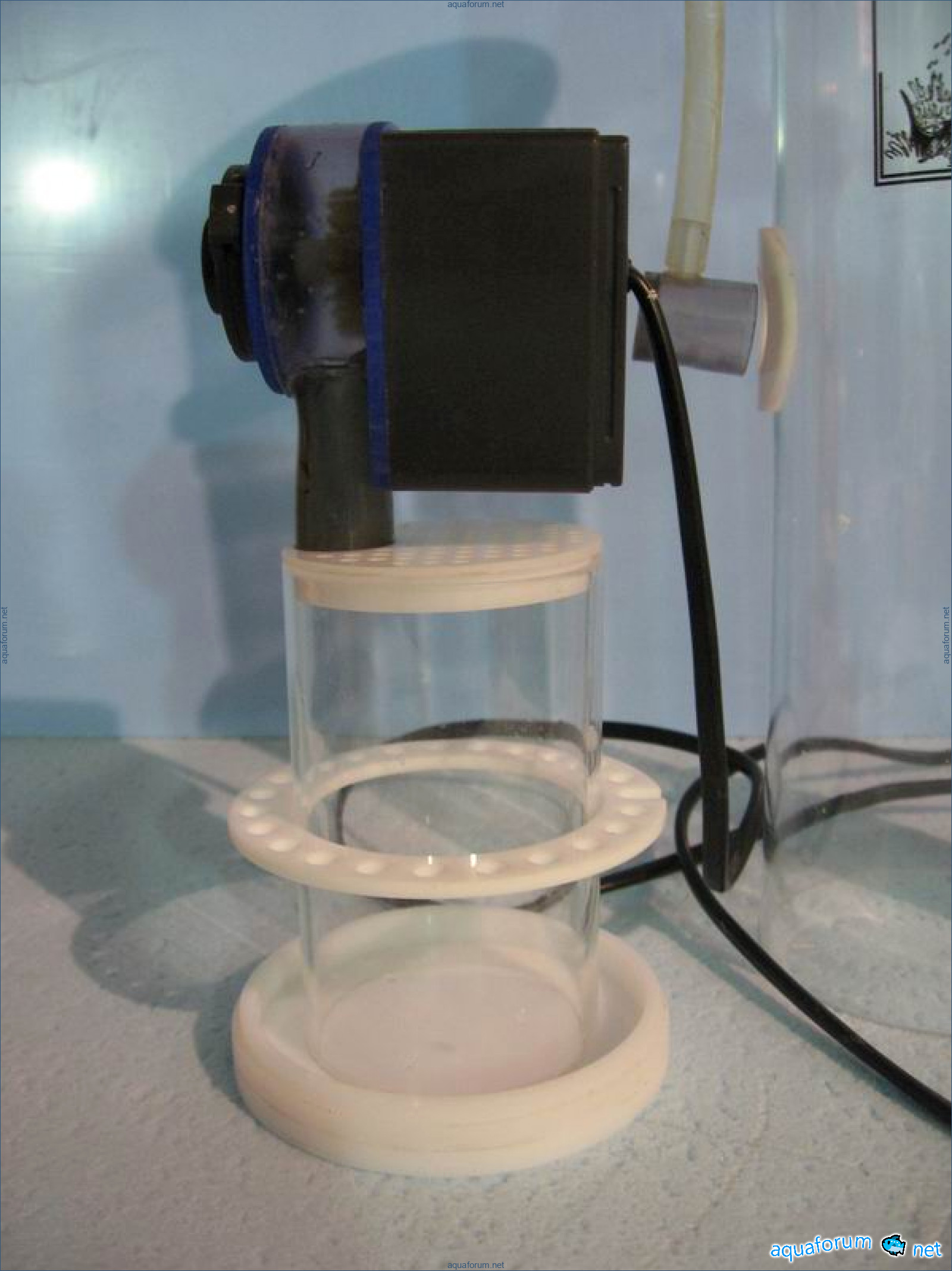

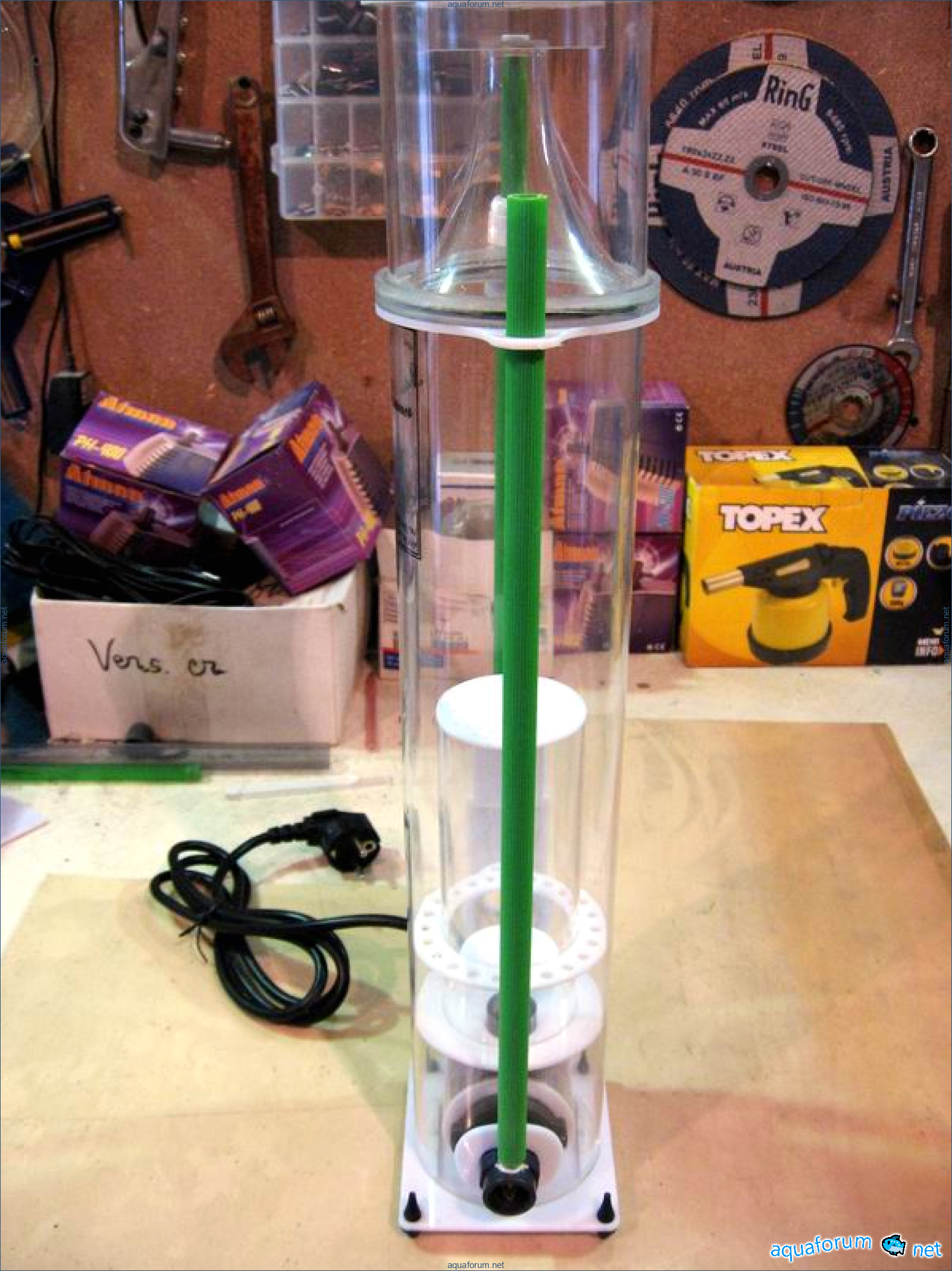

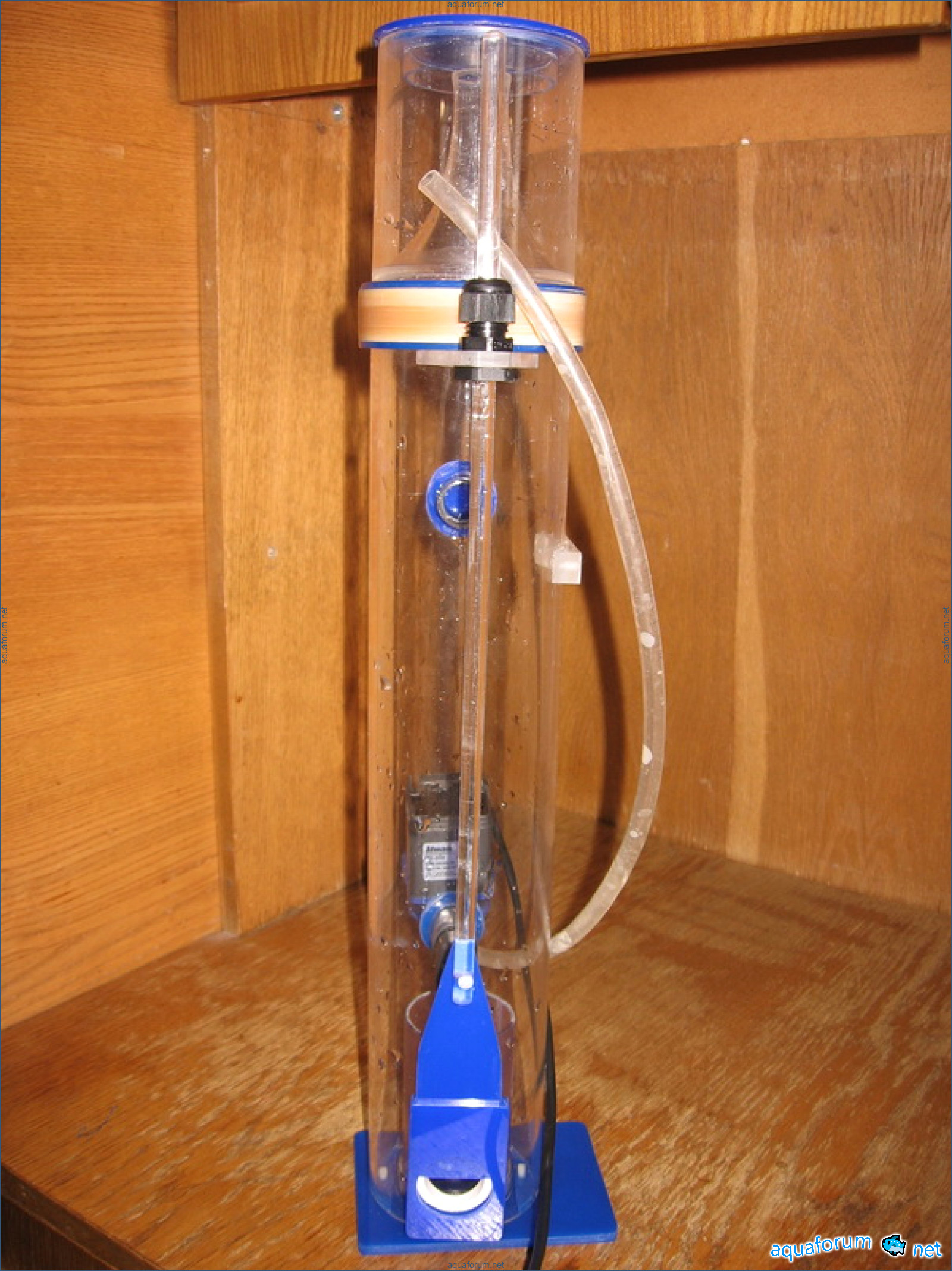

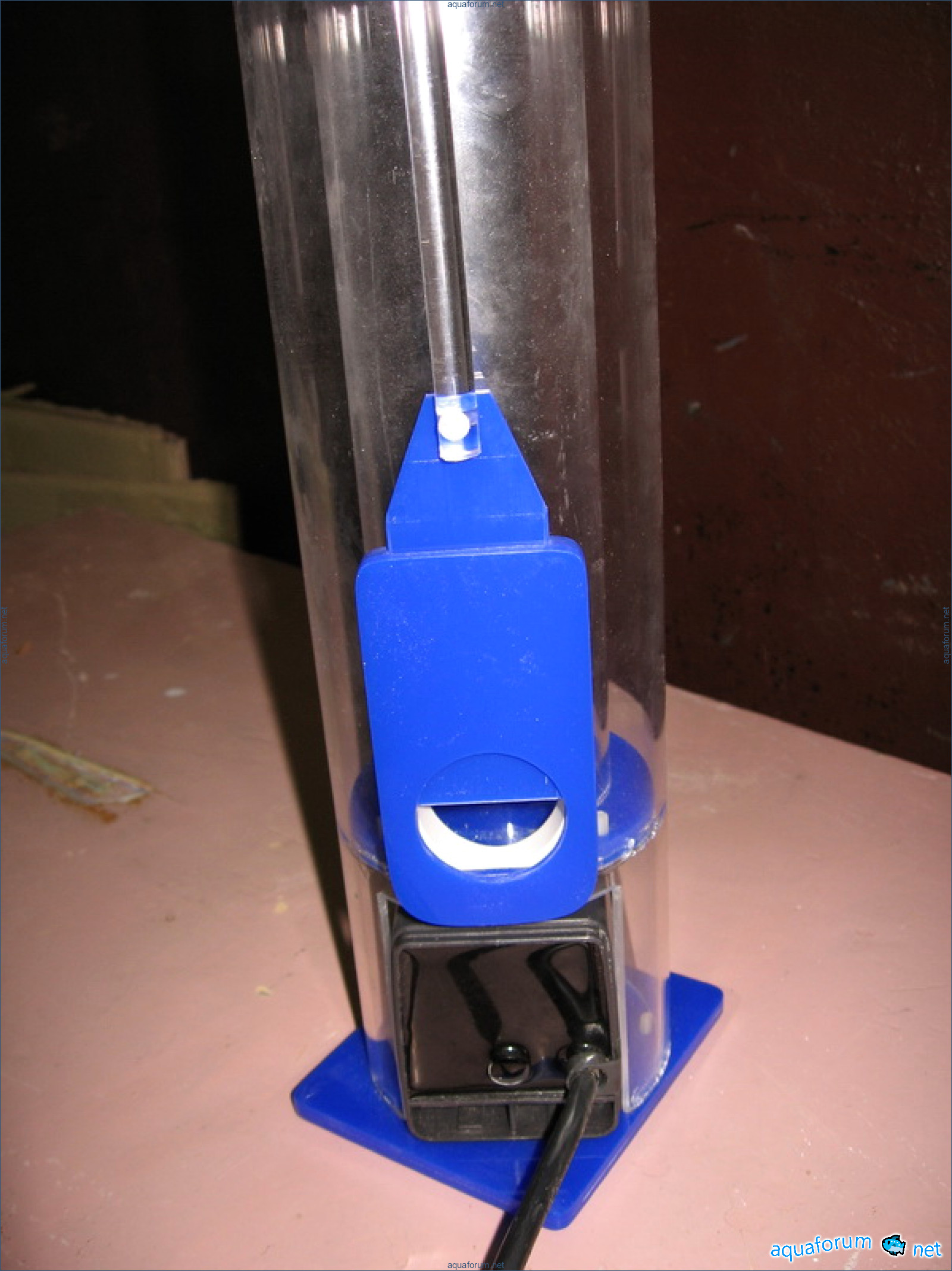

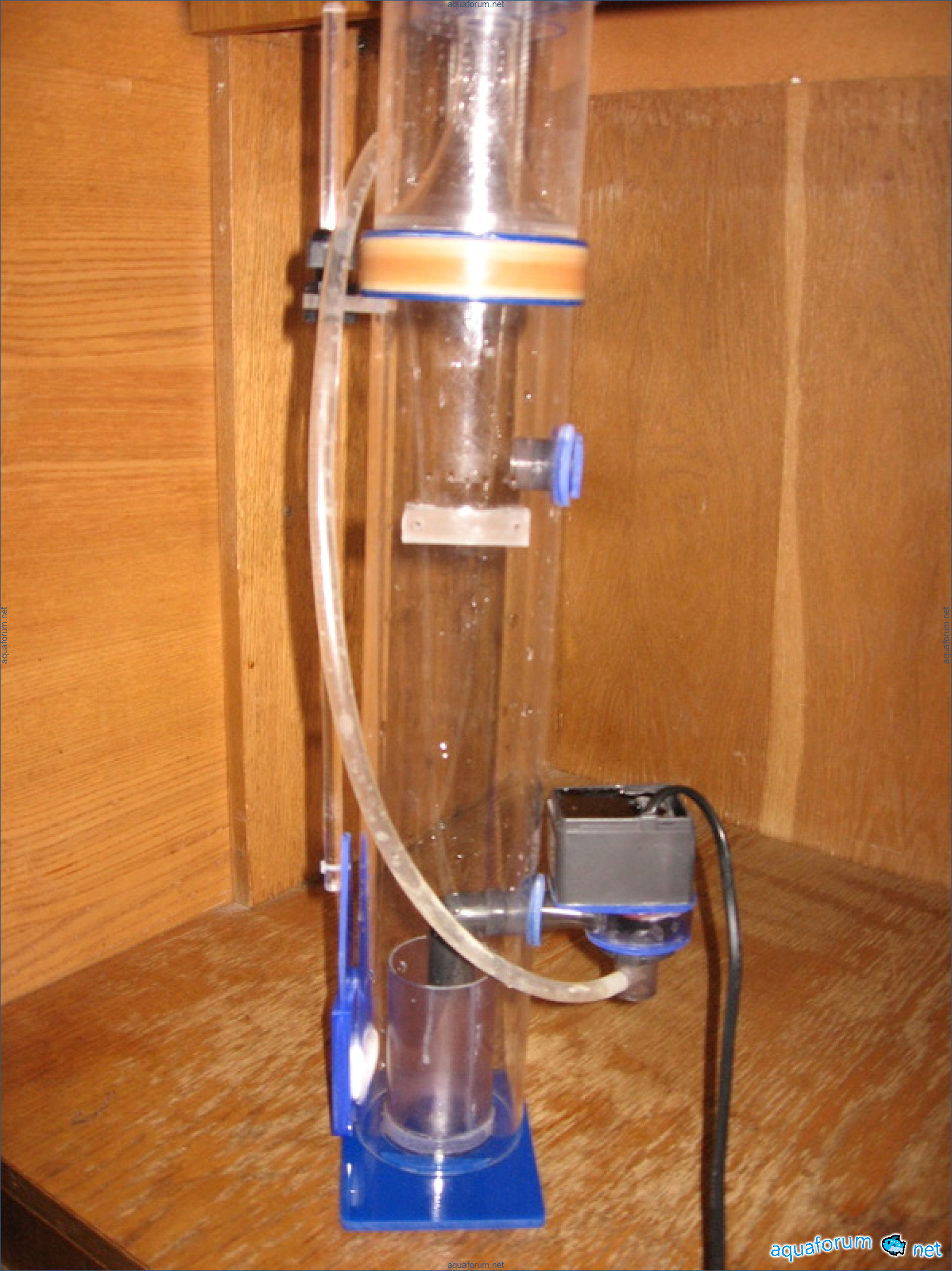

I present the "sharpened" brother of the penner from post #26, slightly modified the reaction chamber, added a sealing rubber ring for the penner bowl, and dressed it in white. The technical specifications remain the same.

Jeremy8404

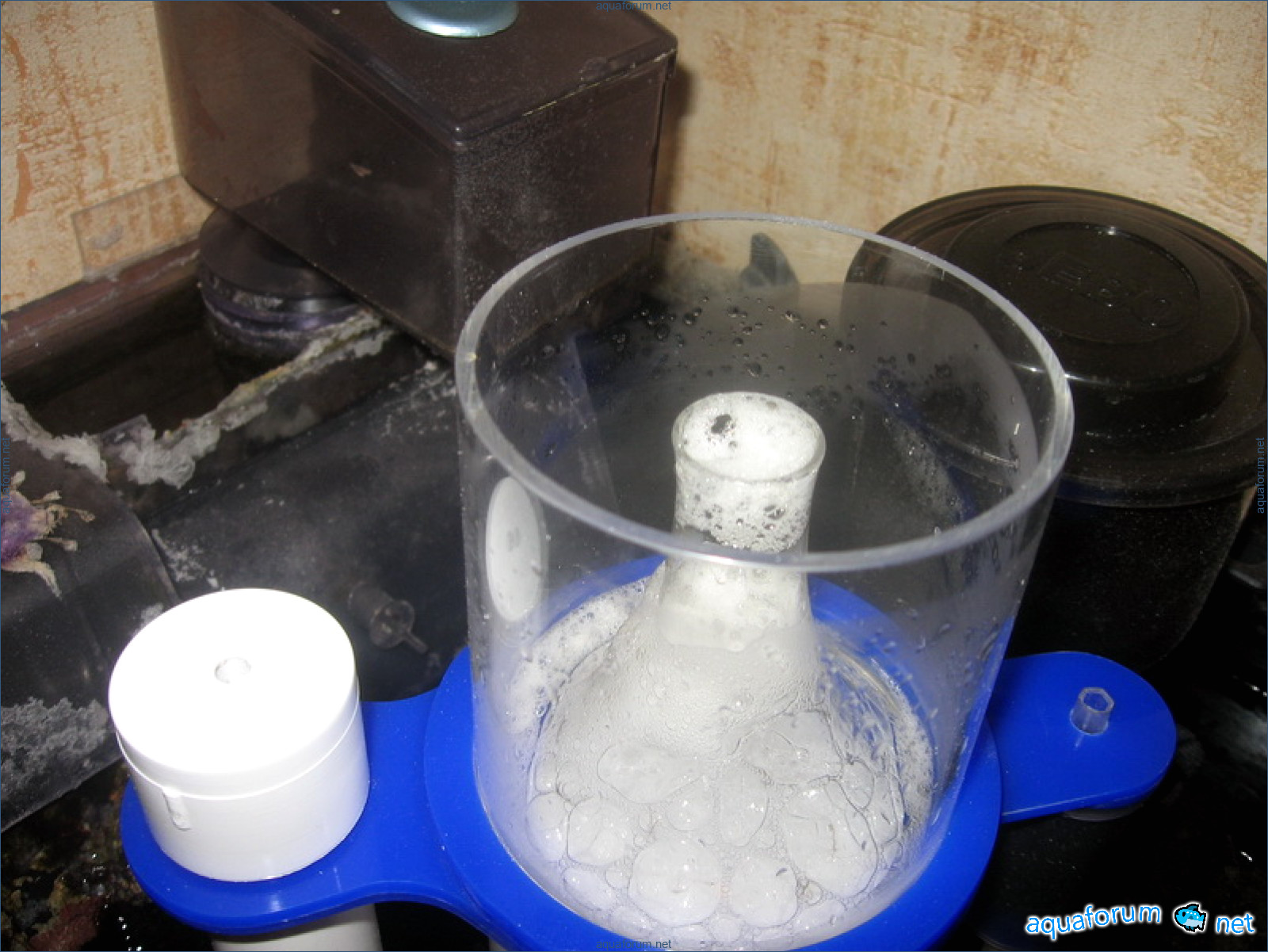

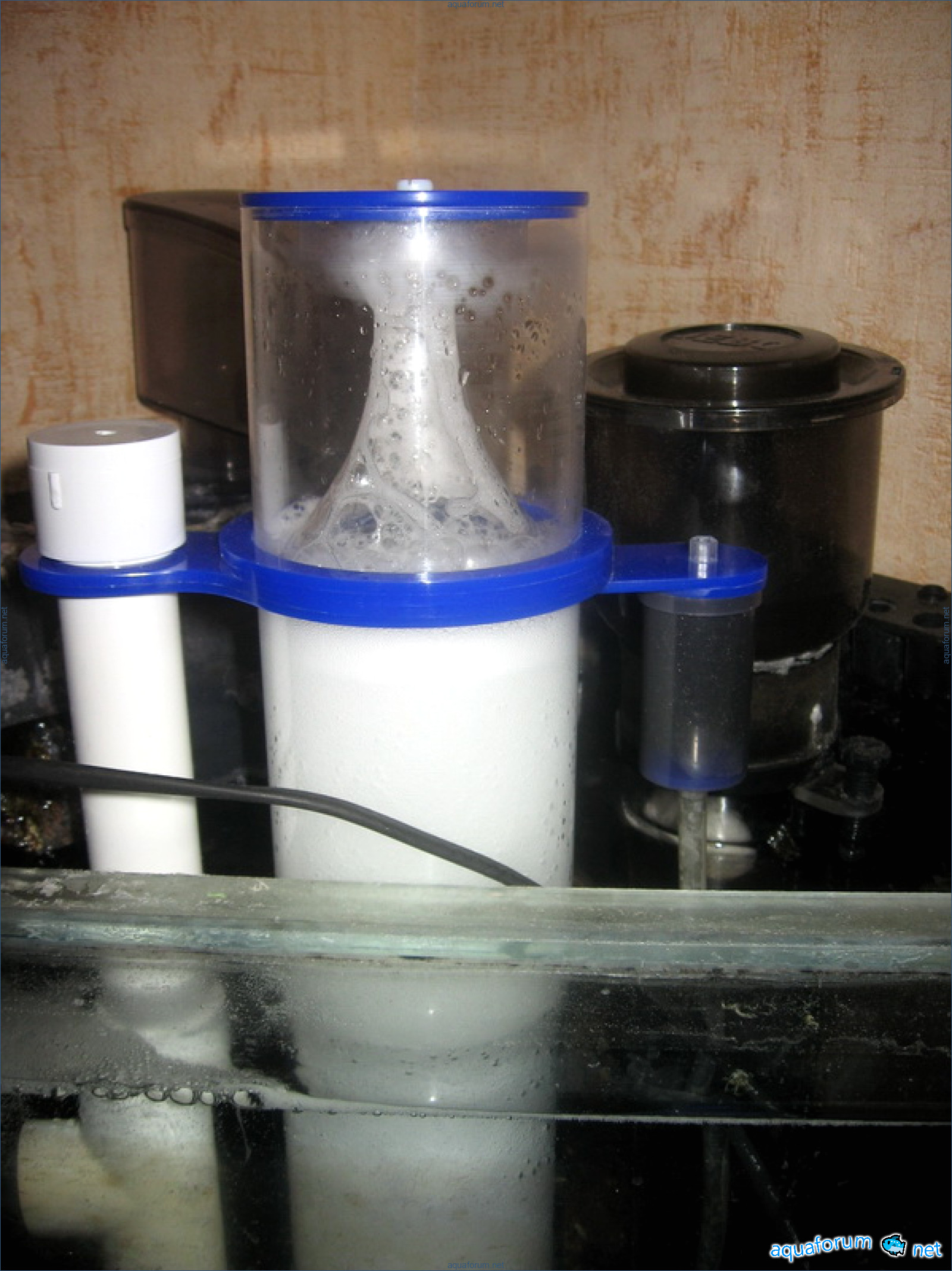

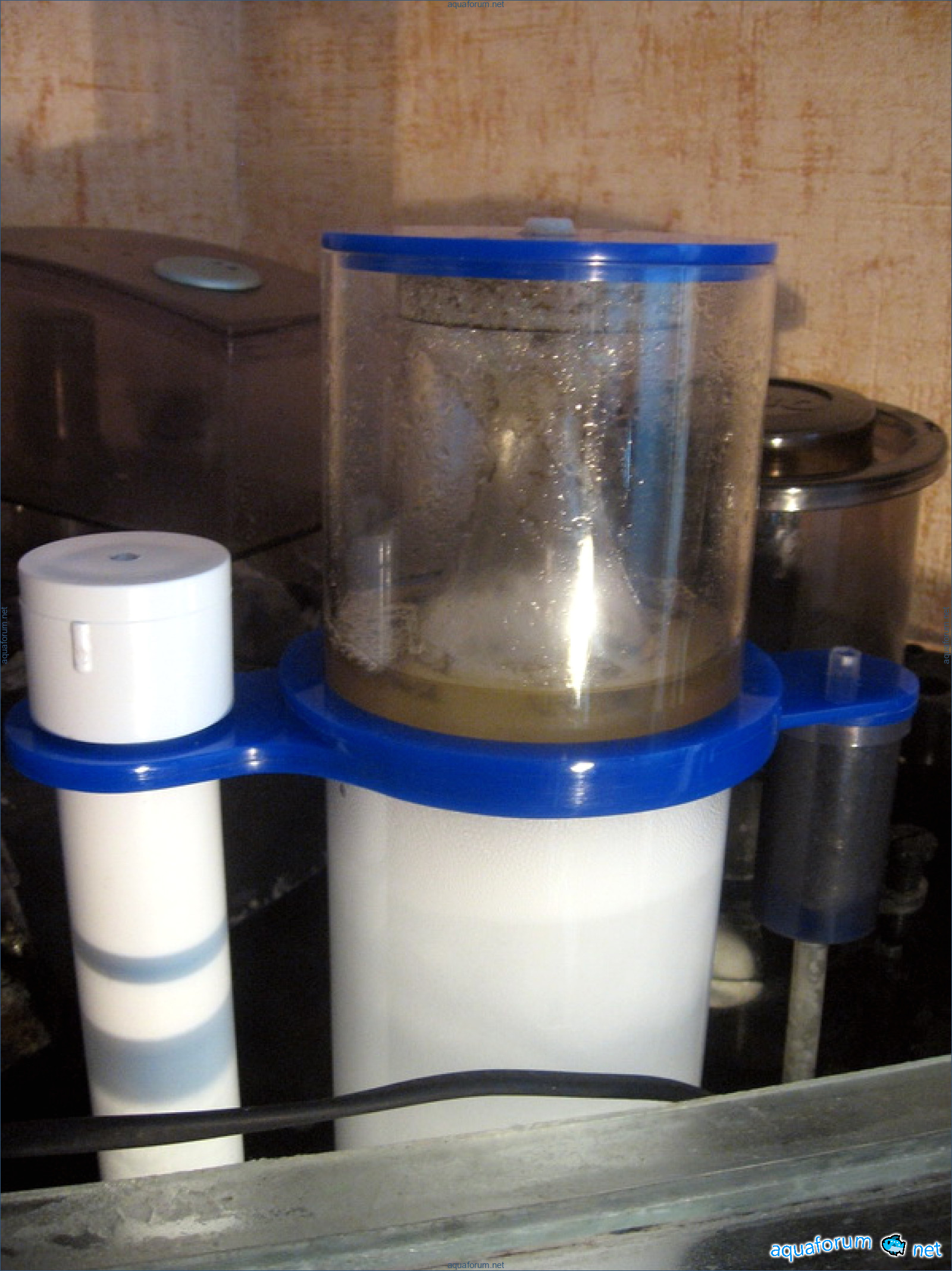

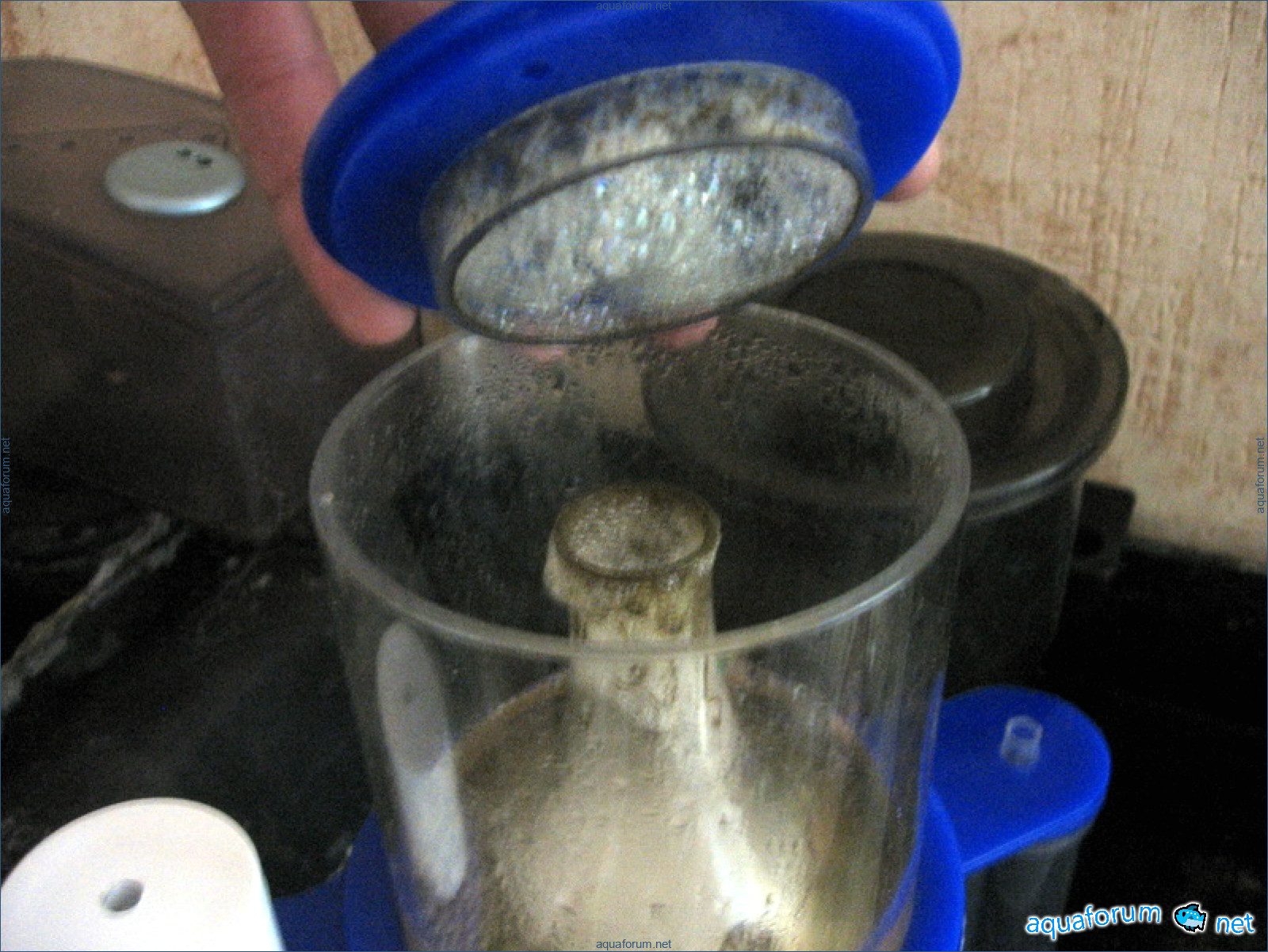

Result after three days of work.

Tami

I am planning a nano reef of 80 liters. Can you tell me if you sell your protein skimmers and which one would be best for my aquarium?

Randy

I have this aquarium and I plan to place a small sump behind it with a height of 40-42 cm - could you recommend a skimmer and if so, which one and what is its price? I would appreciate your response.

Mark

How can I buy such a skimmer for a 30L aquarium?

Brandon9634

I don't have any suggestions for such small ones. Unless it's for a sample or you can hang it inside a jar: or a shortened version of this:

Crystal4879

So, the one that is 80 (the second) how much shorter is it? And how much does it cost? Is there any point in 30 liters or is that already philosophy?

Joe

Vitaly, you are a genius! The foam roller arrived (everything is intact), the packaging is great, and the quality of the foam roller is simply A-B-O-M-B-A!! May God grant you health and prosperity in the new year! Thank you so much!

Monica

And have they come up with anything for the Resanchiks yet?

Joseph

And does BOYU TL 450 have anything to offer?

John3432

Thank you very much! I received the pen, everything is great. The execution is superb. The pen impressed me in use. Special thanks for the promptness.

Charles5941

Vitalik, is there a fin on the boyu550 (128L)? I'm ready to buy it.

Matthew1280

For such small jars, I haven't come up with anything yet; the sizes are too small, making it difficult to implement ideas.

April3499

Vitaly, you were preparing for a fight, right? Or am I mistaken?

Diana7891

That's exactly how it all started, in these jars they made all sorts of unclear barriers; if there were no horizontal barriers, any of my skimmers would work there, but the height is very limited. I try to extract as much air as possible from the pump, but with such height, the skimmer will overflow into the cup, and a bubble will come out of the skimmer, then it is necessary to reduce the pump's performance, and in terms of parameters, this will bring it closer to ordinary small Chinese and non-Chinese skimmers.

Chad9037

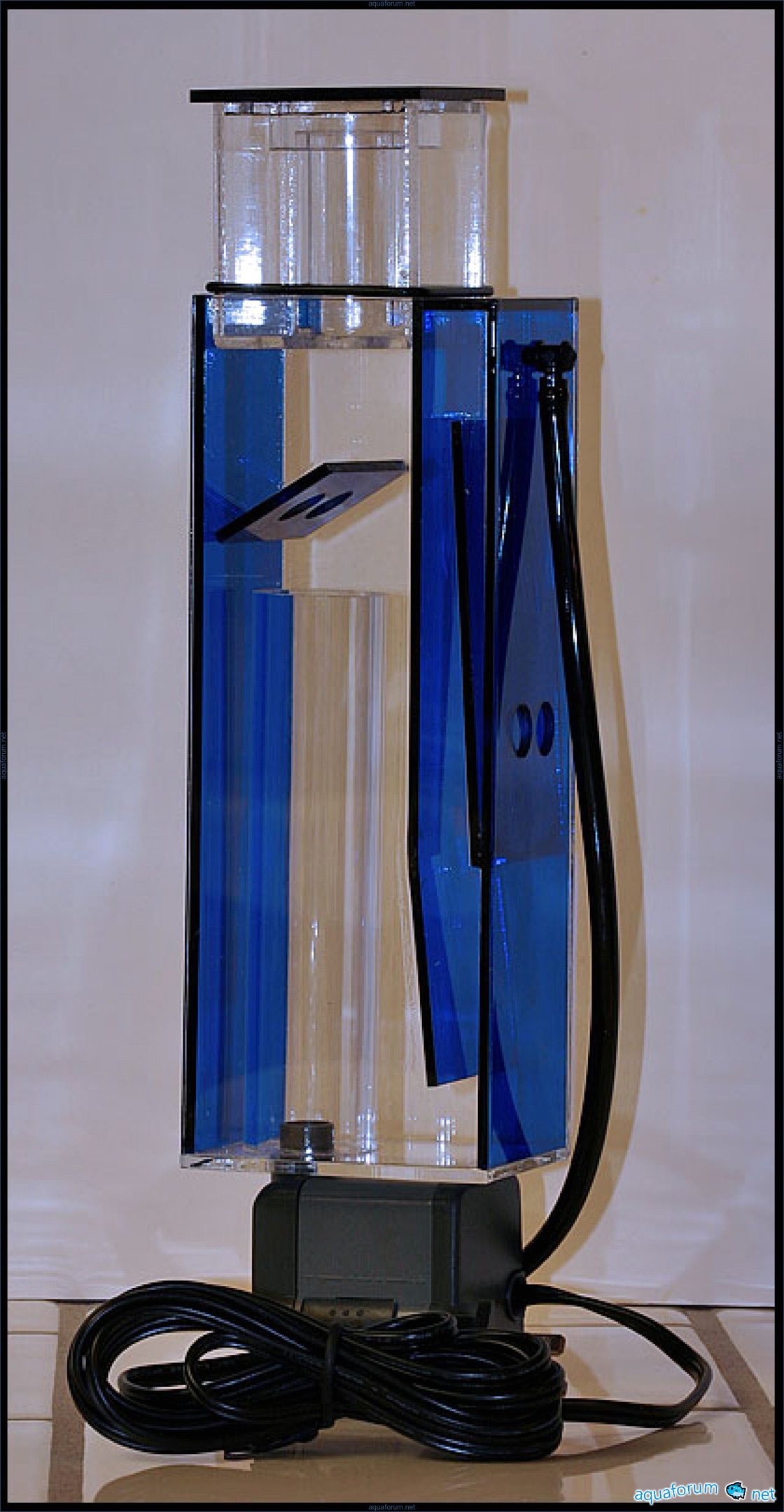

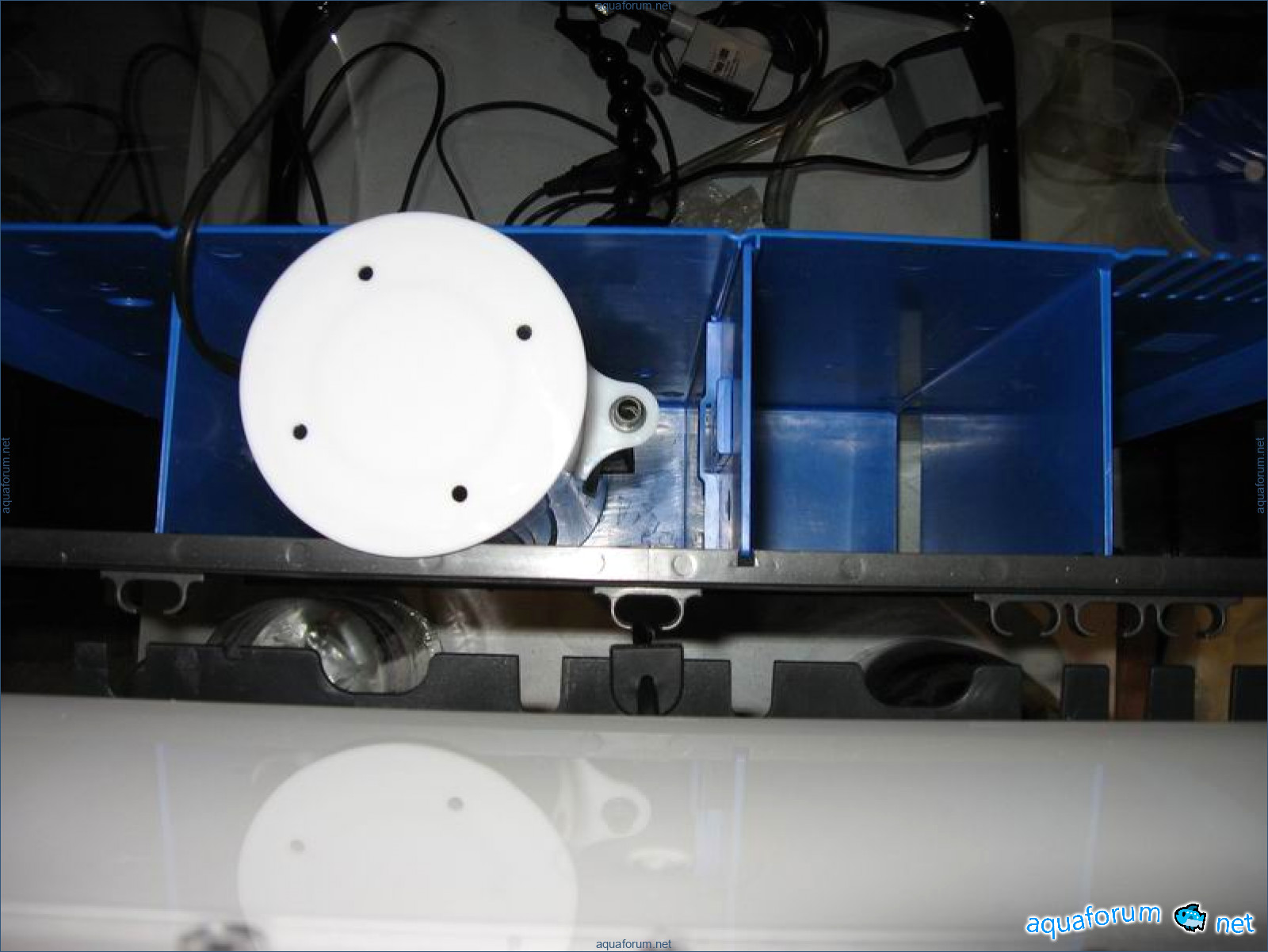

Hello everyone! So here it is, the DMC-500PL skimmer for the aquarium. Thanks to Denis from Nikolaev for kindly providing the jar. I could have removed the partition and installed a normal, already tested skimmer, but I decided to leave everything as it is, and the idea came to install the pump on top of the reaction chamber, which increased the water path; the bubble at the outlet is present for a couple of days, then stabilizes and disappears. The main pipe is 90mm, the total height is 355mm, and the pump is Atman PH-500, with an air consumption of 150l/h.

Jessica

I understand that a 120-liter tank will also work?

Vanessa

I don't know, I don't have such an aquarium, so I won't make any claims.

Christopher4108

the price of the issue for RESANCHIK

Mitchell3177

I am also interested.

Sheila1322

What is the size of the compartment for the foam pad in the Resan?

Ricardo7341

Answered in private message. 90x160x350mm.

Gabriel

I am also interested. Thank you in advance.

Chris

The price of the penny from post 63! In horsepower, please. This one works for me. I just won't buy a ready-made aquarium, but will stick to a desktop system. The bottom part is rubbery; can I put some rubber legs on it to make it less noisy against the glass bottom?

Kellie

Good evening, Vitaly. I really need a skimmer for Resun 500. How can I order it?

Marie5735

Good evening, please let me know the price in private message. Thank you in advance.

Nicholas5194

I want to say about the foam for the DMC-500PL - it's a beast, you can achieve a good skim. As an experiment, I set the throttle to maximum, and the foam was so dry that the skim was black. Vitalik was right that there are no analogs for it for resins)))

Joyce

Good afternoon I need a skimmer for Resun 500, the price and the possibility of shipping to Russia.

Lisa

Good afternoon. How much does the pen from post 63 cost? And is it in stock?

Andrew9581

Good afternoon! The price of the penny from post 63...in private messages.

Andrew9581

Good day! I'm also interested in the price of the pen from post 63.

Jessica5016

The pen arrived from post 48! Guys, I can't express how happy I am with this device! Everything is done very neatly and thought out to the smallest details! I received a silencer as a gift, which makes this device 2 to 3 times quieter! A low bow to Vitaly for this device! Everything is simply at the highest level! P.S. - I even made it to Chișinău without any problems! It's time to make a map and mark where your devices are, Vitaly! )))

Monique1236

Good afternoon! Is it possible to create a foam insert for the VOYU TL-550? The compartment size is 11.5x11.5 cm. Height - 50 cm. Thank you.

Kayla7655

I am also interested.

Dennis

Oh! I need one like that too! I'm waiting for a reply in private messages.

Aaron

Give me the dimensions of the compartments, preferably in a drawing, and the water level in the compartments, I will try to make it.

Holly

Aren't they all non-standard? I'm afraid I won't be able to measure what I need correctly, although I'll try.

Jeanne

So, who has any plans? Vitalik, have the data on d"sh"v come in?

Erica

Silence.

Nicole7268

Alright, I'll do it today.

Cheyenne2747

I can mess up and not measure what needs to be measured; I always have problems with this. They are all the same, so we need someone to measure, and everyone will be happy.

Jason5071

Vitalik, 100"100 h 490 fill 400 100"100 is already the size of the foam block, the compartment itself is 105-110, maximum height 490 - there's room to maneuver. Filling with water 400, but that's for me, as the partitions are trimmed for such a fill.

Darrell5975

The water level is a bit high; subtract the size of the skimmer cup by 90-100mm, and the entire body of the foam generator is underwater. The excess water and air pumped in have nowhere to go in the foam generator and will overflow into the cup. To create a load on the pump and allow for foam level adjustment, is it possible to lower the water level in the chamber to 300-350mm?

Darrell7542

I can use a stand for the float and adjust it to set the desired water level height for the float. What height is the float planned to be?

Chris

You wrote that the height is 490mm, and the water level is 400mm. Where else can it be raised? The lid won't allow it.

Tami

Oh, right. I will try to experiment with the level. In a couple of days, I will let you know if it can be lowered.

Kellie

Hello, will the Boyu 450 penny from post 63 fit? Or do you have something for such a jar?

Darrell5975

There is no cap for such a jar yet. I don't know if the one from the cut (No. 63) will fit.

Amber6362

Aren't you planning to build something like 50 liters of overhead equipment?

Samuel6138

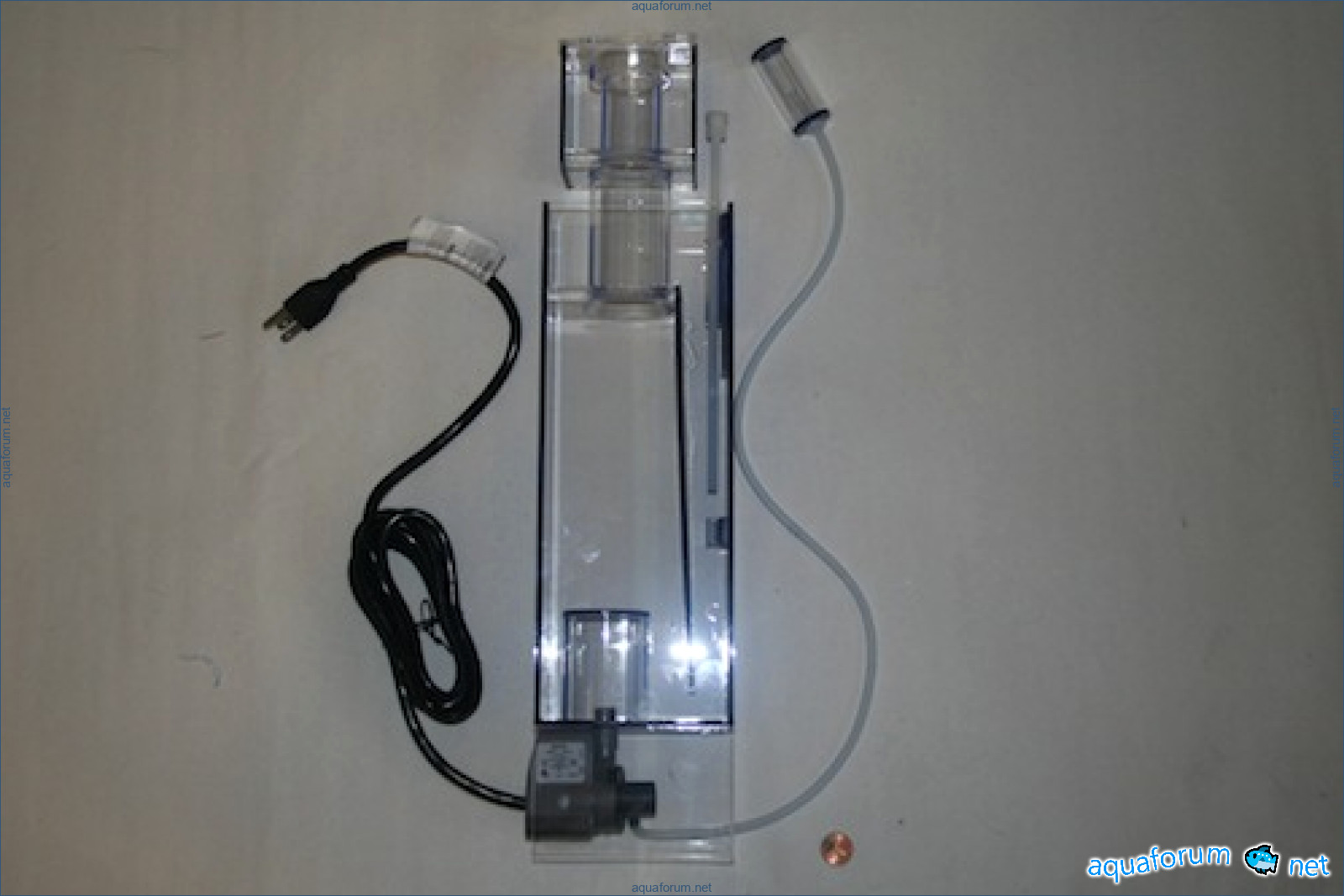

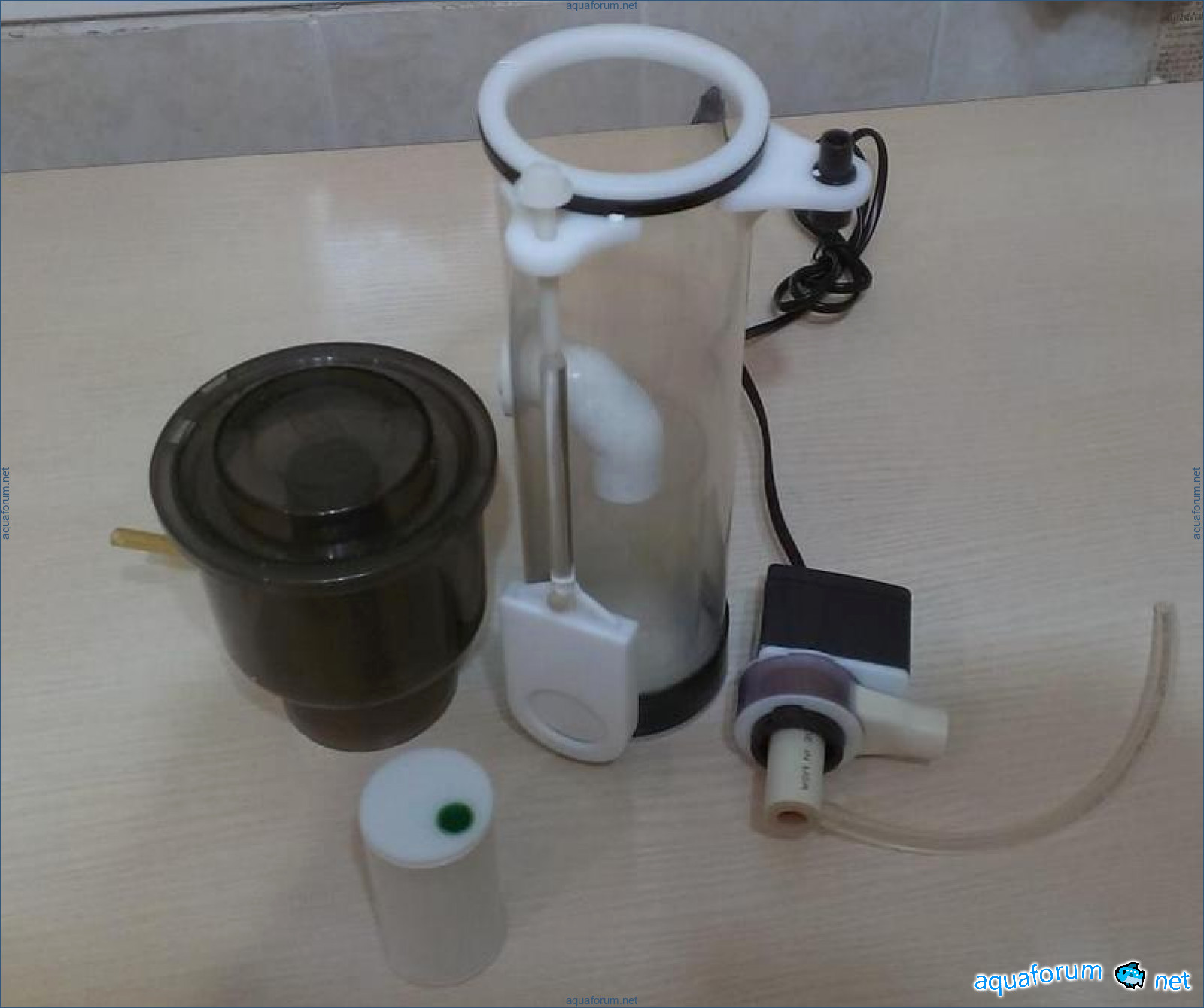

Vitaly, special thanks! the pen was beautifully redone the original is linked Jebo Hang on Skimmer 180 II - what came out of it is attached quality and promptness!!!!

Rachel

I want to order a skimmer. Aquarium volume - 80 liters. Sump - rear compartment. Compartment width 105 mm. Water level 360 mm. Thank you.

Brent7831

, , maybe this one will do

David953

Hello, I am interested in a pen for BOYU 128L, could you please clarify the price?
