Modification of the pump for Jebo 180 II

Brent7831

There is such a device. I want to modify the pump to: - draw in more air - produce smaller bubbles. I found a manual that suggests cutting grooves in the impeller and attaching a sponge. A tube was run to the impeller (through a PVC intake). By the way, something similar is done by the standard Jebao attachment. What else can be improved? Can I leave the attachment that came with the kit, or should I use another method for air intake (what kind)?

James3382

Wrap the enkomat around the rotor - it fits even with a white gap. The air intake is also weak, need to install another one (the air was drawn through a nozzle on the side, but I didn't quite understand - it needs diameter changes, I put a plug on half of the hole, it started sucking air and producing small bubbles, a bit more than with the original - need to do this intake correctly). I installed an Atman AT-202 1200 l/h (it was) and modified it. I put a ring and the insert part (plastic at the bottom) from Jebo, in the Atman it’s somehow different.

Cassandra7840

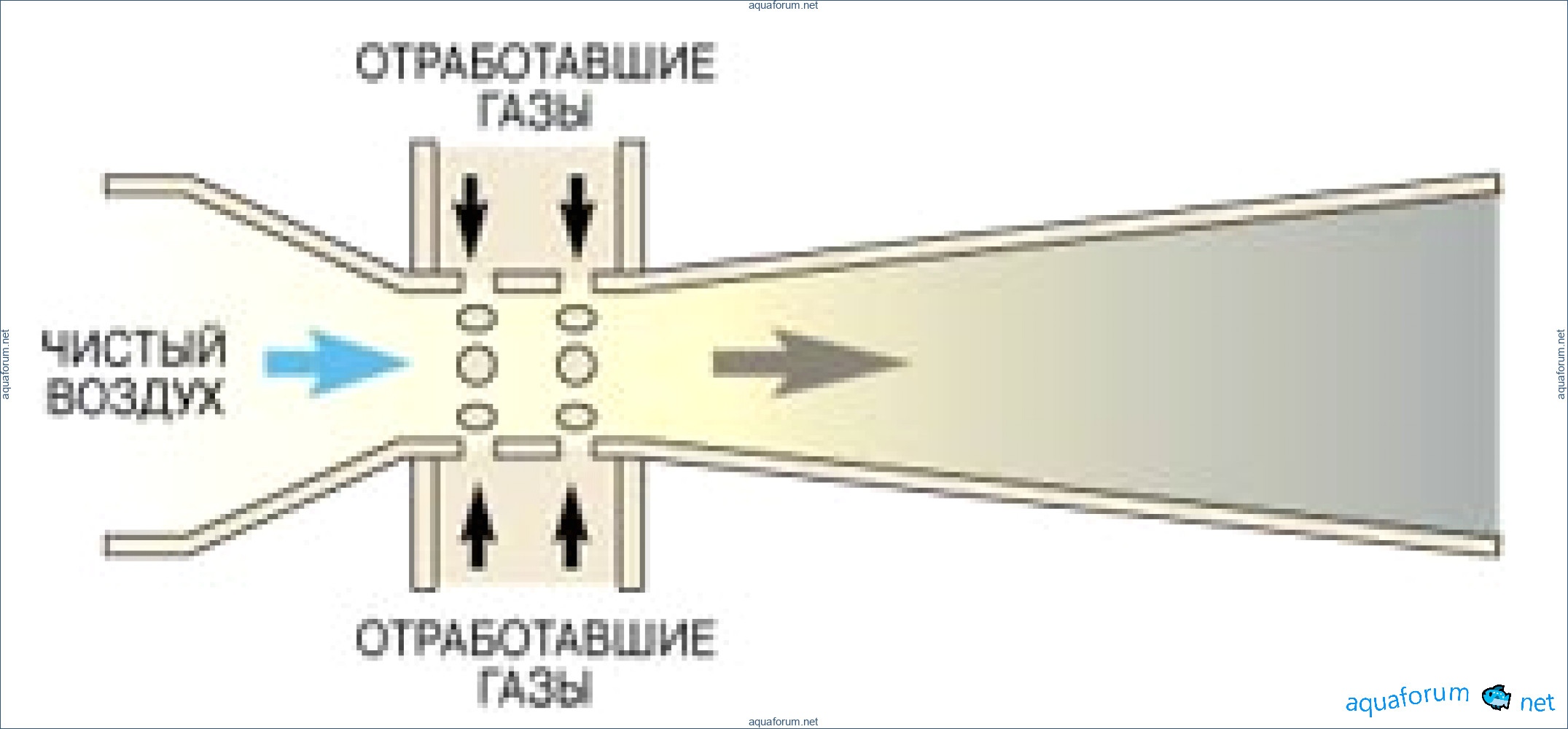

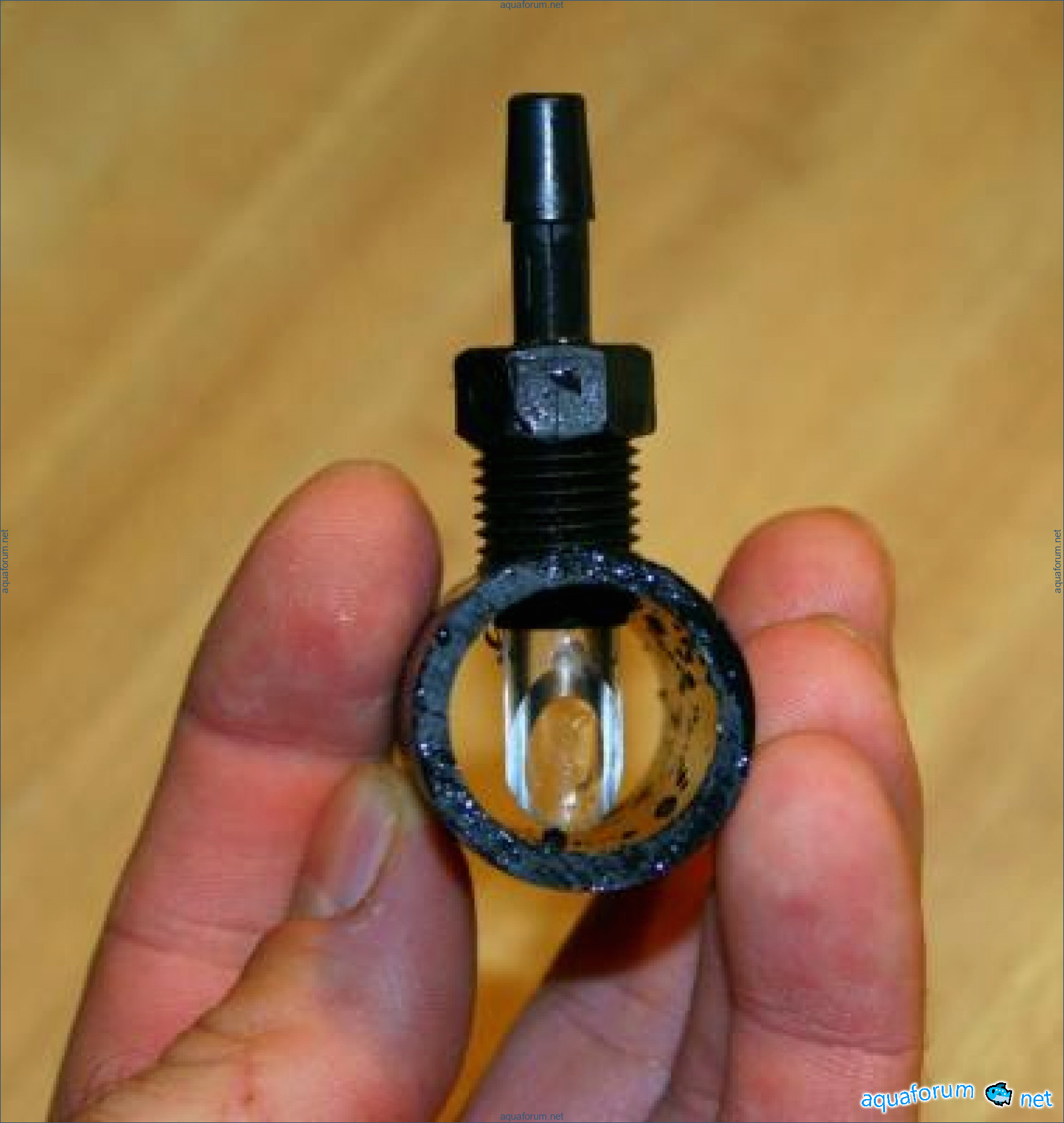

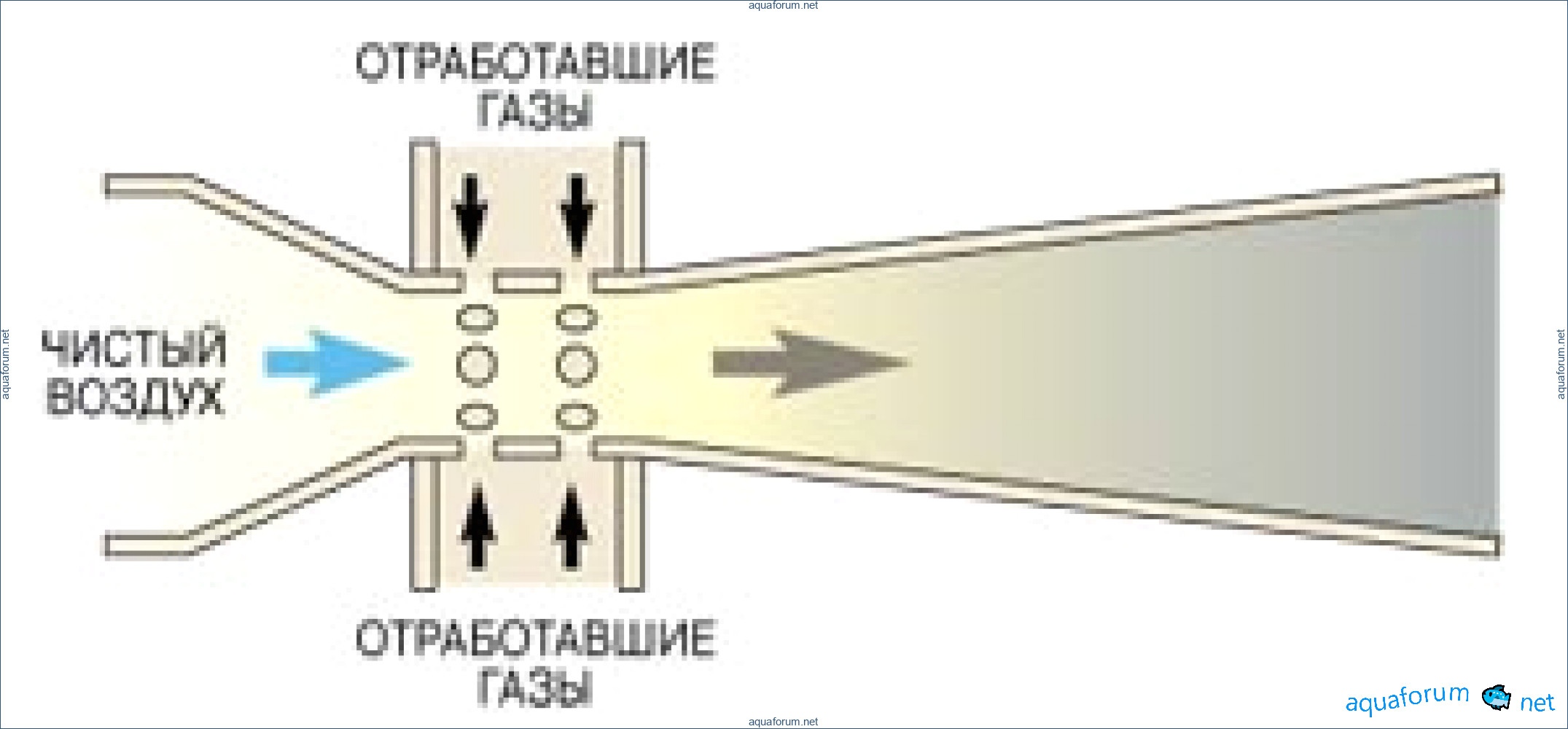

I looked at the Belarusian brothers on the forum to see what the correct Venturi nozzle should be. Now it makes sense to make an attachment for the inlet.

Stephanie4990

It's interesting to think about what these pictures are talking about. To me, they are completely different.
